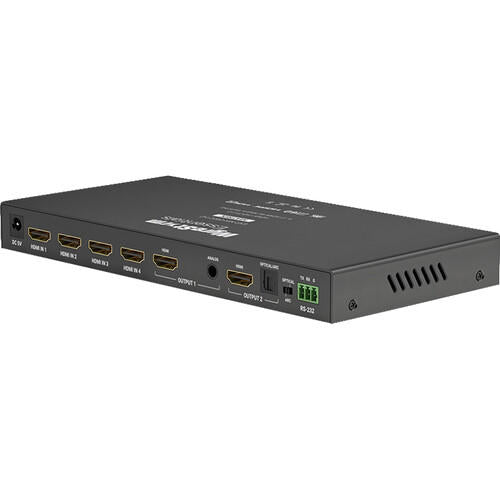

WyreStorm 4K 4x2 HDMI Matrix Switcher

The 4K 4x2 HDMI Matrix Switcher from WyreStorm is a powerful, compact matrix switcher with four HDMI inputs and two HDMI outputs that handle bandwidths up to 18 Gb/s. The unit supports ARC as well as CEC triggering and can de-embed audio for outputting via the 3.5mm analog stereo port and/or the digital TOSLINK port.

WyreStorm EXP-MX-0402-H2 Overview

The 4K 4x2 HDMI Matrix Switcher from WyreStorm is a powerful, compact matrix switcher with four HDMI inputs and two HDMI outputs that handle bandwidths up to 18 Gb/s. The unit supports ARC as well as CEC triggering and can de-embed audio for outputting via the 3.5mm analog stereo port and/or the digital TOSLINK port. Compatible with HDR10, HLG, and Dolby Vision, in addition to being HDCP 2.2 compliant, the switcher allows users to simultaneously connect 4K and 1080p displays, using its powerful built-in scaler to deliver the most optimal signal to the appropriate display. An included 3-pin block connector facilitates RS-232 control, and the unit's sleek design ensures placement flexibility. Two mounting brackets are also included for rack mounting.

Switching Type IR Remote, Pushbutton

Processing Resolution DCI 4K at 60

Color Processing 12-Bit

10-Bit 4:2:0

8-Bit 4:4:4

Input

Video Inputs 4 x HDMI Female

Input Video Format HDMI (8/10/16-Bit 4:4:4/4:2:2)

DCI 4K at 60 fps

UHD 4K at 60 fps

1080p at 60 fps

Embedded Audio Input HDMI

Output

Video Outputs 2 x HDMI Female

Output Video Format HDMI (8/10/12/16-Bit 4:4:4/4:2:0)

DCI 4K at 60 fps

UHD 4K at 60 fps

1080p at 60 fps

Audio Outputs 1 x 1/8" / 3.5 mm TRS Stereo Analog Female

1 x TOSLINK S/PDIF Female

Output Audio Format Analog

S/PDIF

LPCM (Linear Pulse-Code Modulation)

Embedded Audio Output HDMI

Connectivity

Other I/O 1 x 1/8" / 3.5 mm IR

1 x Block 3-Pin RS-232

HDCP Support , Version 2.2

HDR Compatibility HDR10, Dolby Vision, Hybrid Log Gamma

DTS Compatibility DTS:X

Dolby Compatibility Dolby Atmos

Hardware

Wi-Fi Yes

Bluetooth Yes

Power

Power I/O 1 x Barrel (5 VDC at 1 A) Input

Power Consumption 5 W

Environmental

Operating Temperature 32 to 113°F / 0 to 45°C

Storage Temperature -4 to 158°F / -20 to 70°C

Operating Humidity 10 to 90% (Non-Condensing)

Storage Humidity 10 to 90% (Non-Condensing)

General

Certifications CE, FCC, RoHS

*as per Manufacturer

Rack Form Factor 1 RU

Dimensions 7.2 x 3 x 0.9" / 182 x 77 x 22 mm

Weight 12 oz / 340 g

In the Box

WyreStorm 4K 4x2 HDMI Matrix Switcher

5 VDC Power Supply

2 x Mounting Bracket

3-Pin Terminal Block

Remote Control (Batteries Available Separately)

Limited 2-Year Manufacturer Warranty
