Wyrestorm EXP-SP-0102-H2 1X2 HDMI Splitter 4K HDR with 1080p scaling feature

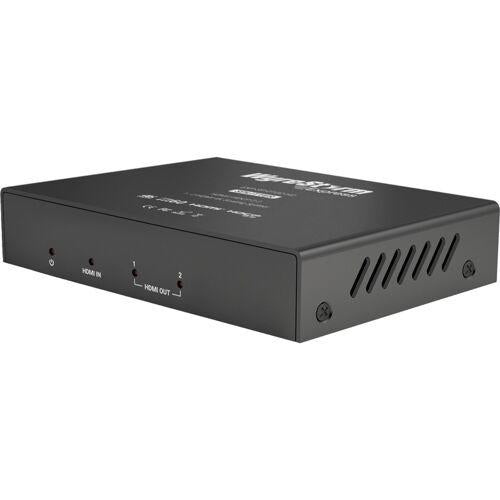

WyreStorm EXP-SP-0102-H2 Essentials™ 4K60 1:2 Scaling HDMI Splitter





SCALING FROM 4K TO 1080P

With the EXP-SP-0104-H2, the user doesn’t have to give up 4K content when mixed resolution displays are present, as each output is capable of downscaling from 4K to 1080p without affecting the source!



PLUG AND PLAY

WyreStorm’s variety of essential’s splitters offers lossless duplication and distribution of a single HDMI UHD or HD source to multiple outputs for a flexible and reliable solution supporting resolutions up to 4K. EDID and HDCP device communication are automatically negotiated, truly making a plug-and-play device.





HDMI 2.0 VIDEO: MAXED OUT!

The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be split with the 0104-H2. Newly emerging 60Hz HDR-10 & Dolby Vision content can also be handled by this powerful device.





SLIM BY DESIGN

All of WyreStorm’s Essential’s splitters showcase a low profile, ultra slim chassis for greater installation convenience without giving up strength and quality. This allows the device to be installed under a table or desk for neat, discreet integration.





Technical Specifications

Additional Features

AUDIO & VIDEO

Inputs

1x HDMI In 19-pin HDMI type A

Outputs

2x HDMI Out 19-pin HDMI type A



Audio Formats

2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

Video Resolution (Max)

1920x1080p @60Hz 12bit

1920x1080p @60Hz 16bit

3840x2160p @24Hz 10bit 4:2:0 HDR

3940x2160p @30Hz 8bit 4:4:4

3840x2160p @60Hz 10bit 4:2:0 HDR

4096x2160p @60Hz 8bit 4:2:0

4096x2160p @60Hz 8bit 4:4:4

Supported Standards

DCI | RGB |HDR | HDR10 | Dolby Vision up 30Hz | HLG | BT.2020

Maximum Pixel Clock

600Mhz

COMMUNICATION & CONTROL

HDMI

HDCP 2.2 | EDID | DVI-D supported with adapter (not included)

POWER

Power Supply

5V DC 1A

Max Power Consumption

1.8W



Additional Features



Allows a transmission from a single HDMI audio/video device to be duplicated and simultaneously distributed to up to two HDMI display devices, such as TV, AVR, digital signage panel or digital projector

Supports 4K@60Hz 10bit 4:2:0 | 4:4:4 and HDR@24Hz 10bit BT.2020

Fully HDCP 2.2 compliant

Data rates up to 18Gbps

HDR and Dolby Vision support

Each HDMI output supports scaling down to 1080p

Automatic input cable equalization for signal regeneration

DTS-X and Dolby Atmos™ supported

Plug and play set up for easy installation – no set up/drivers/software required

Compact, durable design for unobtrusive installation
