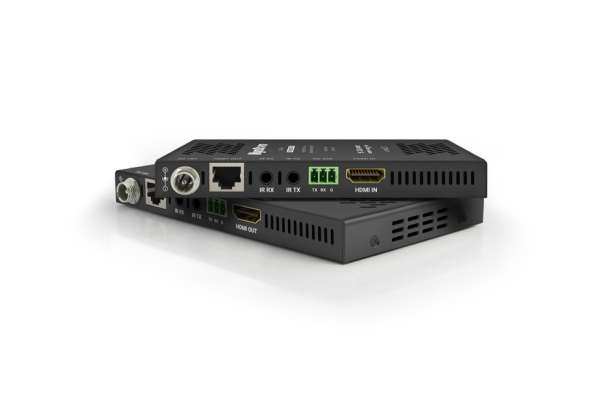

Wyrestorm EX-70-H2 4K HDR HDBaseT™ HDMI Extender Set with PoH, Bidirectional

Part of the latest generation of WyreStorm 4K extenders for the latest generation of 4K HDR content, the EX-35-H2 features dynamic compression technology to enable high frame rate HDR-10 and HLG content to be transmitted over standard 10Gbps HDBaseT, both visually losslessly and without latency.

• 4K UltraHD extender set capable of transmitting AV content over medium distances using single cable Cat6 cable
• HDBaseT™ Class B transmission of 4K HDR up to 35m/115ft and 1080p @60Hz 36bit up to 70m/230ft
• Full UHD 4K transmission supporting HDMI 2.0 video standards
• Supports all high definition resolutions including 4K UHD @30hz 4:4:4 24bit | 4K HDR @24Hz 4:2:0 10bit (BT.2020) – see specifications for details
• Revised chipset increases compatibility with new 4K UHD source devices
• Transmits discreet wide-band bidirectional IR/RS-232 control signals together with HDMI over a single Cat5e/6 cable
• Low profile chassis of 15mm for easier, more convenient installations behind screens at display zones
• Supports 2ch PCM and 7.1 multichannel audio up to DTS-X and Dolby Atmos
• 2-way PoH (Power over HDBaseT™) enables either transmitter or receiver to be remotely powered by the other locally powered so mains power connectivity is not required at both source and display location
• HDCP 2.2 compliant
• 3D compatible
• Switchable RS-232 function mode on transmitter and receiver for firmware update
• Threaded bushings allow use of both standard and locking DC power plugs
• Visual LED indication for power, display connection signal status, HDBaseT™ link, and HDCP presence in signal
• Cable termination follows IEEE-568B standards
• Automatically adjusts feedback, equalization and amplification of signal for easy installation
• Energy efficient universal power supply included
