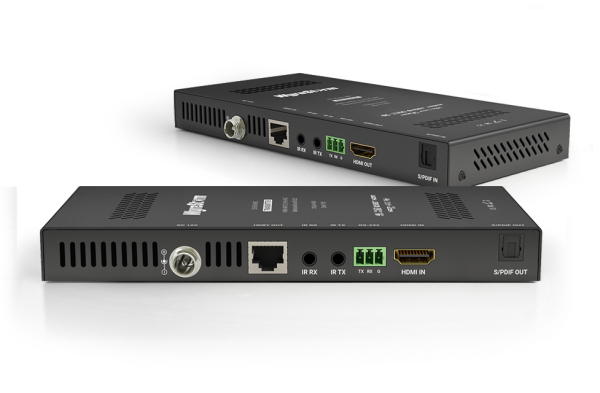

Wyrestorm EX-35-H2-ARC 4K HDR HDBaseT™ HDMI Extender Set with PoH, Bidirectional

Part of the latest generation of WyreStorm 4K extenders for the latest generation of 4K HDR content, the EX-35-ARC features dynamic compression for delivery of 4K/60 4:4:4 and HDR content up to 17.8Gbps over standard HDBaseT, both visually losslessly and without latency.

With support for HDR-10 and HLG up to 60Hz, and Dolby Vision™ at 30Hz, the EX-35-H2-ARC offers True Audio Return Channel (ARC), enabling an ARC signal from a Smart TV HDMI input to be passed to an AVR HDMI output.

• Dynamic visually lossless compression enables extension of up to 4K/60 4:4:4 or HDR 60Hz content over HDBaseT to 35m/115ft and 1080p to 70m/230ft
• True ARC functionality extracts and sends 5.1 audio from a Smart TV to a compatible AVR via HDMI
• HDCP 2.2 compliant, with automatic variable compression supporting full bandwidth HDMI content up to 17.8Gbps
• Compatible with the latest HDR standards, including HDR-10+, HLG content, with support for Dolby Vision™ up to 30Hz
• Class B HDBaseT extends 4K UHD 4:4:4 content to 35m/115ft with IR & RS-232 pass-through
• Toslink input & output allows non-ARC audio to be sent from RX-TX via selection switch
• Analog stereo audio breakout of source audio on transmitter
• Advanced re-clocking chipset increases compatibility with new 4K UHD source devices
• 2-way PoH (Power over HDBaseT) enables either transmitter or receiver to be remotely powered by the other unit
• Slimline 21mm chassis for easier, more convenient installation behind displays
• 2ch PCM audio and multichannel HD audio supports 7.1, DTS-X and Dolby Atmos™
• Switchable RS-232 function mode on transmitter and receiver for firmware update Note: Serial control via RS-232 only supported when connected to a compatible HDBaseT transmission device with routable RS-232
• Threaded bushings allow use of both standard and locking 18v DC power plugs
• Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and HDBaseT link between devices
• Automatically adjusts equalization and amplification of signal for easy installation
