Touchscreen Bluetooth DVD Player For Acura TL 2004-2008 with Basic install parts







Touchscreen Bluetooth DVD Player For Acura TL 2004-2008 with Basic  install parts

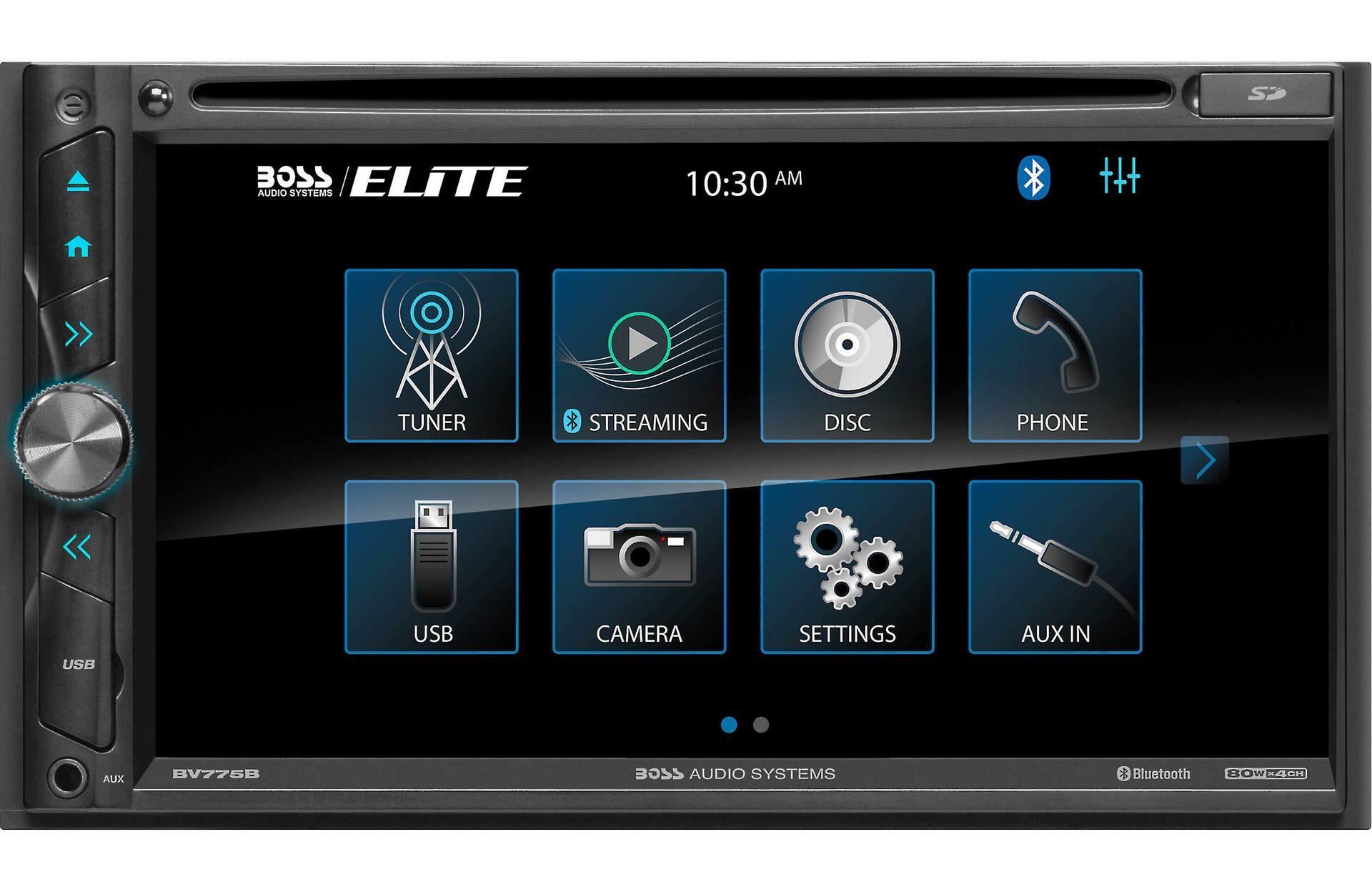

BOSS Audio Systems Elite BV775B Car DVD Player - A-Link (Screen Mirroring), Bluetooth Audio and Hands-Free Calling, 6.95 Inch LCD Touchscreen, Double Din, MP3, CD, DVD, USB, SD, Aux A/V Input, AM/FM







Bring your DVDs and CDs into the rotation

With Boss's BV775B eceiver, you don't have to abandon your favorite discs. The receiver's 6.95" touchscreen display makes controlling your DVD, CD, microSD, and USB sources easy. Plus, a 5-second electronic skip protection buffer minimizes interruptions when you hit that surprise pothole.



Take and make calls

Bluetooth lets you take and make calls while keeping your hands on the wheel — an awesome safety feature when you're making your daily commute. The sensitive built-in microphone on the faceplate simplifies installation. And the Bluetooth connection makes it easy to wirelessly stream your music!



Your video options

You can use the 6.95" screen to view DVDs when your car is parked. If you want to take your show on the road, connect video screens (not included) to the pair of rear video outputs and keep your backseat passengers entertained. Add an optional backup cam and you can use your new in-dash display to help back into tight parking spots.



And more entertainment

In addition to discs, you can play music and video from a loaded-up USB drive or microSD card, or use the front auxiliary input to connect a portable music player. This Boss includes an 8-band EQ and presets for quick tone changes. To get more impact out of your system, use the three sets of preamp outputs to connect amplifiers to your speakers.

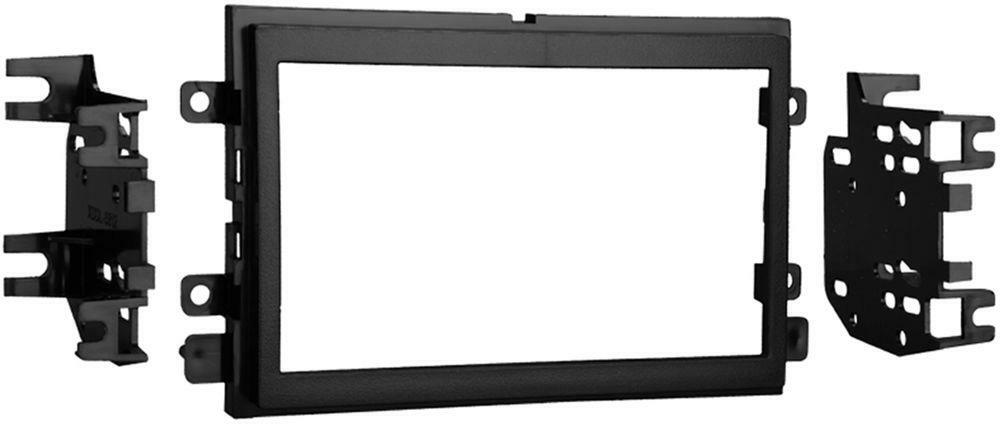

Metra 95-7815B Dash Kit

Install a new Double-DIN car stereo in select 2004-2008 Acura TL







Product highlights

• Double-DIN Dash Kit

• Accommodates ISO Double DIN Mount

• Painted to Match Factory Dash Color

• High-Grade ABS Plastic Construction

• Factory Style Texture

• Compatible with select 2004-2008 Acura TL Vehicles





This stereo installation kit is engineered to help you install an aftermarket 4" tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement easier and is painted scratch-resistant matte black to match the original look and feel of the vehicle's dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn't offer but requires this dash kit to make it fit.



General Features:



Allows for installation of an aftermarket Double-Din car stereo

Compatible with select 2004-2008 Acura TL Vehicles

Accommodates ISO Double DIN mount

Designed and manufactured with precision tolerances

Gapless fit between the dash and the kit

Painted to match factory dash color

Factory matched texture style

High-grade ABS plastic construction

Color: Matte Black

Authorized Internet Dealer

1-year Manufacturer's Warranty

Kit Includes:

Radio Trim Panel

Radio Housing Brackets

Step by step instructions

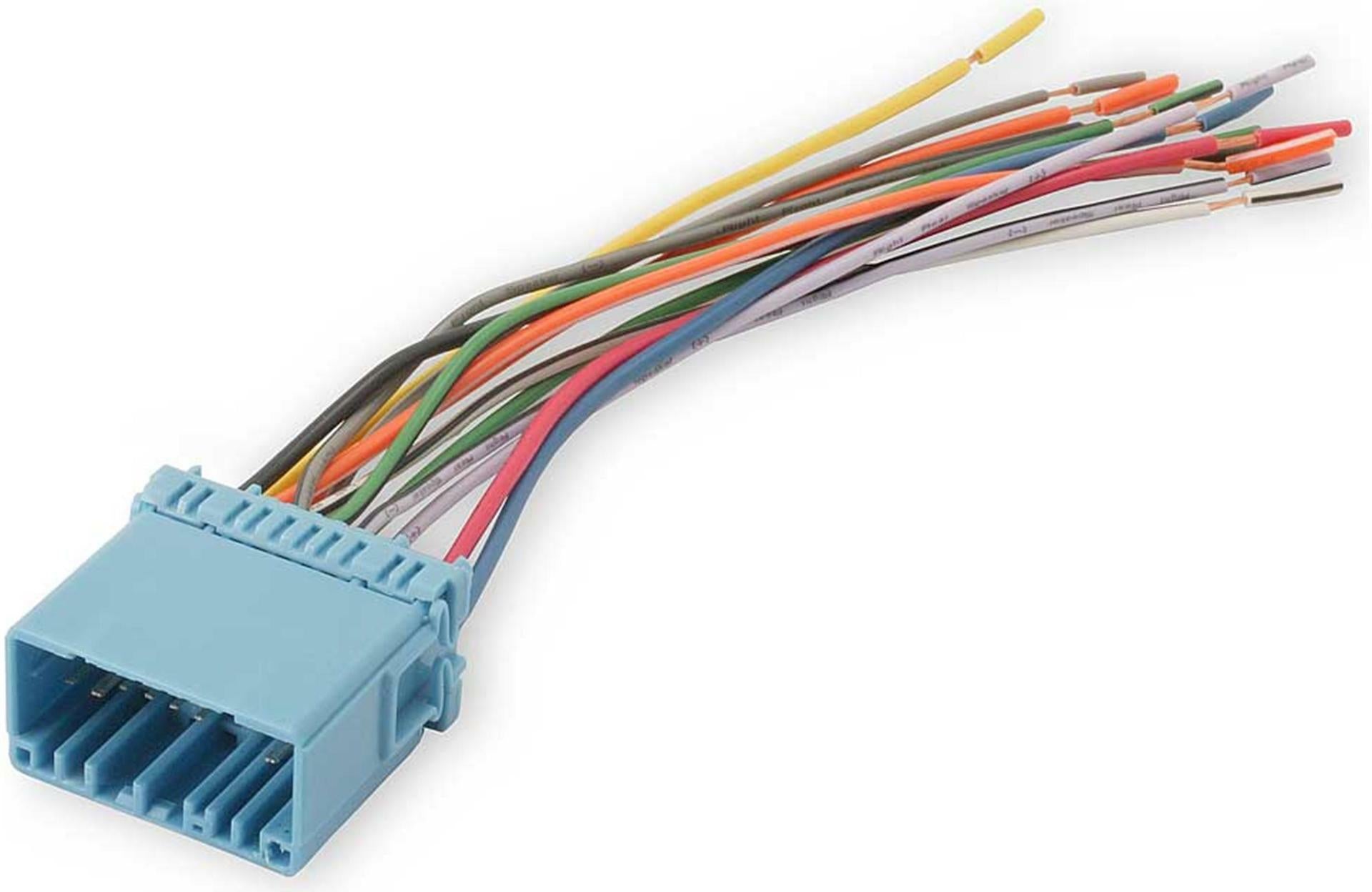

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura





Product highlights

• Direct Connection to the factory harness

• Color coded wires for easy installation

• No cutting or splicing required





Product Features:

Wire harness to Install a new car stereo in Compatible with select 1998-2013 vehicles from Honda, Suzuki, Acura

Plugs into the cars original factory radio connectors

Color-coded wires for easy installation to the aftermarket radio

No wire cutting needed for factory radio connectors

1 Year Manufacturer's Warranty

Connections:

Yellow – 12V Constant

Red – 12V Accessory

Black - Ground

Orange – Dash Light Dimmer/Illumination

Green – Left Rear Speaker (+)

Green with Black Stripe Left Rear Speaker (-)

White – Left Front Speaker (+)

White with Black Stripe – Left Front Speaker (-)

Purple – Right Rear Speaker (+)

Purple with Black Stripe – Right Rear Speaker (-)

Gray – Right Front Speaker (+)

Gray with Black Stripe – Right Front Speaker (-)

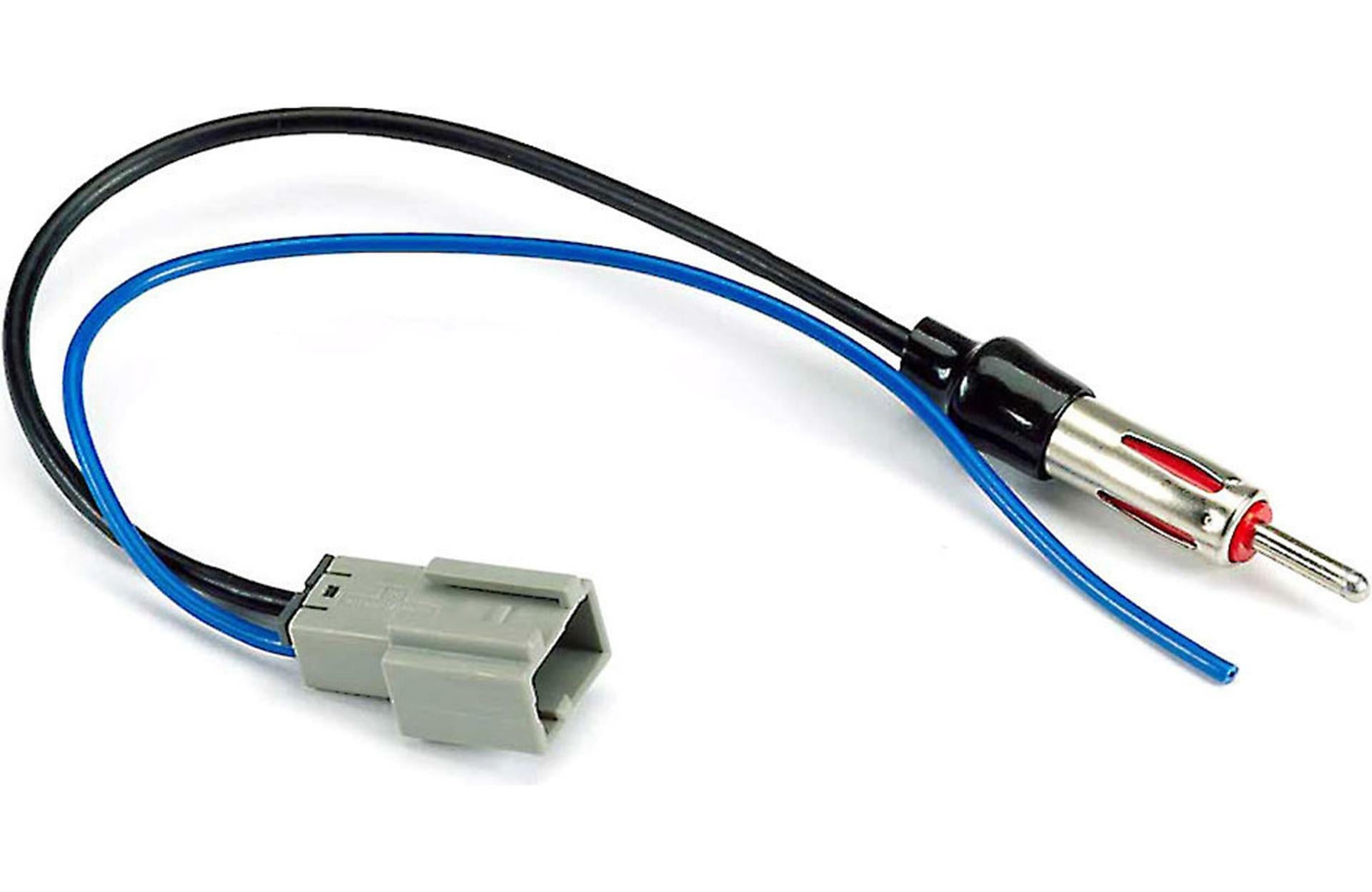

Metra 40-HD10 Antenna Adapter

Connect a new radio to the factory antenna in select 2005-up Honda and Mazda vehicles — Motorola male to stock antenna female





About the Metra 40-HD10 Antenna Adapter

This antenna adapter lets you connect an aftermarket receiver to the factory antenna cable in your Honda or Mazda. The adapter has a standard male Motorola plug on one end and a Honda/Mazda antenna jack on the other. Installation note: A blue wire is attached to the antenna adapter. When installing the adapter, the blue wire should be connected to the antenna turn-on lead of your new car stereo. Please check the stereo's manual for more information.



What's in the box:





Antenna adapter cable (has a female Honda snap-lock antenna jack on one end and a male Motorola plug and a blue bare wire on the other)

MFR #40-HD10
