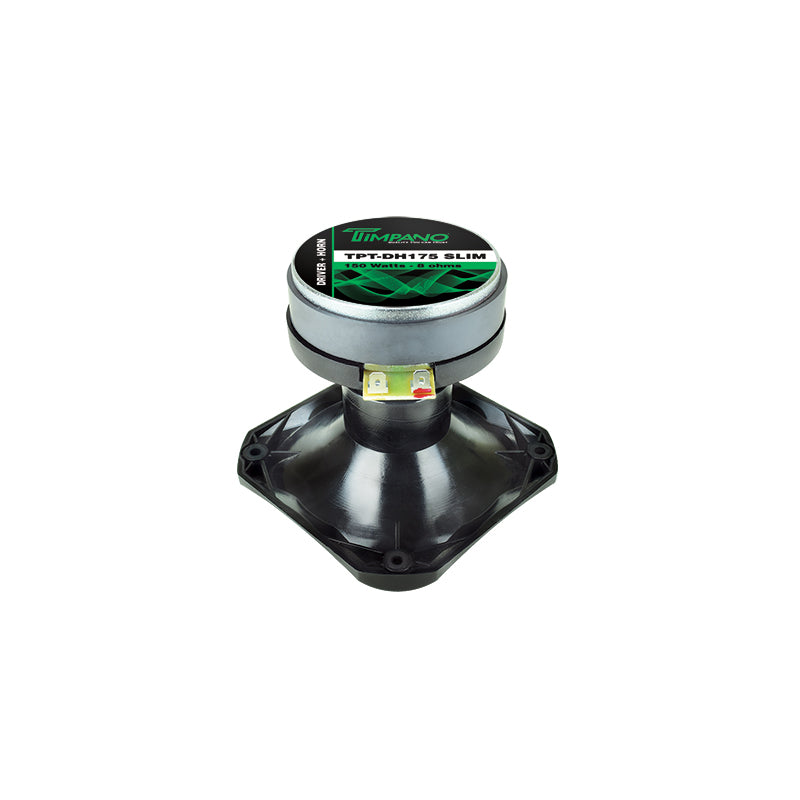

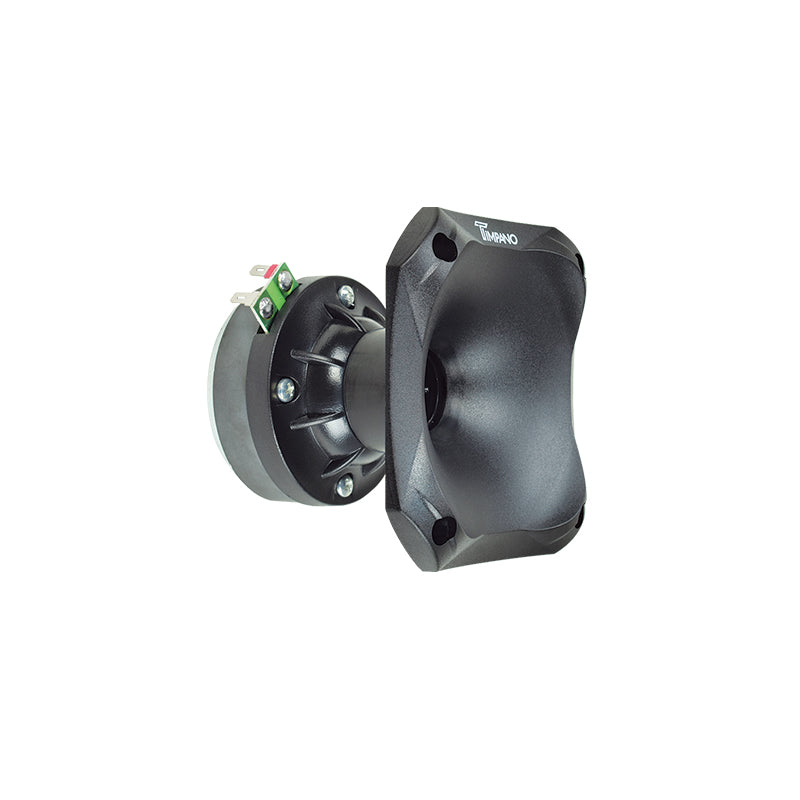

Timpano Audio TPT-DH175 SLIM 1" Exit Phenolic Diaphragm Driver + Plastic Slim Horn

TPT-DH175 SLIM 1? Exit Phenolic Diaphragm Driver + Plastic Slim Horn

The Timpano TPT-DH175 SLIM is a 1? phenolic dome compression driver specially designed to offer a smooth extended frequency response over a broad band, from mids to highs, with very high efficiency. Ideal for compact two- and three way systems. The 4.5? x 4.5? horn produces a controlled 60 x 60 dispersion pattern to reduce unwanted reflections while still delivering room filling sound. With a common footprint, this is an excellent tweeter for use as a replacement.

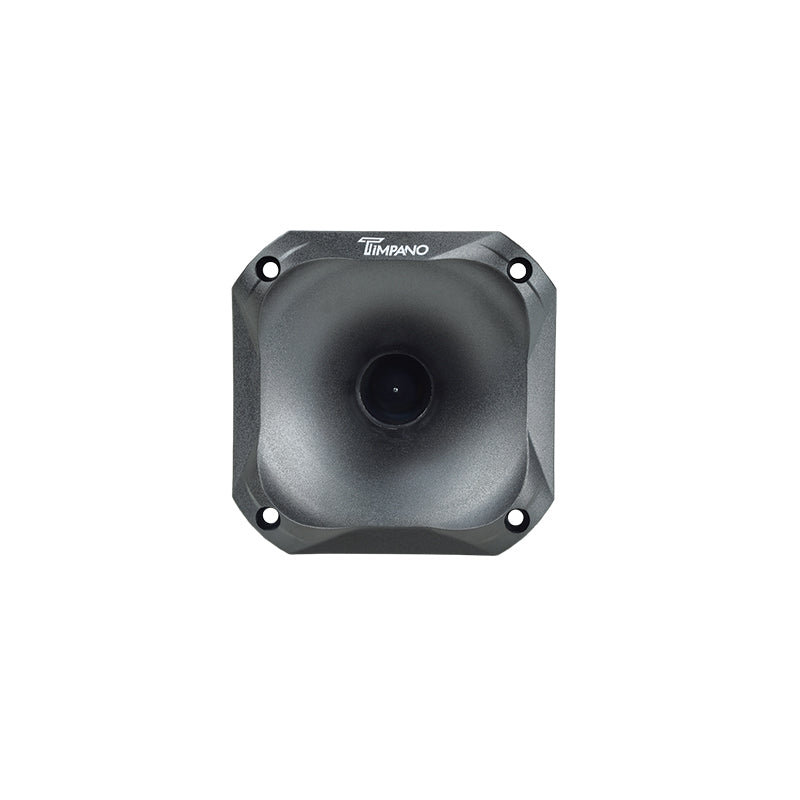

| SLIM DESIGN | High Frequency Driver + 44? Slim Horn

Specs:
150 Watts Continuous Power
75 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 108 dB
Frequency Response: 1.3 KHz 19 KHz
1? Voice Coil
Phenolic Diaphragm
Ferrite Driver
Sizing:
Mounting Depth: 3.60? (91.5 mm)
Mounting Cutout Diameter: 3.38? (86 mm) + Terminal
Overall size: 4.50? Wide x 4.50? Length x 4.17? Height
Weight: 1.15 Lbs
