Timpano Audio TPT-DH100 1" Exit Neodymium Driver + Plastic Horn Car Audio | Pro Audio

TPT-DH100 1? Exit Neodymium Driver + Plastic Horn Car Audio | Pro Audio

The TPT-DH100 compact horn loaded tweeter weighs less than 1/2 pound but has enough output capability to keep up with high SPL sound systems. A 1? phenolic diaphragm is used to produce a smooth and natural response all the way up to 18,000 Hz. The horn loaded design controls dispersion and increases output to put the sound right where you need it.

With a compact neodymium motor, this high frequency driver weighs less than 1/2 pound without sacrificing efficiency or overall output capability. The low weight and compact design make this the ideal tweeter for installation into car doors and trunk lids.

• Less than 1/2 lb for easy installation in car doors and trunk lids
• 106 dB sensitivity for high output even with moderate power
• Naturally damped phenolic diaphragm produces smooth high frequency response

Specs:
200 Watts Continuous Power
100 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 106 dB
Frequency Response: 1.5KHz 18KHz
1? Voice Coil
Phenolic Diaphragm

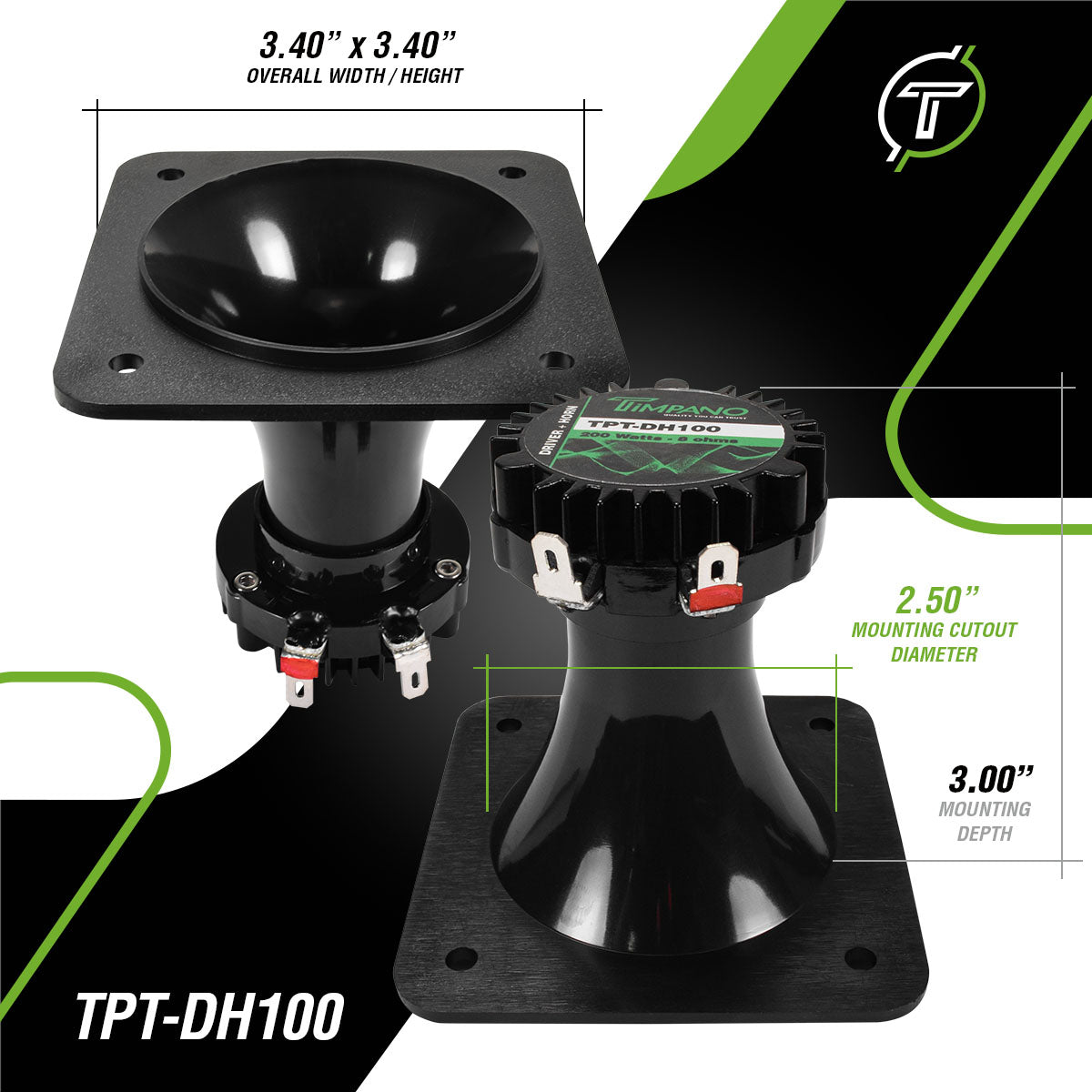

Sizing:
Mounting Depth: 3.00?
Mounting Cutout Diameter: 2.50?
Overall Size: 3.4? x 3.4? x 3?
Weight: 0.40 Lbs
