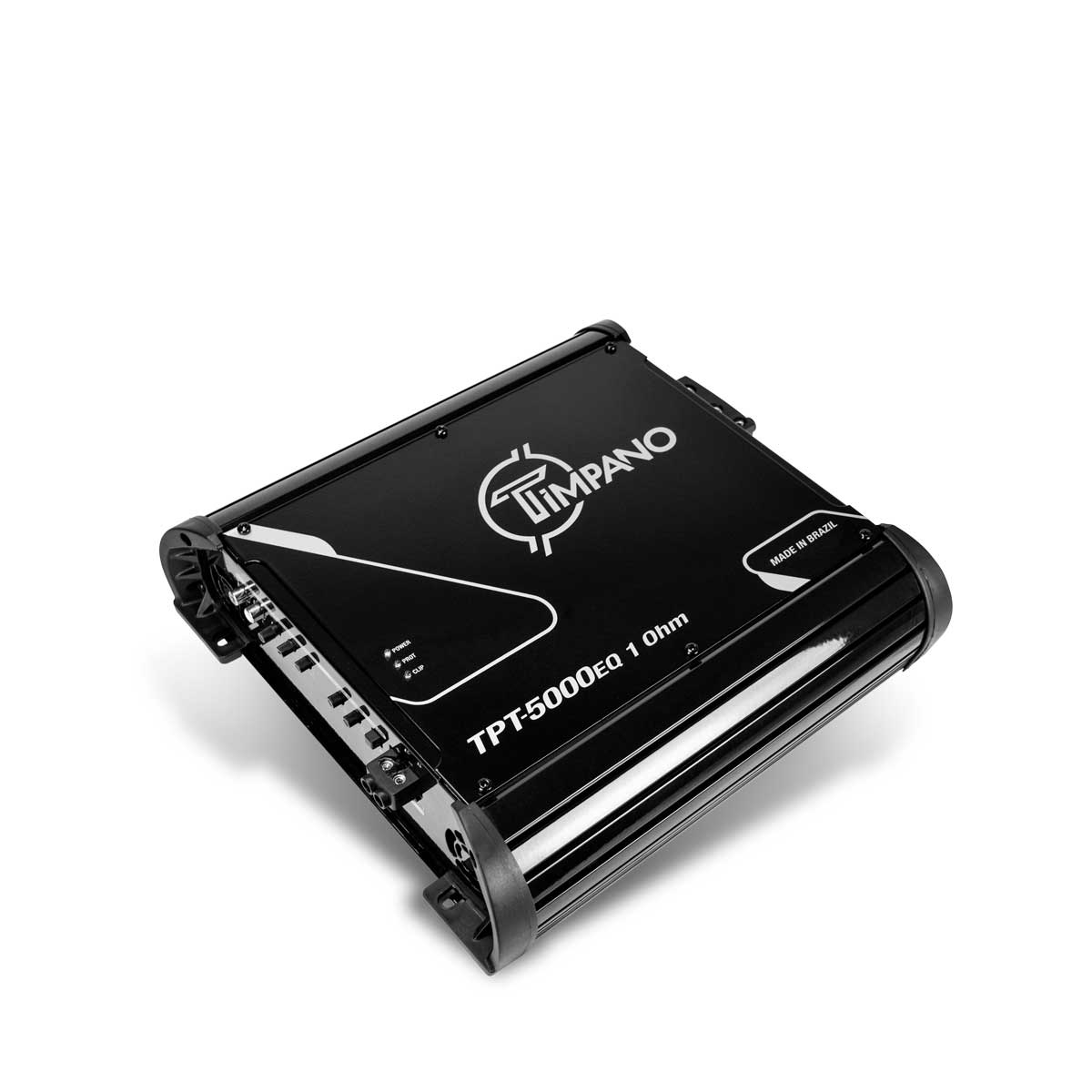

Timpano Audio TPT-5000EQ 1 Ohm 5000 Watts Car Audio Amplifier Fullrange 1 Channel Compact 12 volts Monoblock Fullrange Class D Car Amp

Additional Information:

Number of Channels: 1
5000 Watts RMS Power at 1 Ohm 12.6V
2800 Watts RMS Power at 2 Ohm 12.6V
Supply Voltage: 9.5 ~ 15V
Frequency Response: 10Hz ~ 15KHz
Crossover Low Pass: 50Hz ~ 15KHz
Crossover High Pass: 10Hz ~ 700Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Sensitivity: 0.2V
Input Impedance: 26K Ohm
Impedance Output: 1 Ohm
Consumption with Signal Musical: 4.1A ~ 245A
Consumption with Signal Bass: 4.1A ~ 490A
Dimensions (L x W x H): 11.57 x 12.20 x 3
Weight: 9 Lbs

Features:

The TPT-5000EQ offer 1 channel with advanced individual equalization features for Mid Bass and Mid High, plus the traditional Level, High and Low Pass Filter features. Its Full Range frequency response from 10Hz to 20KHz allows the installation of Subwoofers, Speakers, Drivers and Tweeters.

Use the guide Below for recommended applications, where you can get the full potential of your amplifier.

Before Installing:

You must follow the instructions for the products installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to the equipment connected to the amplifier;

Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;

Always use 100% Copper cables and good quality connectors. This guarantees the sounds quality and fidelity;

To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: Use a 200A fuse 12 inches away from the battery as a safety precaution

_{The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD <= 10%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.}
