Sanus WSIWPSB1-W1 In Wall Power Kit for TV & Soundbar

Sanus WSIWPSB1-W1 In-Wall Power Kit

Hide power and signal cables behind your wall-mounted TV and sound bar

Easily send power and signal to your TV

Sometimes the ideal spot on the wall for your TV doesn't have a power outlet behind it. This kit from Sanus helps solve that problem by creating a recessed two-outlet AC receptacle behind your wall-mounted TV.

It allows you to conceal wiring behind the wall, giving you a neat, clean installation. There's even a slot to pass your HDMI, optical digital, or coaxial cables from behind the TV down the wall.

How it works

Use the included drywall saw to create one opening behind your TV, and another opening towards the bottom of the wall. The kit comes with two wall inserts, which connect together with the included in-wall power cable.

Once everything's installed, simply plug your TV's power cable into the top insert, and use the included extension cable to connect the bottom insert to a nearby AC outlet.

Add power to your sound bar, too

There's a third piece to this kit that wires into the bottom-mounted wall insert. It creates a single-outlet AC receptacle that's perfect for supplying power to a wall-mounted sound bar.

Product highlights:

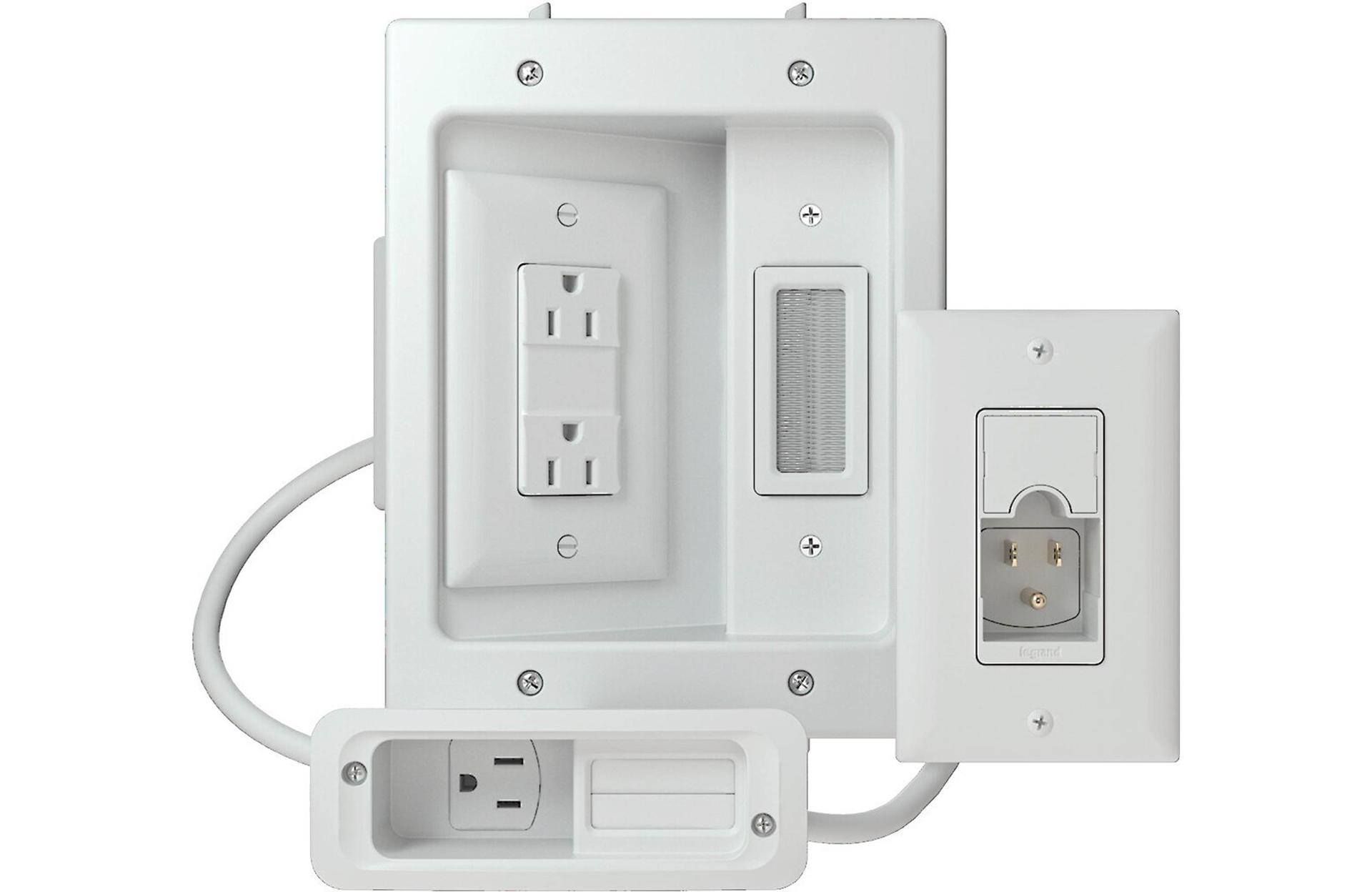

3-piece in-wall power kit for a wall-mounted TV and sound bar

top-mounted insert creates a recessed 2-outlet AC receptacle

connect your TV and a second device like a streaming stick or amplified TV antenna

includes a pass-through for HDMI, optical digital, and coaxial cables

fits behind most TV wall mounts

includes a 1-outlet AC receptacle that installs behind a wall-mounted sound bar

inserts are paintable to match your room's décor

drywall saw and in-wall power cable included

top insert: 6-1/2"W x 8"H x 3-15/16"D

middle insert: 5-1/2"W x 2"H x 3"D

bottom insert: 3"W x 4-3/4"H x 2-5/8"D

MFR # WSIWPSB1-W1

What's in the box:

Power inlet box (attached 3.5' AC power cord and 8' AC power cord) Soundbar power inlet module (w/ rear cover and 2 screws)

Power outlet module (with rear cover and 4 screws)

6' AC power extension cord

Single-gang trim-plate (2 screws pre-installed)

Single-gang box (2 screws pre-installed)

Drywall saw

Owners Guide

"Attention" note

Cutting Template
