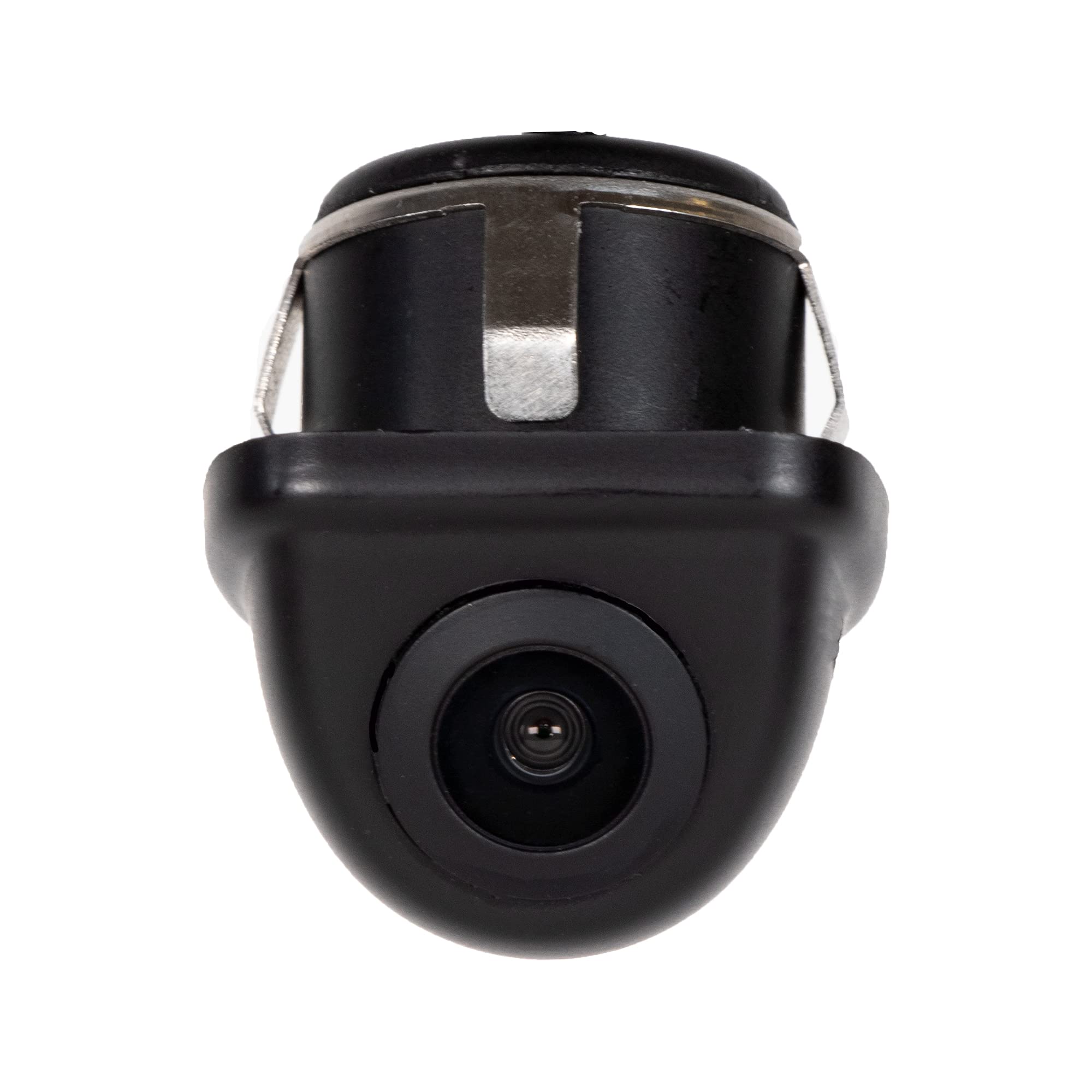

CM-LIP4
Backup / Forward Facing LIP Camera
Surface Mount LIP Camera
Resolution (TV LINES): 480
Minimum illumination: <0.3Lux
Angle: 170°
Water-proof
Image: Mirror/Standard, Parking Line On/Off Selectable
Description
The CM-LIP4 is our newest additon to our OE Lip style camera line up. The small body allows for mounting to the front or rear of your vehicle, lens ensures clear visuals every time.
The case for the CM-LIP4 is a black, waterproof (IP67 – IP68) encasement, has a 170° viewing angle, and night vision technology built in. With the added bonus of easy mounting to either the front or rear of the vehicle, this rear backup or forward facing camera is a solid choice for almost any setup.
Specifications
Sensor: 1/3 CMOS
Resolution: 648(H) x 488(V)
TV Line: 480
Lens: 1.7mm
Min illumination: 0.03 Lux
Video system: NTSC (Color)
Body color: Black (B)
Waterproof: IP67
View angle: 170°
Voltage & current consumption: Range of operational voltage: 9 ~ 16V; Max operational circuit: 90mA
Operation temp.: -22º+158º
Storage temp.: -40º~ +105º
In the Box
Rydeen LIP Camera
Power Wire Harness
Owner’s Manual
Warranty Card
FEATURES
- Vehicle Backup/Front Camera with Switchable Parking Lines, Hole Mount with included a Hale Saw (19.5 mm), designed for professional installers with OEM appearance. Engineered ABS housing with ultrasonic sealing technology (no glue used) ensuring long life usage in outside environment. Installation for recessed area above a license plate or front lip.
- Compact cube style camera with standard wing mount installation. Size: 1-inch height, 0.78-inch width, 1-inch depth. Complete waterproof with IP67-IP68 rating for long life usage. Voltage: 9 to 16-volt, Max current: 100 mA. Operating temperature: -22 to +176F. Storage temperature: -40 to +220F.
- Super CMOS IV Sensor with NightVisionTM Technology, 480 TV LINES for clear visibility at night time. Effective number of pixels: 316,224 Minimum illumination: <0.3 LUX. Viewing angles: Horizontal 110 / Vertical 85 / Diagonal 170. Image selection: Image selection: mirror / standard selectable with jumper cable on/off. Parking guide lines on/off selectable with jumper cable. 5 lenses structure for sharp & high-contrast images.
- Quick Disconnect Wire Harness for ease of installation and maintenance (patent pending).
- Rydeen is the professional installers choice for Blind Spot Detection Kits, Backup Cameras, and Monitors, offering the best in vehicle safety products. Serving the professional vehicle electronics industry for over 10-year in USA and Canada, free technical support available.
