Description

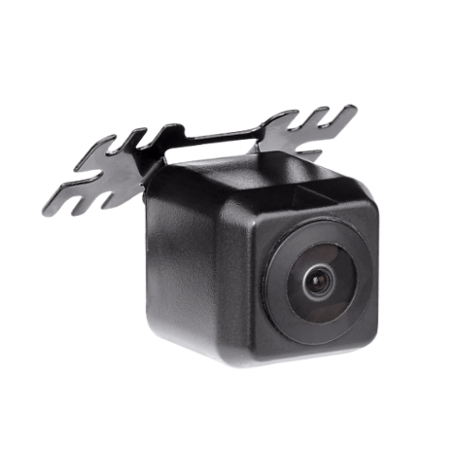

xThe CM-HD4 is the latest in the line of MINy HD cameras released by Rydeen Mobile. The CM-HD4 is one of the best cameras on the market, and is versatile in that it can be used as a front camera or a rear camera on your vehicle. The HD camera gives you increased visibility with double the resolution of standard video. The camera can be mounted with double sided adhesive tape, or with short sheet metal screws for a more permanent position. Once the CM-HD4 is mounted it can be adjusted up to 90° for optimal viewing. It also includes a high quality CMOS Image Sensor, Night Time Visibility, and a Parking Line function. The camera itself comes in a black, waterproof casing with an IP67 rating, 170° viewable angle, and a full color HD resolution display. This high-tech backup camera is a perfect choice for a vehicle where the visual addition doesn’t stand out too much. Specifications: - Sensor: 1/3 CMOS - Resolution: 960(H) x 480(V) - TV Line: 960 - Lens: 1.7mm - Min illumination: 0.1 Lux - Video system: NTSC (Color) - Body color: Black (B) - Waterproof: IP-67 – IP68 - View angle: 170° - Voltage & current consumption: Range of operational voltage: 9 ~ 16V; Max operational circuit: 120mA - Operation temp.: -22º~ +158º - Storage temp.: -40º~ +85º In The Box: - Rydeen Camera - Power Wire Harness - Owner’s Manual - Warranty Card
FEATURES
- Vehicle Backup/Front Camera with Switchable Parking Lines, Wing Mount, designed for professional installers with OEM appearance. Engineered ABS housing with ultrasonic sealing technology (no glue used) ensuring long life usage in outside environment. Installation for recessed area above a license plate or front lip.
- Compact cube style camera with standard wing mount installation. Size: 0.78-inch height, 0.78-inch width, 0.78-inch depth. Complete waterproof with IP67-IP68 rating for long life usage. Voltage: 9 to 16-volt, Max current: 100mA. Operating temperature: -22 to +176°F. Storage temperature: -40 to +220°F.
- Ultra HD CMOS II Sensor NightVisionTM Technology, the best CBVS resolution in the class with 960 TV lines HD image. Effective number of pixels: 574,240 Minimum illumination: <0.01 LUX. Viewing angles: Horizontal 110° / Vertical 85° / Diagonal 170°. Image selection: Image selection: mirror / standard selectable with jumper cable on/off. Parking guide lines on/off selectable with jumper cable. 5 lenses structure for sharp & high-contrast images.
- Quick Disconnect Wire Harness for ease of installation and maintenance (patent pending). Optional mounting methods available: License plate bracket BL01 and Jeep bracket JB01 (sold separately)
- Rydeen is the professional installers’ choice for Blind Spot Detection Kits, Backup Cameras, and Monitors, offering the best in vehicle safety products. Serving the professional vehicle electronics industry for over 10-year in USA and Canada, free technical support available.
