PRV Audio

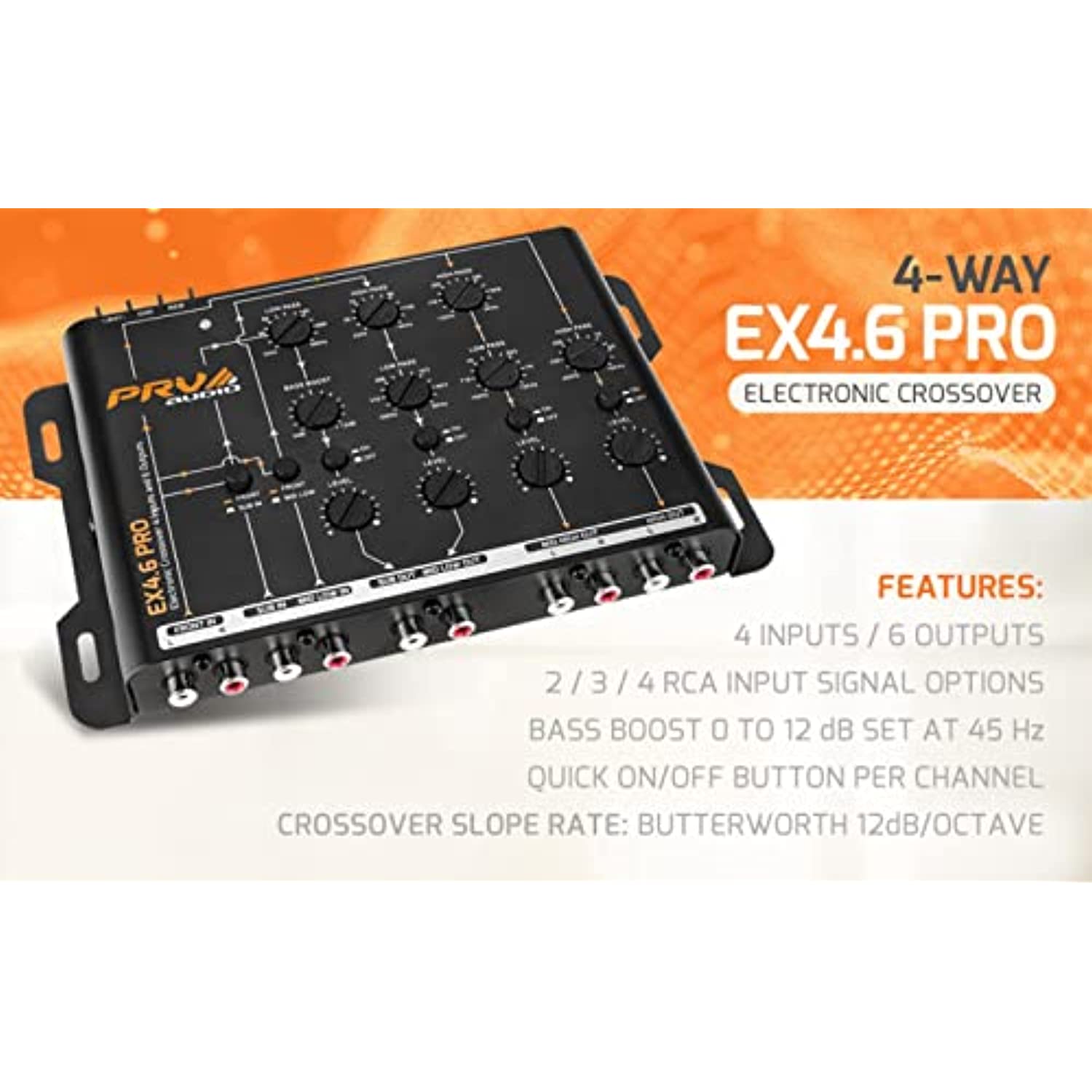

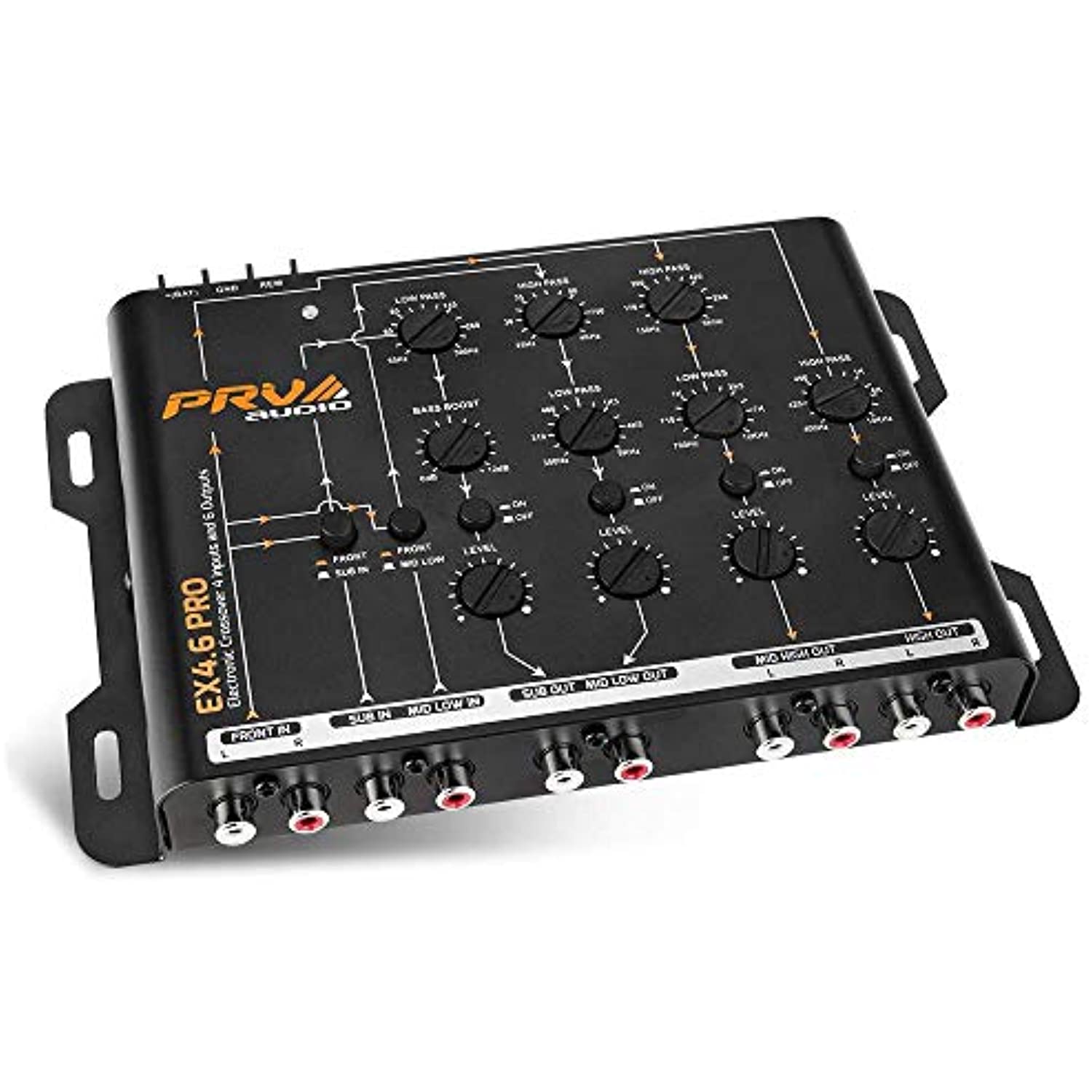

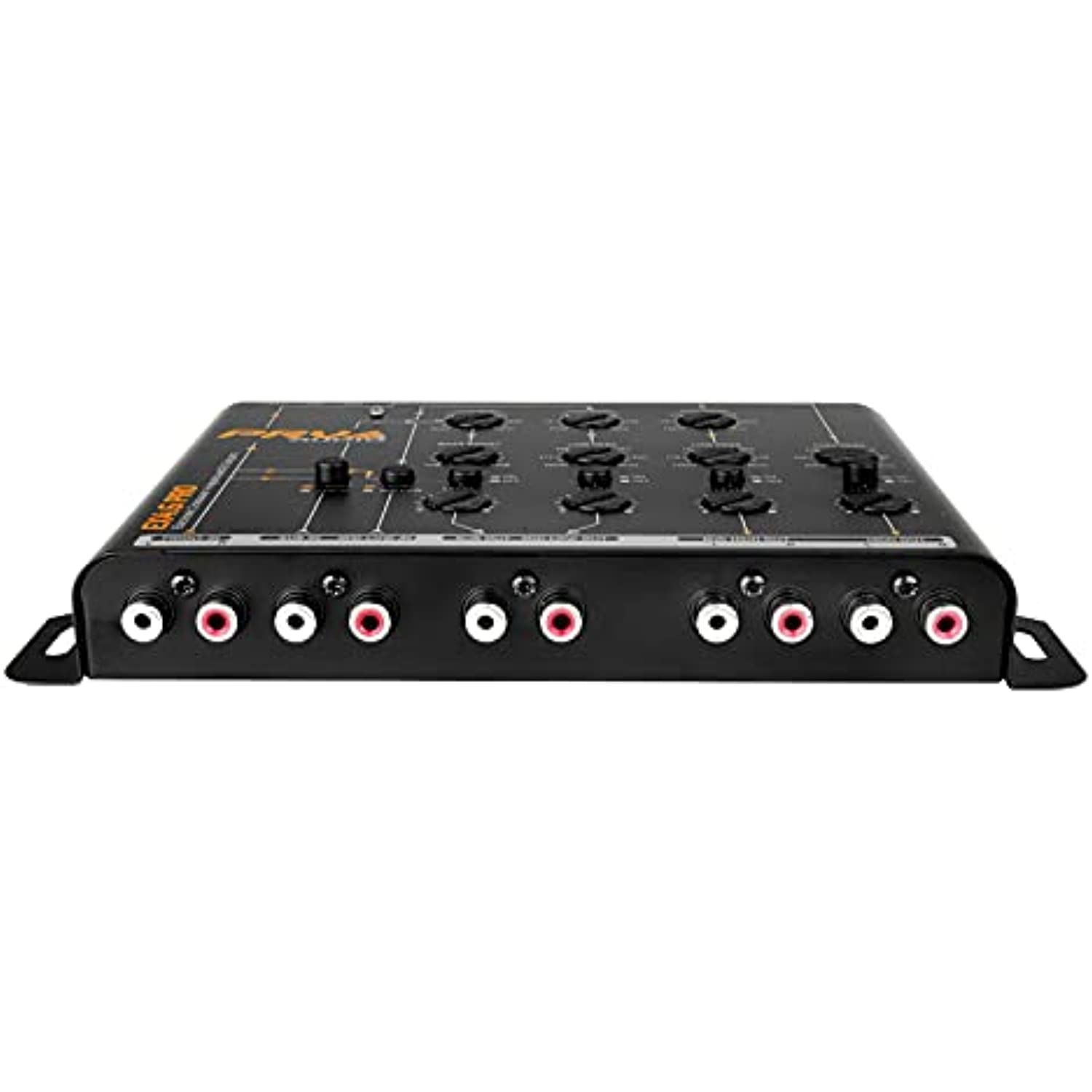

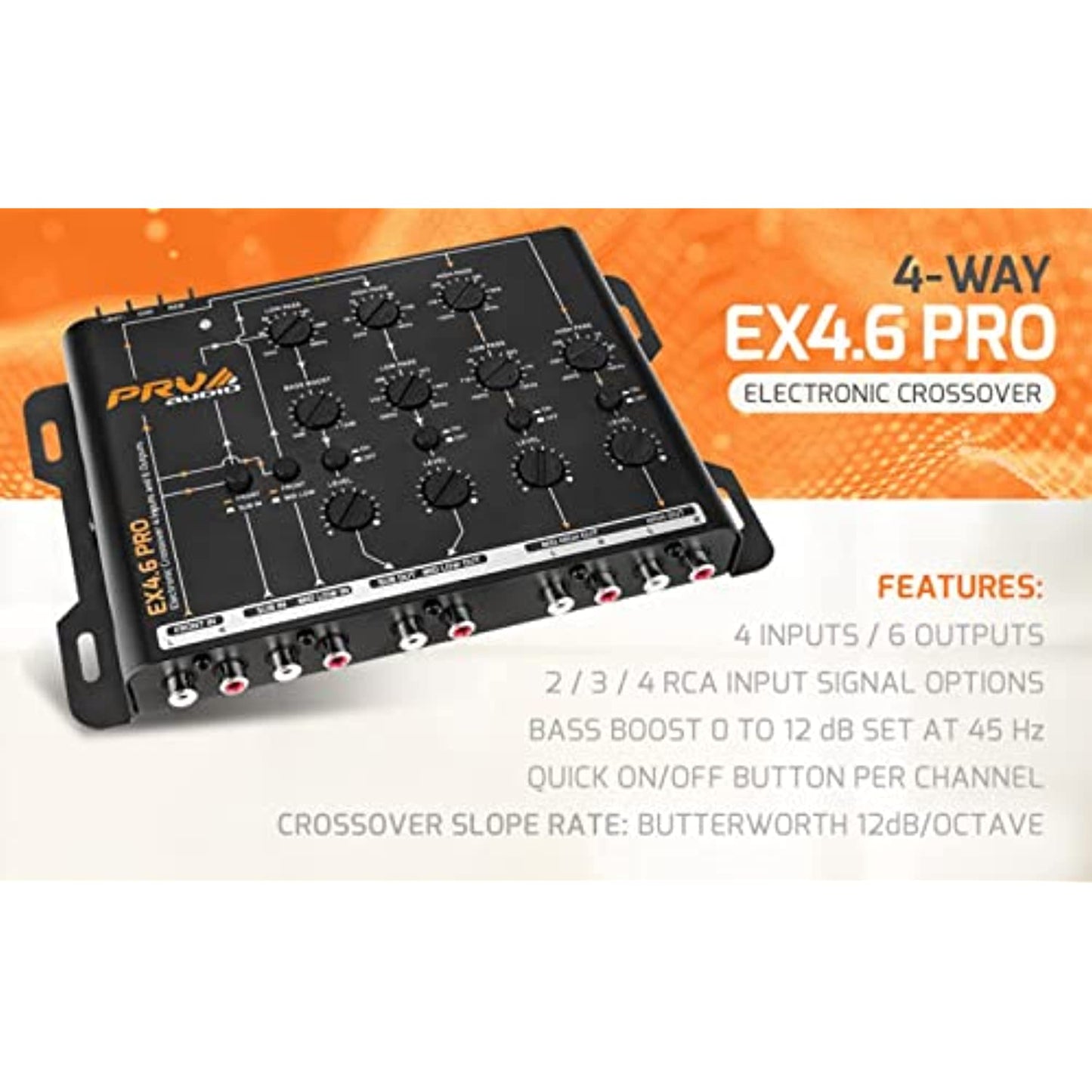

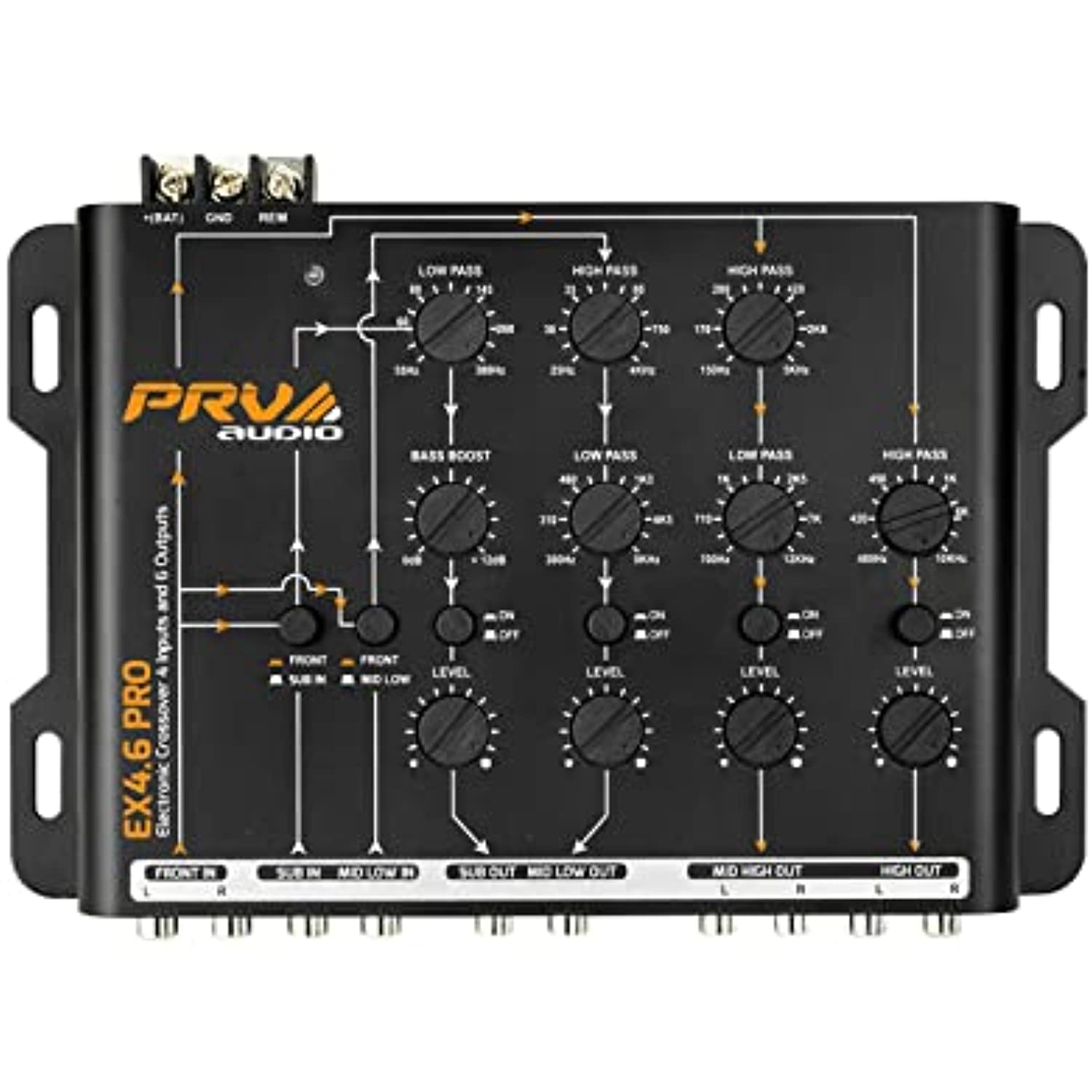

PRV EX4.6 PRO 4 way Electronic Crossover 4 In 6 RCA Output 9V RMS Car Audio

PRV EX4.6 PRO 4 way Electronic Crossover 4 In 6 RCA Output 9V RMS Car Audio

Regular price $79.91 USD
Regular price Sale price $79.91 USD
Sale Sold out
Shipping calculated at checkout.
View full details
GENERAL SPECIFICATIONS High Out Channel : High Pass – 400Hz – 10KHz (12dB/8a) Mid High Out Channel : High Pass – 150Hz – 5KHz (12dB/8a) Mid Low Out Channel : High Pass – 25Hz – 3KHz (12dB/8a) Sub Out Channel : Low Pass – 50Hz – 250KHz (12dB/8a) Bass Boost – 25Hz – 110Hz (0 – +12dB; 45Hz) Maximum Output Voltage : 9V RMS Maximum Input Voltage : 4V RMS Signal to Noise : >90dB Input Impedance : 10K Ohms Harmonic Distortion : < 0.02% THD Channel Separation : > 80dB Frequency Response : 20Hz-200KHz Supply Voltage : 10V – 16V DC Current Consumption : 200mA Impedance Output : 470 Ohms Dimensions (H x W x L) : 1.30″ x 9″ x 6.30″ Weight : 1.45 Lbs

FEATURES

  • INNOVATIVE: PRV EX 4.6 PRO electronic crossover gives you the power to customize your sound with a wide frequency of filter adjustment
  • ADJUSTABLE: Featuring 4way adjustable HIGH PASS and LOW PASS filters and also output level control on each channel, plus adjustable BASS BOOST option on the Sub Out channel
  • DESIGNED FOR EFFICIENCY: Quick On/Off button for each channel AND a Crossover slope rate: Butterworth 12 db/Octave
  • INPUT AND OUTPUT FUNCTIONS: 2/3/4 RCA inputs for 3 Channels – 1 Stereo and 2 Mono, or 6 RCA outputs for 4 Channels – 2 Stereo and 2 Mono
  • UPGRADE TODAY, HEAR THE DIFFERENCE: PRV AUDIO bringing innovation and technology to the automotive sound market for the past 15 years
