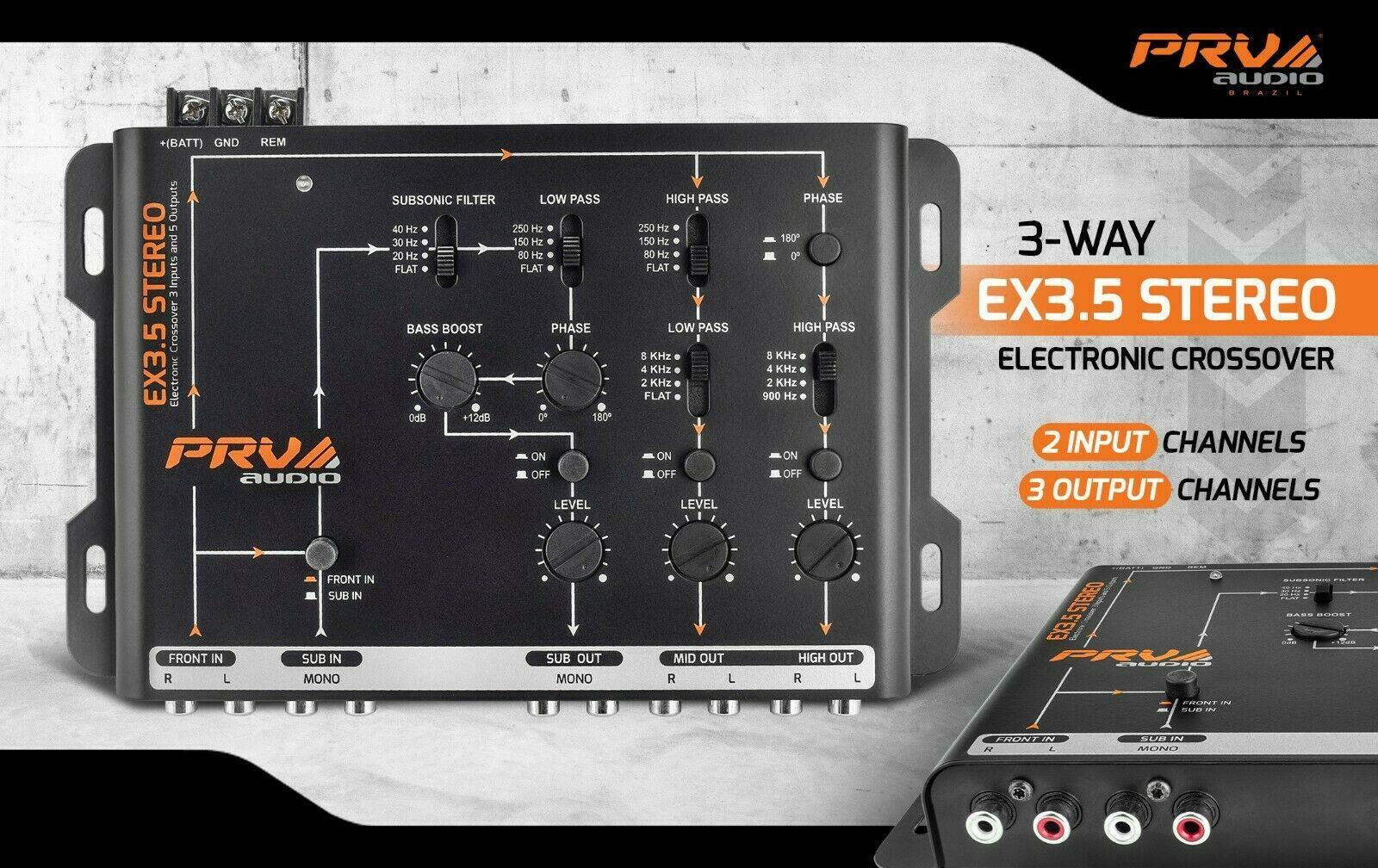

PRV EX3.5 STEREO 3 Way Electronic Crossover 2/4 In 6 RCA Output 9V RMS Car Audio

INCLUDES:

1  - EX3.5 STEREO  ELECTRONIC CROSSOVER

Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX3.5 STEREO electronic crossover, giving you the power to customize your sound with a frequency of filter adjustments. Featuring 3-way adjustable HIGH PASS and LOW PASS filters and also output level control on each channel, plus an adjustable BASS-BOOST option on the Sub Out channel. Enhancing Your Audio System!



Highlights





• 2/4 RCA Input Signal Options
• 9 Volts RMS maximum output
• Bass Boost 0 to 12dB set at 45Hz
• Quick On/Off button for each channel
• Crossover slope rate: Butterworth 12 db/Octave



Input and Output Functions:
- 2/4 RCA inputs for 2 Channels - 1 Stereo and 1 Mono
- 6 RCA outputs for 3 Channels - 2 Stereo and 1 Mono





Crossover Functions:
- High Pass Filter allows adjustment:
It determines the beginning of the channel operating frequency.
This filter allows the amplifier to work with many different applications such as: Woofer / Midbass / Midrange / Compression Driver components allow the elimination of low-frequency sounds, delivering the right frequency range to avoid damage to the components.
- Low Pass Filter allows adjustment:
It determines the end of the channel operating frequency.
This filter allows you to fine-tune the amplifier frequency response to match the components’ frequency response. This ensures that only the lowest frequencies are reproduced by the amplifier.
- Bass Boost allows adjustment:
Bass Equalizer: provides a “gain attenuation” 0 to + 12dB at the center frequency of 45Hz.
- On/Off Buttons:
This button allows you to quickly turn On and Off each individual channel.
- Level knobs:
This control adjusts the output signal on the channel; which allows an optimal adjustment to the output signal levels to the amplifiers.



HIGH OUT channel: This Stereo output channel take the signal from the FRONT IN stereo inputs
- Selectable HIGH PASS filter options:  8000Hz / 4000Hz / 2000Hz / 900Hz
Recommended application: High Frequency Compression Drivers and Super Tweeters.
MID OUT channel: This Stereo output channel take signal from the FRONT IN stereo inputs
- Selectable HIGH PASS filter options:  250Hz / 150Hz / 80Hz / FLAT ( no filter )
- Selectable LOW PASS filter options: 8000Hz / 4000Hz / 2000Hz / FLAT ( no filter )
Recommended application: Woofer, Mid Bass, and Mid Range Speakers.





SUB OUT channel: This mono output channel take signal from the FRONT IN or SUB IN input.
– Selectable SUBSONIC filter options:  40Hz / 30Hz / 20Hz / FLAT ( no filter )

– Selectable LOW PASS filter options: 250Hz / 150Hz / 80Hz / FLAT ( no filter )
– BASS BOOST gain + 12dB at center frequency of 45Hz and Phase Control
Recommended application: Woofer and Subwoofers.
