Features

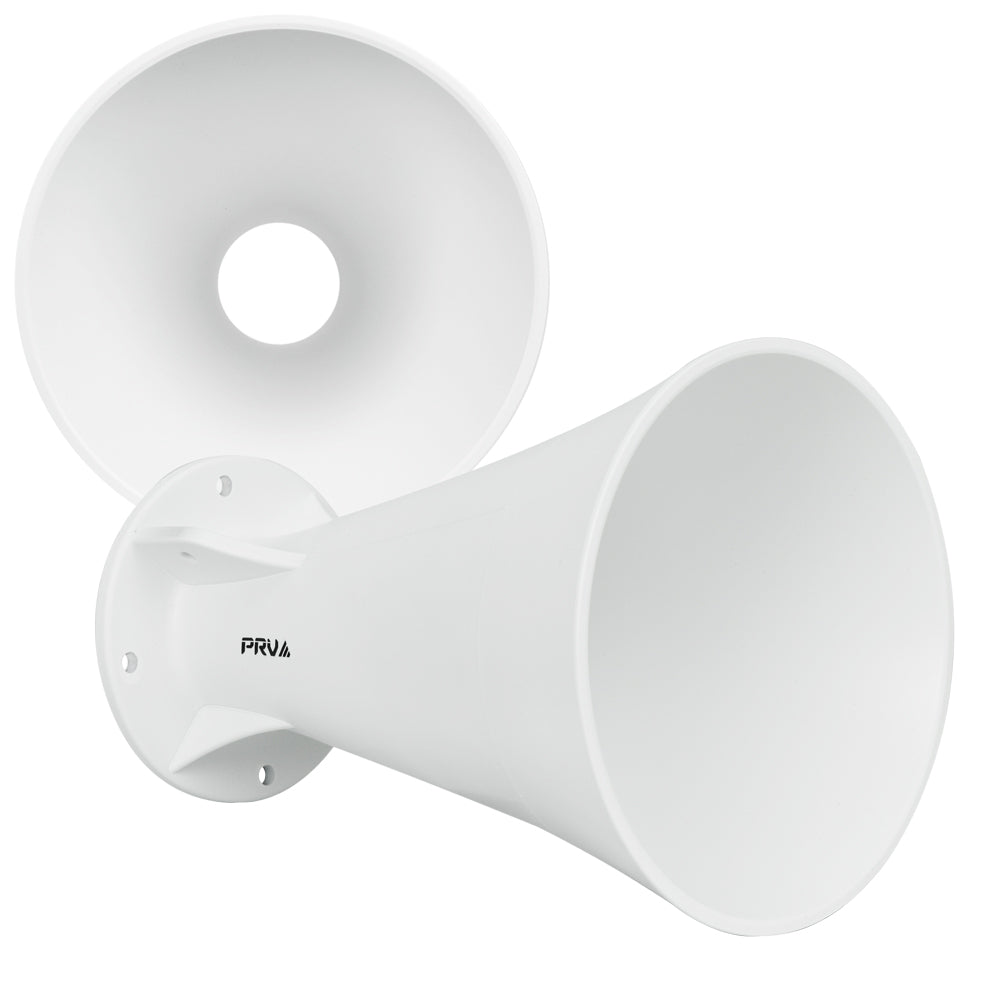

2? Exit ABS Plastic Wave Guide Bolt-on WGP PR

---

Highlights

• • 2 Throat Diameter
  • Light weight
  • Bolt-on

• 60 x 60 Nominal Coverage

GENERAL SPECIFICATIONS

Throat Diameter	2 (50.8 mm)
Mounting Type	Bolt-on
Hole Dimensions	0.33? 8.3 mm
Bolt Circle	4? 101.6 mm
Nominal Coverage
Horizontal	60
Vertical	60
Flare type	Exponential
Material	Plastic (ABS)
Finish / Coating	White Color

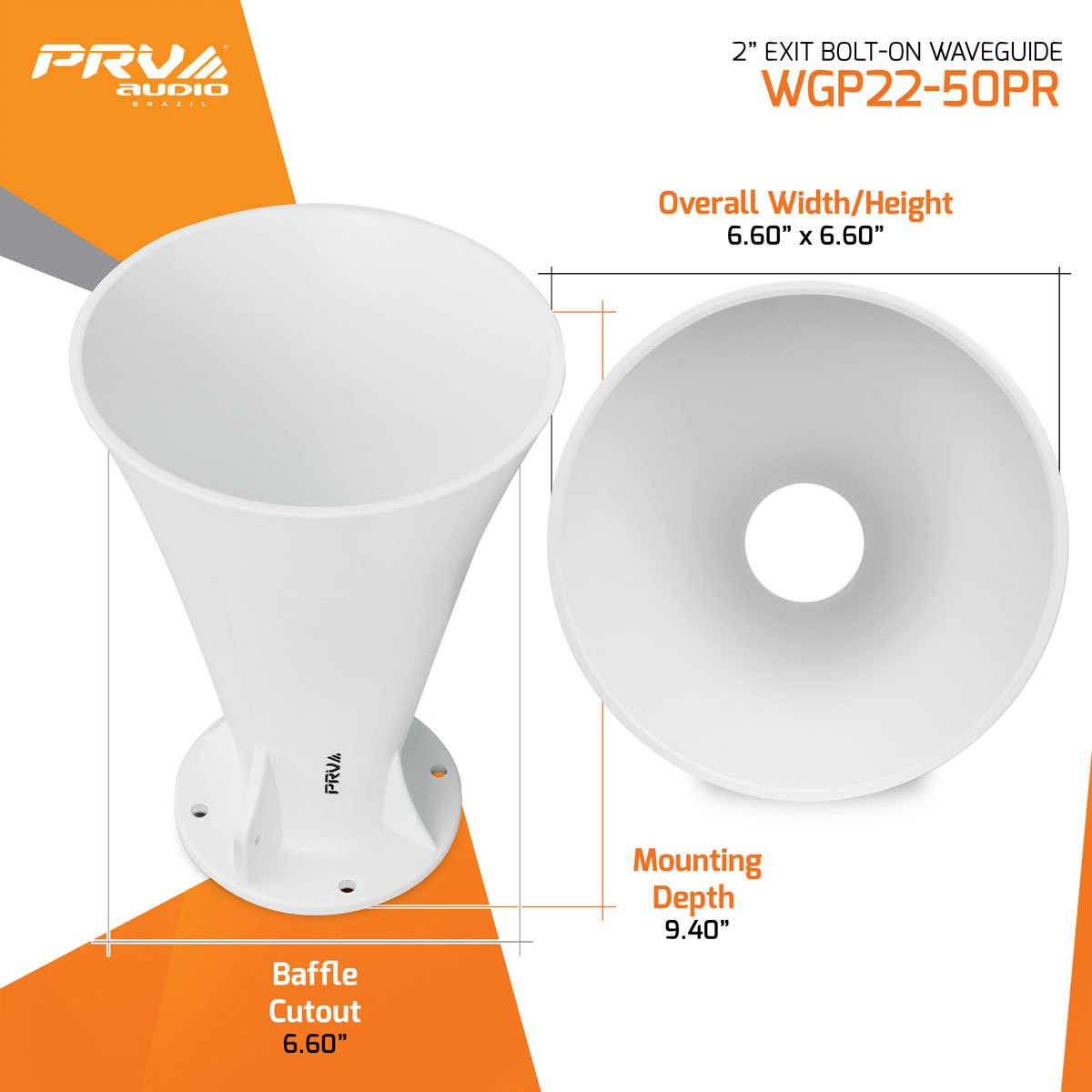

Dimensions
Height	6.60? (167 mm)
Width	6.60? (167 mm)
Depth	9.40? (239 mm)
Mount Depth	9.40? (239 mm)
Baffle Cutout
Diameter	6.60? (167 mm)
Net weight	0.88lb (0.40 kg)

---

PRV AUDIO WGP22-50PR DATASHEETDownload
