Features

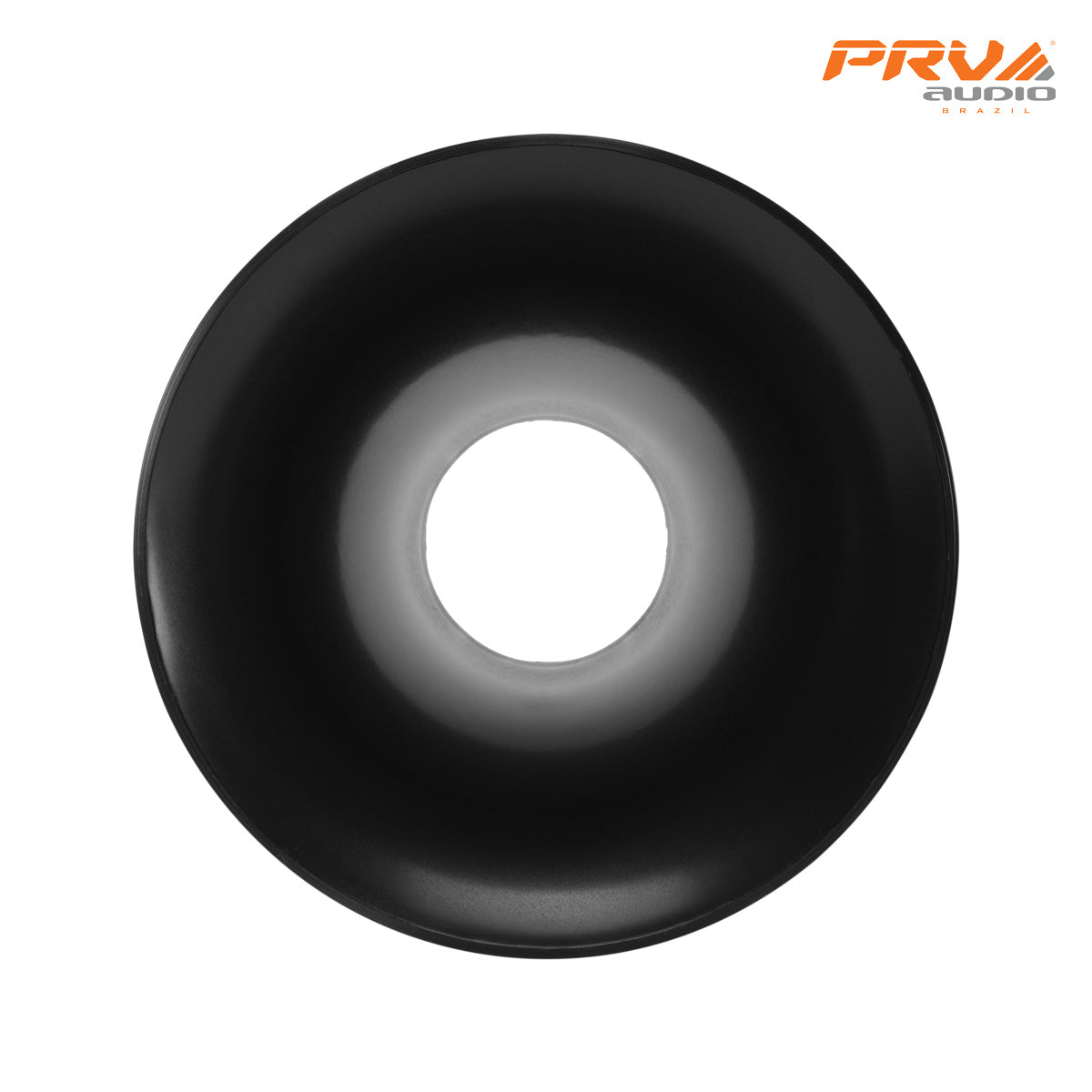

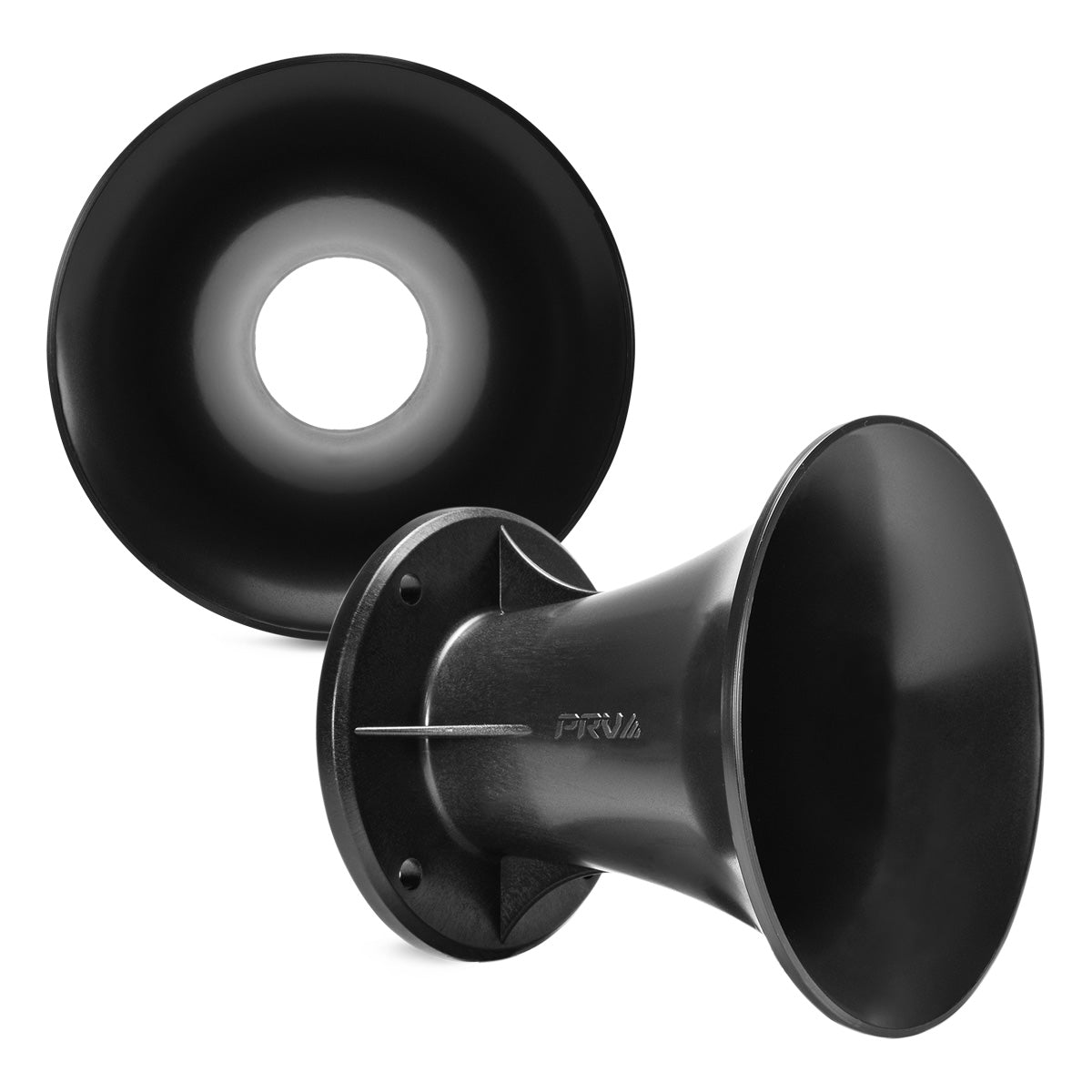

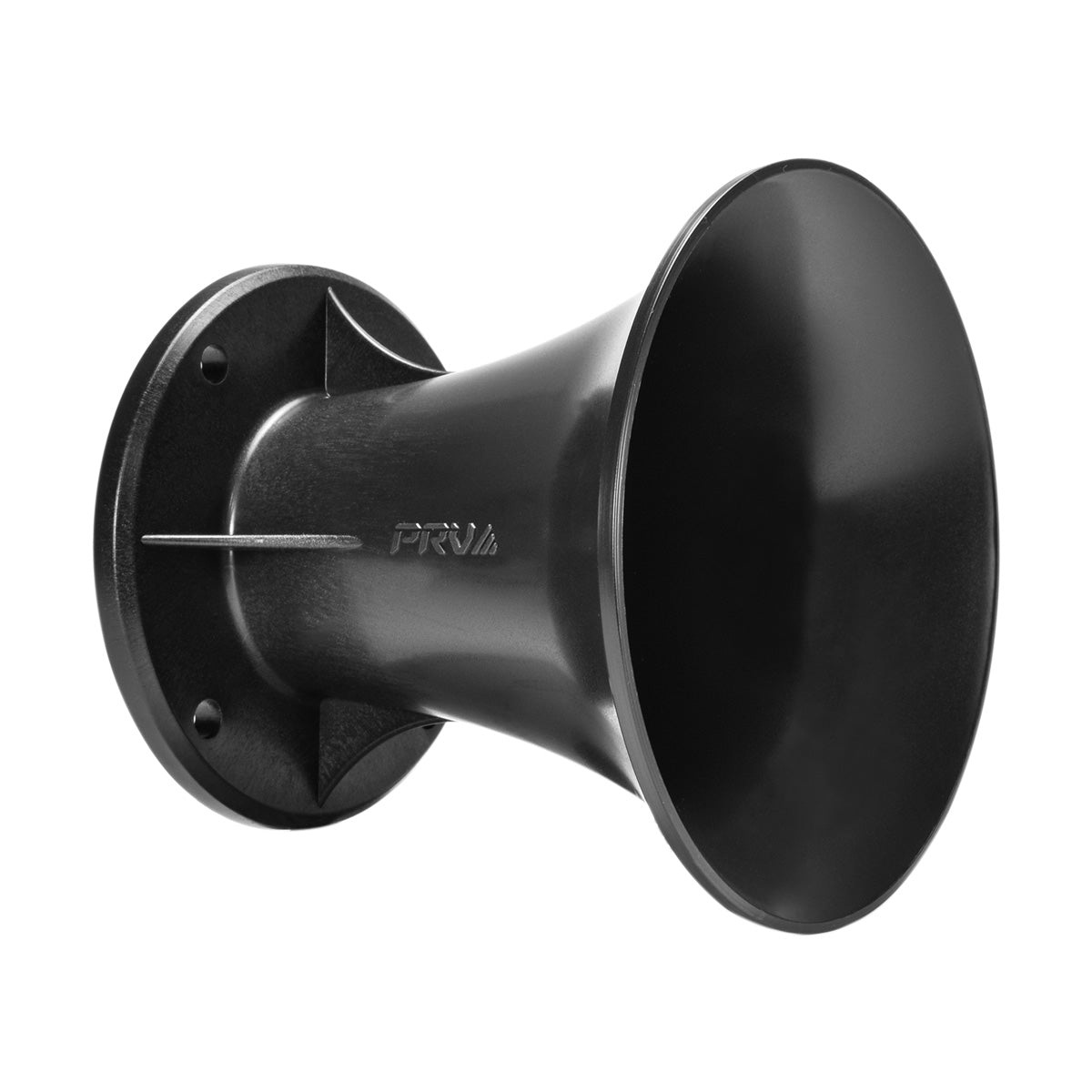

The flangeless design of PRV Audios WGP14-50PR black exponential horn gives your high output midrange and tweeter installation a clean look. No mounting hole, made for custom fiberglass work.

With a 2? throat and 45 x 45 dispersion, this is perfect for applications where a controlled coverage pattern is needed and space is at a premium.

---

Highlights

• 2 Throat Diameter
• Light weight
• No Mounting Holes
• Bolt-on
• 45 x 45 Nominal Coverage

GENERAL SPECIFICATIONS

Throat Diameter	2 (50.8 mm)
Mounting Type	Bolt-on
Hole Dimensions	0.31? 8 mm
Bolt Circle	4? 101.6 mm
Nominal Coverage
Horizontal	45
Vertical	45
Flare type	Exponential
Material	Plastic (ABS)
Finish / Coating	Black Painting
Dimensions
Height	5.53? (140.5 mm)
Width	5.53? (140.5 mm)
Depth	5.0? (127.0 mm)
Mounting Depth	5.0? (127.0 mm)
Baffle Cutout
Diameter Circle	5.53? (140.5 mm)
Net weight	0.40 lb (0.18 kg)

PRV AUDIO WGP14-50PR DATASHEETDownload
