Features

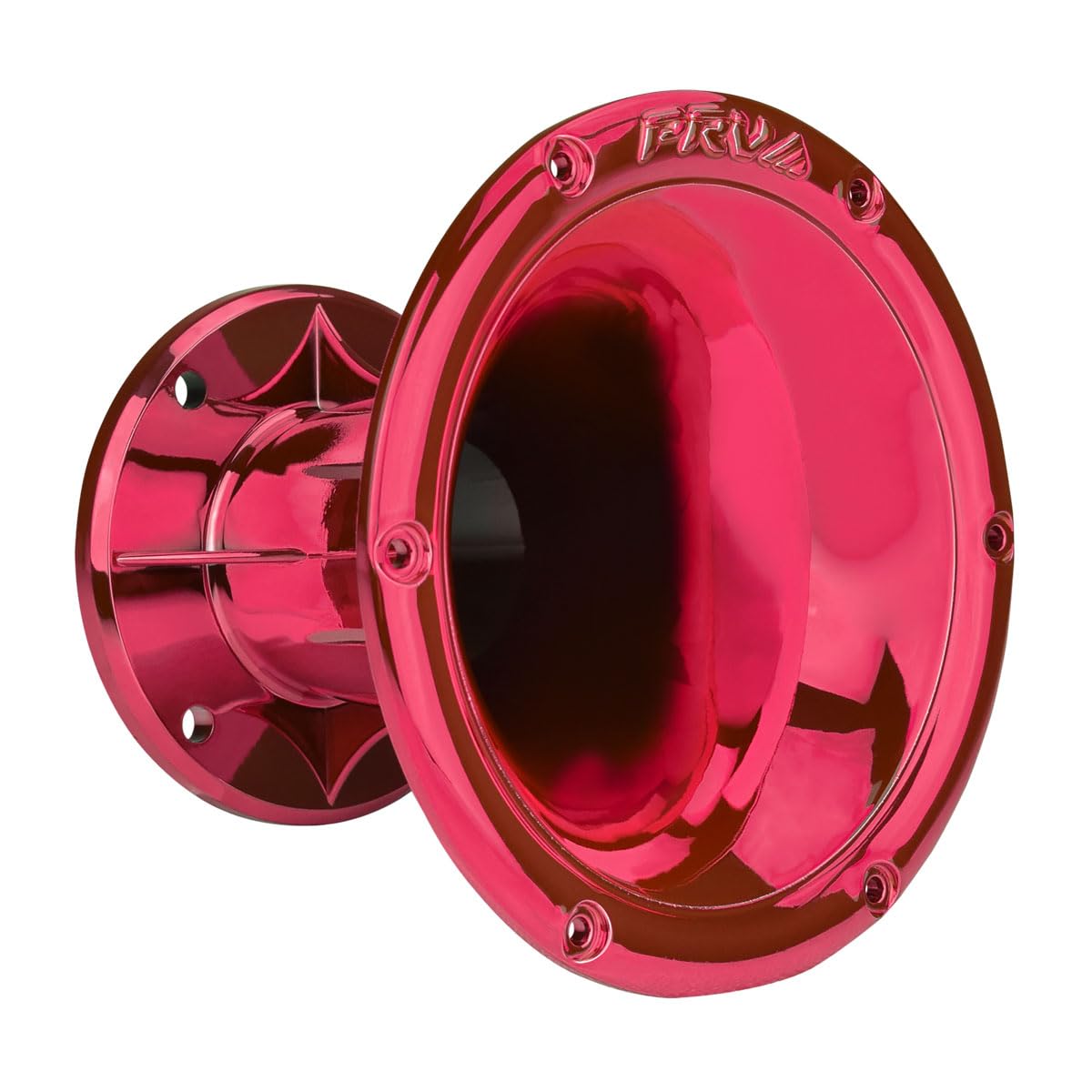

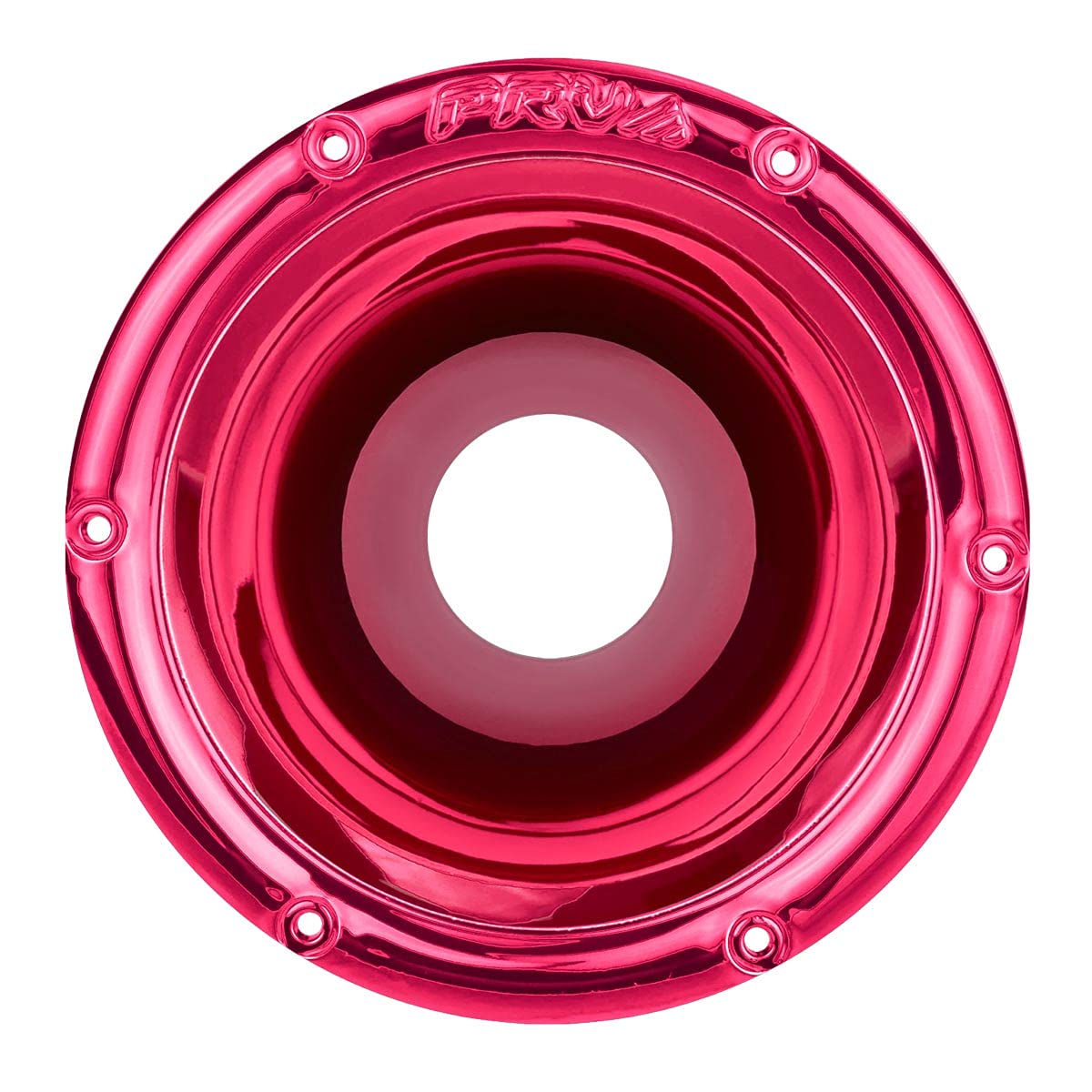

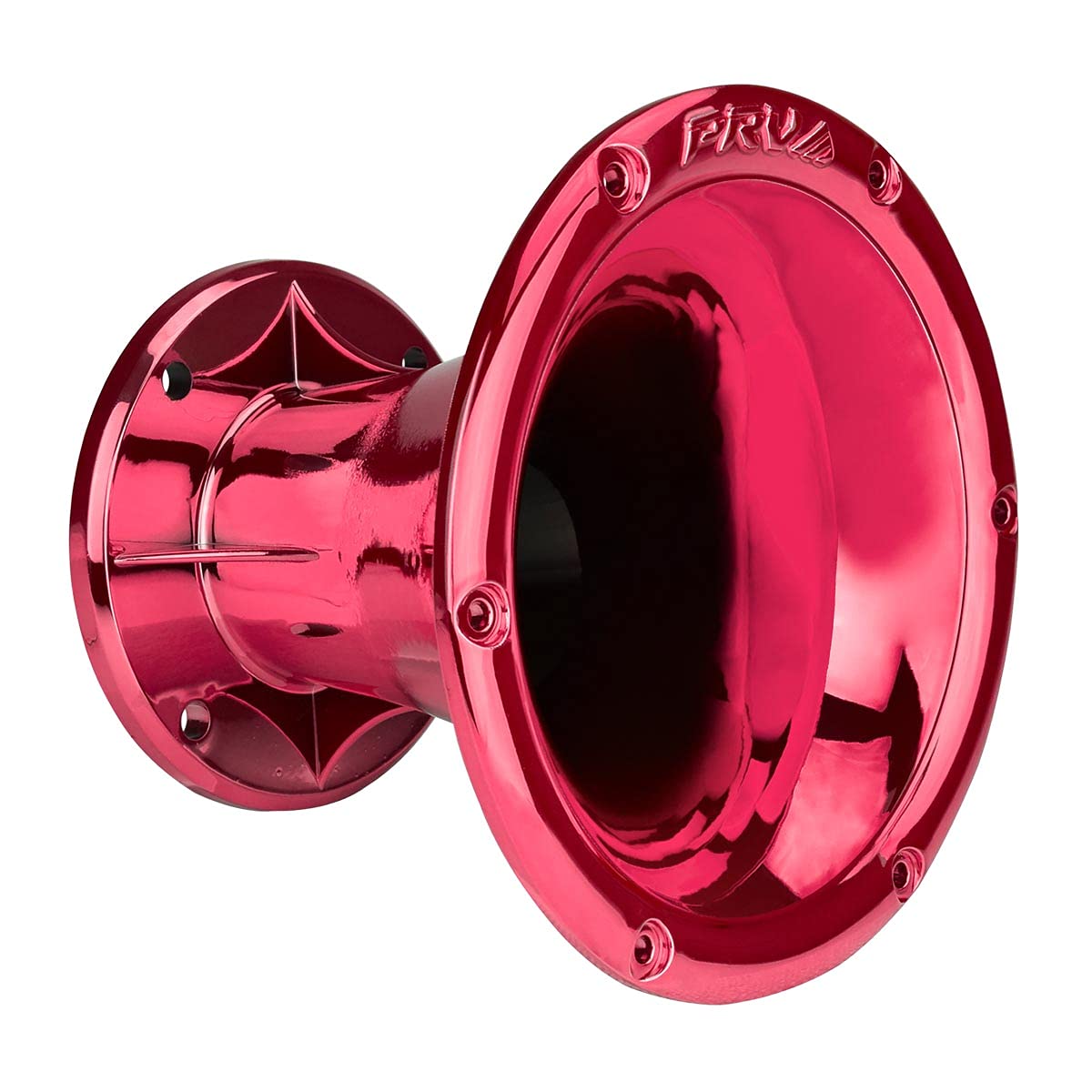

2? Exit ABS Plastic Wave Guide Bolt-on

---

Highlights

• 2 Throat Diameter
• Light weight
• Bolt-on
• 45 x 45 Nominal Coverage

---

WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov

GENERAL SPECIFICATIONS

Throat Diameter	2 (50.8 mm)
Mounting Type	Bolt-on
Hole Dimensions	0.31? 8 mm
Bolt Circle	4? 101.6 mm
Nominal Coverage
Horizontal	45
Vertical	45
Flare type	Exponential
Material	Plastic (ABS)
Finish / Coating	Several Colors

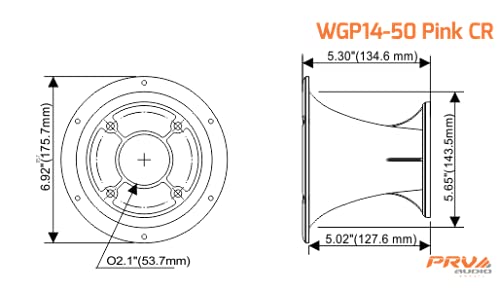

Dimensions
Height	6.92? (175.7 mm)
Width	6.92? (175.7 mm)
Depth	5.30? (134.6 mm)
Mounting Depth	5.02? (127.6 mm)
Baffle Cutout
Diameter Circle	5.75? (146 mm)
Net weight	0.51 lb (0.23 kg)
