Description
xFeatures

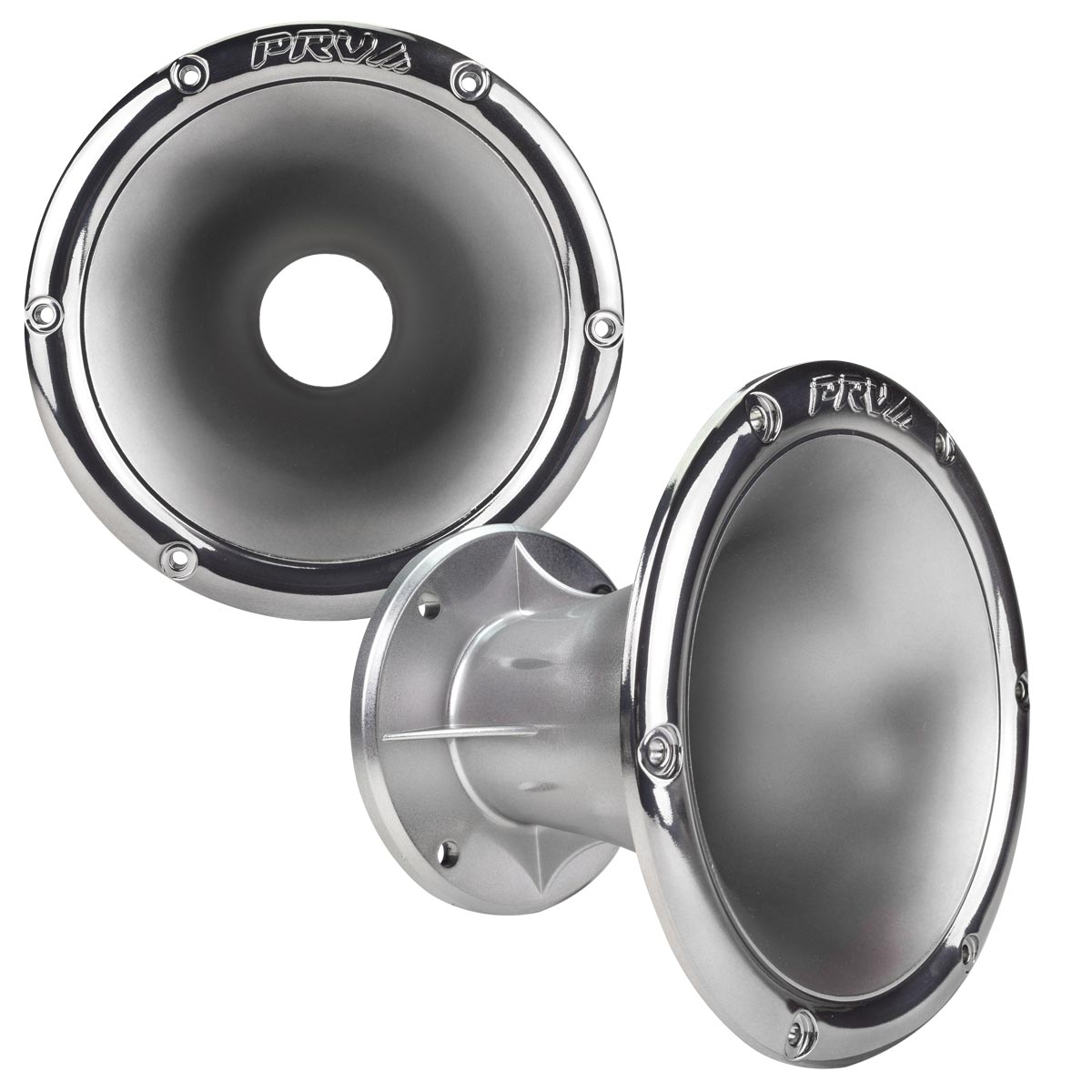

Give your Compression Driver a most unique look with our grey car audio color horn WGP14-50 GREY DUAL TONE waveguide featuring a Chrome and Matter Finish.

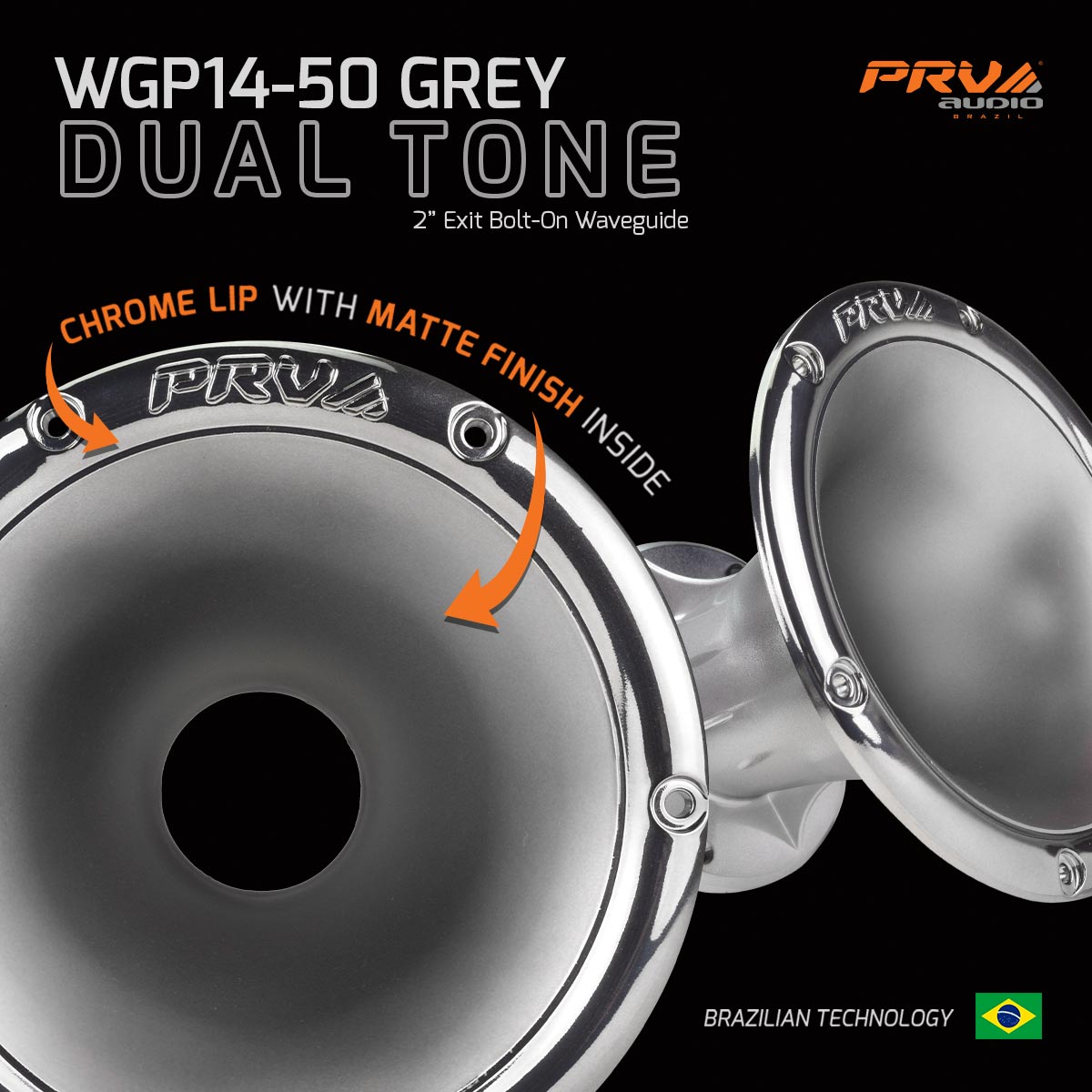

Its new Dual Tone finish is composed of a chrome lip and matte finish inside giving an unique finishing, making this new series the most unique color horn for drivers in the PROAudioOnWheels market
This WGP14-50 DUAL TONE has a 2? throat and 45 x 45 dispersion, which makes this perfect for applications where a tight coverage pattern is needed.
These round grey horns provide a perfect dispersion to minimize floor and wall reflections with uniform on and off axis frequency response from 600 Hz to beyond 25 kHz with. All archived within this small horn design with a mounting depth of only 5.02?.
Highlights
- 2? throat with standard 4-bolt mounting pattern
- Non-resonant reinforced plastic construction
- Grey Color with Chrome lid with matte UV resistant finish
- 45 x 45 Nominal Coverage with Limit frequency of 600 Hz
This conical waveguide short throat design, will surprisingly increase output on any compression driver, giving it a sound amplification over 21 dB.
GENERAL SPECIFICATIONS
| Throat Diameter | 2 (50.8 mm) |
| Mounting Type | Bolt-on |
| Hole Dimensions | 0.31? 8 mm |
| Bolt Circle | 4? 101.6 mm |
| Nominal Coverage | |
| Horizontal | 45 |
| Vertical | 45 |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | Several Colors |

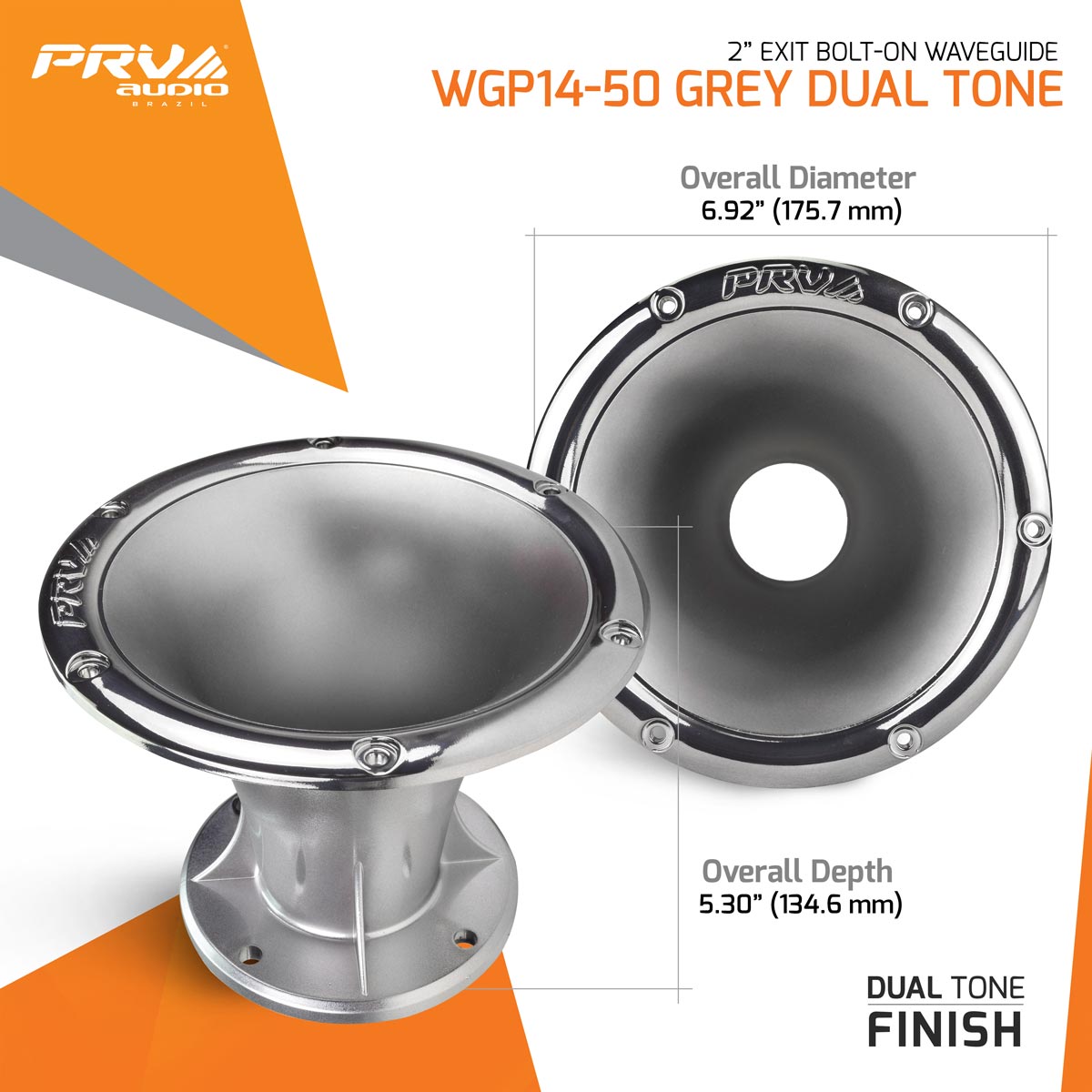

| Dimensions | |
| Height | 6.92? (175.7 mm) |
| Width | 6.92? (175.7 mm) |
| Depth | 5.30? (134.6 mm) |
| Mounting Depth | 5.02? (127.6 mm) |
| Baffle Cutout | |
| Diameter Circle | 5.75? (146 mm) |
| Net weight | 0.51 lb (0.23 kg) |
PRV AUDIO WGP14-50 DATASHEETDownload
