Features

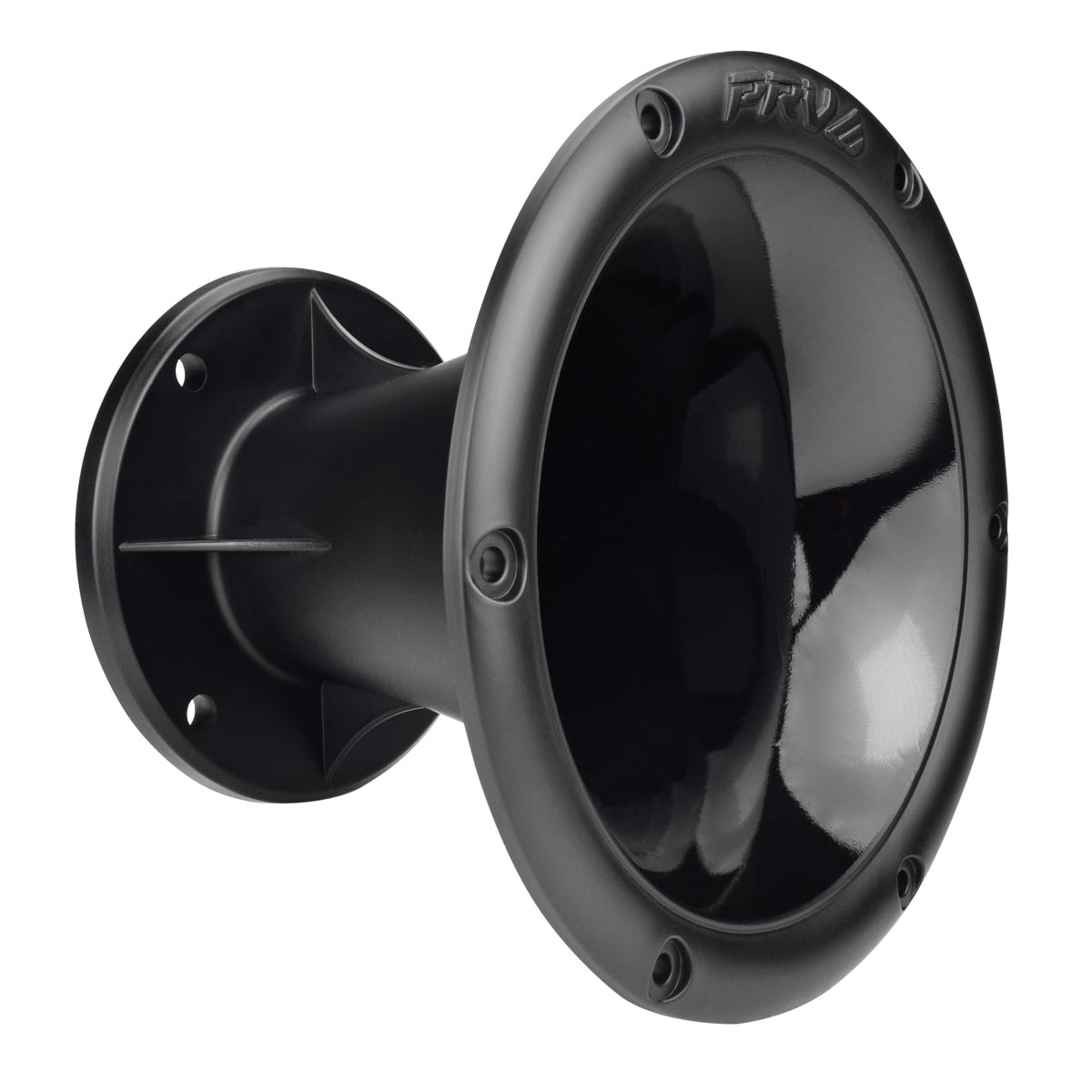

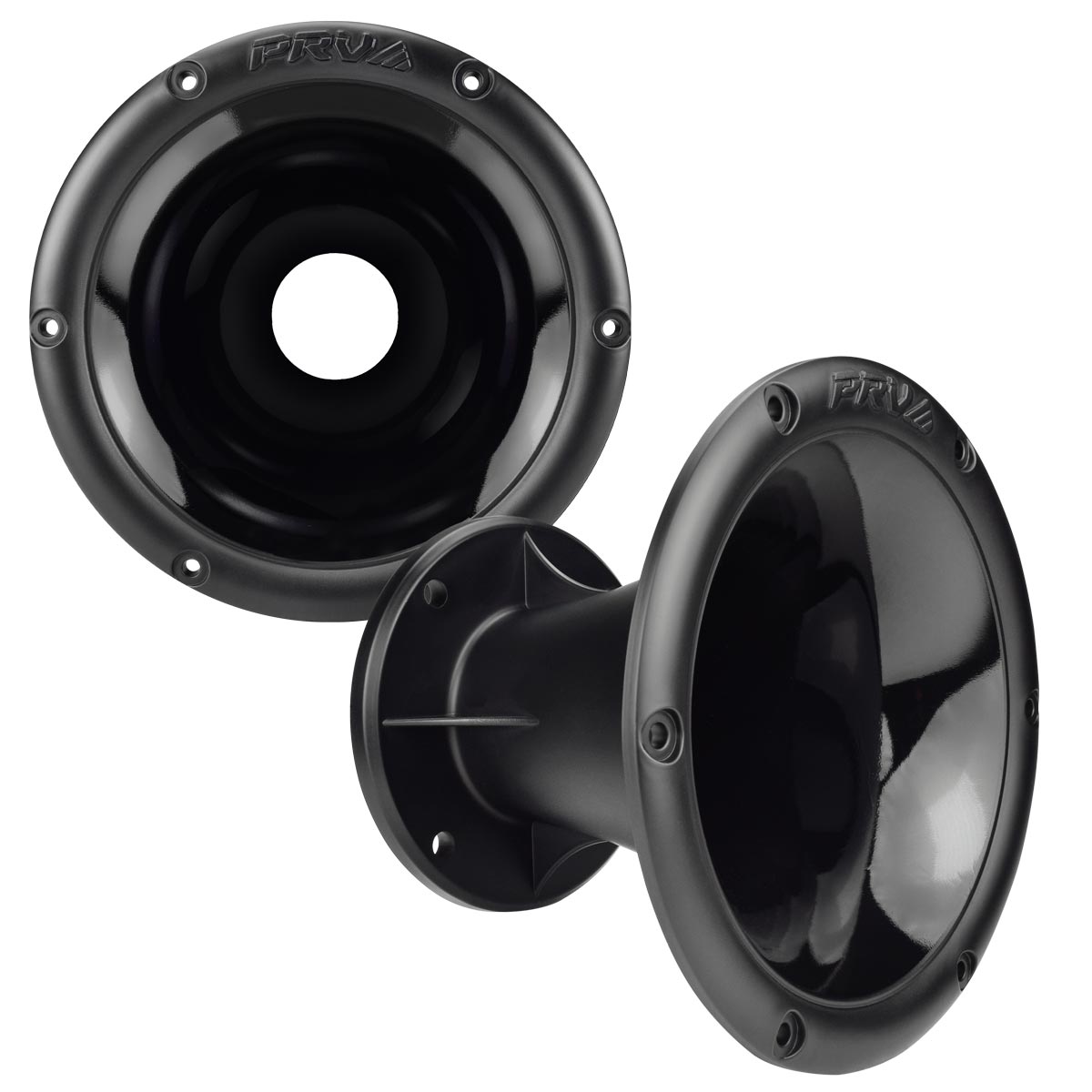

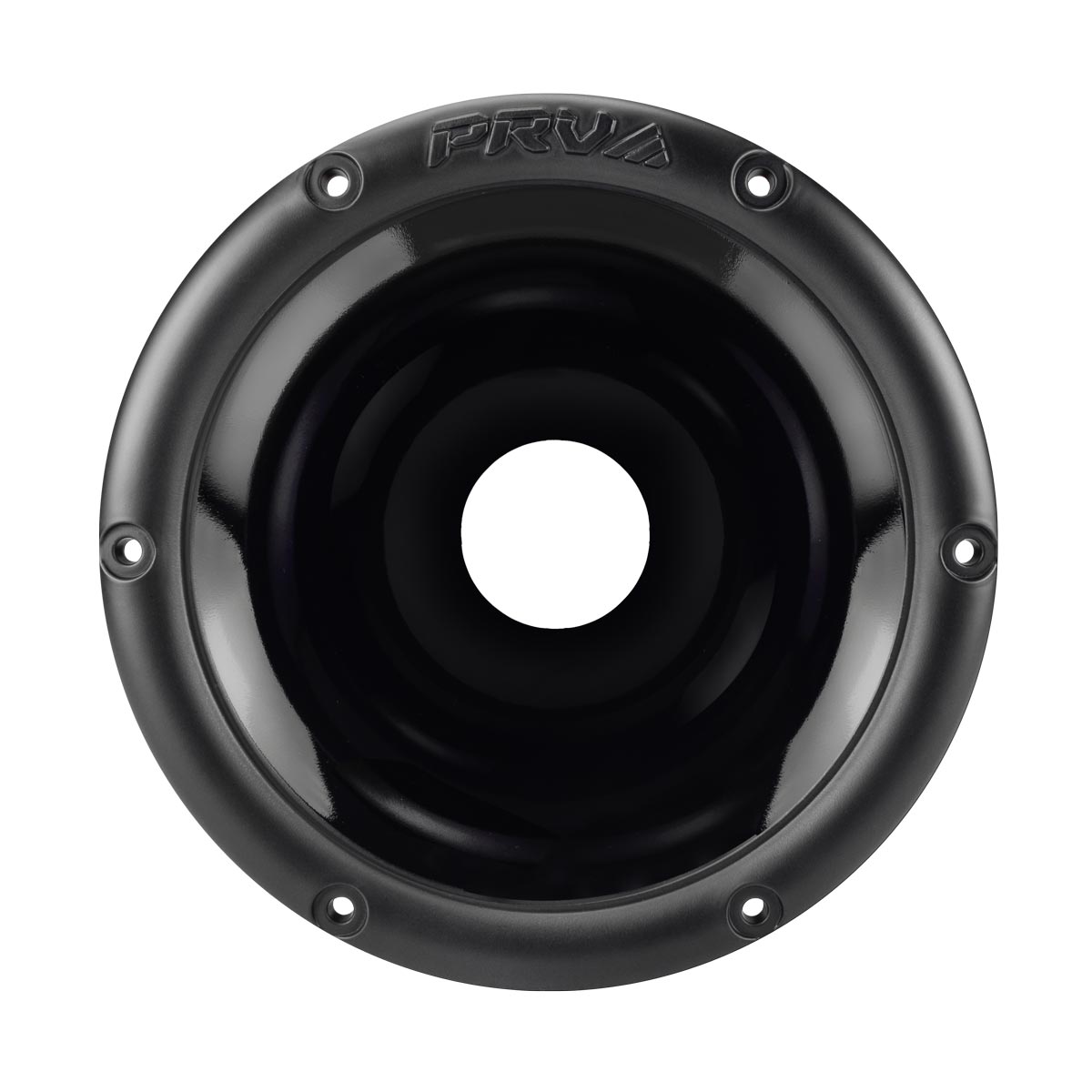

Give your Compression Driver an unique LOOK with WGP14-50 DUAL TONE finish horns. With a 2? throat and 45 x 45 dispersion, this is perfect for applications where a tight coverage pattern is needed. Its new Dual Tone finish is composed of a matte lip and chrome finish inside giving an unique finishing, making this new series the most unique horn in the car audio market

---

Highlights

• 2? throat with standard 4-bolt mounting pattern
• Non-resonant reinforced plastic construction
• Matte finish lid with chrome UV resistant finish for use in PROAudioOnWheels application
• 45 x 45 Nominal Coverage with Limit frequency of 600 Hz

GENERAL SPECIFICATIONS

Throat Diameter	2 (50.8 mm)
Mounting Type	Bolt-on
Hole Dimensions	0.31? 8 mm
Bolt Circle	4? 101.6 mm
Nominal Coverage
Horizontal	45
Vertical	45
Flare type	Exponential
Material	Plastic (ABS)
Finish / Coating	Several Colors

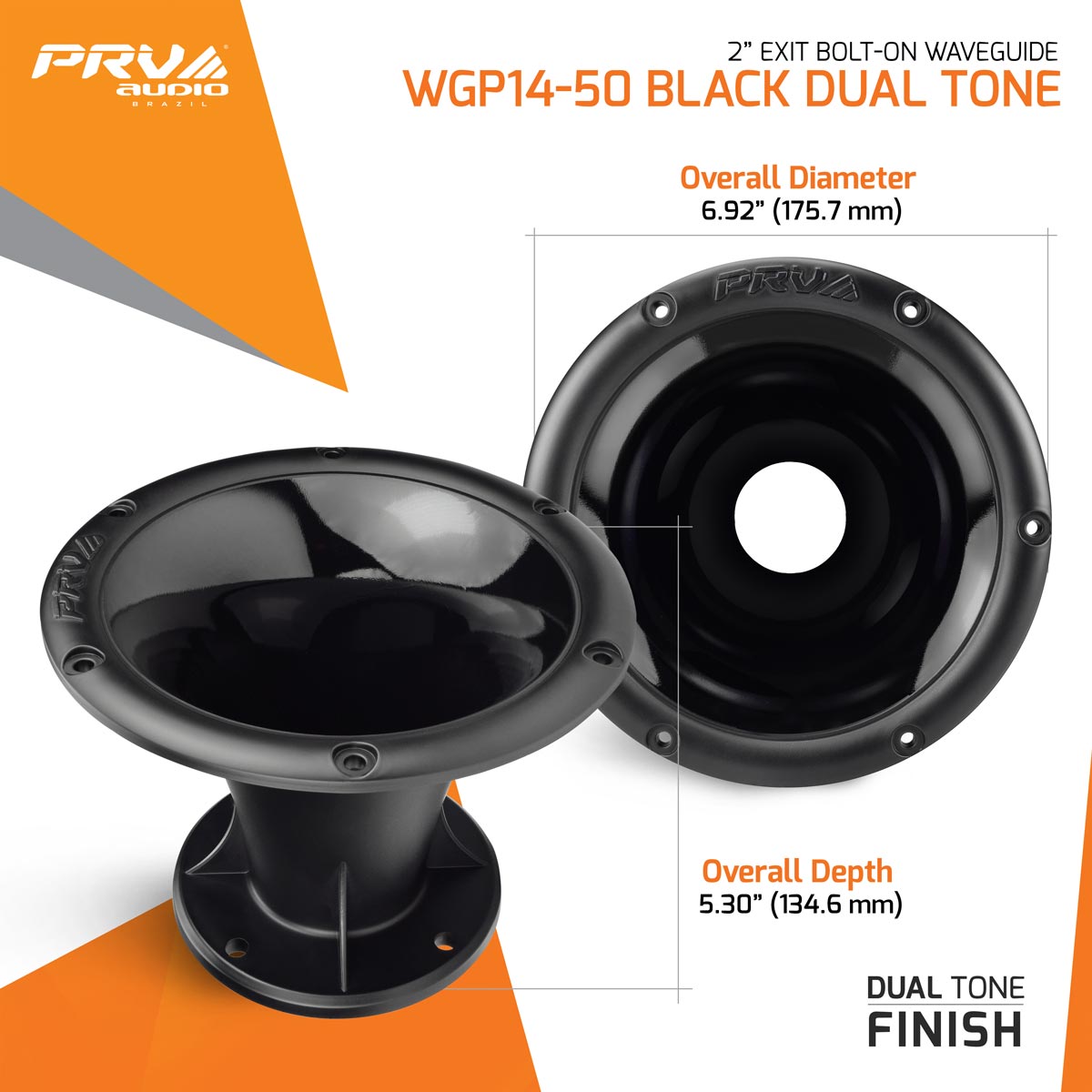

Dimensions
Height	6.92? (175.7 mm)
Width	6.92? (175.7 mm)
Depth	5.30? (134.6 mm)
Mounting Depth	5.02? (127.6 mm)
Baffle Cutout
Diameter Circle	5.75? (146 mm)
Net weight	0.51 lb (0.23 kg)

PRV AUDIO WGP14-50 DATASHEETDownload
