Description

Description

x

Features

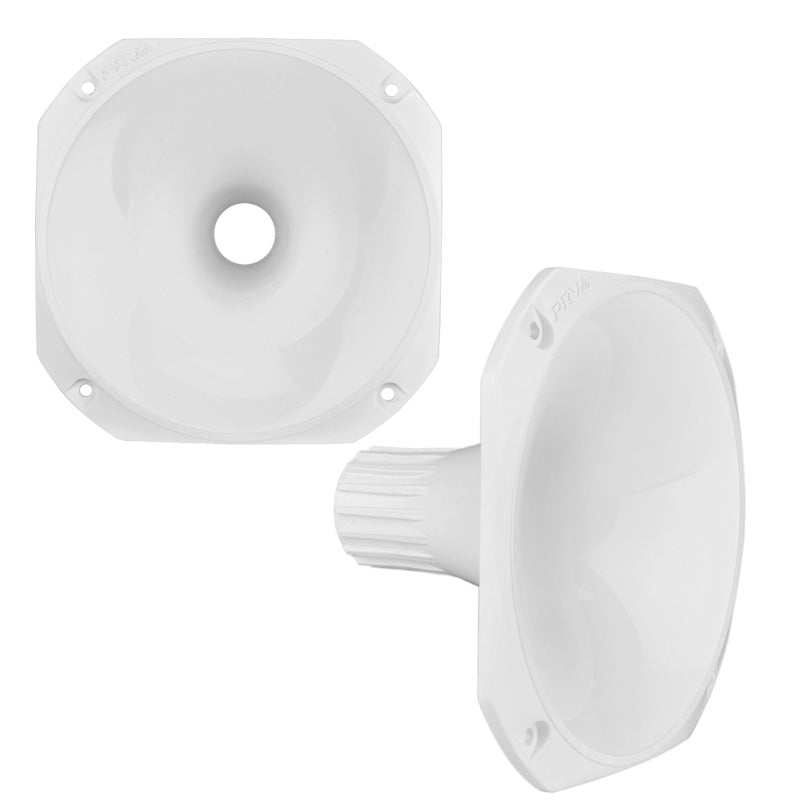

1? Exit Short ABS Wave Guide Screw-on

---

Highlights

• 1 Throat Diameter
• Screw-on
• Slim Profile
• 45 x 45 Nominal Coverage

GENERAL SPECIFICATIONS

Throat Diameter	1 (25.4 mm)
Mounting Type	Screw-on
Thread dimensions	1-3/8?
Nominal Coverage
Horizontal	45
Vertical	45
Flare type	Exponential
Material	Plastic (ABS)
Finish / Coating	White
Dimensions
Height	6.09? (154.7 mm)
Width	6.09? (154.7 mm)
Depth	4.33? (110 mm)
Mount Depth	3.98? (100 mm)
Baffle Cutout
Width	5.51? (140 mm)
Net weight	0.2 lb (0.09 kg)

---

PRV AUDIO WGP14-25-S DATASHEETDownload
