Features

The WG2500Ti is a unique combo featuring a Titanium Pro Audio compression driver with a 2 exit waveguide that features a special 2.5 size voice coil allowing accurate reproduction through 17kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

Highlights

• 2? Exit Titanium diaphragm with 2.5? Voice coil
• Type: Combo Driver + Horn WG14-50CR
• Nominal Impedance: 8 Ohm
• 200 Watts Continuous Program Power (RMS)
• Extremely high efficiency is perfect for high output systems

---

High output mobile audio enthusiasts choose the PRV Audio WG2500Ti for extreme SPL car audio competitions where the small diameter of the driver allows for front mounting, making it easy to install without having to detach the driver from the horn.

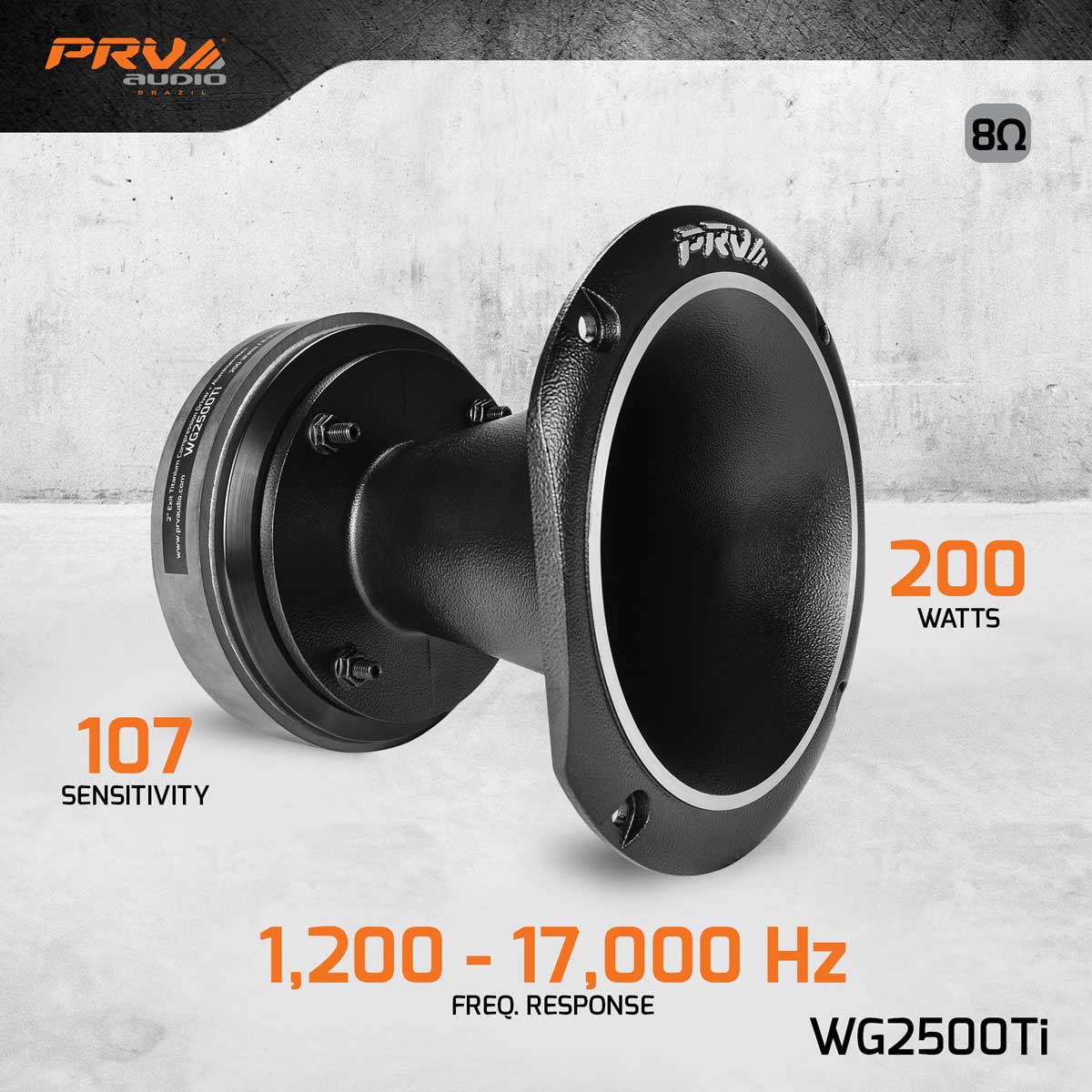

GENERAL SPECIFICATIONS

Exit Throat Diameter	2 (50 mm)
Nominal Impedance	8 Ohm
Nominal Power Handling*	100 Watts
Continuous Power Handling (RMS)**	200 Watts
Max Peak Power***	400 Watts
Sensitivity 2.83V at 1m	107 dB
Recommended Hi Pass Crossover For Full Power Handling	1700 Hz 12db Per Octave Crossover
Frequency Response at -10dB	1,200 17,000 Hz
Voice Coil Diameter	2.5? (65 mm)
Voice Coil Wire	CCAW
Voice Coil Former Material	Kapton
Diaphragm Material	Titanium
Flux Density	21.1 T
Magnet Material	Ferrite

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.}

---

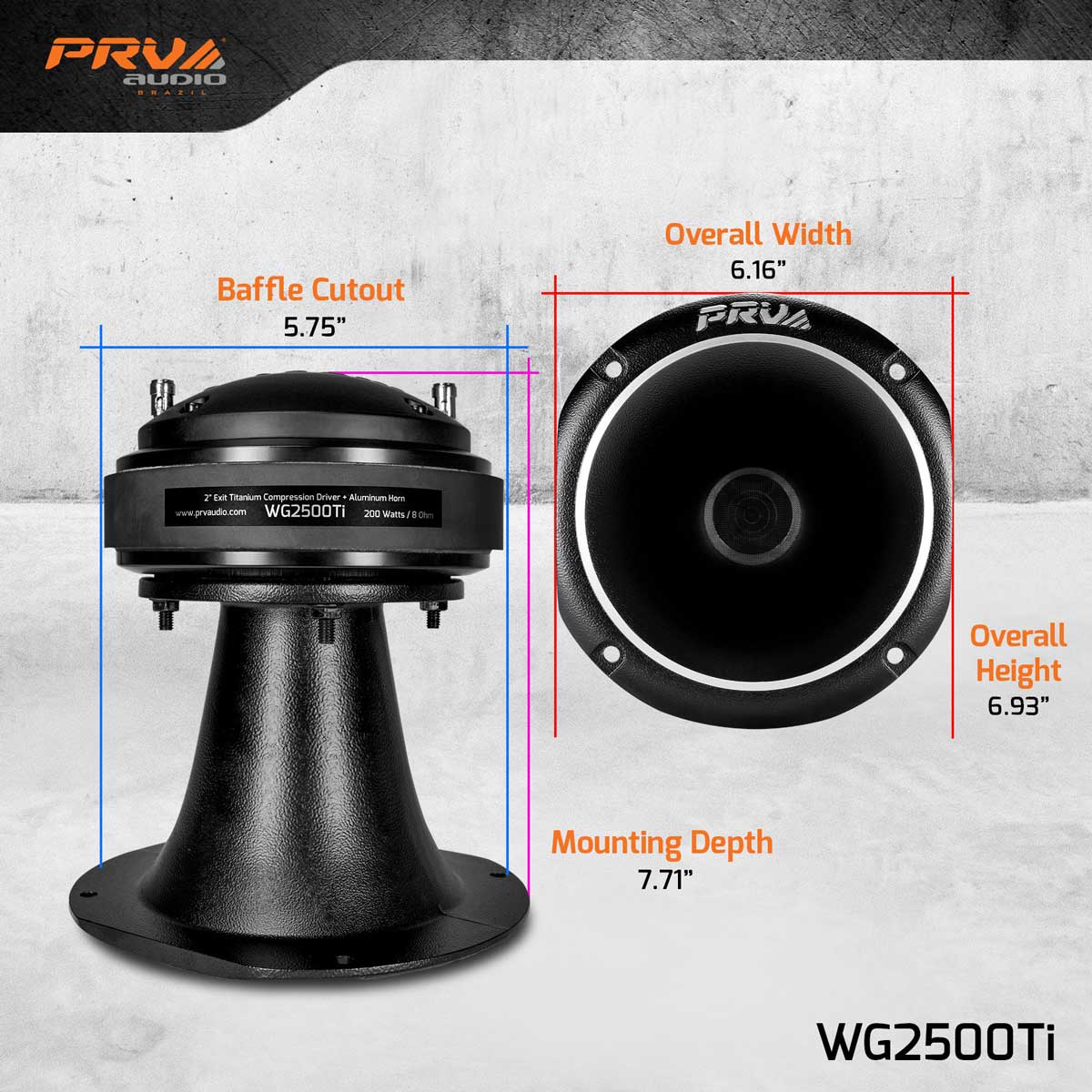

EXTRA INFO

Overall Depth	8.07 (205 mm)
Mounting Depth	7.71 (196 mm)
Overall Width	6.16? (156.5 mm)
Overall Height	6.93?(176mm)
Baffle Cutout	5.75 (146 mm)
Net Weight	10.32lbs (4.68 kg)
Shipping Weight	11.02lbs (5.00 kg)
Carton Dimensions W x L x H	8.26 x 7.58 x 9.45 (210 x 190 x 240 mm)
