Description
xFeatures

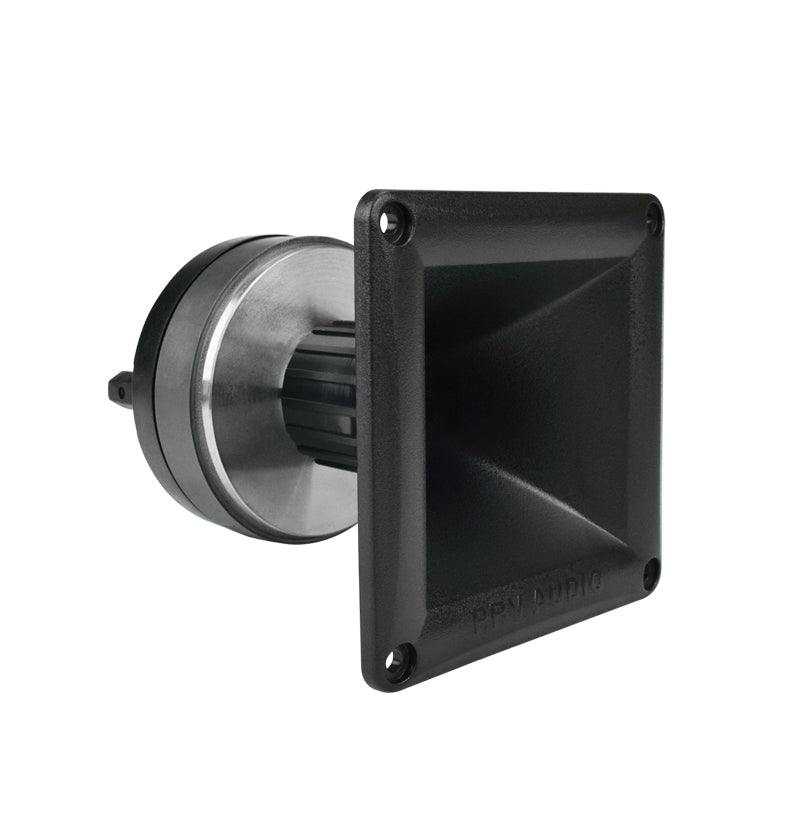

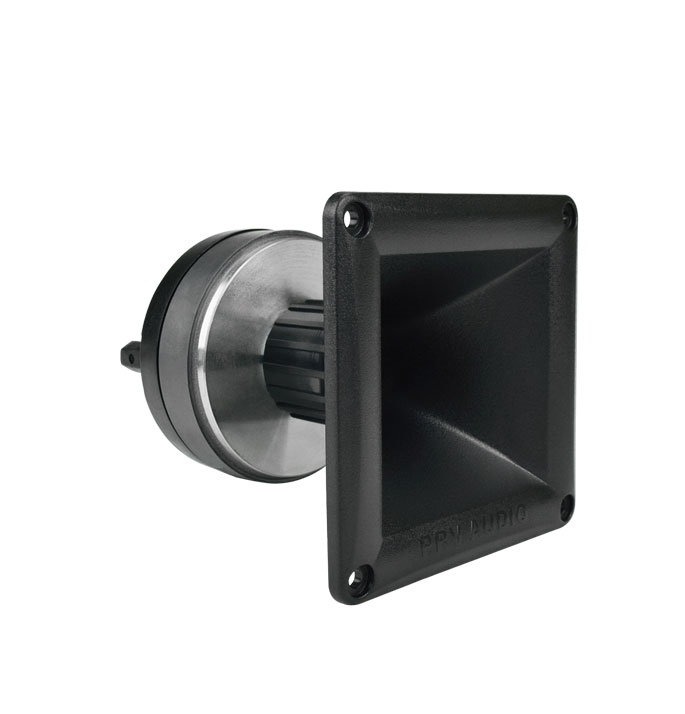

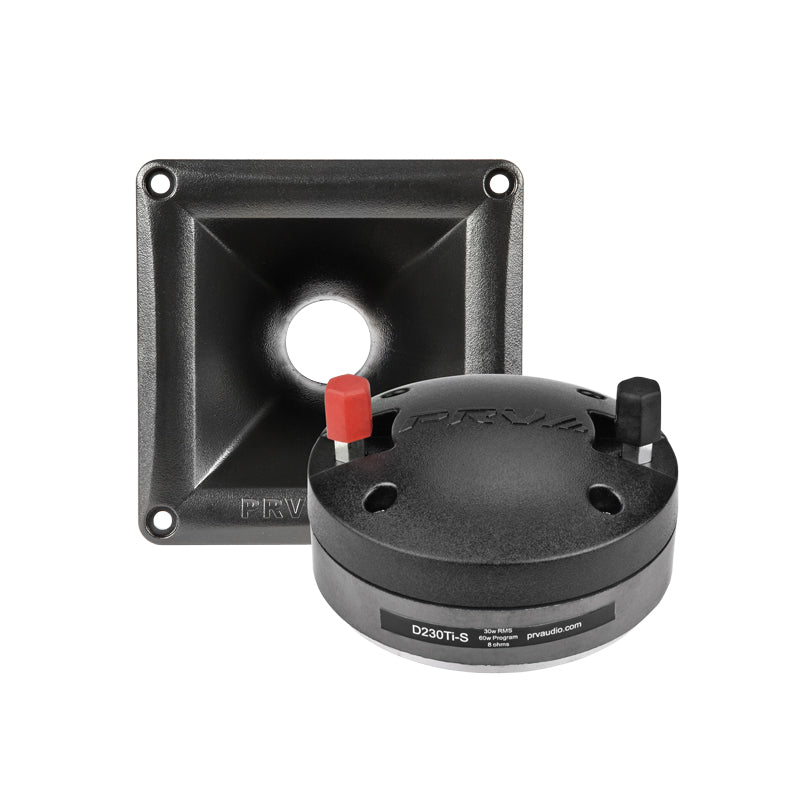

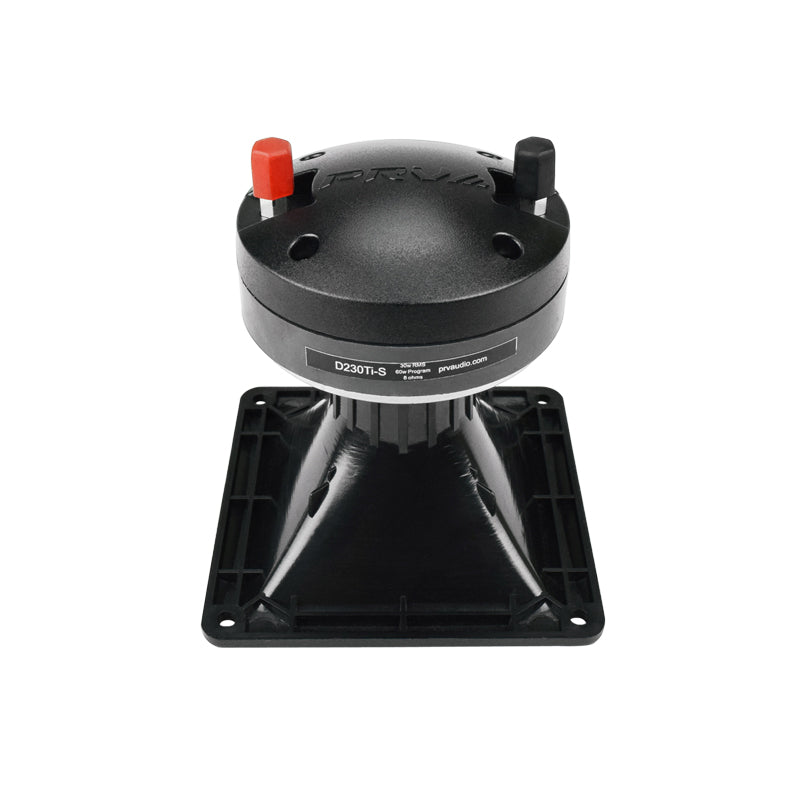

The WG230Ti compression driver combo is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8?-18 TPI horn.
The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.
Highlights
- Throat Diameter: 1?
- Type: Combo
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 30 Watts
- Program Power: 60 Watts
The WG230Ti is a lightweight driver that weighs just 2.20lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.
The WG230Ti is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1? screw-on design.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 30 Watts |
| Program Power | 60 Watts |
| Sensitivity 2.83V at 1m | 105 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 2000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,800 20,000 Hz |
| Voice Coil Diameter | 1.4? (35.5 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.65 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Depth | 5.11 (130 mm) |
| Mounting Depth | 4.86 (123.5 mm) |
| Overall Width | 4.54? (115.5 mm) |
| Overall Height | 4.54? (115.5 mm) |
| Baffle Cutout | 4.16? (102 mm) |
| Net Weight | 2.20 lbs (1.00 kg) |
| Shipping Weight | 2.41 lbs (1.10 kg) |
| Carton Dimensions W x L x H | 4.64 x 4.64 x 5.31 (118 x 118 x 135 mm) |
PRV AUDIO WG230Ti DATASHEETDownload
