Features

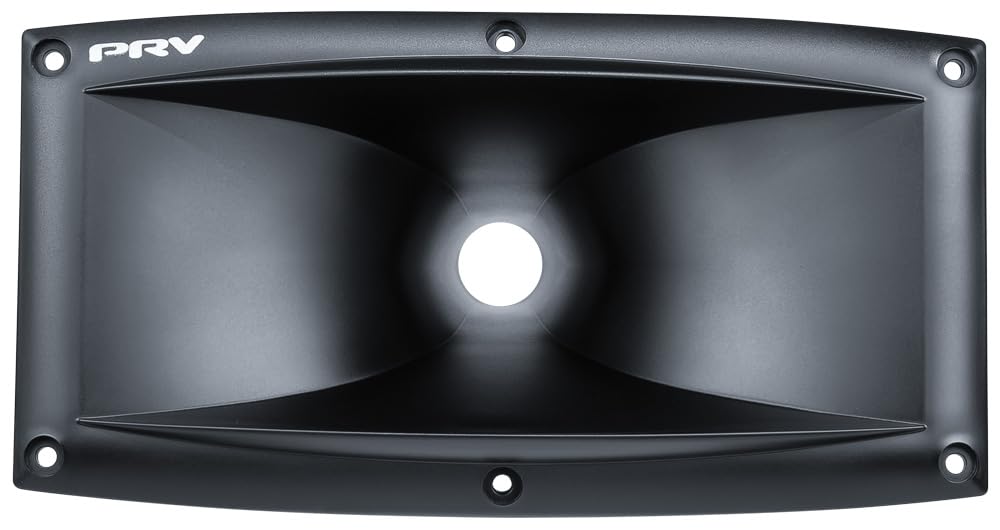

1? Exit ABS Wave Guide Screw-on

---

Highlights

• • 1 Throat Diameter
  • Screw-on
  • Wide Horizontal dispersion
  • 100 x 40 Nominal Coverage

GENERAL SPECIFICATIONS

Throat Diameter	1 (25.4mm)
Mounting Type	Screw-on
Thread dimensions	1-3/8?
Nominal Coverage
Horizontal	100
Vertical	40
Flare type	Exponential
Material	Plastic (ABS)
Finish / Coating	Black
Dimensions
Height	10.0? (254mm)
Width	5.30? (134mm)
Depth	5.67? (144mm)
Mount Depth	4.84? (123mm)
Baffle Cutout
Width	7.50? (190mm)
Height	3.50? (89mm)
Net weight	0.37lb (0.17kg)

---

PRV AUDIO WG23-25 DATASHEETDownload
