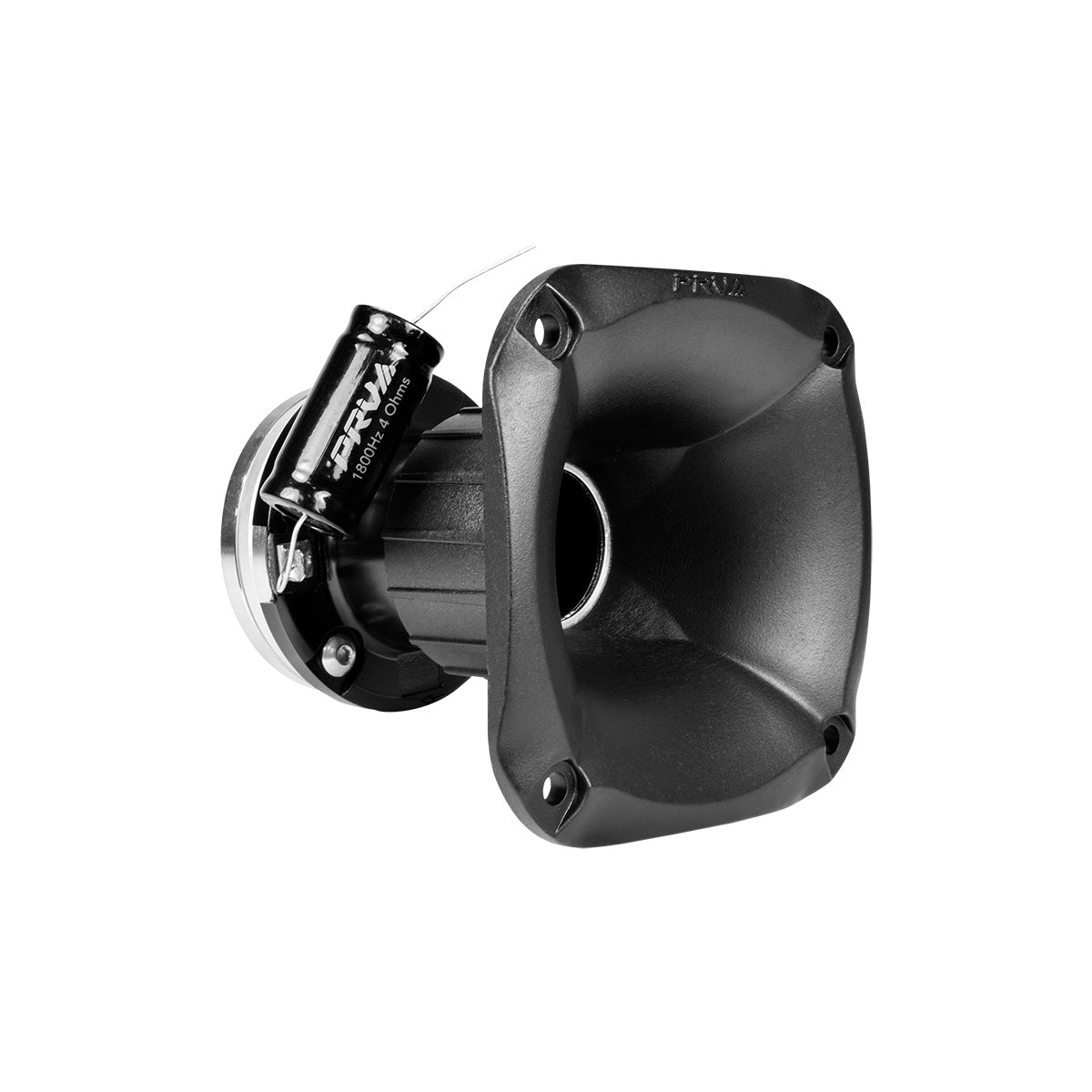

The WG175Py-Nd-4 is a Mini Horn Driver featuring a 1? Exit Polyimide Pro Audio Compression Driver with a 1 exit WG08-25 Waveguide.
This is a top-of-the-line mids & highs horn driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.

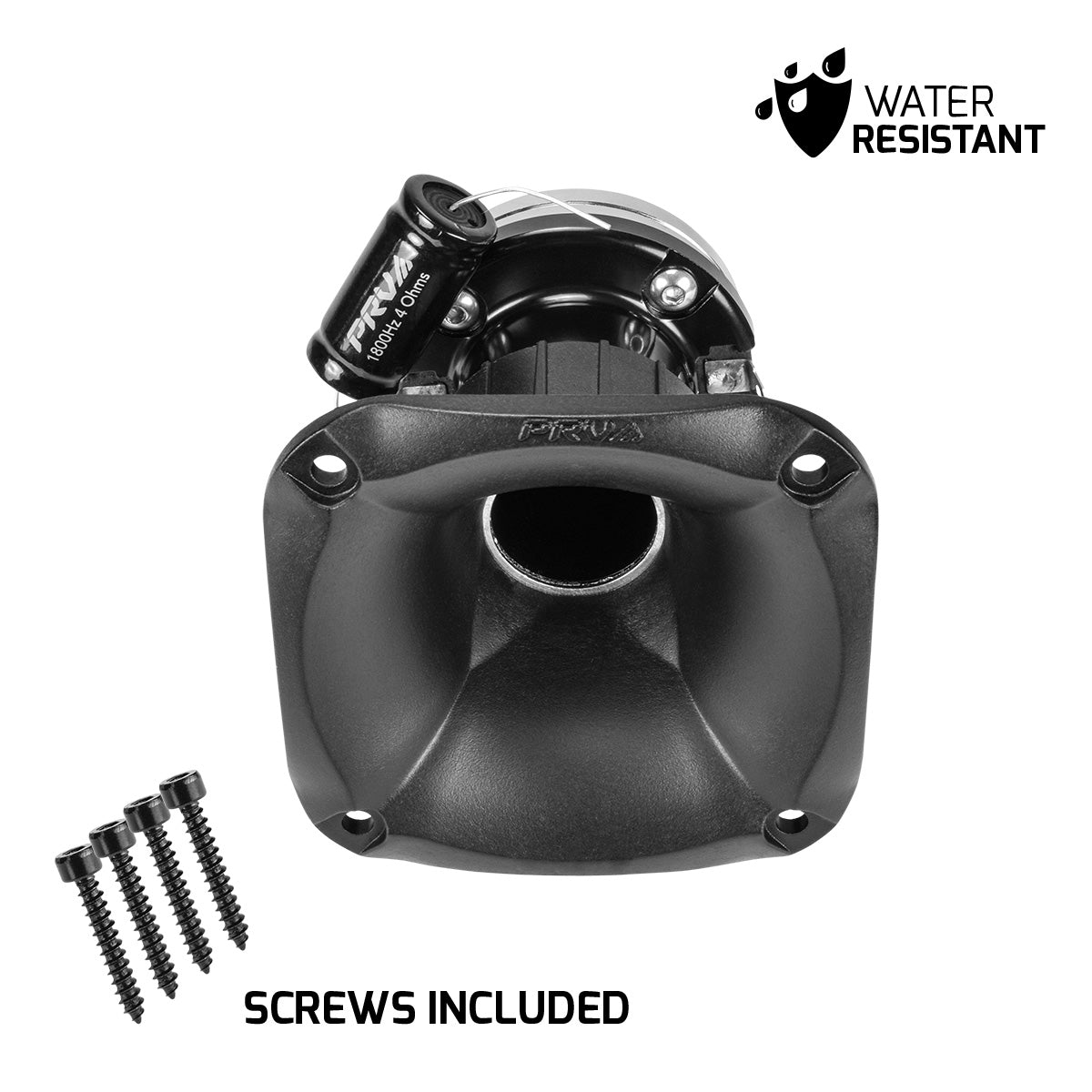

The drivers small magnet diameter allows front mounting, making it easy to install without detaching the driver from the WG08-25 Horn.

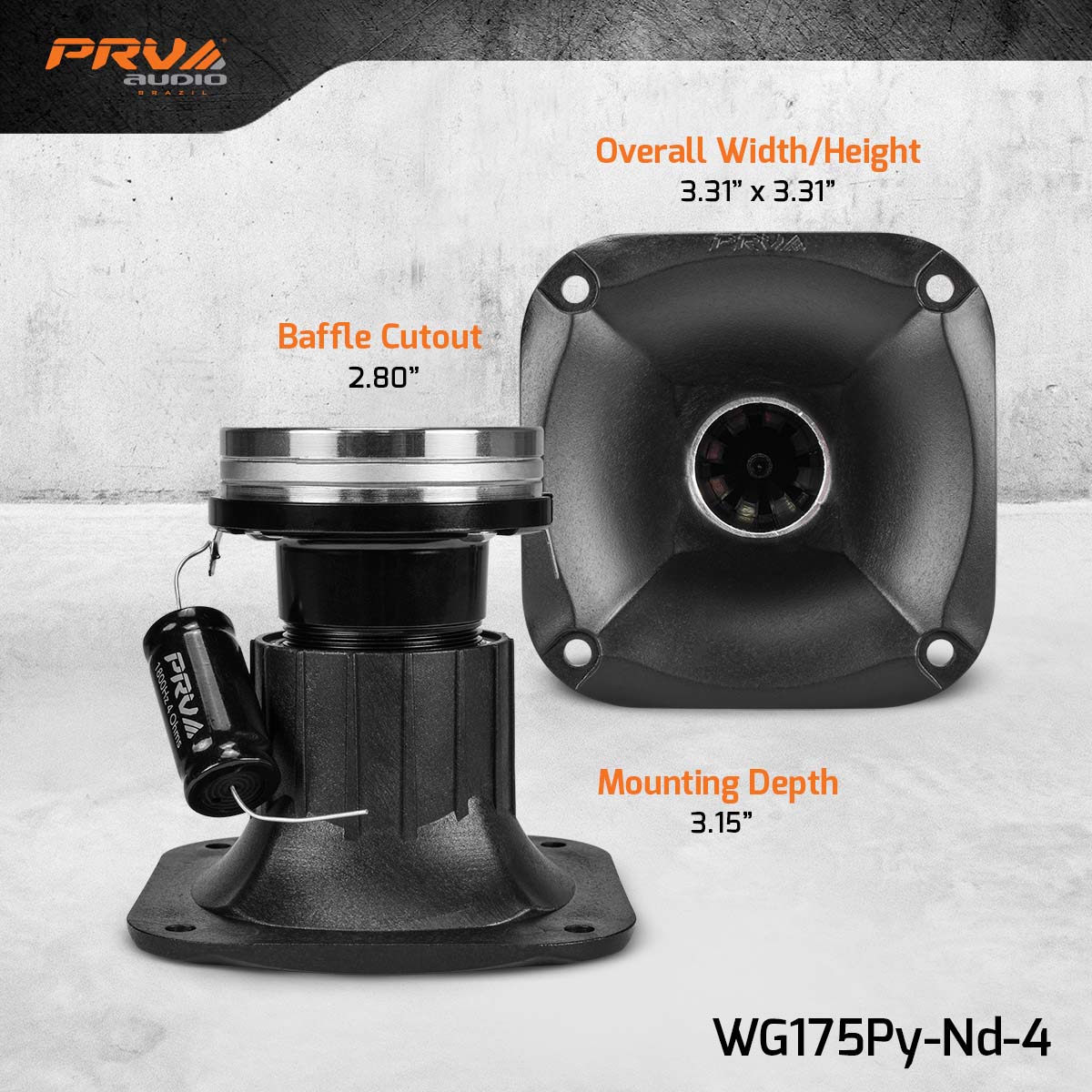

Small 3.31? x 3.31? faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
Its design was developed to give custom doors a new solution for a ultra-small horn driver, this mids and highs horn driver possesses extraordinary sensitivity thanks to high strength neodymium magnet.
The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality.This driver is built to resist the elements, perfect for outdoor use. This technology raises the bar for high frequency drivers by giving the driver wider usable bandwidth for smooth, dynamic output along with excellent efficiency.
The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.

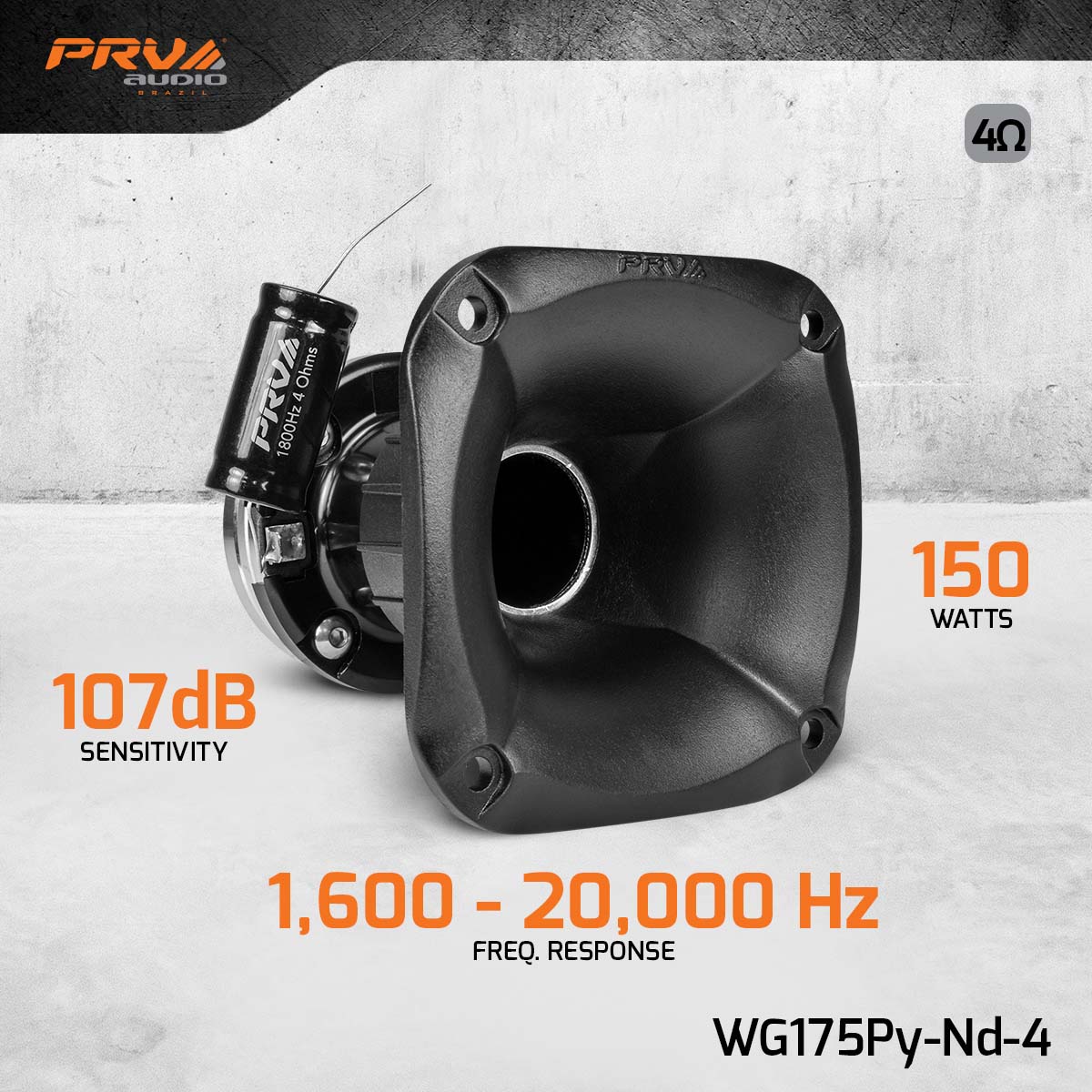

Exit Throat Diameter | 1 (25.4mm) |
Nominal impedance | 4 Ohm |
Nominal Power Handling* | 75 Watts |
Continuous Program Power(RMS)** | 150 Watts |
Max Peak Power*** | 300 Watts |
Sensitivity 2.00V at 1m | 107 dB |
Recommended Hi Pass Crossover For Full Power Handling | 1800 Hz 12db/oct Crossover |
Frequency Response at -10dB | 1,600 20,000 Hz |
Voice Coil Diameter | 1 (25.4mm) |
Voice Coil Wire | CCAW |
Voice Coil Former Material | Kapton |
Diaphragm Material | Polyimide |
Flux Density | 2.25 T |
Magnet Material | Neodymium |
