Description
xFeatures

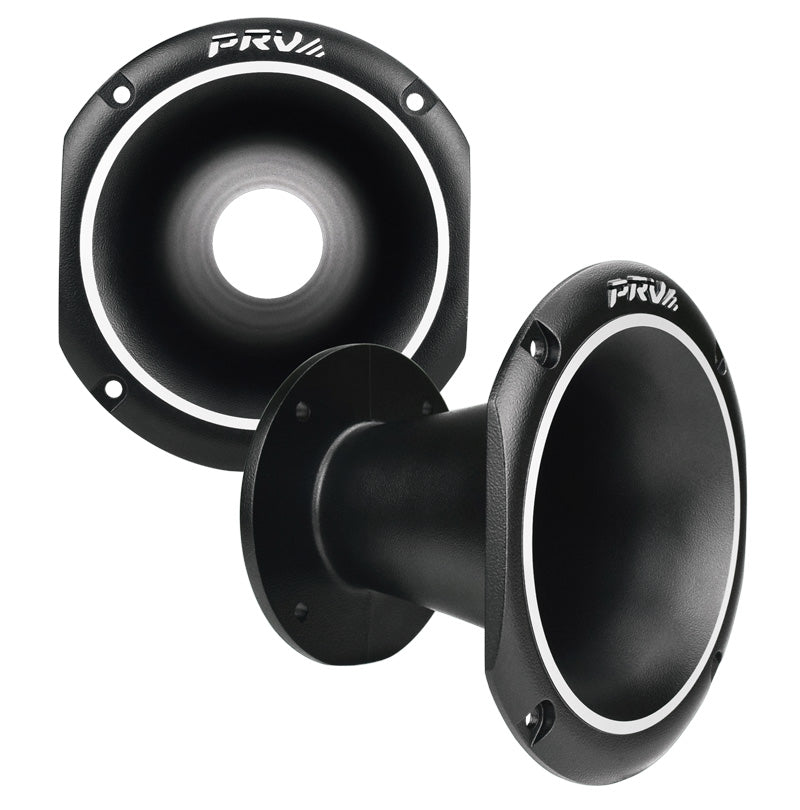

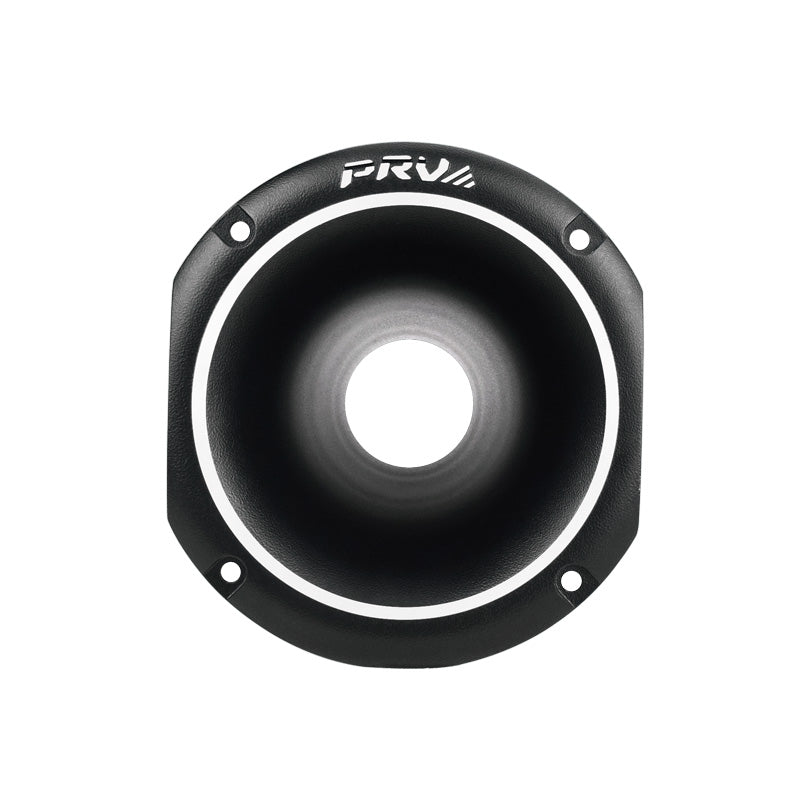

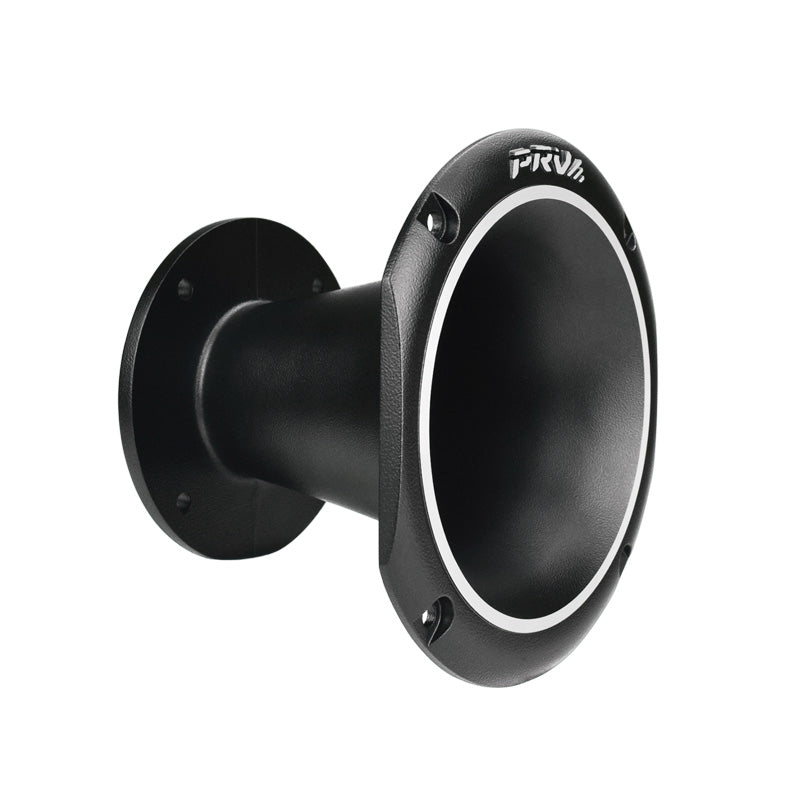

PRV Audios WG 14-50CR 45 x 45 exponential horn is designed to project a controlled dispersion pattern, such as needed with personal stage monitors, over a long distance.
Strong, lightweight aluminum construction is used to keep cabinets as light as possible for easy transport while supporting the weight of the compression driver. A standard 4-bolt flange is compatible with many 2? compression drivers. Acoustic loading is maintained down to 600 Hz.
Specifications:
Horn type: Exponential
Minimum frequency: 600 Hz
Nominal dispersion: 45 H x 45 V
Throat diameter: 2?
Mounting type: 4-bolt

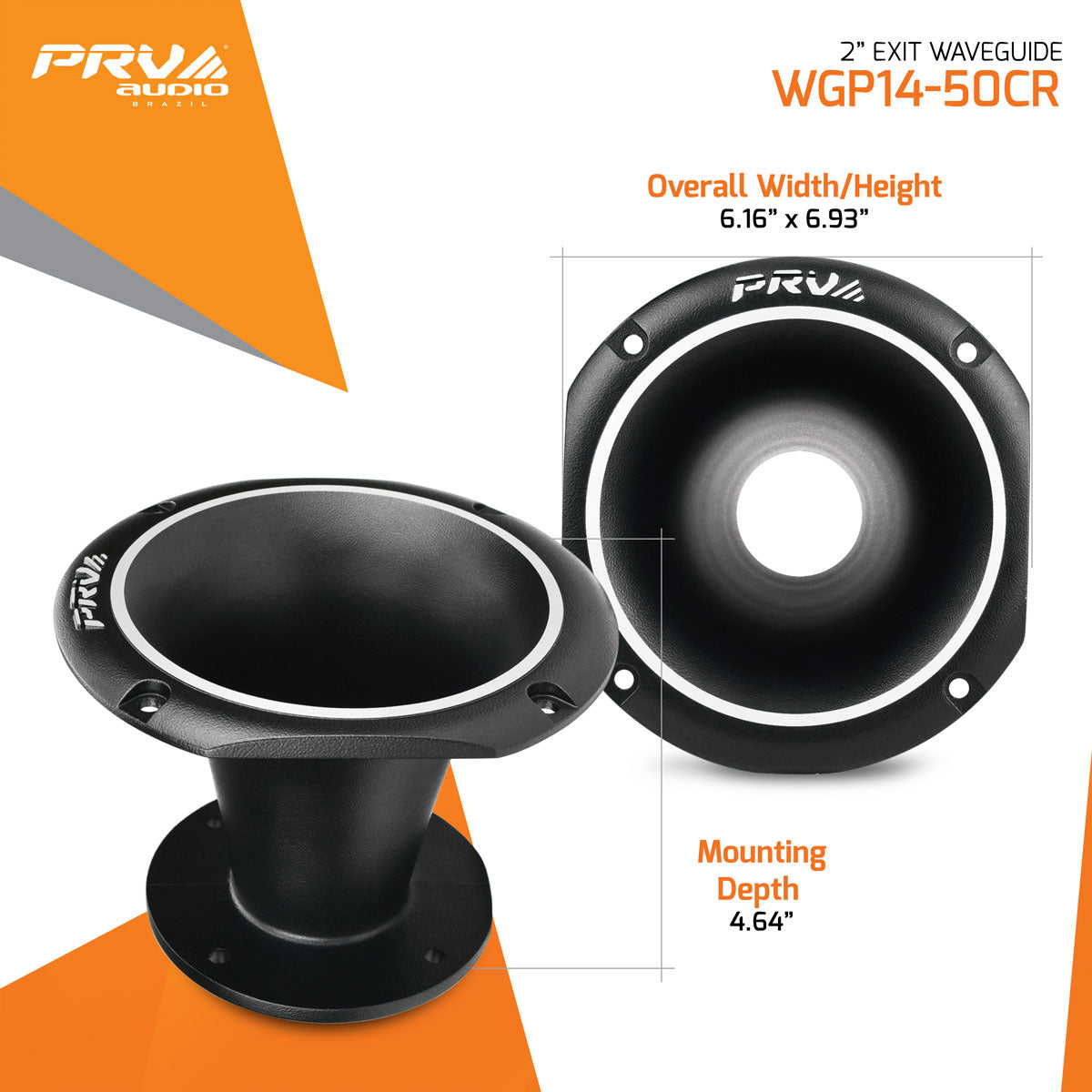

Overall front Size: 6.93? x 6.16?
Baffle cutout: 5.39? Diameter Circle
Mounting Depth: 4.64?
PRV Audio WG 14-50CR 45 x 45 Aluminum Waveguide 2? Exit Horn Bolt-on
GENERAL SPECIFICATIONS
| Throat Diameter | 2 (50.8 mm) |
| Mounting Type | Bolt-on |
| Hole Dimensions | 0.24? 8 mm |
| Bolt Circle | 4? 102 mm |
| Nominal Coverage | |
| Horizontal | 45 |
| Vertical | 45 |
| Flare type | Exponential |
| Material | Aluminum |
| Finish / Coating | Black |
| Dimensions | |
| Height | 6.93? (176 mm) |
| Width | 6.16? (156.5 mm) |
| Depth | 5.02? (127.5 mm) |
| Mounting Depth | 4.64? (118 mm) |
| Baffle Cutout | |
| Diameter Circle | 5.39? (137 mm) |
| Net weight | 1.5 lb (0.67 kg) |
PRV AUDIO WGP14-50CR DATASHEETDownload
