Description
xFeatures

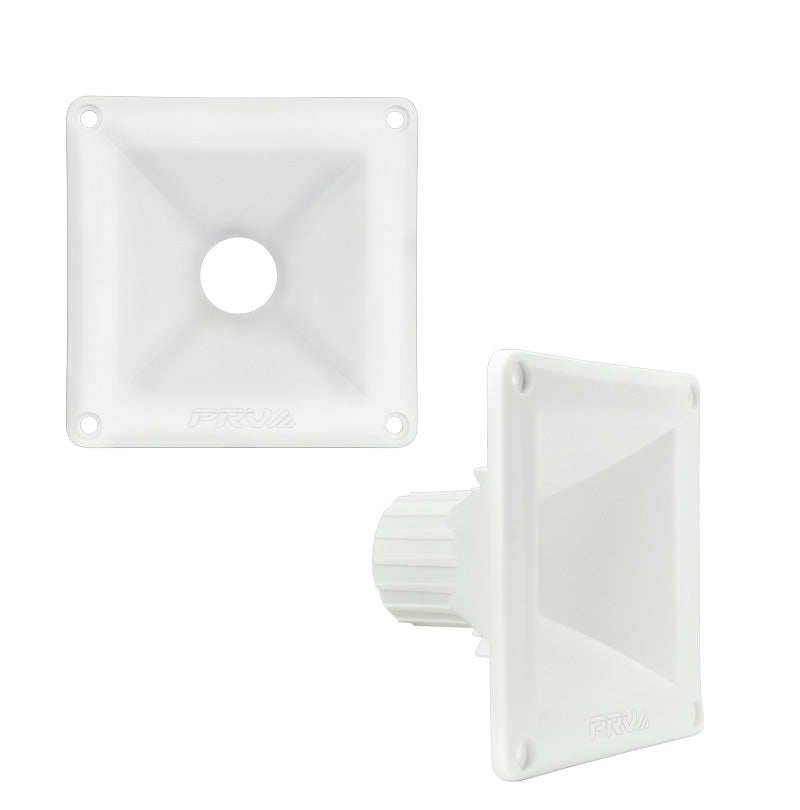

Add a little color to your sound, in a good way, with PRV Audios WG11-25 White finished exponential horn. At under 3? of depth this horn makes installation easy in tight spaces.
A standard 1-3/8?-18 TPI Screw on mount is compatible with most 1? compression drivers. The WG11-25 White is constructed from non-resonant ABS plastic making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1200 Hz.
Highlights
- Under 3? of mounting depth for installation in tight spaces
- 1? Exit throat
- Non-resonant reinforced plastic construction
- Minimum recommended frequency of 1200 Hz
GENERAL SPECIFICATIONS
| Throat Diameter | 1 (25.4mm) |
| Mounting Type | Screw-on |
| Thread dimensions | 1-3/8? |
| Nominal Coverage | |
| Horizontal | 60 |
| Vertical | 60 |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | White |
| Dimensions | |
| Height | 4.5? (115mm) |
| Width | 4.5? (115mm) |
| Depth | 2.95? (75mm) |
| Mount Depth | 2.71? (69mm) |
| Baffle Cutout | |
| Width | 3.31? (84mm) |
| Height | 3.31? (84mm) |
| Net weight | 0.18lb (0.08kg) |
PRV AUDIO WG11-25 DATASHEETDownload
