Features

Add detail to any speaker with PRV Audios TW700Ti-4 SLIM titanium PRO Audio bullet super tweeter!

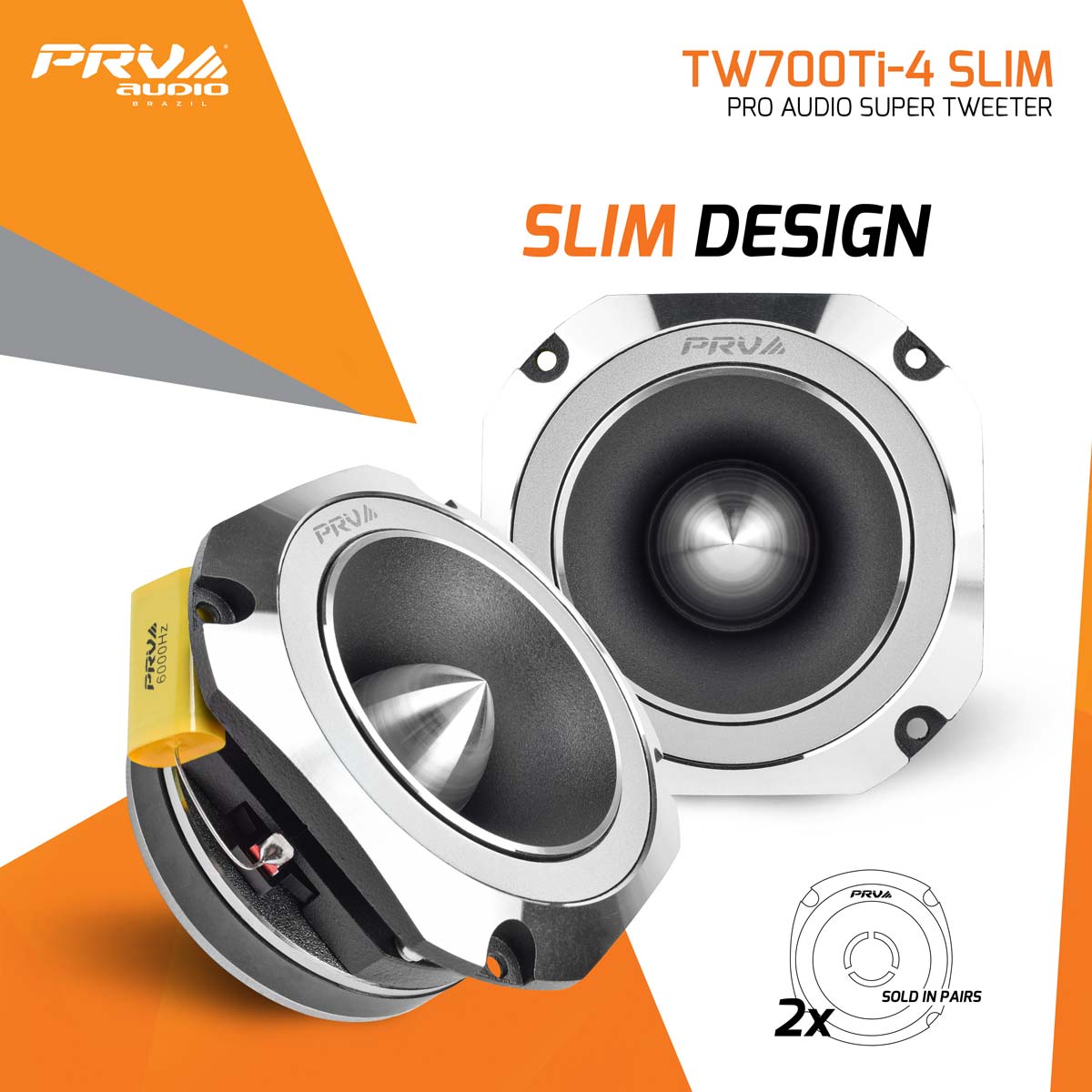

This tweeter is Slim version of our famous, powerful TW700ti. The new design features a Slim magnet and throat, making it the perfect Pro Audio On Wheels tweeter for your car audio application.

4-inch square high compression PRO bullet tweeter features flat sides allow for close side by side mounting. With high frequency response up to 20,000 Hz and a sensitivity of 105 dB at 1W/1m, the TW700Ti-4 SLIM can keep up with your custom door speaker system.

High Frequency Bullet Tweeter, capable of adding brilliance and articulation to any professional loudspeaker system.

---

Highlights

• Type: Super Tweeter
• Nominal Impedance: 4?
• Rated AES Power Handling (RMS): 100 Watts
• Program Power: 200 Watts
• Voice Coil Diameter: 1.5?

GENERAL SPECIFICATIONS

Nominal impedance	4 Ohms
Rated AES Power Handling (RMS)	100 Watts
Program Power	200 Watts
Sensitivity 2.00V at 1m	105 dB
Recommended Hi Pass Crossover** **For Full Power Handling	5000 Hz** **12db Per Octave Crossover
Frequency Response at -10dB	4,500 20,000 Hz
Voice Coil Diameter	1.5 (38 mm)
Voice Coil Wire	CCAW
Voice Coil Former Material	Kapton
Diaphragm Material	Aluminum
Flux Density	1.50 T
Magnet Material	Ferrite

---

EXTRA INFO

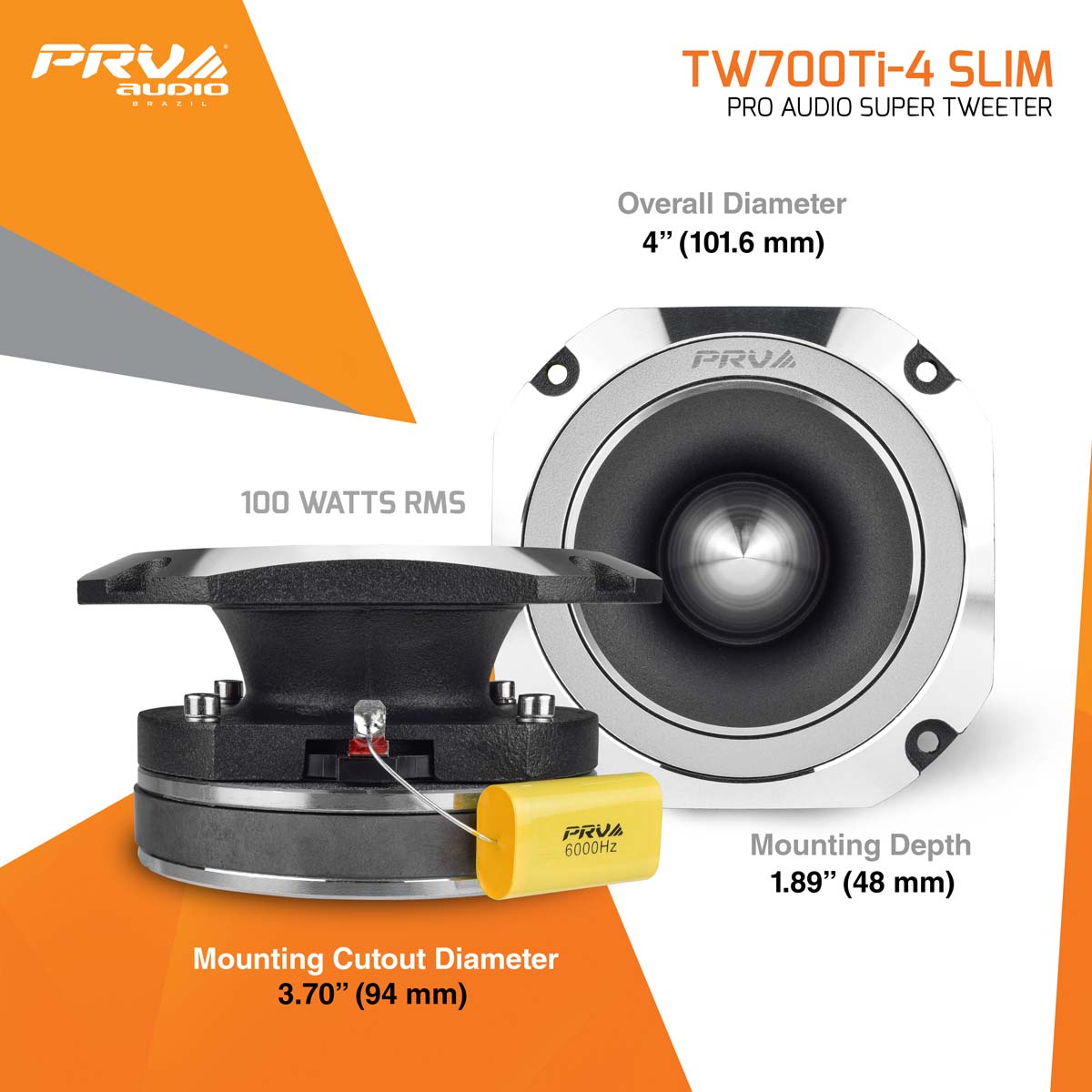

Overall Depth	2.28 (57.9 mm)
Mounting Depth	1.89 (48.0 mm)
Overall Width	4.0 (101.6 mm)
Overall Height	4.0 (101.6 mm)
Cutout Diameter	3.70 (94 mm) + Terminals
Net Weight	2.19 lbs (0.99 kg)
Shipping Weight	4.45 lbs (2.02 kg)
Carton Dimensions W x L x H	9.64 x 4.72 x 2.56 (245 x 120 x 65 mm)

PRV AUDIO TW700Ti-4 SLIM DATASHEETDownload
