Features

---

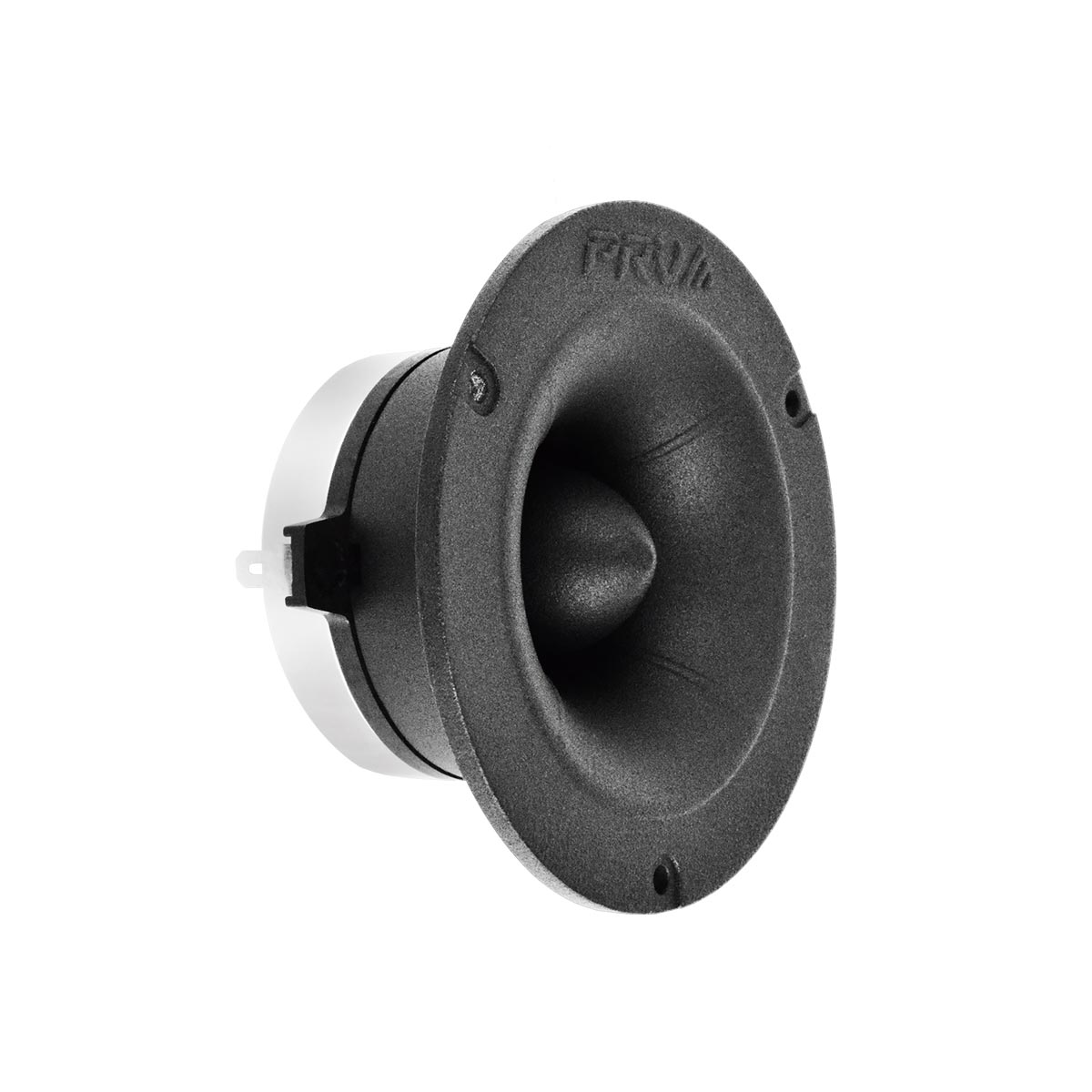

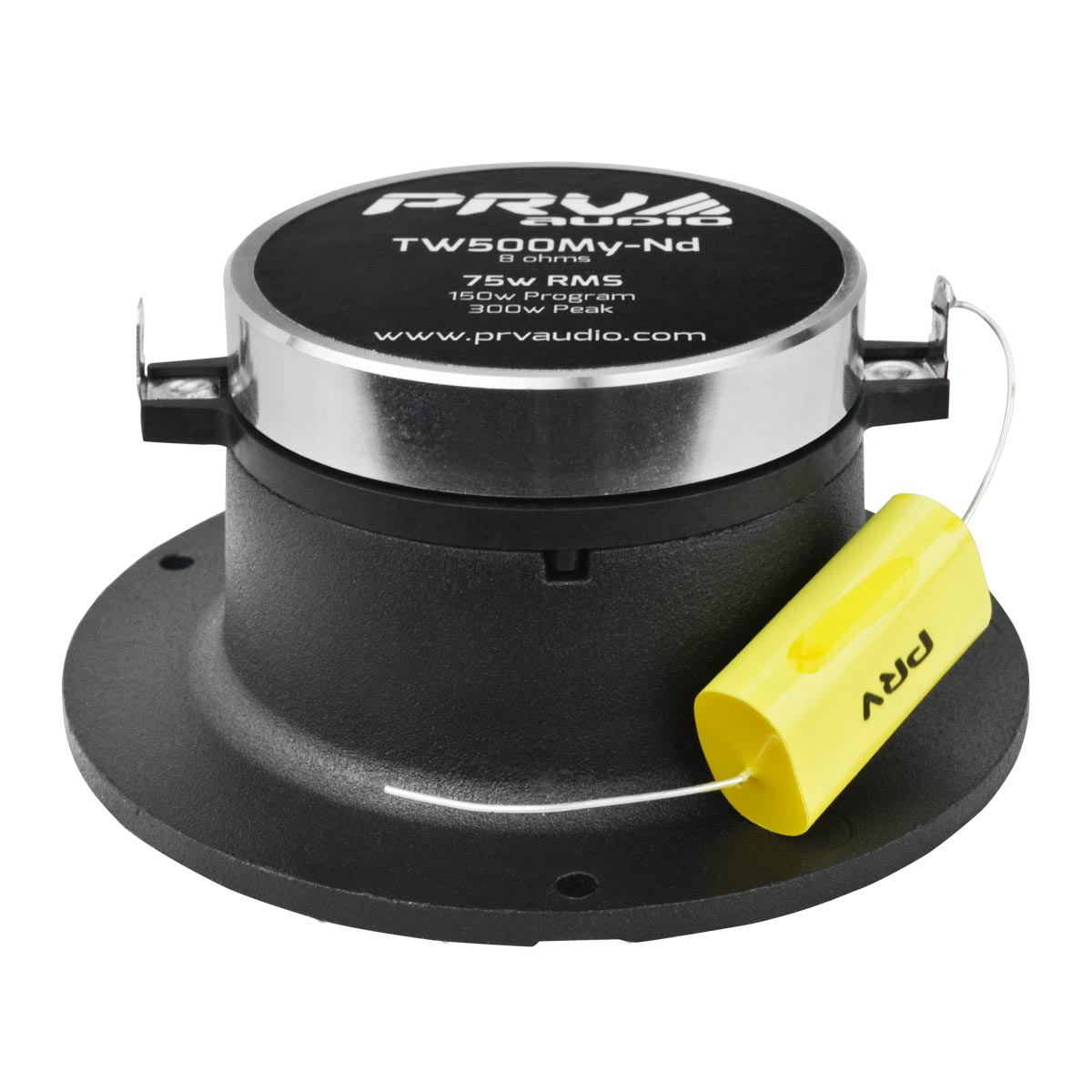

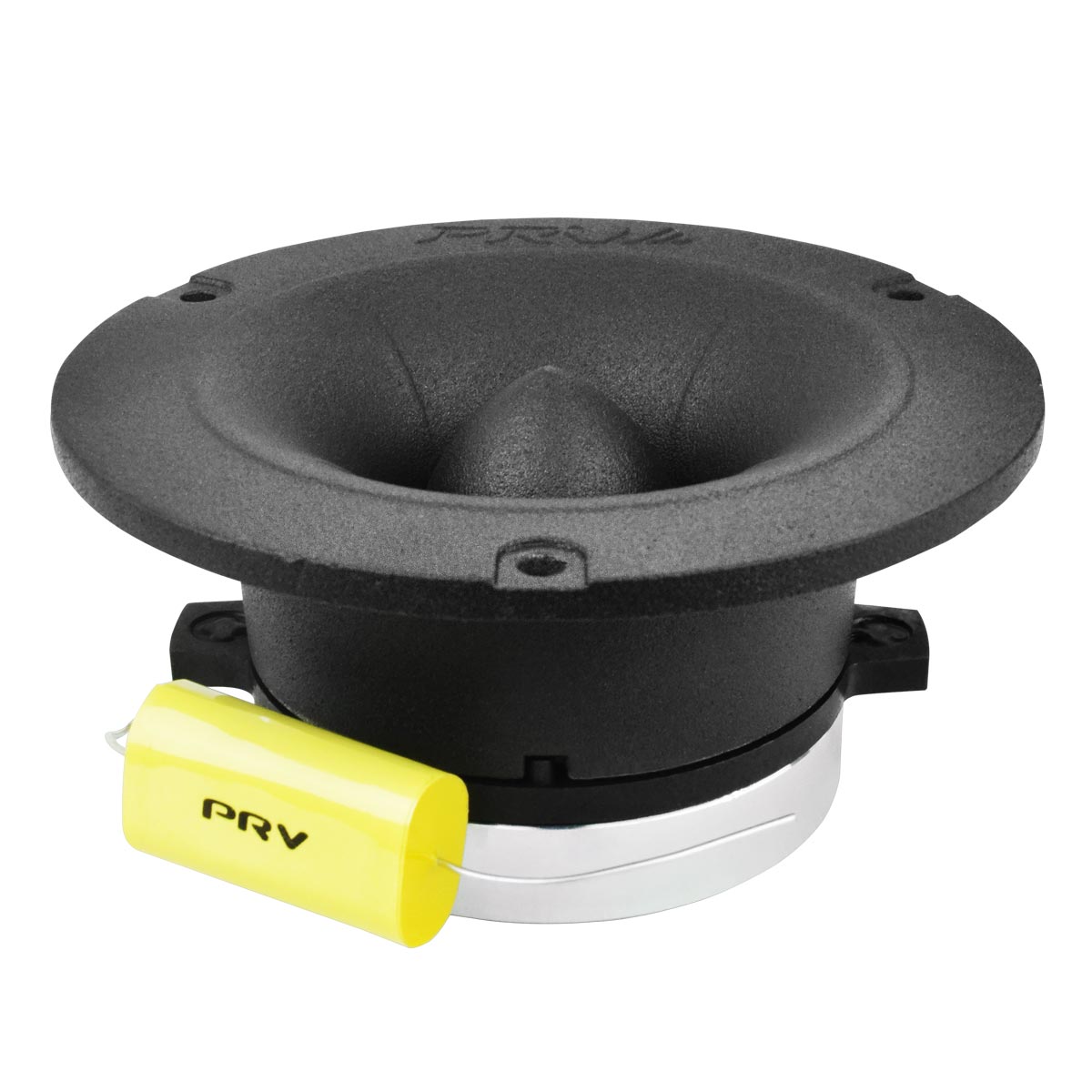

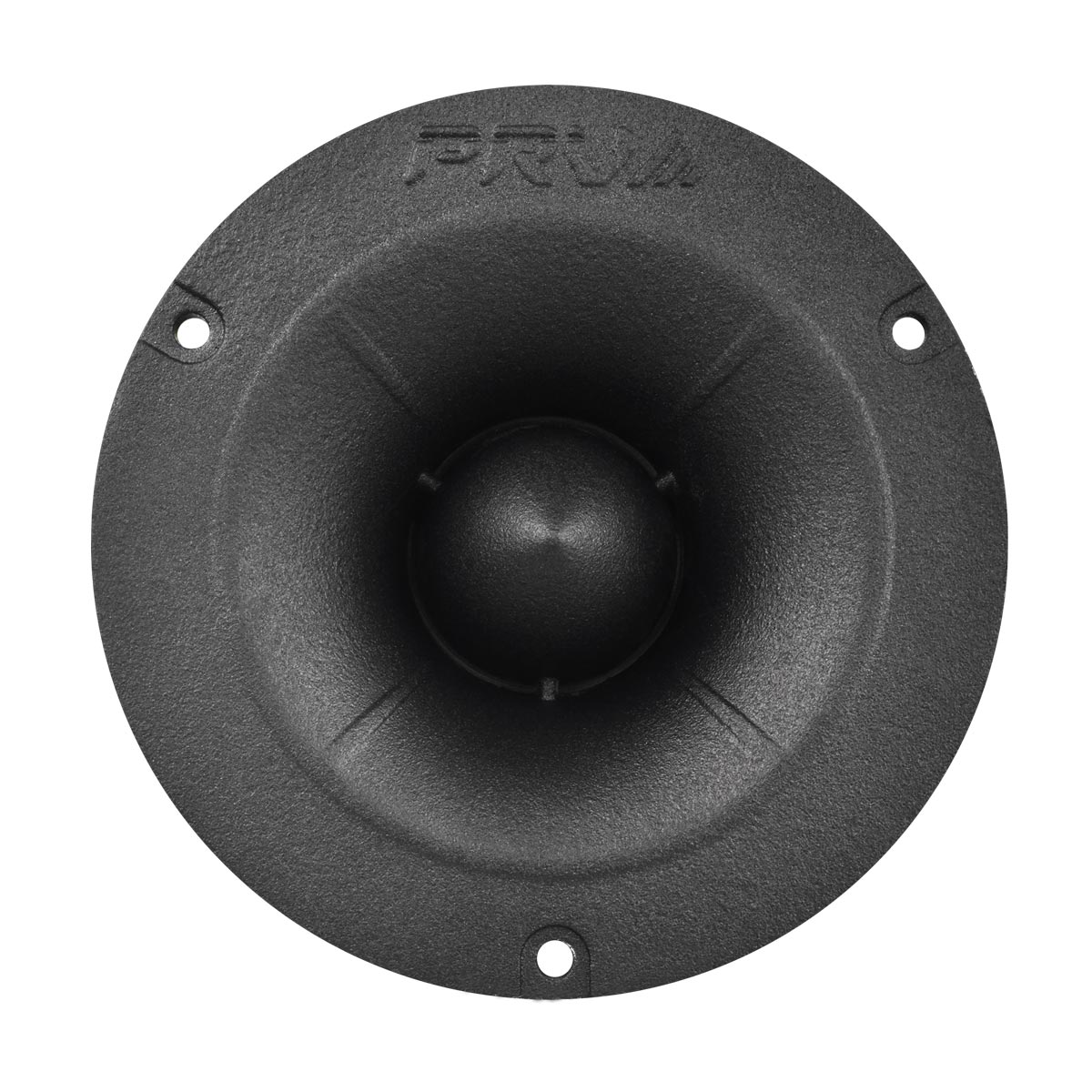

This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high frequency response. The Mylar diaphragm is light, thin and durable for long play applications.

TW500My-Nd is designed with cast aluminum frame to ensure a quality sound and long lasting play in most any environment. Replacement Diaphragms available.

---

Highlights

• Type: Super Tweeter
• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 75 Watts
• Program Power: 150 Watts
• Voice Coil Diameter: 1.25?

GENERAL SPECIFICATIONS

Nominal impedance	8 Ohms
Rated AES Power Handling (RMS)	75 Watts
Program Power	150 Watts
Sensitivity 2.83V at 1m	108 dB
Recommended Hi Pass Crossover** **For Full Power Handling	4000 Hz** **12db Per Octave Crossover
Frequency Response at -10dB	3,500 19,000 Hz
Voice Coil Diameter	1.25(32 mm)
Voice Coil Wire	Aluminum
Voice Coil Former Material	Kapton
Diaphragm Material	Mylar
Flux Density	1.30 T
Magnet Material	Neodymium

---

EXTRA INFO

Overall Depth	1.77 (45 mm)
Mounting Depth	1.61 (41 mm)
Overall Diameter	4.0 (100 mm)
Cutout Diameter	3.19 (81 mm)
Net Weight	1.25 lbs (0.56 kg)
Shipping Weight	1.33 lbs (0.60 kg)
Carton Dimensions W x L x H	4.1 x 4.1 x 2.1 (105 x 105 x 55 mm)

PRV AUDIO TW500My-Nd DATASHEETDownload
