Description
xFeatures
Add crystal clear sparkle to any speaker with PRV Audios TW350Ti-4 titanium bullet super tweeters! Not only does these tweeters look as good as it sounds, it can also take a lot of power from its 1? diameter copper-clad voice coil attached to a titanium diaphragm that is lightweight and rigid, for maximum efficiency and smooth high frequencies.
Highlights
- Designed to fit in small spaces without any major modifications
- Titanium diaphragm for an accurate and detailed response
- Designed to add high output, high frequency response to any high output system

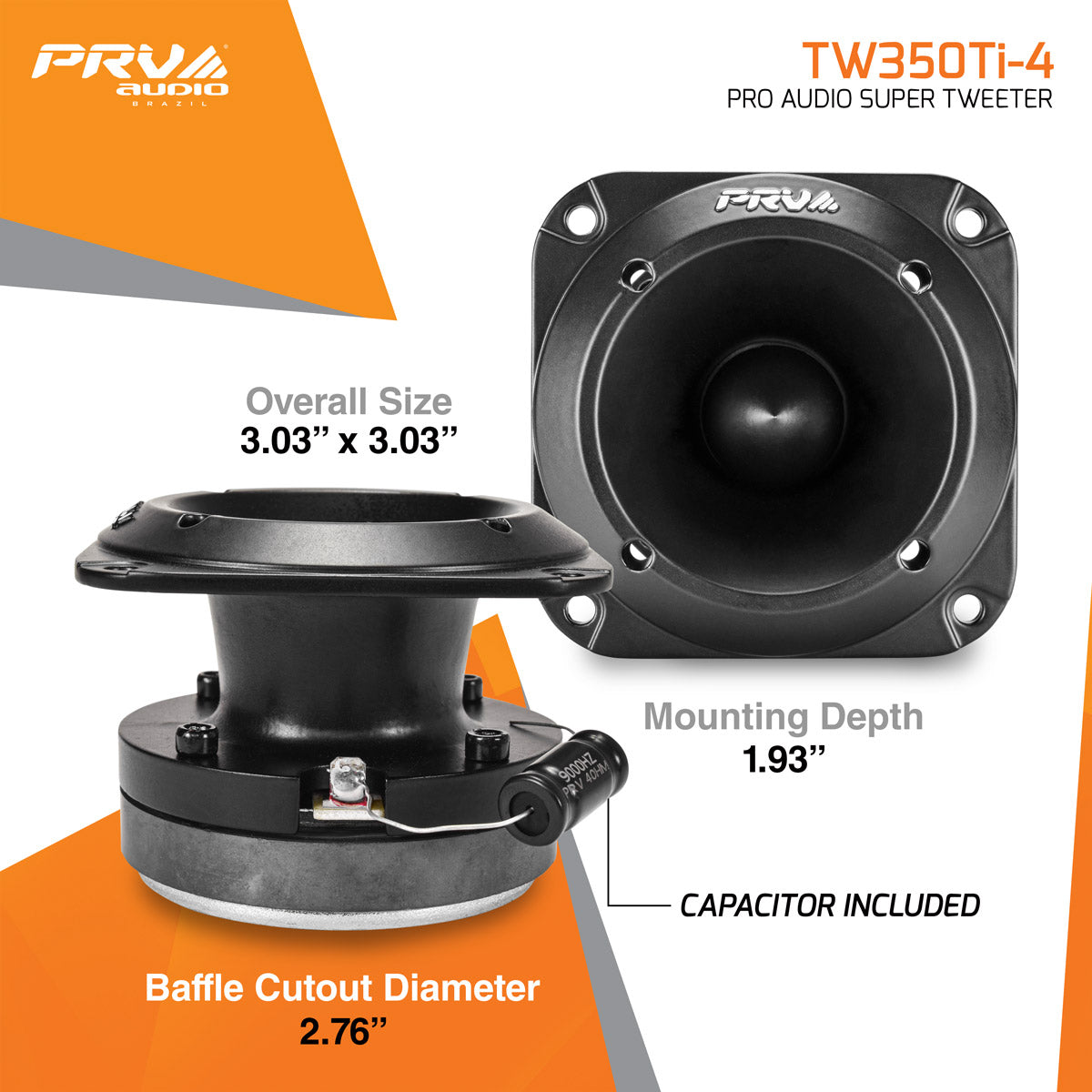

- The hidden terminal design and square 3x3 faceplate make it easy to install on 2.80? baffle cutouts. Screws included.

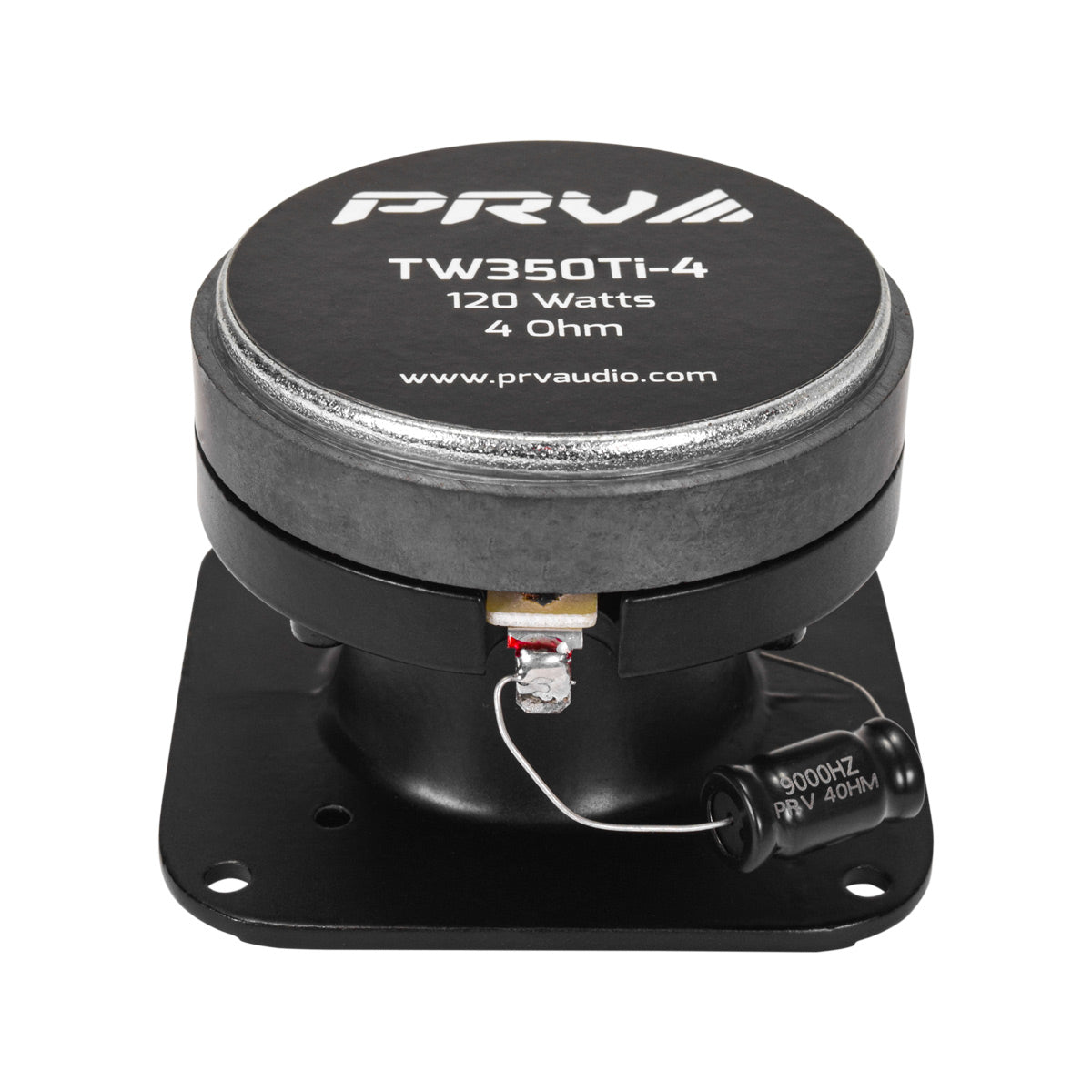

- Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response.
- Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 5,000 Hz
These tweeters also feature a precise dispersion pattern, giving you a wide soundstage and accurate imaging. With the TW350Ti-4 tweeters, you get beautiful, crystal clear sound that will make your music shine.

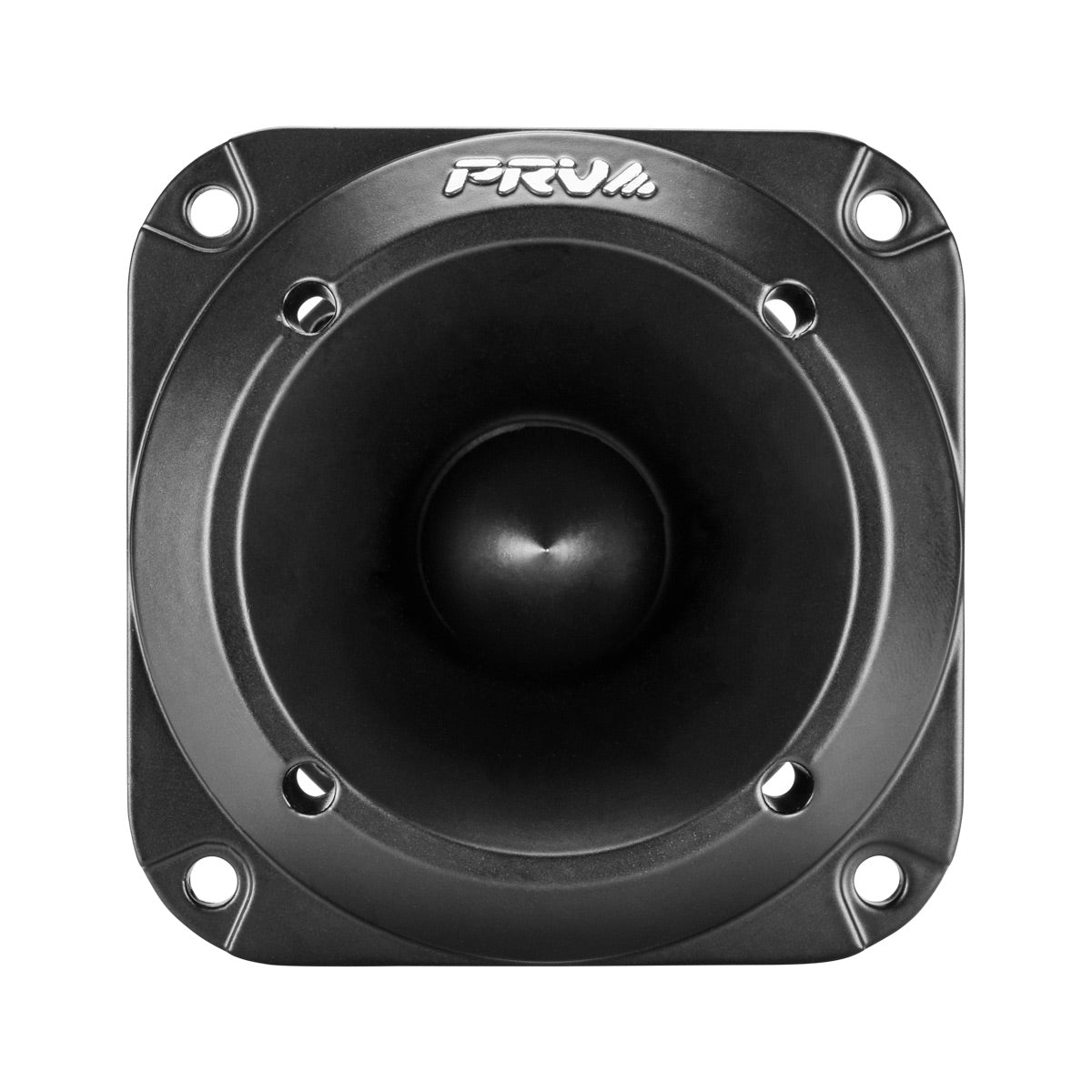

A square faceplate makes it easier to install, and the black face is framed by a strong aluminum horn, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response.

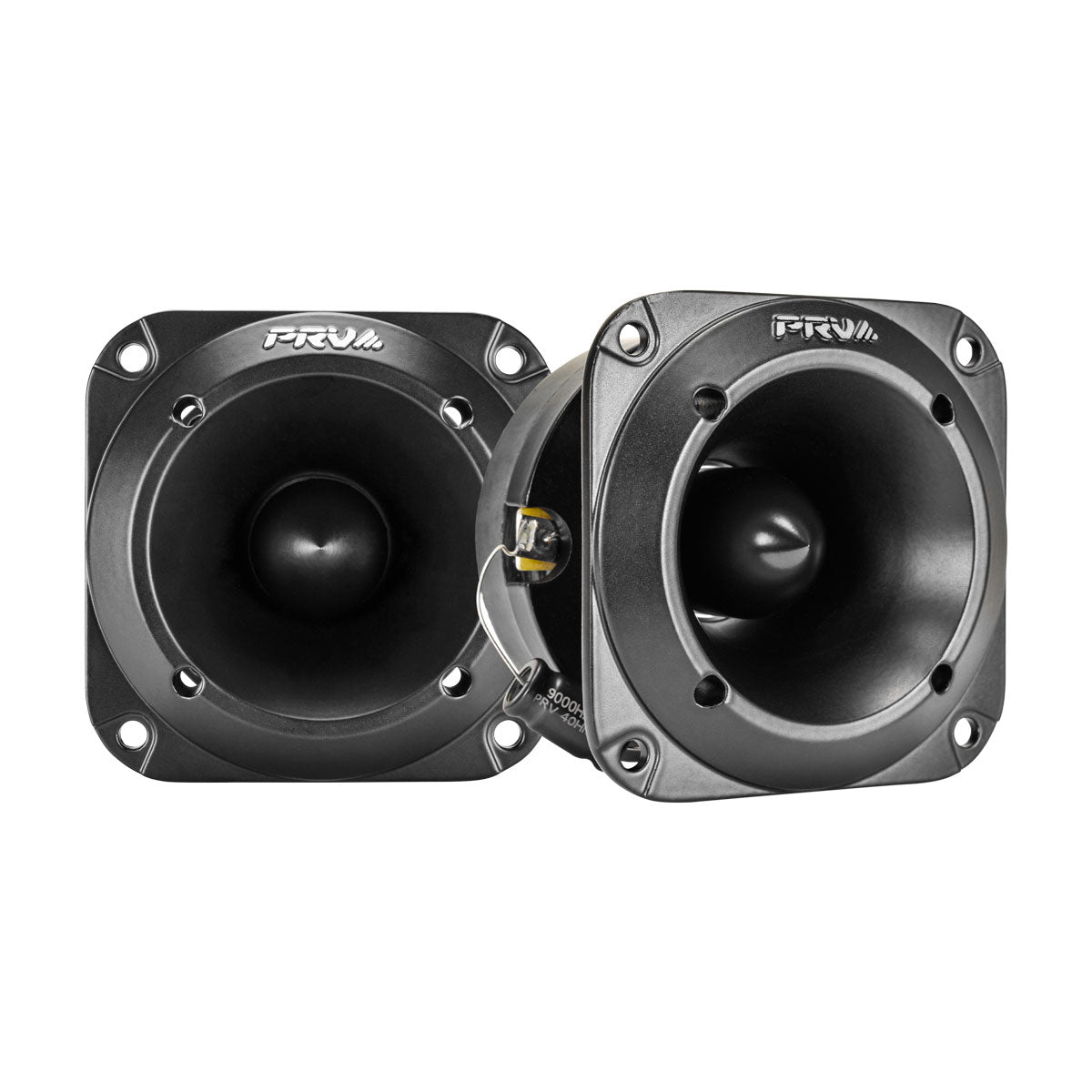

PRV Compact Car Audio Bullet Tweeters TW350TI-4 240 Watts 4 Ohm 33- Easy to Mount Tweeters (Pair)
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 60 Watts |
| Continuous Program Power(RMS)** | 120 Watts |
| Max Peak Power*** | 240 Watts |
| Sensitivity 2.00V at 1m | 105 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
5000 Hz 12db Per Octave Crossover |
| Frequency Response at -10dB | 4,500 20,000 Hz |
| Voice Coil Diameter | 1.0 (25 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.30 T |
| Magnet Material | Ferrite |
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
EXTRA INFO
| Overall Depth | 2.28 (58 mm) |
| Mounting Depth |
