Description
xFeatures
The new PRV TW1000Ph delivers the combination of pleasant crystal clear sound and long lasting quality.

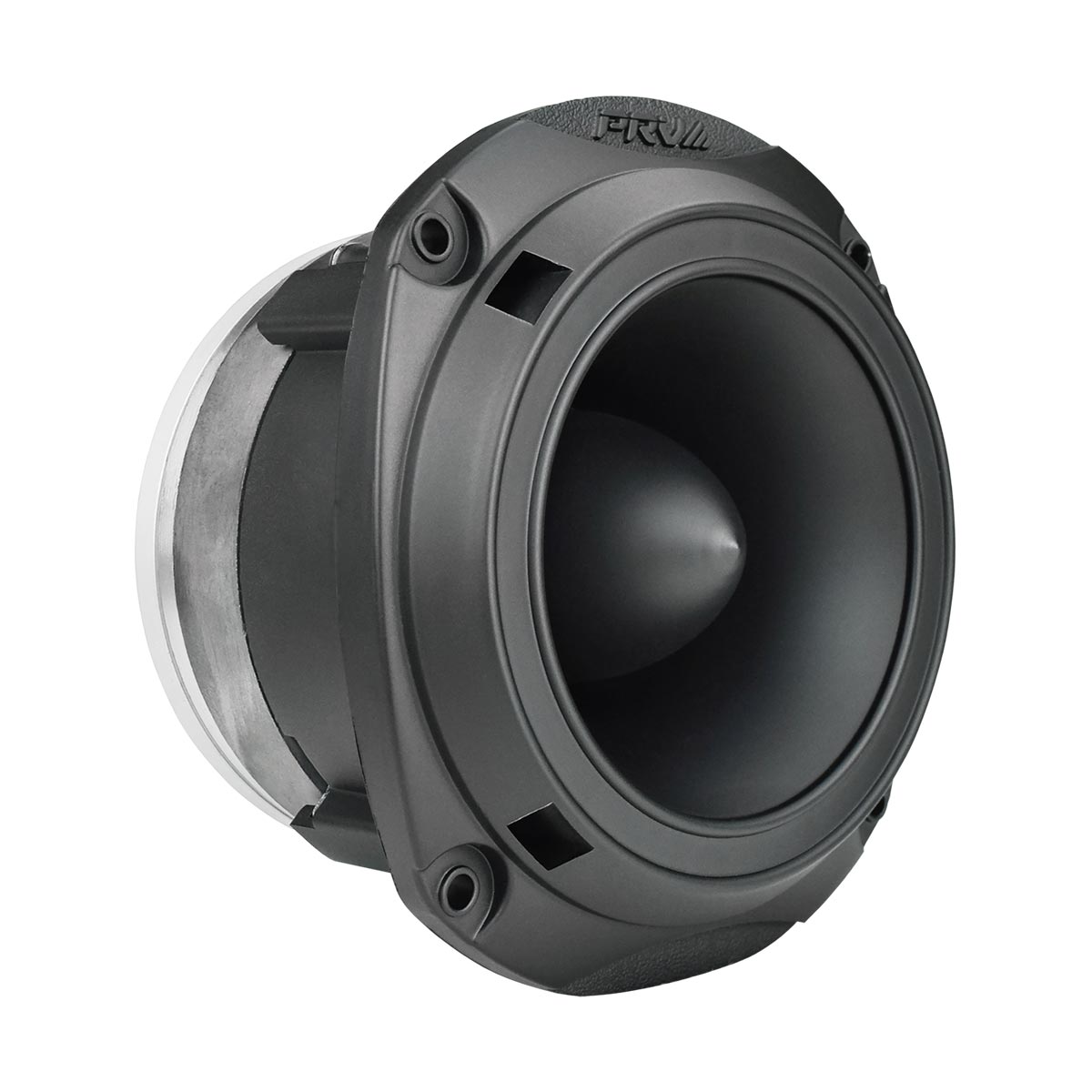

The durable Phenolic Diaphragm is mounted inside and out to reduce the amount of moving mass, extending the high frequency response to a more natural sound than a metallic diaphragm. The bullet-shaped horn design on the TW1000Ph allows it to deliver a high output and longer throw with 40 x 40 dispersion.

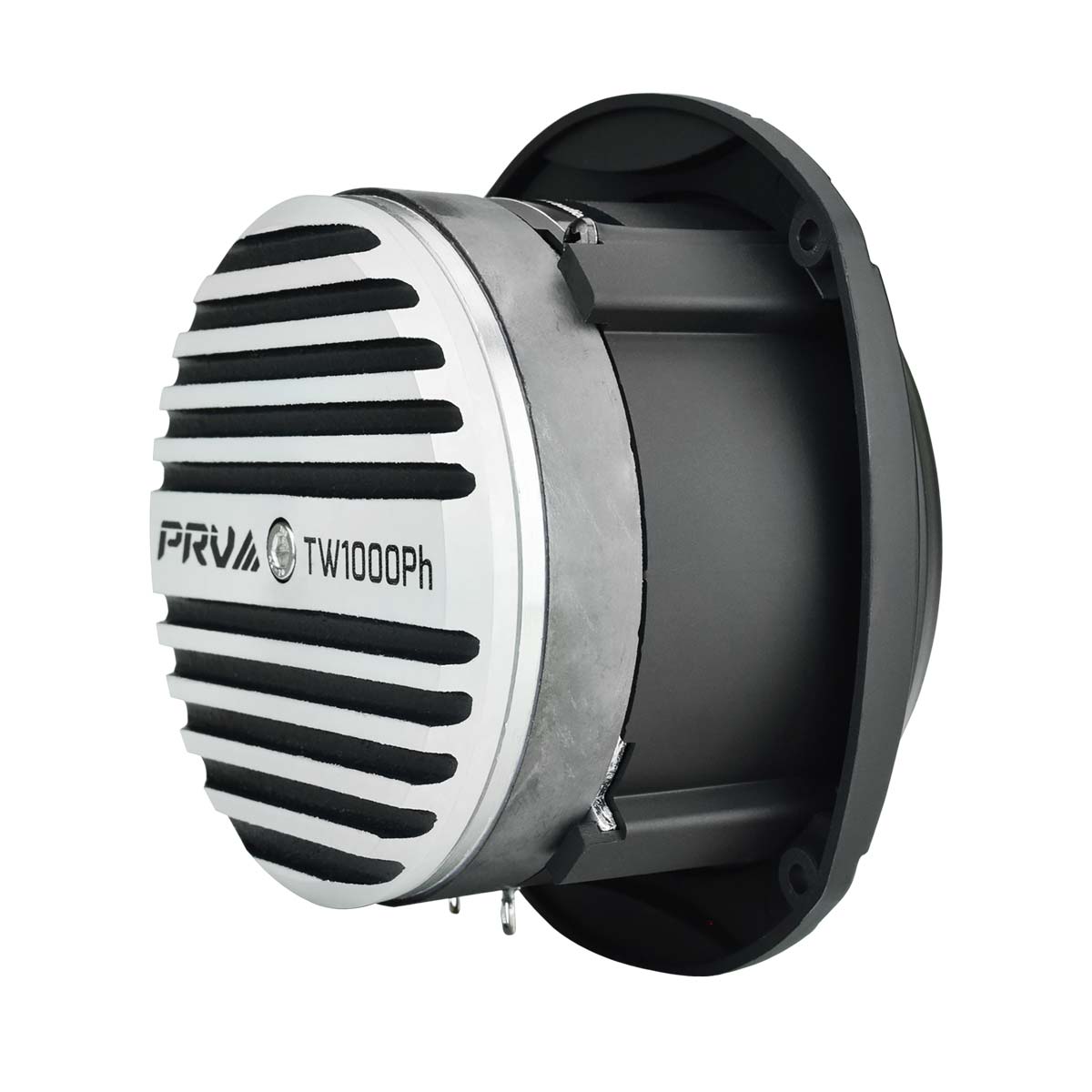

The use of a 1.83 copper voice coil with an unique Aluminum back plate heatsink design improves the power handling and durability for any professional large environment application.
Highlights
- Type: Super Tweeter
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 100 Watts
- Program Power: 200 Watts
- Voice Coil Diameter: 1.83?
GENERAL SPECIFICATIONS
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 100 Watts |
| Program Power | 200 Watts |
| Sensitivity 2.83V at 1m | 106 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
5000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 4,000 20,000 Hz |
| Voice Coil Diameter | 1.83(46.5 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic |
| Flux Density | 1.58 T |
| Magnet Material | Ferrite |
EXTRA INFO

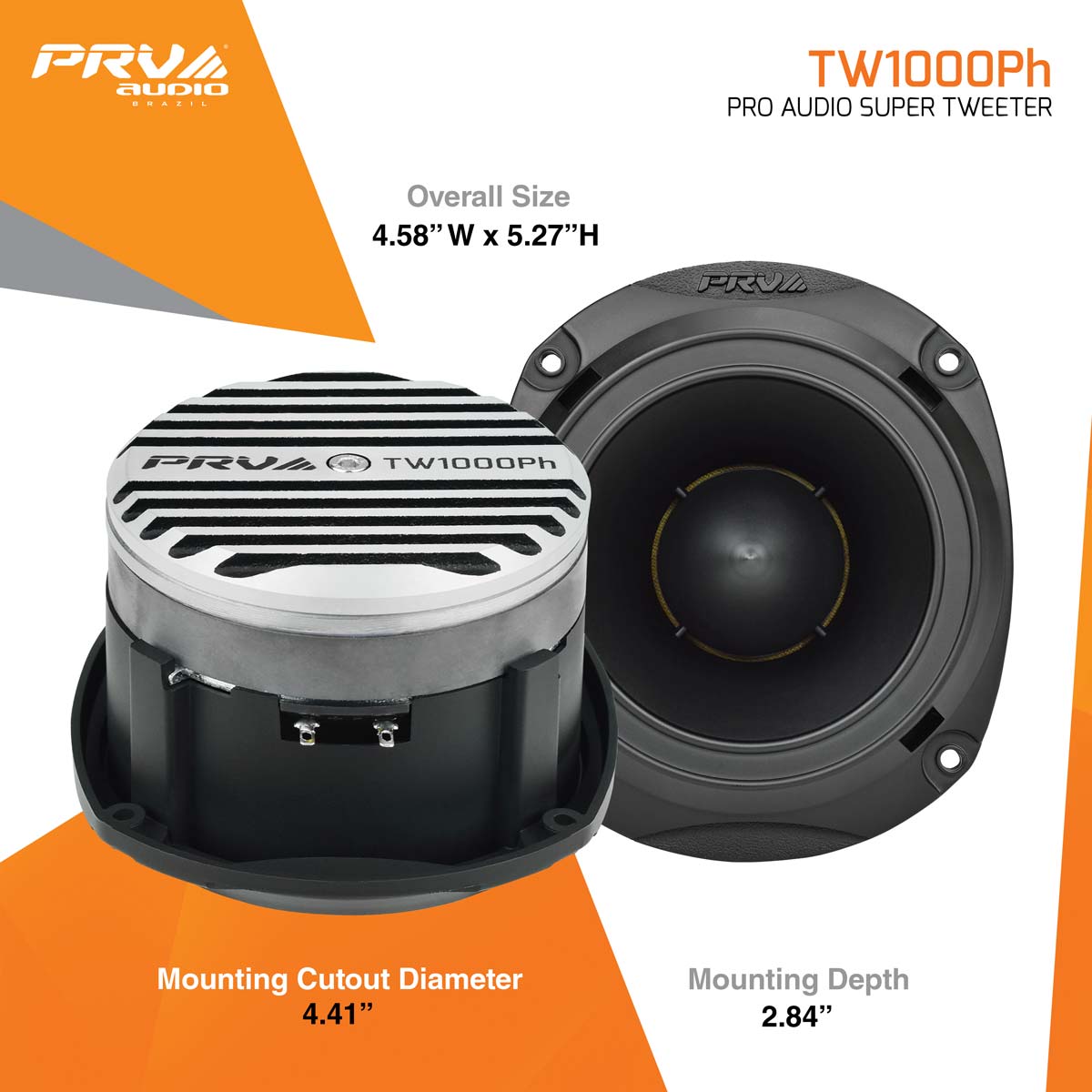

| Overall Depth | 3.10 (78.75 mm) |
| Mounting Depth | 2.84 (58.0 mm) |
| Overall Width | 4.58 (116.5 mm) |
| Overall Height | 5.27 (134.0 mm) |
| Cutout Diameter | 4.41 (112.0 mm) |
| Net Weight | 2.55 lbs (1.19 kg) |
| Shipping Weight | 2.67 lbs (1.21 kg) |
| Carton Dimensions W x L x H | 5.43 x 4.92 x 3.54 (138 x 125 x 90 mm) |
PRV AUDIO TW1000Ph DATASHEETDownload
