Description
xFeatures
X Series: The new generation of sound quality amplifiers delivers the most innovative and powerful Brazilian Technology in full range class xD 12 Volts amplifiers on the market.
Our engineering team focused on achieving Sound Quality first, and then on making our X Series amplifiers amazingly powerful, efficient, and Durable.
These efforts led to a remarkable SQochre-Xwire power supply technology combined with using some of the highest quality and most reliable electrical components, featuring an overbuilt power supply on a heavy-duty PCB board taking this amplifier to the next level of performance with incredible dynamic power output.

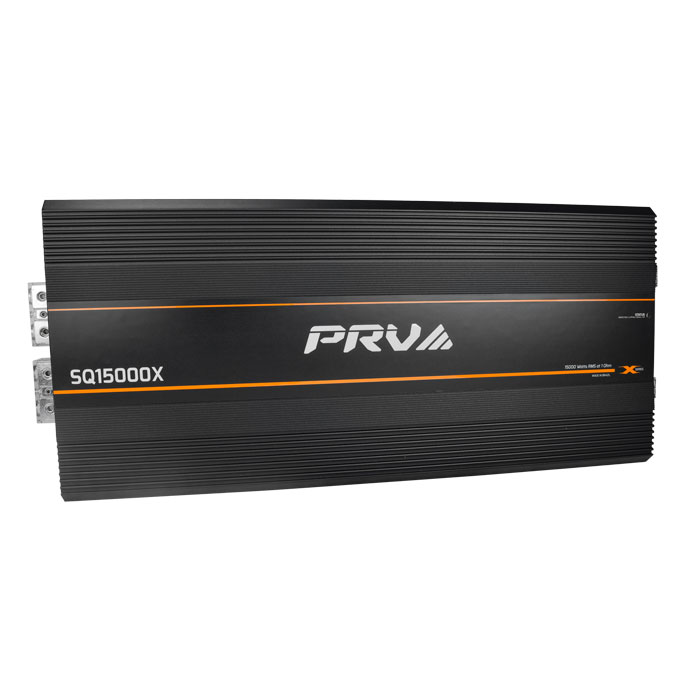

Designed to produce a serious 15000 watts at 1 ohm at 13.0 volts with a dynamic power rating of over 16,000 Watts, the SQ15000X amplifier is a great choice for high power loudspeaker systems.
Our proprietary SQochre-Xwire power supply delivers a massive output with real-world input voltage levels at an excellent sound quality at a high efficient rate of 75%
| Channels | 1 Channel |
| Rated RMS Power at 13.0 V at 1 Ohm | 15000 Watts |
| Rated RMS Power at 13.0 V at 2 Ohms | 8500 Watts |
| Rated RMS Power at 12.0 V at 1 Ohm | 13500 Watts |
| Rated RMS Power at 12.0 V at 2 Ohm | 7200 Watts |
Technology Highlights
- Dual 1/0 Gauge power and ground terminals, which translates for maximum current flow and therefore higher power output
- Dual 10 Gauge positive and negative terminals, more connections for an easy install on multi-speaker systems.
- Heavy-duty Components Overbuilt to perform
- HD Sound Quality Frequency response up to 12,000Hz
High-Grade Competition MOSFETs
PRV X Series amplifiers use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional MOSFET on most Brazilian Amplifiers
SQochre-Xwire power supply
Produces exceptional power at low 12.0 volts, designed to work off a real-world voltage with unsurpassed on total efficiency from very compact designs with a unique enhanced high switching frequency
High Capacitance Reserve
Large capacitor bank designed to store more energy and provide a high dynamic sound, capable of astonishing power output over 16000 Watts
Class XD
Full Range Class xD amplifier has 75-85% efficiency ratings vs. 40-60% efficiency ratings of class A/B amplifiers. Which translates to less current draw and more power
True Heatsink
Real Aluminum cast-alloy heatsink enables the SQ15000X to have one of the smallest footprints in its power class while maintaining maximum heat dissipation under the most demanding conditions. Weighing 22.60 Lbs!
