Features

The DT175Ph-S is a lightweight compression driver that weighs just 1.5lbs, and offers you an economical yet responsive driver through 20kHz. The Phenolic diaphragm offers a more subtle, smooth tone producing a less harsh sound in smaller environments yet packs the punch to fill most any size room.

---

Highlights

• Throat Diameter: 1?
• Type: Screw-On
• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 75 Watts
• Program Power: 150 Watts

---

The DT175Ph-S has a standard 1? screw-on throat enabling you to quickly replace old worn out or damaged drivers. The most affordable and compact 1? compression driver from PRV Audio.

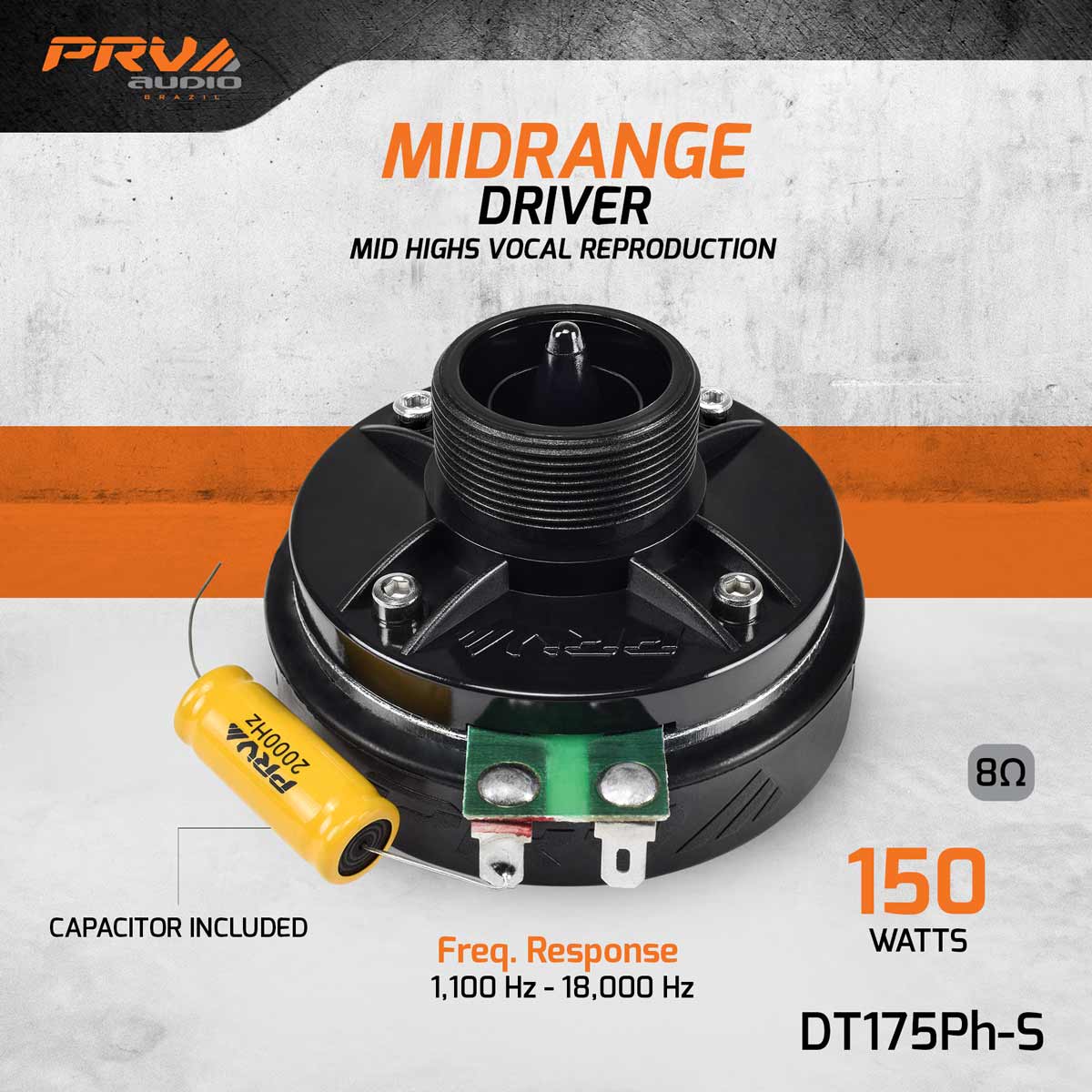

GENERAL SPECIFICATIONS

Exit Throat Diameter	1 (25.4mm)
Nominal impedance	8 Ohms
Rated AES Power Handling (RMS)	75 Watts
Program Power	150 Watts
Sensitivity 2.83V at 1m	108 dB
Recommended Hi Pass Crossover** **For Full Power Handling	3000 Hz** **12db Per Octave Crossover
Frequency Response at -10dB	1,300 19,000 Hz
Voice Coil Diameter	1? (25.4 mm)
Voice Coil Wire	CCAW
Voice Coil Former Material	Kapton
Diaphragm Material	Phenolic resin
Flux Density	1.02 T
Magnet Material	Ferrite

---

EXTRA INFO

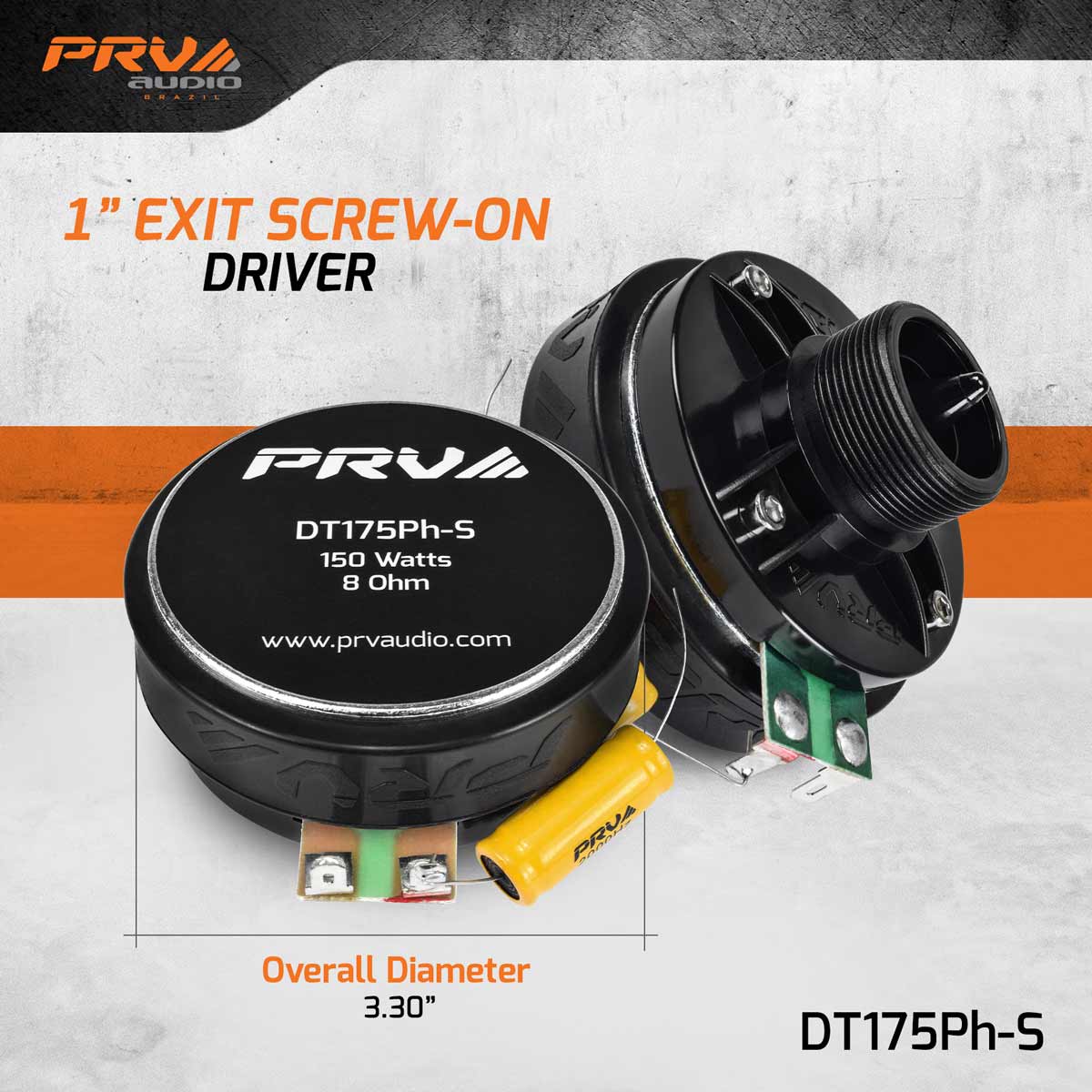

Overall Diameter	3.31 (84 mm)
Overall Depth	2.60 (66 mm)
Mounting Thread	1 3/8 18 TPI
Net Weight	1.73 lbs (0.79 kg)
Shipping Weight	1.85 lbs (0.84 kg)
Carton Dimensions W x L x H	4.53 x 4.53 x 3.31 (115 x 115 x 84 mm)
