Description
xFeatures

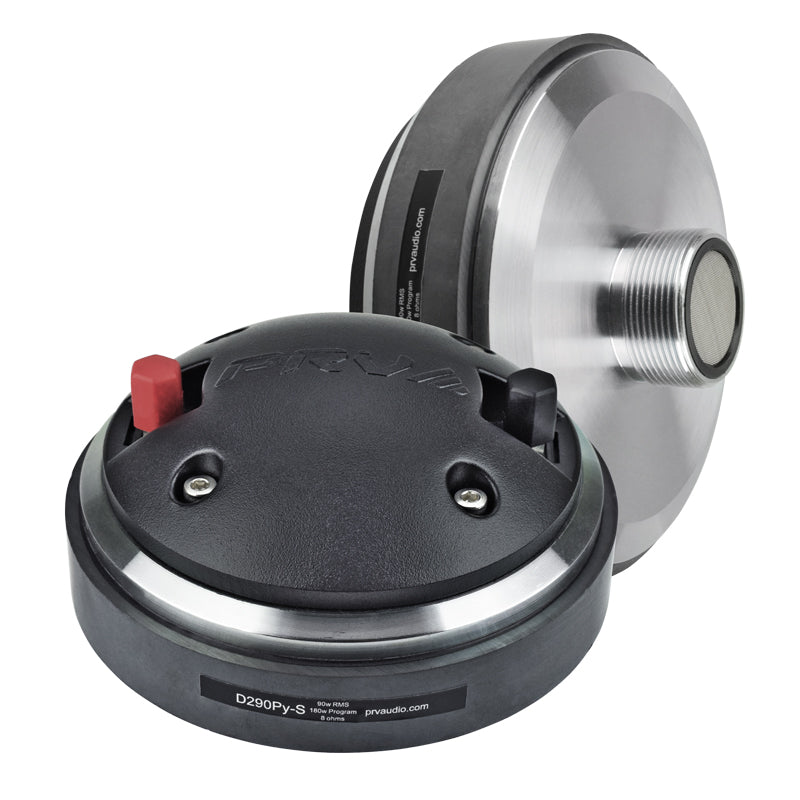

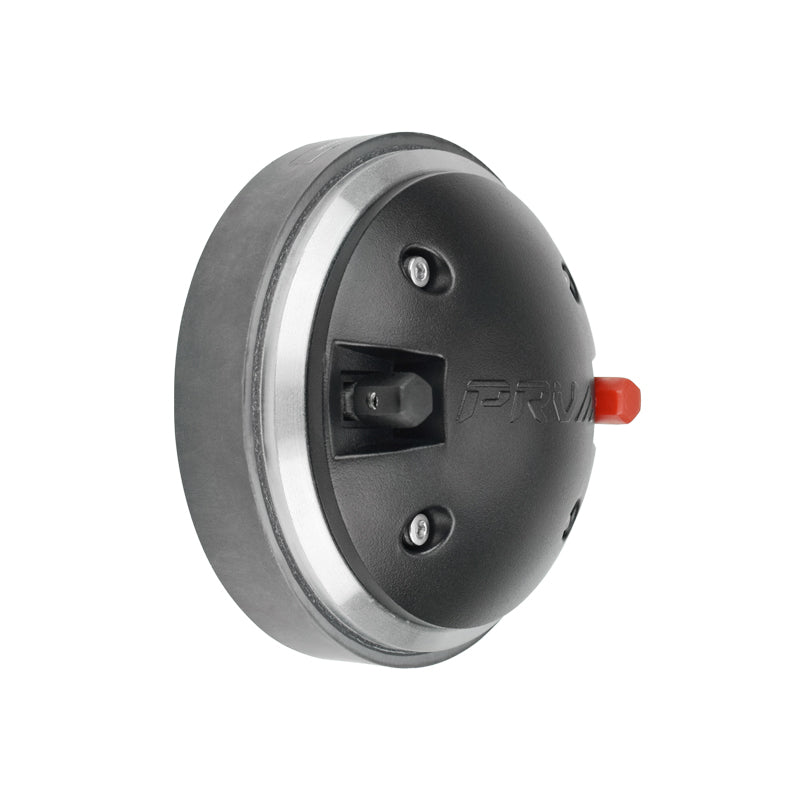

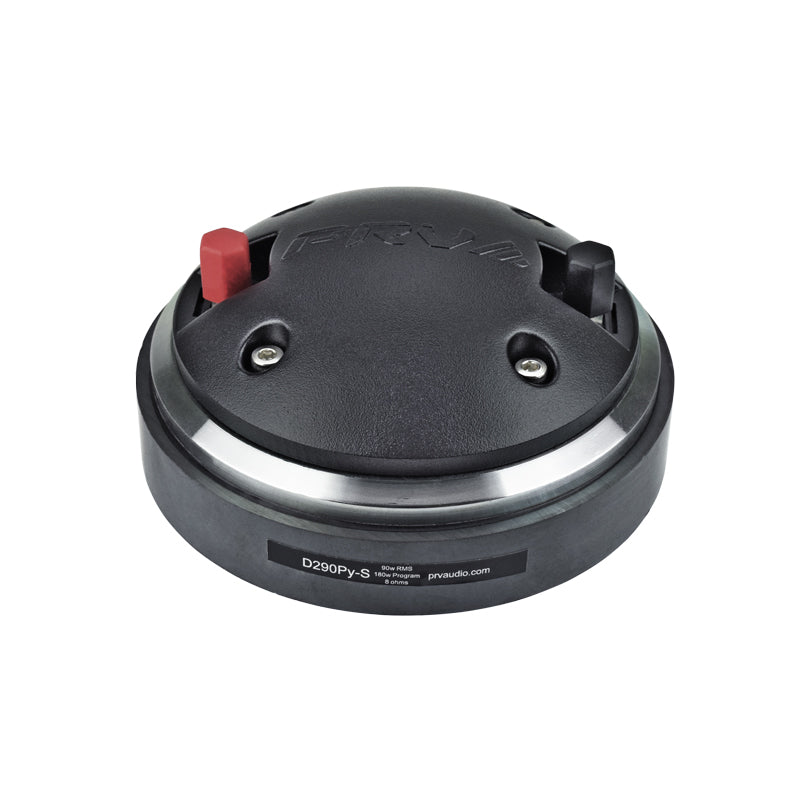

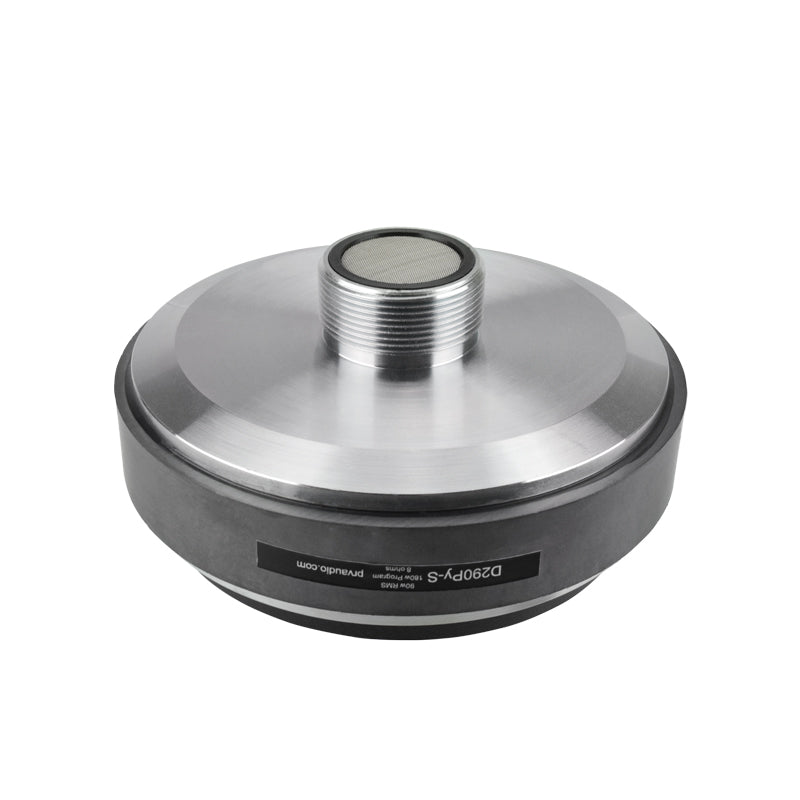

The PRV Audio D290Py-S 1? Pro Audio Compression Driver offers unsurpassed vocal and midrange reproduction. Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required.
Highlights
- Throat Diameter: 1?
- Type: Screw-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 90 Watts
- Program Power: 180 Watts
The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.
A specially designed and easily replaceable Polyimide diaphragm on a Kapton former results in a more natural sound with smoother and more accurate high frequency reproduction. The D290Py-S is perfect for stage monitors, studio monitors, and other loudspeaker enclosures where high sound quality and light weight is required.
The D290Py-S is assembled with a standard 1 3/8 screw for easy replacement with current 1 horns.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 90 Watts |
| Program Power | 180 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 650 19,000 Hz |
| Voice Coil Diameter | 1.75(44.4 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Polyimide |
| Flux Density | 1.85 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 4.72 (120 mm) |
| Overall Depth | 3.07 (65 mm) |
| Mounting Thread | 1 3/8 18 TPI |
| Net Weight | 4.96 lbs (2.25 kg) |
| Shipping Weight | 5.15 lbs (2.33 kg) |
| Carton Dimensions W x L x H | 5.51 x 5.31 x 3.35 (140 x 135 x 85 mm) |
PRV AUDIO D290Py-S DATASHEETDownload
