Description
xFeatures

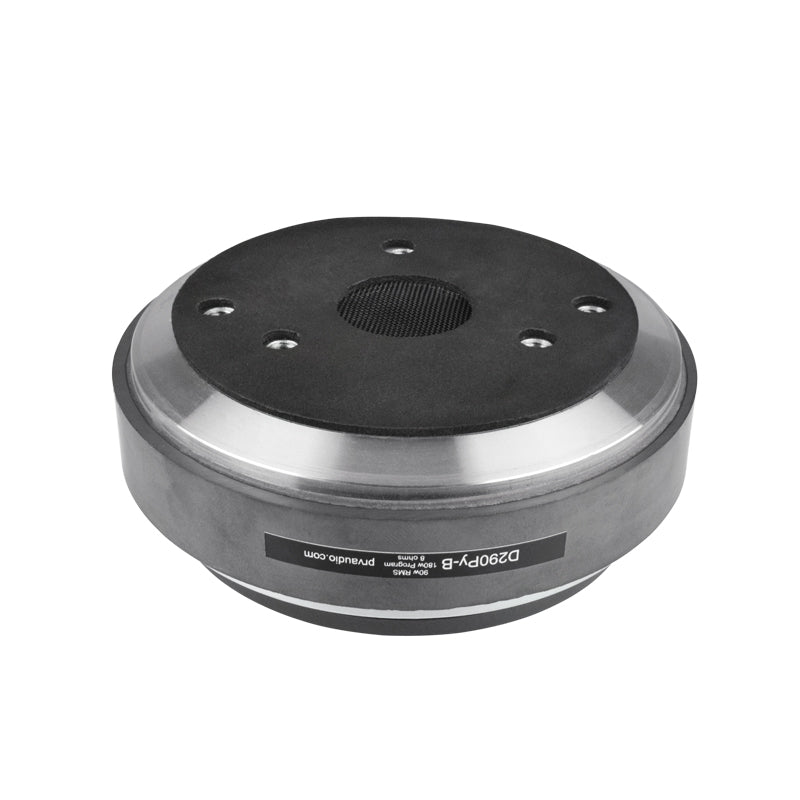

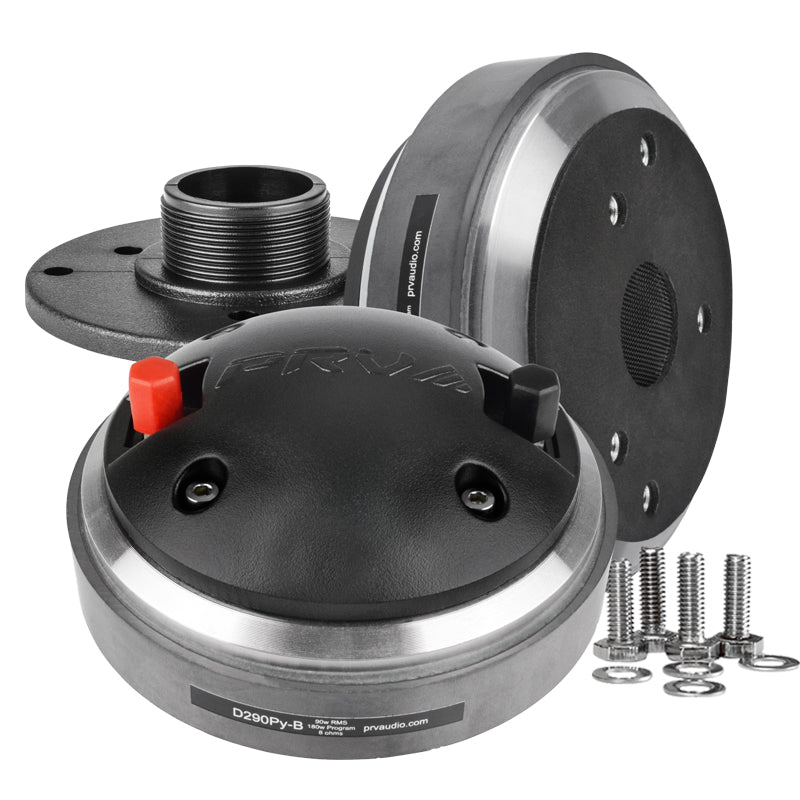

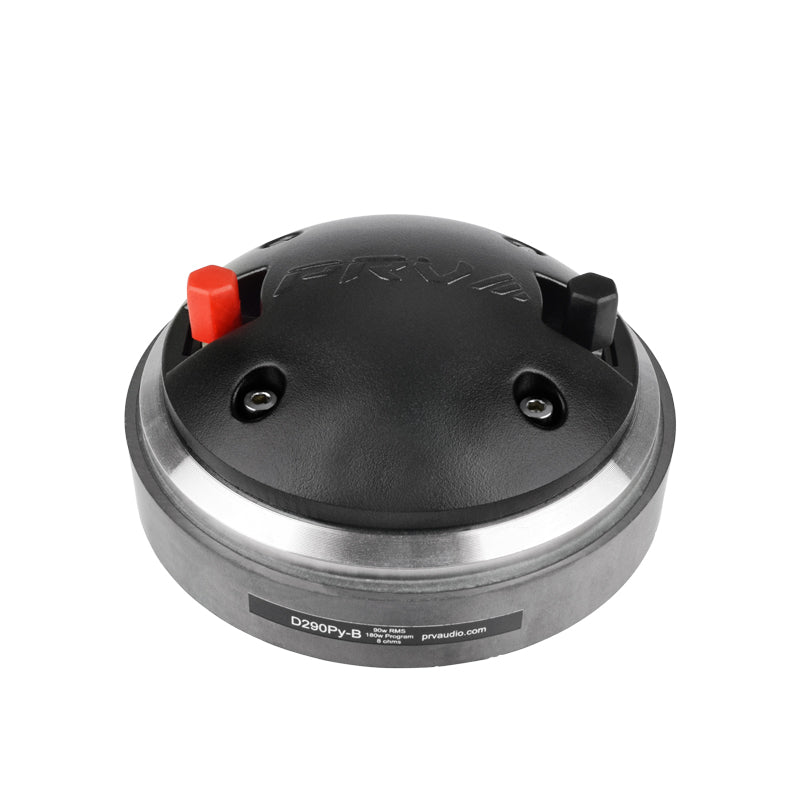

The PRV Audio D290Py-B 1? Pro Audio Compression Driver offers unsurpassed vocal and midrange reproduction.

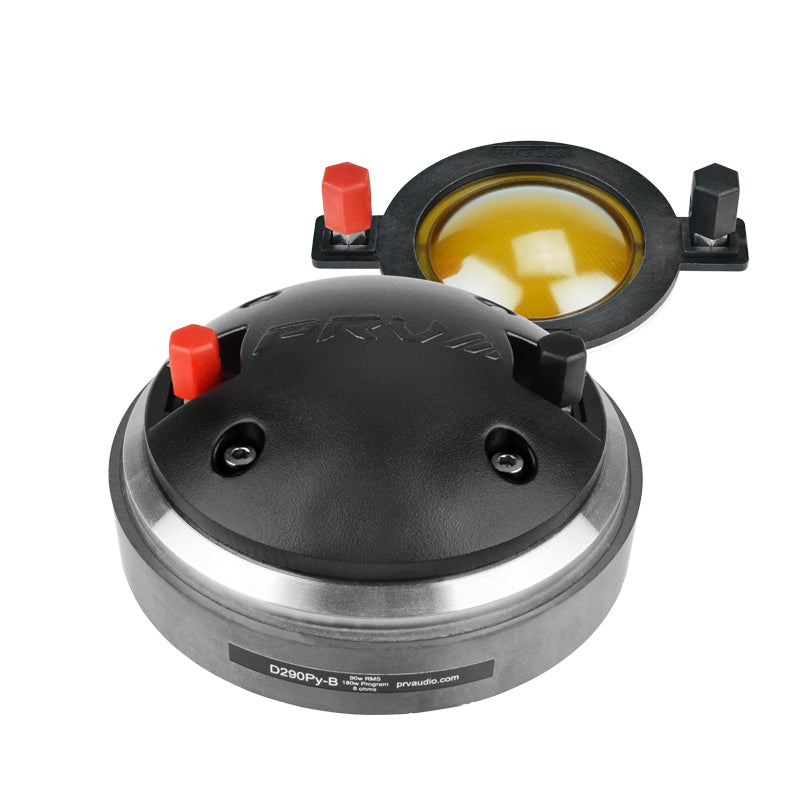

A specially designed and easily replaceable Polyimide diaphragm on a Kapton former results in a more natural sound with smoother and more accurate high frequency reproduction.
Highlights
- Throat Diameter: 1?
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 90 Watts
- Program Power: 180 Watts
The D290Py-B is perfect for stage monitors, studio monitors, and other loudspeaker enclosures where high sound quality and light weight is required. The D290Py-B is assembled with a standard 2 and 3 bolt pattern for easy replacement with current 1 bolt-on horns.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 90 Watts |
| Program Power | 180 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 650 19,000 Hz |
| Voice Coil Diameter | 1.75(44.4 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Polyimide |
| Flux Density | 1.85 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 4.72 (120 mm) |
| Overall Depth | 2.40 (61 mm) |
| Mounting Bolt Circle | M6 x 2 3 (76.2 mm) M6 x 3 2.4 (61.1 mm) |
| Net Weight | 4.67 lbs (2.11 kg) |
| Shipping Weight | 5.04 lbs (2.29 kg) |
| Carton Dimensions W x L x H | 5.51 x 5.31 x 3.15 (140 x 135 x 80 mm) |
PRV AUDIO D290Py-B DATASHEETDownload
