Description
xFeatures

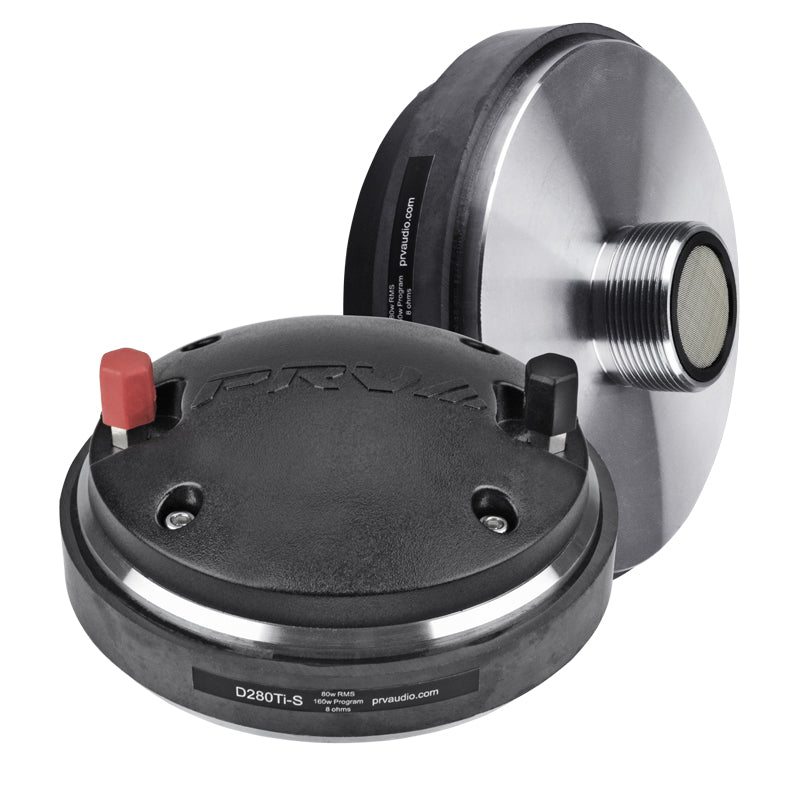

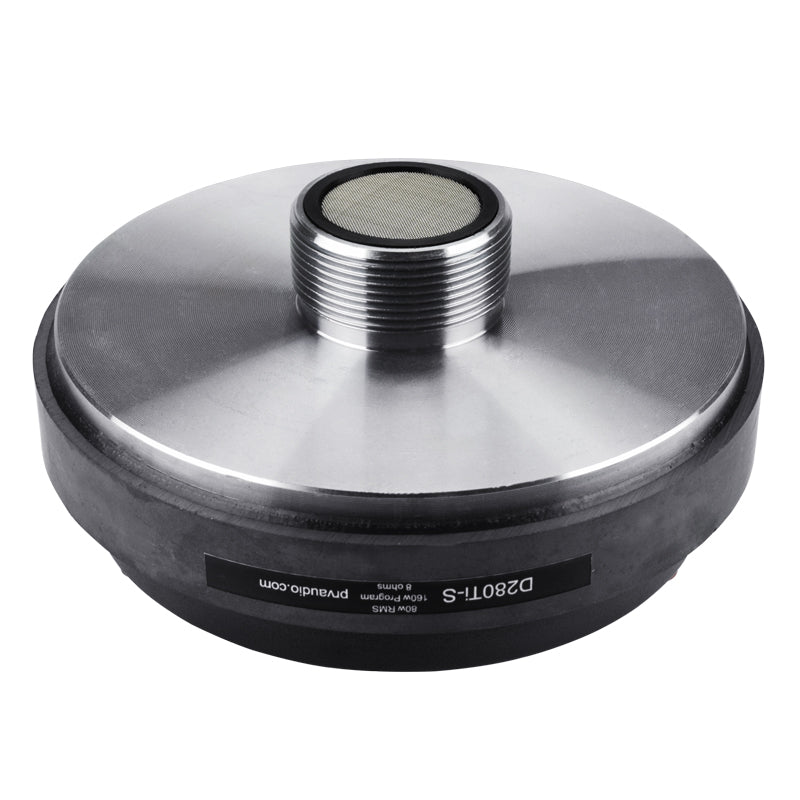

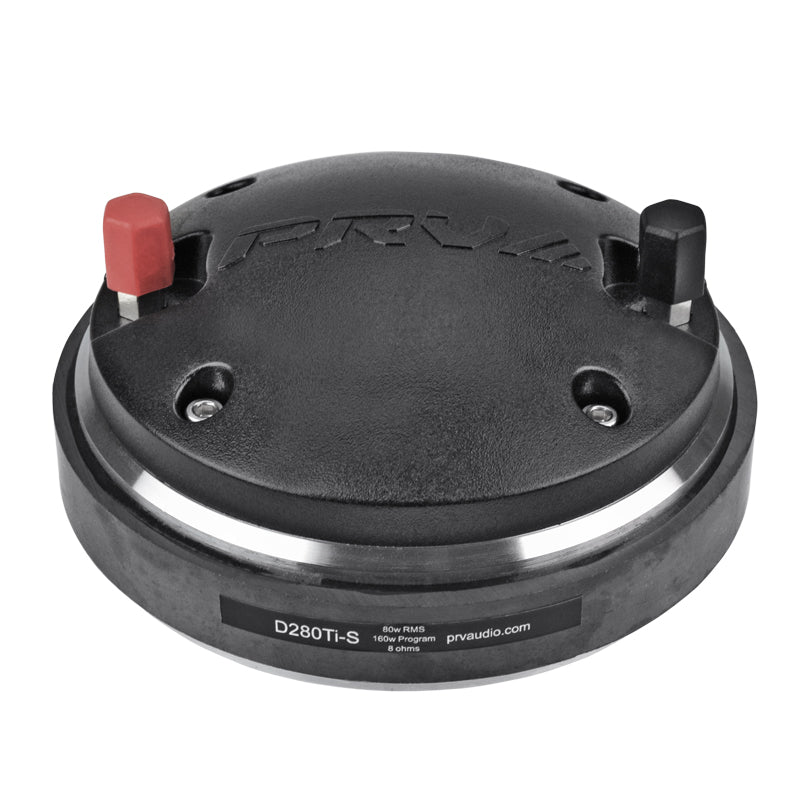

The NEW PRV Audio D280Ti-S Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm.
Highlights
- Throat Diameter: 1?
- Type: Screw-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 80 Watts
- Program Power: 160 Watts
Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required. A 2 and 3 or bolt pattern ensures easy replacement with current 1 bolt-on horns and weighs just 3.3 lbs. A standard 1 3/8 screw ensures easy replacement with current 1 horns and weighs just 3.3 lbs.
D280Ti-B and D280Ti-S are designed to ensure a quality sound and long lasting play in most any environment and in the rare event you need to make a repair to your driver, simple, quick diaphragm replacements are available.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 80 Watts |
| Program Power | 160 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1800 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,300 20,000 Hz |
| Voice Coil Diameter | 1.75(44.4 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.65 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 4.52 (115 mm) |
| Overall Depth | 2.56 (65 mm) |
| Mounting Thread | 1 3/8 18 TPI |
| Net Weight | 3.31 lbs (1.5 kg) |
| Shipping Weight | 3.52 lbs (1.59 kg) |
| Carton Dimensions W x L x H | 5.31 x 5.0 x 2.91 (135 x 127 x 74 mm) |
PRV AUDIO D280Ti-S DATASHEETDownload
