Description
xFeatures

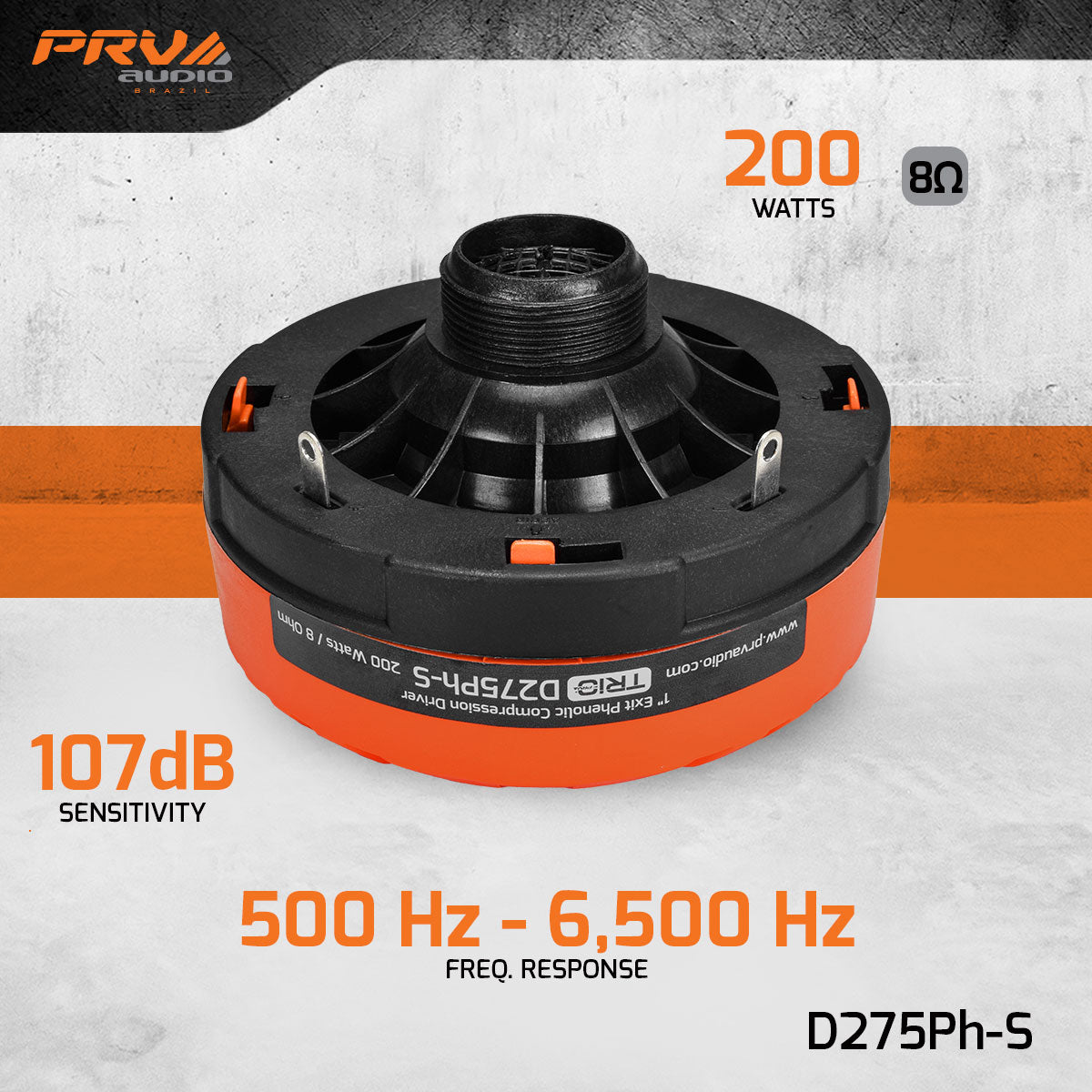

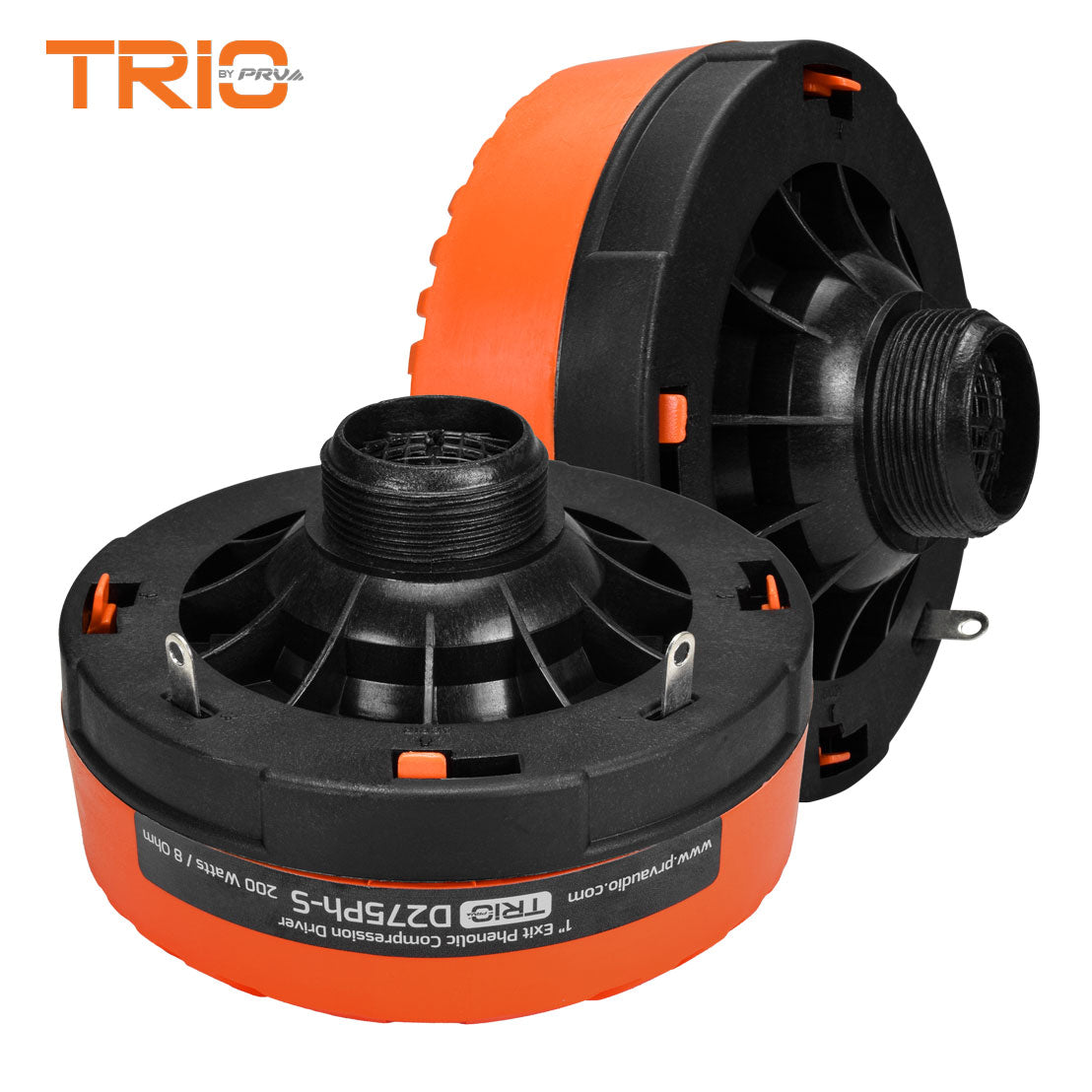

This powerful 1 Exit Phenolic driver, the D275Ph-S is all about midrange vocal reproduction at low distortion. Built to last with its phenolic diaphragm and copper voice coil, that are designed to reproduce the all-important vocal range with authority!
- High Temperature copper voice coil and phenolic diaphragm for natural response
- Designed for midrange and vocals from 500 to 6,500 Hz
- High Output 107 dB sensitivity
- The large 2 inch voice coil can handle up to 200 watts of musical power.
TRIO by PRVuses the latest Brazilian phenolic technology designed for vocal reproduction.
The phenolic diaphragm is attached to a 2? diameter copper wire with Kapton former for a high 200 Watts RMS musical power handling, when used with recommended HPF:
- 600 Hz at 12 dB per octave filter Crossover / BT12
- 500 Hz at 18 dB per octave filter Crossover / BT18
Its incredible output capabilities make this midrange driver one of the loudest vocal drivers on the market!
PRV Trio 1? Midrange Driver D275Ph-S 200 Watts 8 Ohm Phenolic Diaphragm
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 100 Watts |
| Continuous Program Power (RMS) | 200 Watts |
| Peak Power | 400 Watts |
| Sensitivity 2.83V at 1m | 106 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 600 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB5 | 500 6,500 Hz |
| Voice Coil Diameter | 2? (51 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic Resin |
| Flux Density | 1.1 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 4.61 (117 mm) |
| Overall Depth | 2.67 (68 mm) |
| Mounting Thread | 1-3/8? 18 TPI |
| Net Weight | 1.91 lbs (0.87 kg) |
| Shipping Weight | 2.03 lbs (0.92 kg) |
| Carton Dimensions W x L x H | 5.0 x 5.0 x 3.0 (127 x 127 x 75 mm) |
PRV AUDIO WGP275Ph DATASHEETDownload
