Description
xFeatures

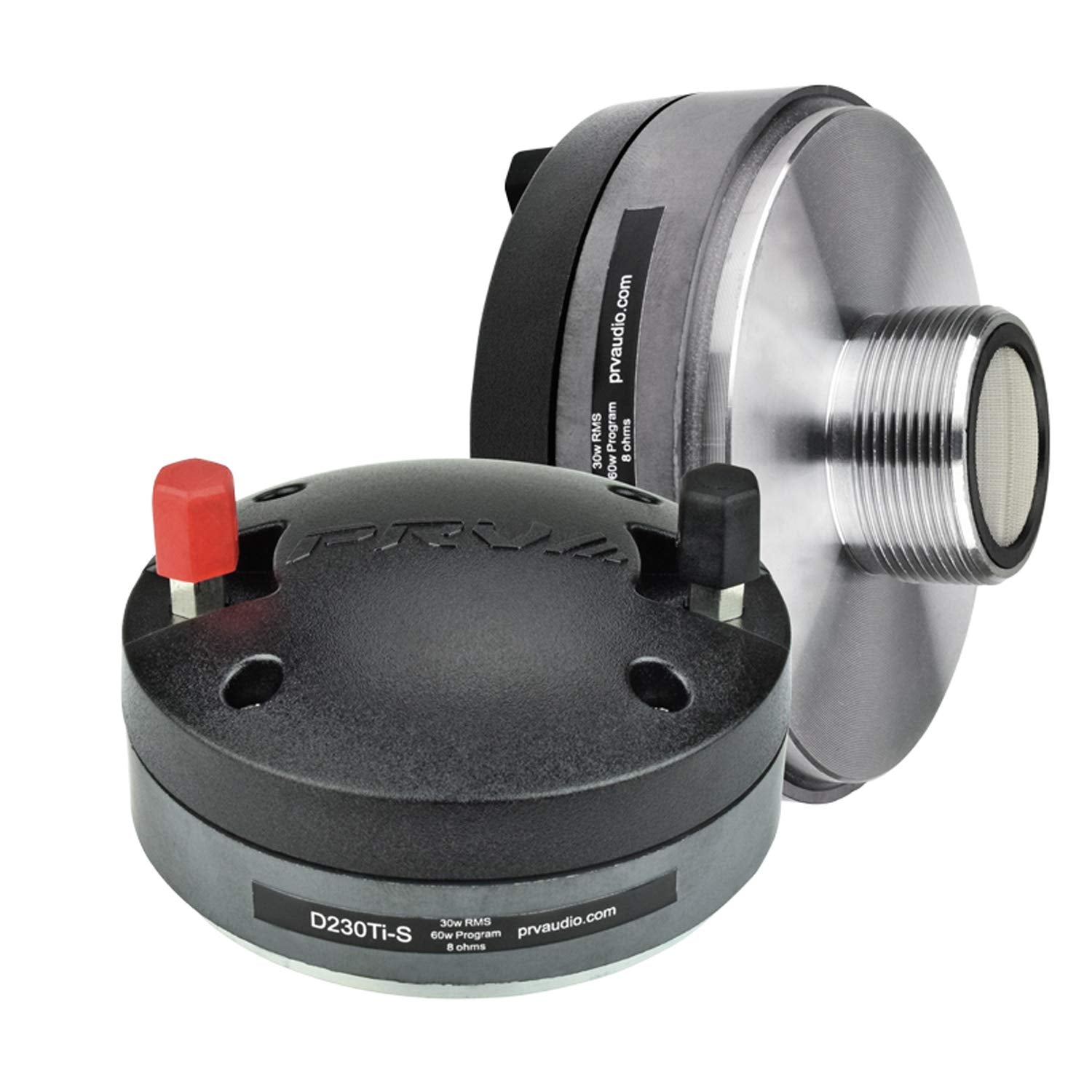

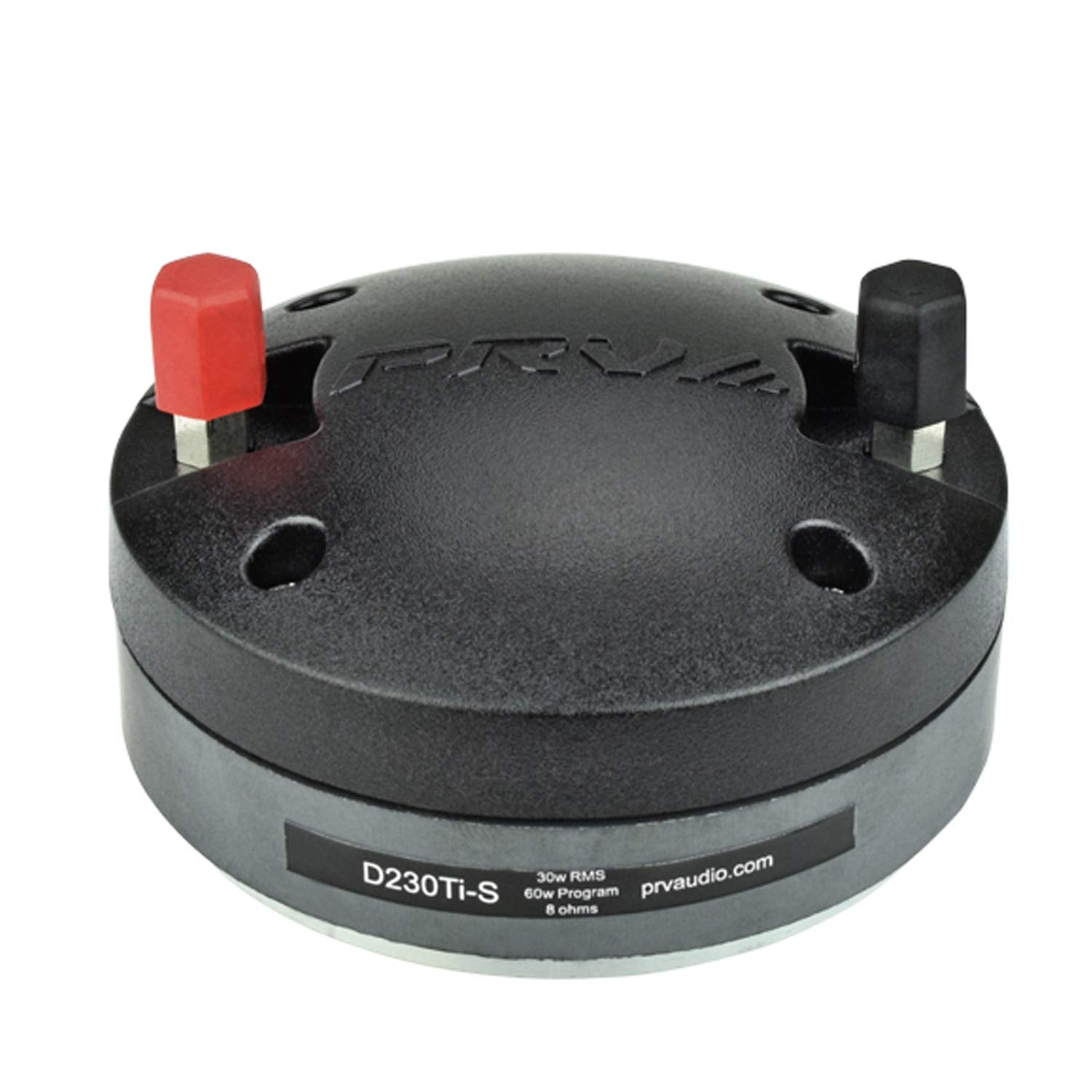

The D230Ti-S compression driver is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8?-18 TPI horn.
The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.
Highlights
- Throat Diameter: 1?
- Type: Screw-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 30 Watts
- Program Power: 60 Watts
This driver is also available in both bolt-on and screw-on models (D230Ti-B / D230Ti-S). The D230Ti-B is a lightweight driver that weighs just 2 lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

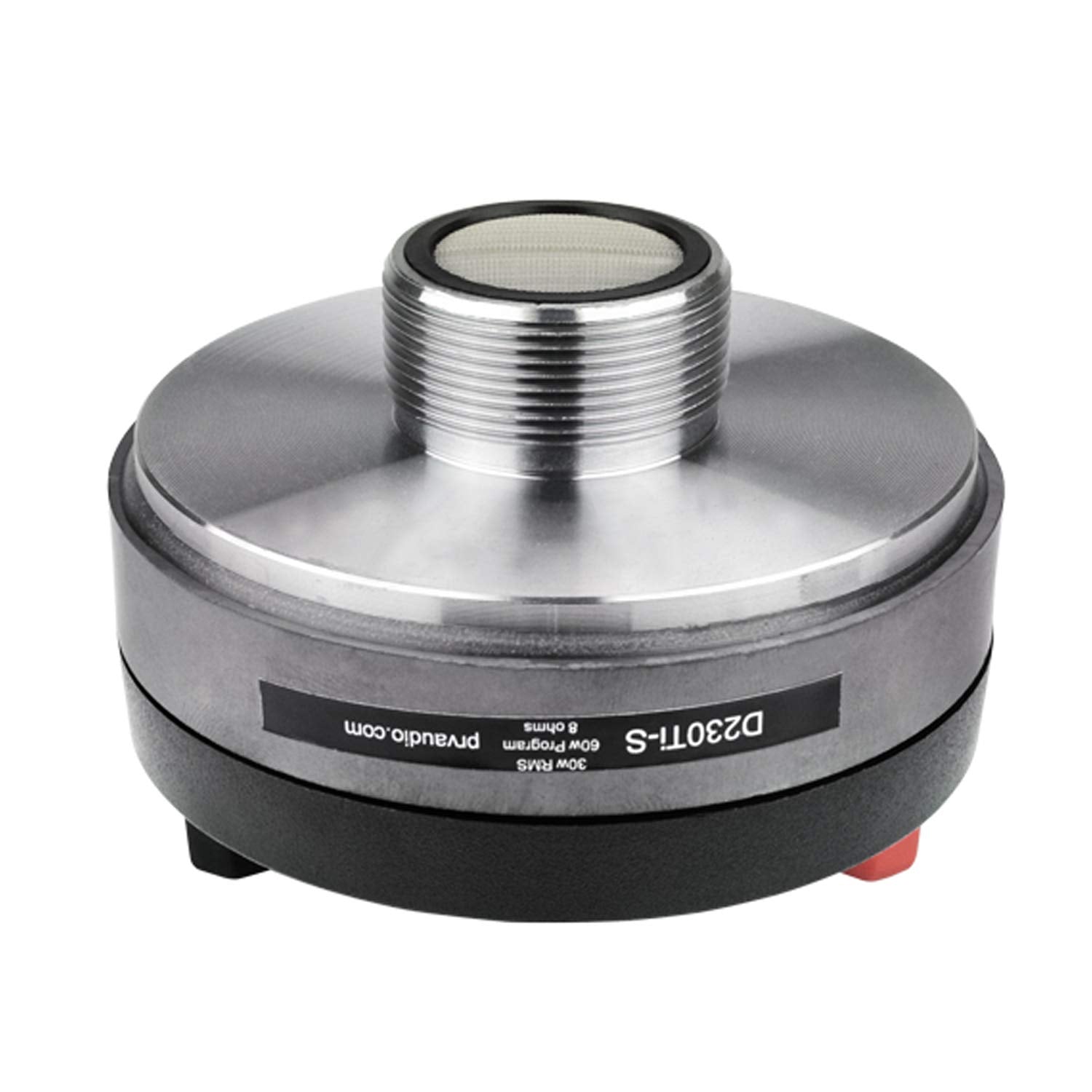

The D230Ti-S is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1 screw-on design
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 30 Watts |
| Program Power | 60 Watts |
| Sensitivity 2.83V at 1m | 105 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 2000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,800 20,000 Hz |
| Voice Coil Diameter | 1.4? (35.5 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.65 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 3.54 (90 mm) |
| Overall Depth | 2.40 (61 mm) |
| Mounting Thread | 1 3/8 18 TPI |
| Net Weight | 2.05 lbs (0.93 kg) |
| Shipping Weight | 2.14 lbs (0.97 kg) |
| Carton Dimensions W x L x H | 3.74 x 3.74 x 2.95 (95 x 95 x 75 mm) |
PRV AUDIO D230Ti-S DATASHEETDownload
