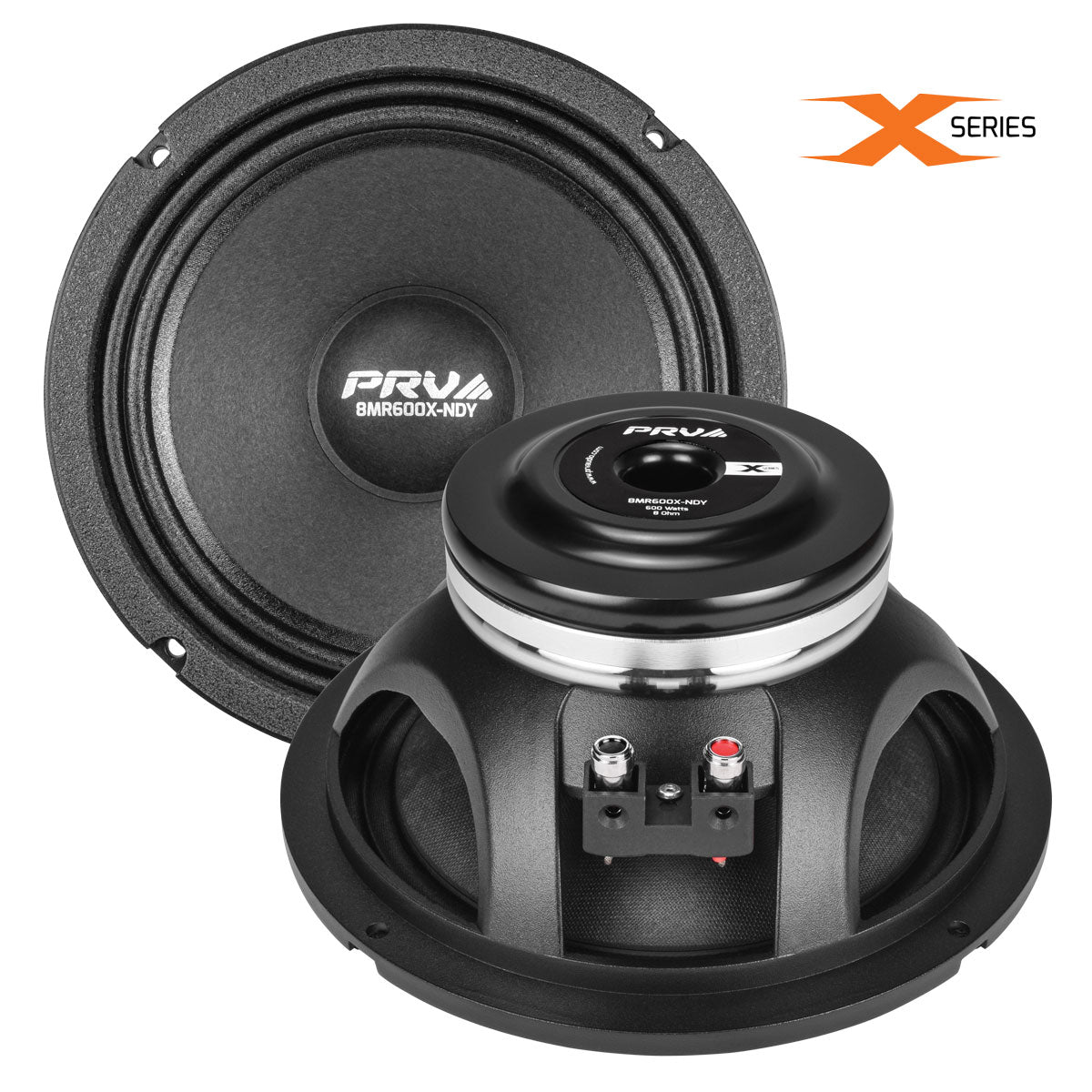

Made to be a class leading midrange in the pro audio realm, this speaker has a high output sensitivity of 98.5 dB and only weighs 5 pounds. This midrange loudspeaker is optimized for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.
The powerful halo neodymium magnet assembly assures high flux concentration. Its magnetic structure significantly improves thermal connection and heat dissipation. This increases power handling and lowers power compression, with an optimum power to weight ratio.
Capable of high output and low distortion, this midrange is perfect for filling in the significant midrange response in any high output sound system. Great addition to the X-Series.
A coated woven surround offers smooth, precise geometry during hard play. The light weight cone provides excellent linear response taking performance to the next level with its wide frequency bandwidth, high output levels between 3,200 to 10,000Hz
Making the 8MR600X-NDY an excellent solution for high sound quality two or three-way systems.
Extreme car audio enthusiasts will find PRV Audios 8MR600X-NDY to be the perfect 8? midrange door speaker, capable of handling up to 600 watts RMS power (with a suggested 125 Hz, 18 dB/octave high pass filter in place tuned with PRV DSP)!
Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio.
Nominal Diameter | 8? (203 mm) |
Nominal impedance | 8 Ohm |
Nominal Power Handling | 300 Watts |
Continuous Program Power (RMS) | 600 Watts |
Max Peak Power | 1200 Watts |
Sensitivity 2.83V at 1m | 98.5 dB |
Recommended Hi Pass Crossover** **For Full Power Handling | 145Hz** **12db Per Octave Crossover |
Frequency Response at -10DB | 95 10,500 Hz |
Voice Coil Diameter | 2? (50 mm) |
Voice Coil Wire | CCAW |
Voice Coil Winding Depth | 11.0 mm |
Former Material | Kapton |
Magnetic Gap Depth | 7.0 mm |
Frame Material | Die Cast Aluminum |
