Description
xFeatures
X-treme midrange performance is what PRV Audios 8MR600X is all about. Made to be a class leading midrange in the pro audio realm, this driver has a sensitivity of 98 dB and only weighs 7 pounds. This low frequency driver is optimized for professional audio or MI (musical instrument) speaker system applications, a car audio version is available at 4ohms 8MR600X-4

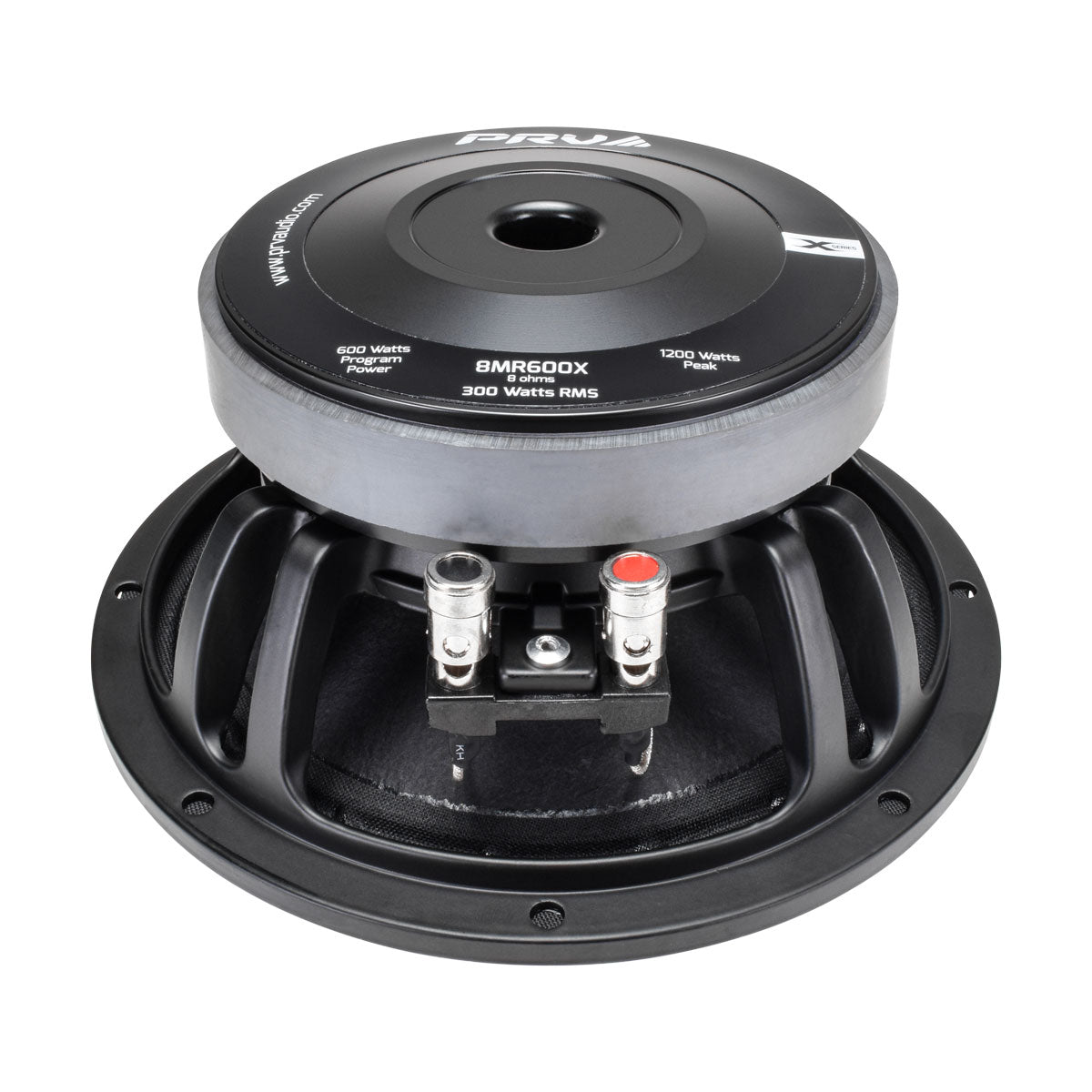

The powerful magnet assembly assures high flux concentration. The ventilated basket designed between the basket and the magnetic structure significantly improves thermal connection and heat dissipation, further increasing power handling and lowering power compression.
Capable of high output and low distortion, this midrange is perfect for filling in the important midrange response in any high output sound system.
Highlights
- 2? DUAL layer CCAW voice coil wound on polyimide former, 8 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more Mid bass output
- 600 watts continuous program power rating makes high acoustical output
- Excellent performance in 2-way or 3-way systems
- Unique double roll dimple suspension design
The 51 mm (2 in) copper clad aluminum wire is wound in a double layer using a high temperature resin adhesive on a strong polyimide former and features a generous 14.5 mm winding length for extended Xmax and less distortion.
The 2? voice coil also ensures high heat dissipation and the necessary motor strength to deliver high sensitivity even on high power with the minimum distortion.
A Qts of 0.37 and an unique double roll dimple suspension design allows for a flat response from 200Hz to 2500Hz, even at high excursion controlling well its natural paper cone at its 5.25 mm Xmax. Its composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound.
GENERAL SPECIFICATIONS
| Nominal Diameter | 8? (203 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 300 Watts |
| Program Power | 600 Watts |
| Sensitivity 2.83V at 1m | 98 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
160 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 85 8,500 Hz |
| Voice Coil Diameter | 2.0? (51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 14.5 mm |
| Former Material | Polyimide |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die cast aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 19.99 l |
| Excursion (mathematical)*** | Xmax | 5.25 mm |
| <... |
