PRV Audios 8MB700FT-NDY Forte Series was specially tailored to give you more power handling and less distortion. The larger voice coil ensures high heat dissipation and the necessary Bl to deliver high sensitivity even at high power with the minimum distortion.
The lower Qts allows more precise midbass. Superior fidelity is achieved through a perfect combination of a non-pressed cone with a smooth frequency response and its well ventilated magnet motor specially designed to allow high displacement without increasing distortion.
To get superior fidelity, the special composite cone is built with non-pressed paper for reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.
This 8? is a great midbass option for pro audio systems or high SPL automotive systems, where extremely high output is required.
This midbass will stand up to years of serious professional use! Thanks to its special composed spider reduces distortion at a high excursion and double roll surround keep cone travel linear at high excursion.

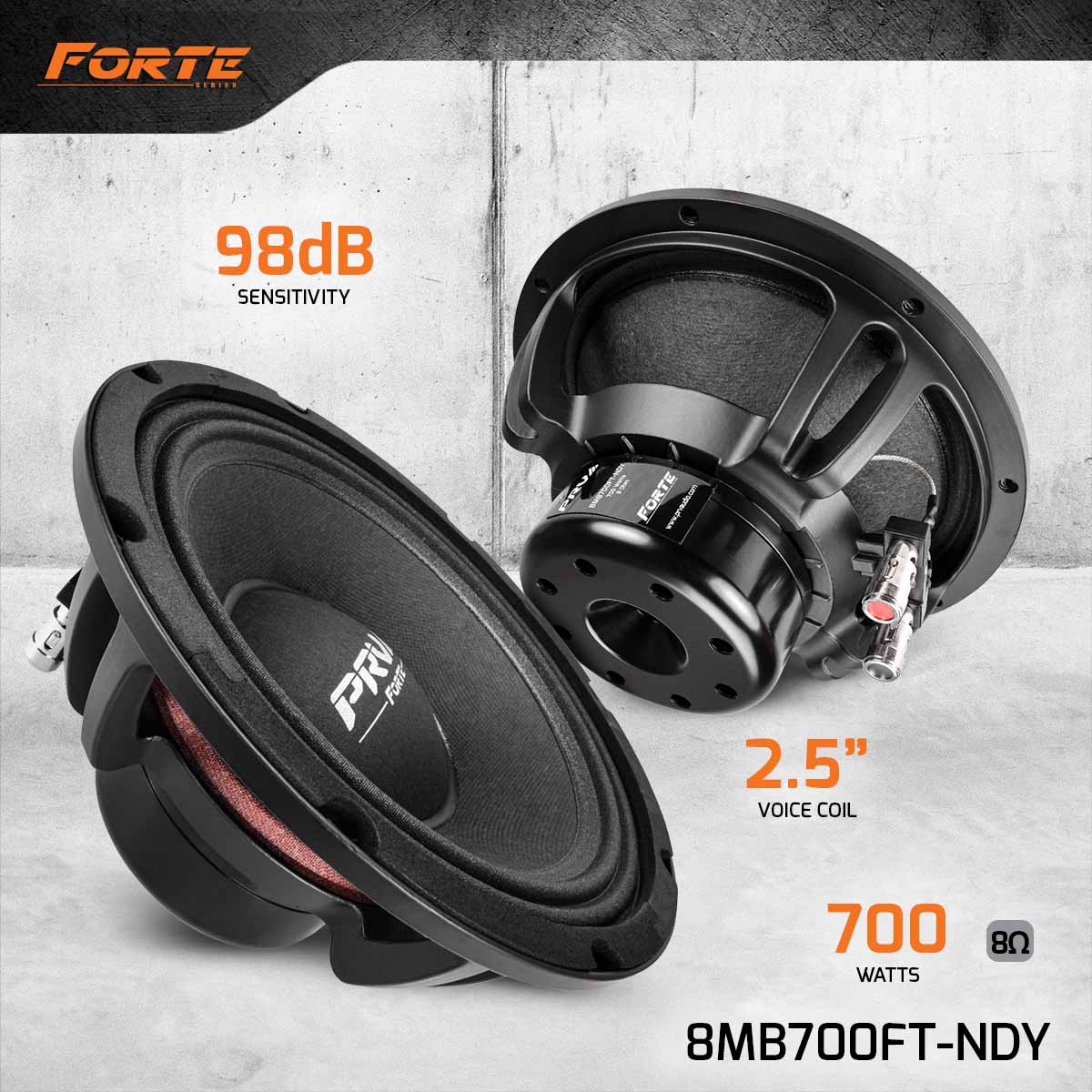

The 8MB700FT-NDY is an extremely efficient 8? midbass, due to its wide frequency band and 98 dB sensitivity rating, this speaker is ideal for pairing with compression drivers, on 3-Way system (with a suggested 95 Hz, 12 dB/octave high pass filter in place)!

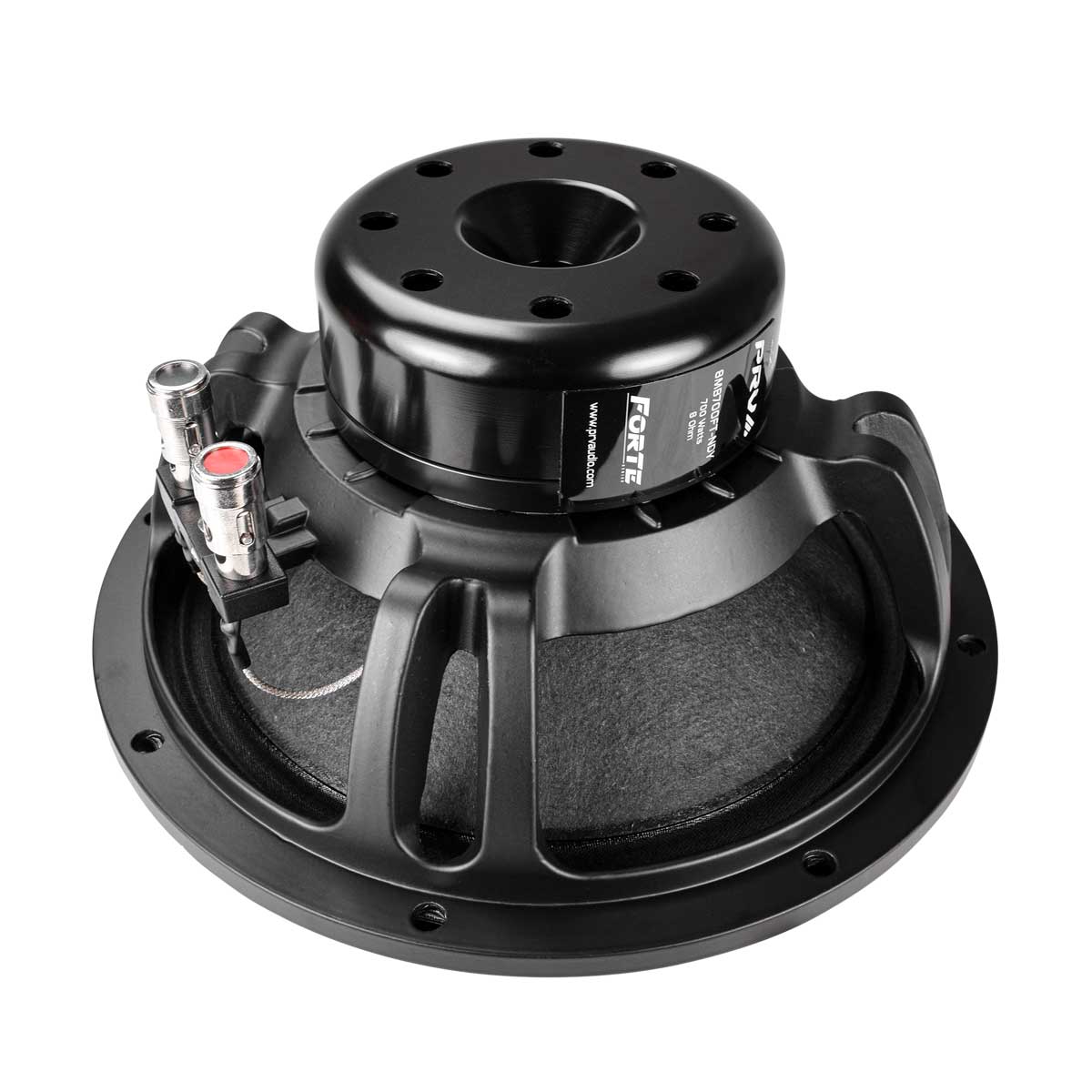

The large 2.5? voice coil allows for the high 700 watts power handling and warrants the outstanding cooling system implemented into the motor.
Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

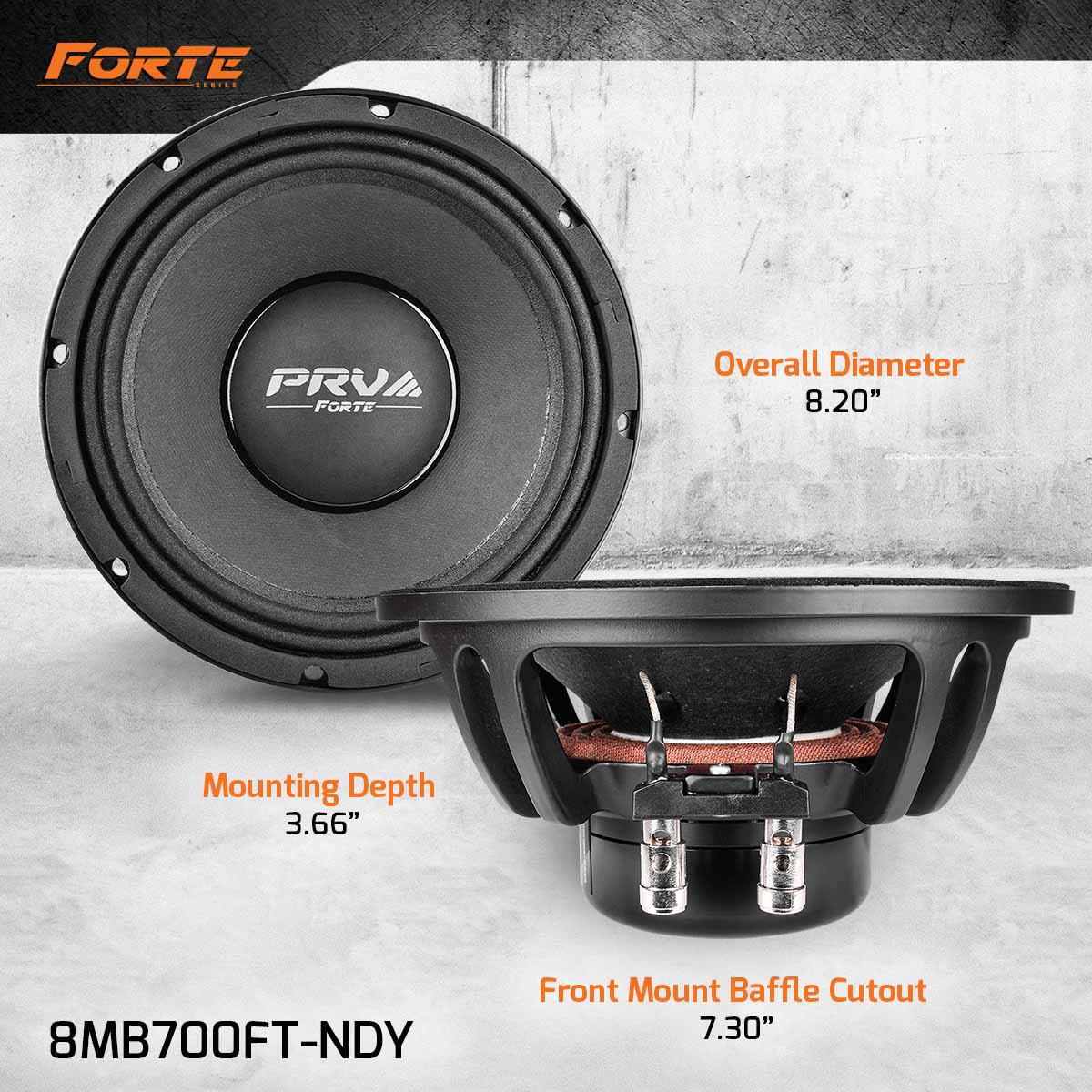

Nominal Diameter | 8? (203 mm) |
Nominal impedance | 8 Ohm |
Nominal Power Handling* | 350 Watts |
Continuous Program Power (RMS)** | 700 Watts |
Max Peak Power*** | 1400 Watts |
Sensitivity 2.83V at 1m | 98 dB |
Recommended Hi Pass Crossover For Full Power Handling | 95 Hz 12db Per Octave Crossover |
Frequency Response at -10dB | 70 5,600 Hz |
Voice Coil Diameter | 2.5? (63 mm) |
Voice Coil Wire | CCAW |
Voice Coil Winding Depth | 11.3 mm |
Former Material | Fiber Glass |
Magnetic Gap Depth | 8.00 mm |
Frame Material | Die Cast Aluminum |
