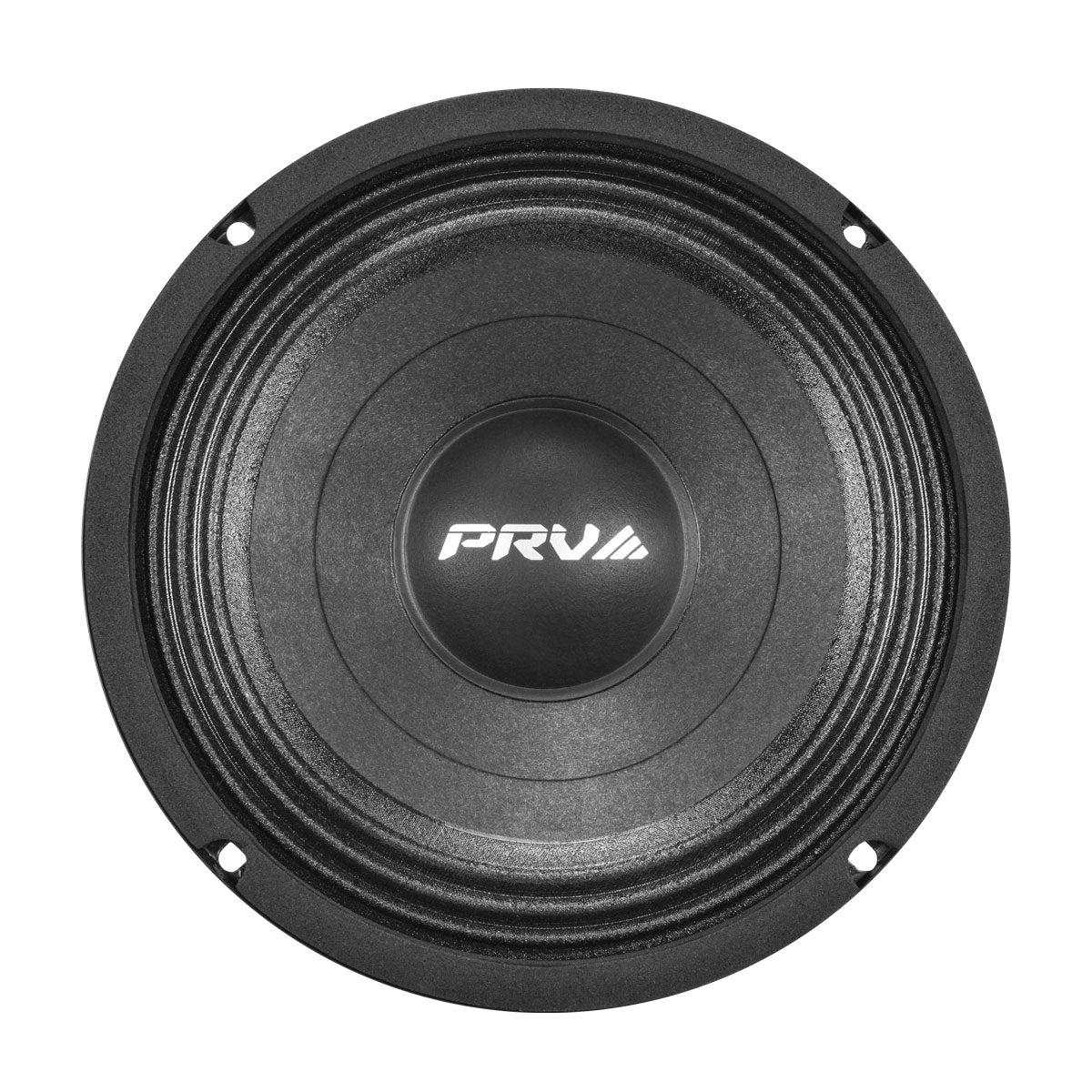

The 8MB500 was designed to provide outstanding durability and strong midbass punch. This 8? professional loudspeaker midbass is purpose-built to cover the critical low frequency range in a home speaker setup, but also works great as a door speaker in car audio applications.
Built with premium components to ensure absolute high sound fidelity, one of which is its compact push terminals, which connect to its silver tinsel lead wires attached to its high temperature CCAW voice coil.
Featuring the latest technology we can increase tremendously the magnet field without huge magnet, making this midbass one of a kind, with large diameter motor, not bulky yet capable of handling high power!
Featuring a naturally damp paper cone and special coated dust cap, makes this professional speaker able to cover a wide range of frequencies from 75 Hz to 7,500 Hz in three-way systems.
Developed to perform well in tight enclosures, its triple roll surround keeps its cone travel linear at high mibdass excursion. The right combination of cone and suspension gives this speaker an excellent human vocal reproduction with dynamic midbass sound.
Nominal Diameter | 8? (203 mm) |
Nominal impedance | 8 Ohm |
Nominal Power Handling | 250 Watts |
Continuous Program Power (RMS) | 500 Watts |
Max Peak Power | 1000 Watts |
Sensitivity 2.83V at 1m | 95 dB |
Recommended Hi Pass Crossover** **For Full Power Handling | 95Hz** **12db Per Octave Crossover |
Frequency Response at -10DB | 75 7,500 Hz |
Voice Coil Diameter | 2? (50 mm) |
Voice Coil Wire | CCAW |
Voice Coil Winding Depth | 12.0 mm |
Former Material | Kapton |
Magnetic Gap Depth | 6.0 mm |
Frame Material | Stamped Steel |
