PRV AUDIO 6x9 Inch Midrange Speaker 69MR500-PhP-4 500 Watts Program Power, 4 Ohm, 1.5 in Voice Coil, 250 Watts RMS Pro Car Audio Loudspeaker (Single)

PRV Audio 69MR500PhP-4 6" x 9" Midrange Loudspeaker 4 Ohm

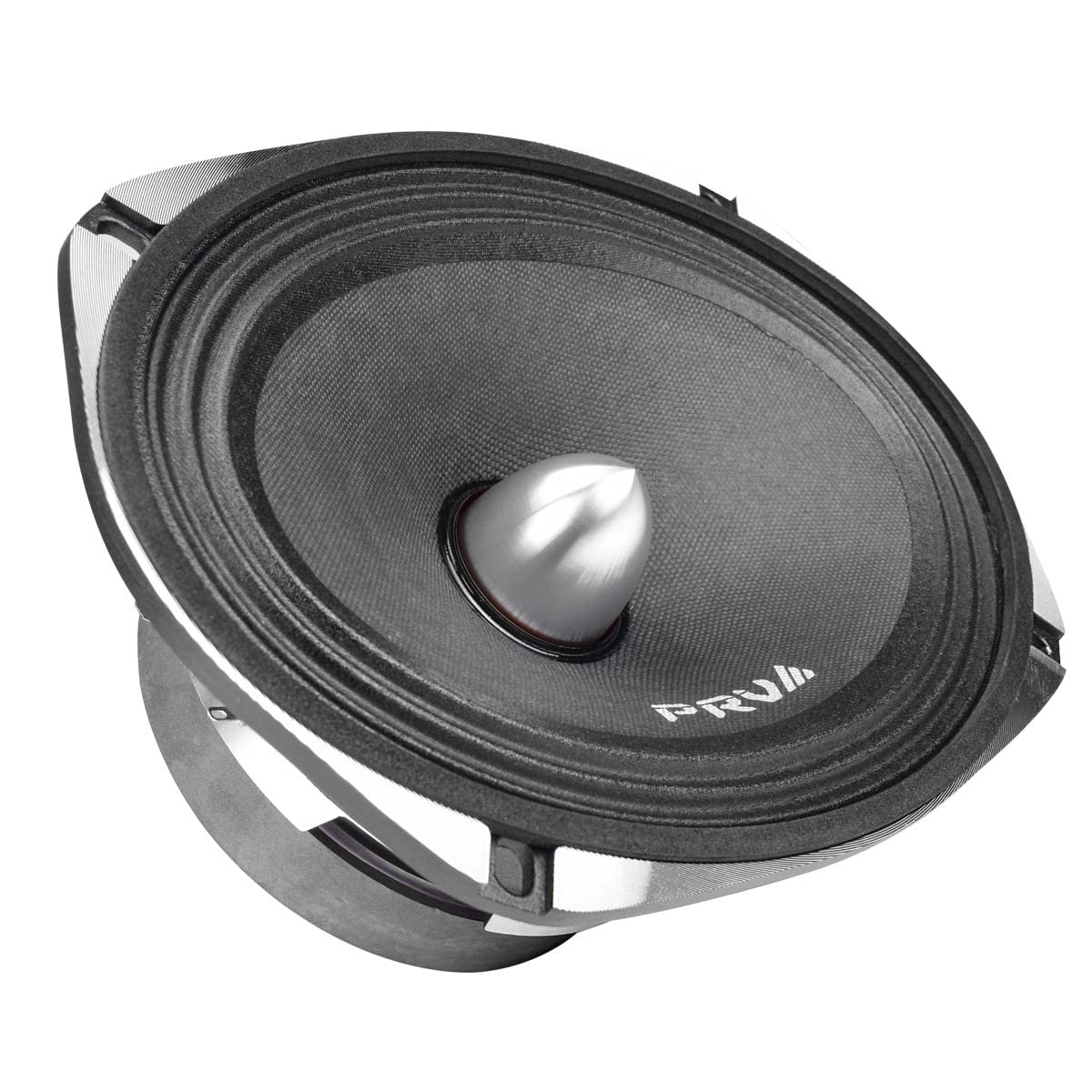

The unique 69MR500-PHP-4 6" x 9" midrange from PRV Audio offers smooth midrange response and high efficiency. This midrange is perfect for high output 3-way systems.

Key Features

Cast aluminum frame provides a rigid support

Aluminum phase plug improves off axis response

Includes 1,000 Hz high pass (6 dB/octave) for protection against low frequencies

Extensive venting under the spider for minimal power compression

PRV Audio's 69MR500-PHP-4 midrange loudspeaker offers outstanding durability and a smooth midrange response through 12 kHz. It is a great option for three way systems requiring additional midrange support.

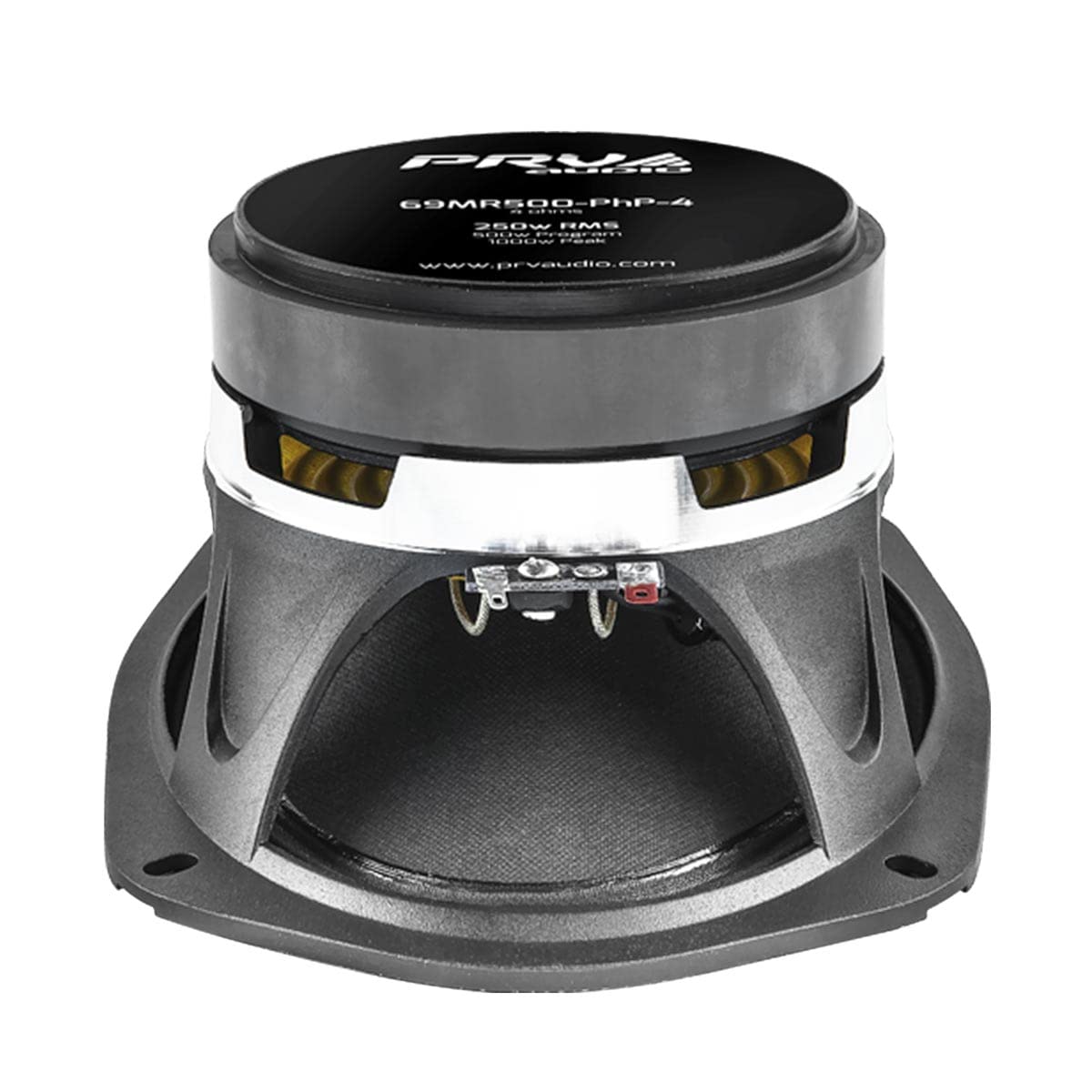

A high-power ceramic magnet is attached to a sturdy, reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment, while the phase plug provides incredibly smooth high frequency response on and off axis. This driver includes a 1 kHz high-pass filter to ensure the best possible fidelity while protecting the driver in high power car audio installations. In addition, this also makes an excellent driver for use as a midrange in a high output pro sound systems, the oval shape has almost the same cone area as an 8" while allowing for closer center-to-center spacing.

Product Details

Brand PRV Audio

Model 69MR500PhP-4

UPC 799928734998

Unit of Measure Each

Weight 6.05

Product Specifications

Nominal Diameter 6 x 9"

Power Handling (RMS) 250 Watts

Power Handling (MAX) 500 Watts

Impedance 4Ω

Frequency Response 500 to 12,000Hz

Sensitivity 97dB 2.83V/1m

Voice Coil Diameter 1.5"

Thiele-Small Parameters

Resonant Frequency (Fs) 91.74Hz

DC Resistance (Re) 3.7Ω

Voice Coil Inductance (Le) 0.14mH

Mechanical Q (Qms) 14.2

Electromagnetic Q (Qes) 0.68

Total Q (Qts) 0.65

Compliance Equivalent Volume (Vas) 0.54ft³

Mechanical Compliance of Suspension (Cms) 0.204mm/N

BL Product (BL) 6.8T·m

Diaphragm Mass Inc. Airload (Mms) 14.76g

Maximum Linear Excursion (Xmax) 2.87mm

Surface Area of Cone (Sd) 231cm²

Materials of Construction

Cone Material Paper

Surround Material Cloth

Voice Coil Wire Material Copper

Voice Coil Former Kapton® / Polyimide

Basket / Frame Material Cast Aluminum

Magnet Material Ferrite

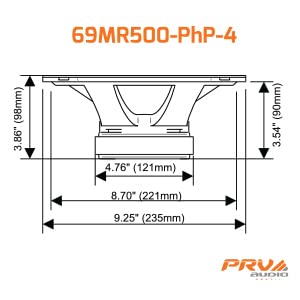

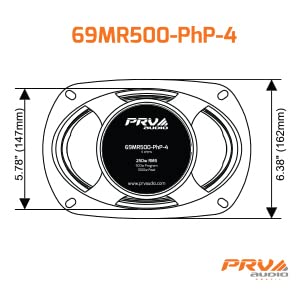

Mounting Information

Overall Outside Diameter 9.25" x 6.38"

Baffle Cutout Diameter 8.7" x 5.78"

Depth 3.86"

# Mounting Holes 4
