Description
xFeatures

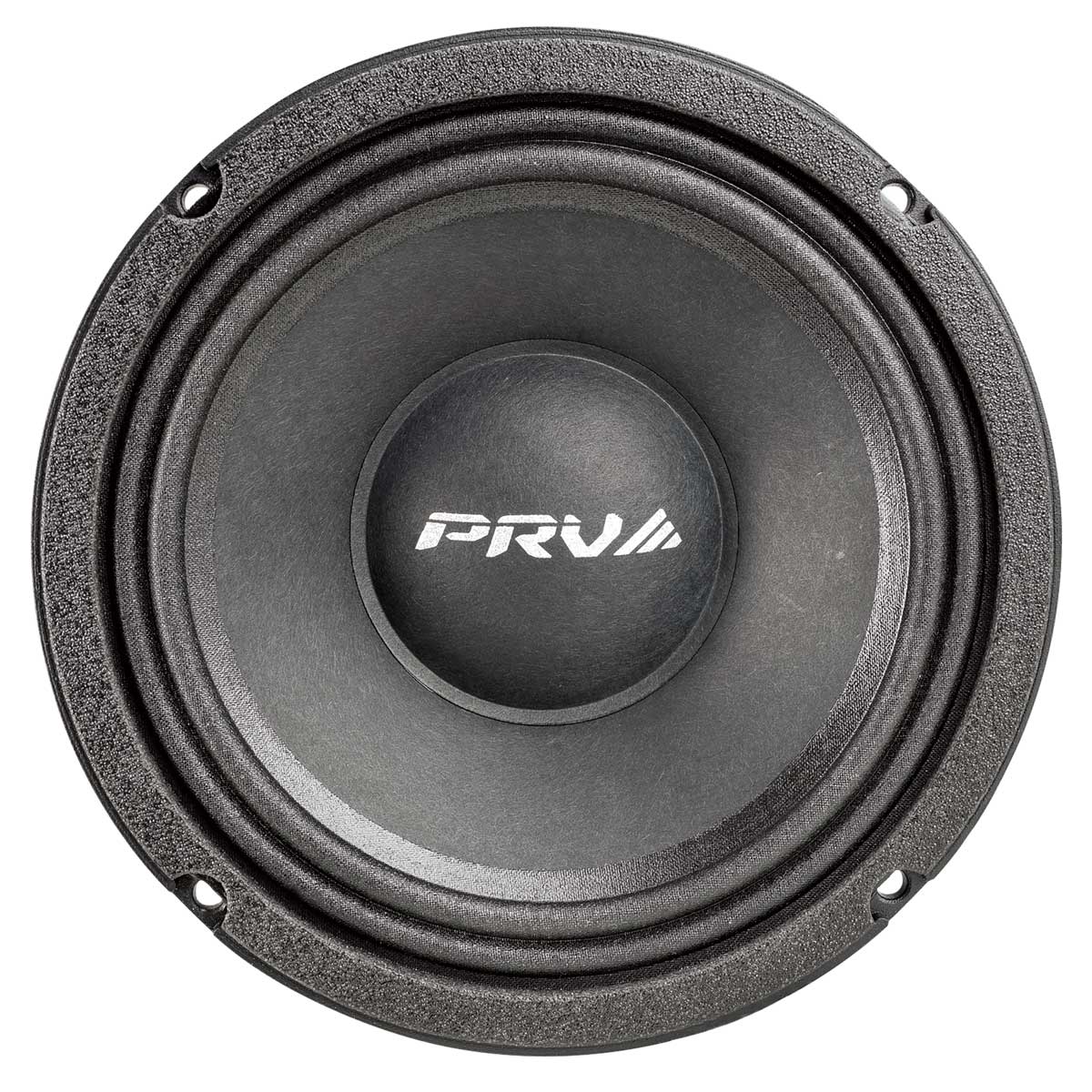

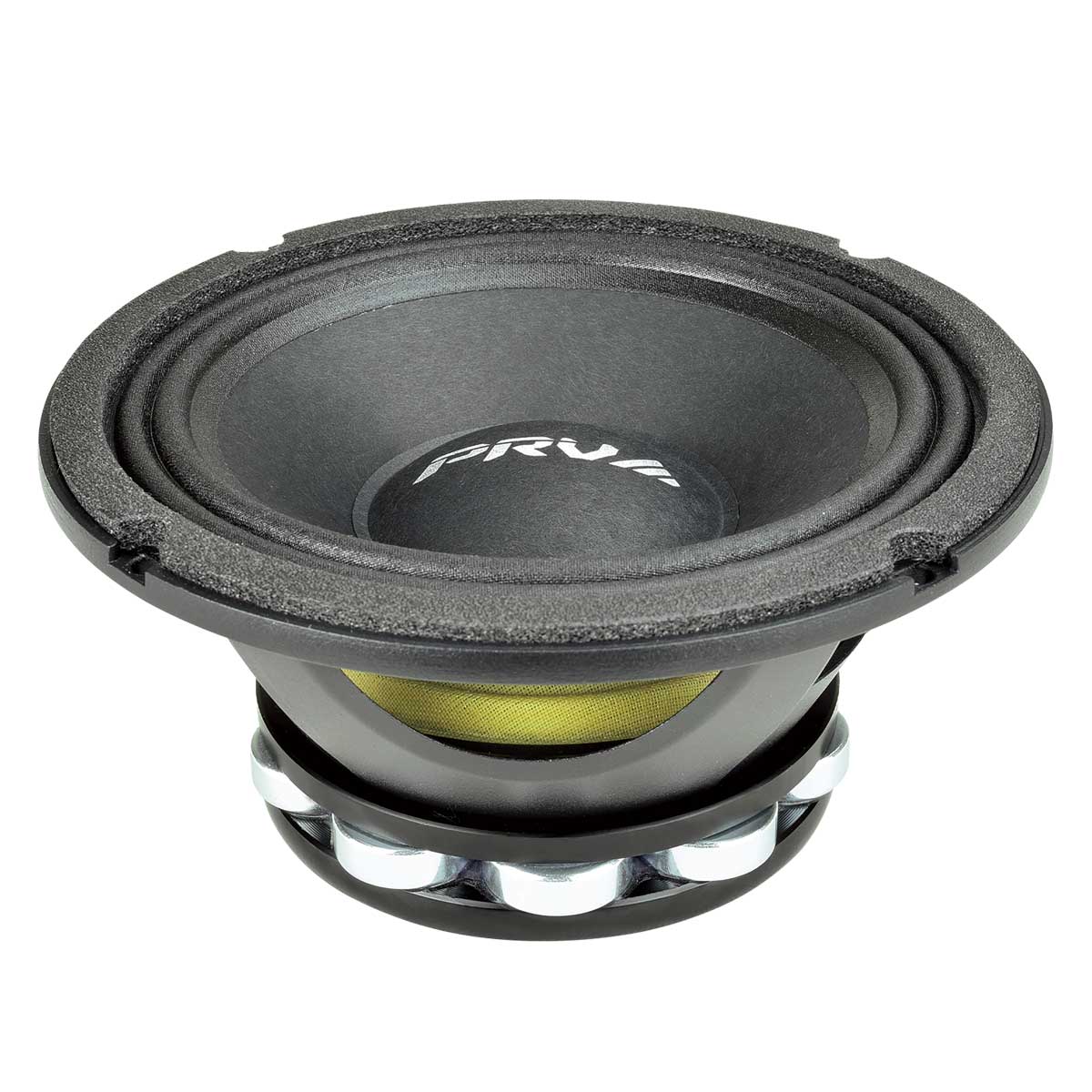

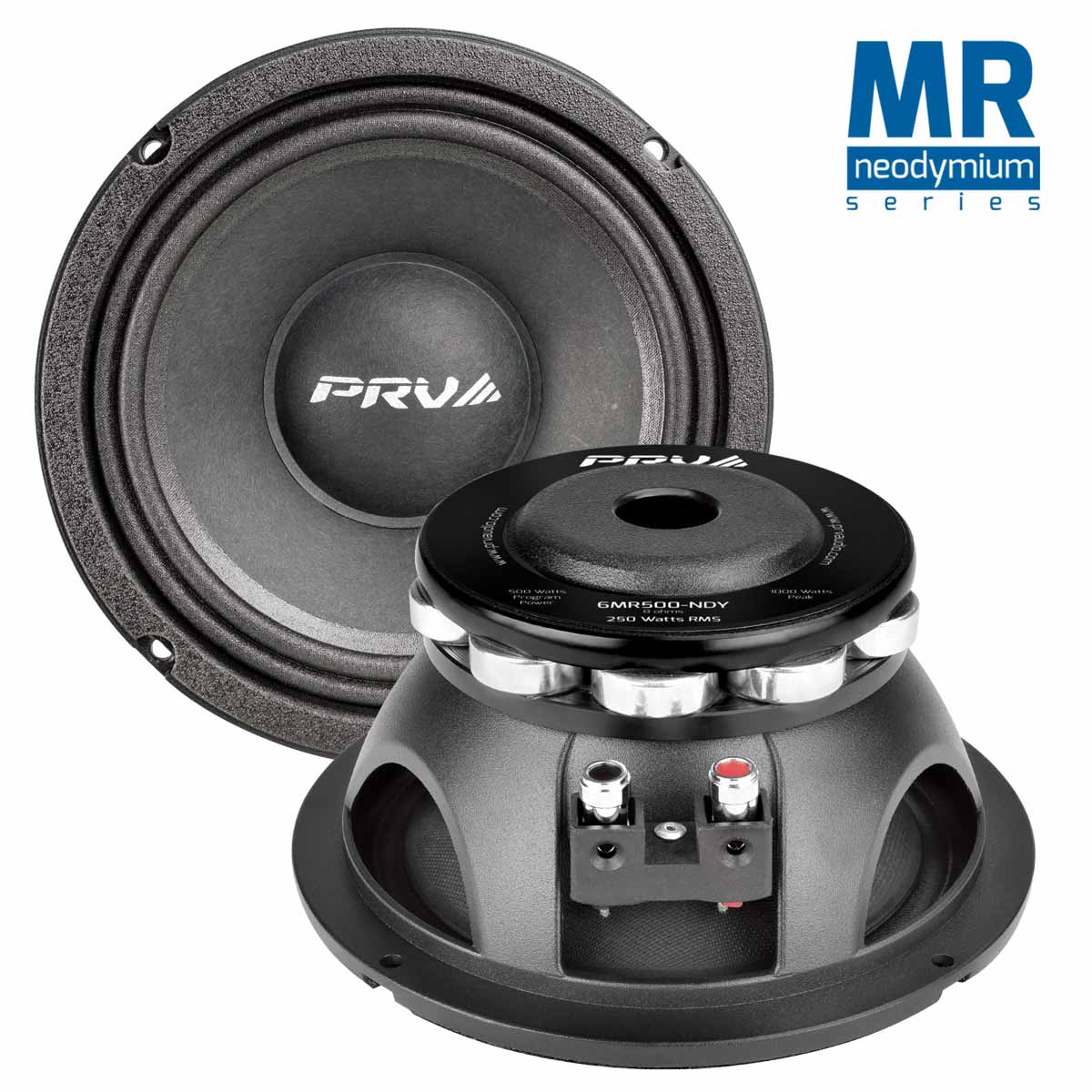

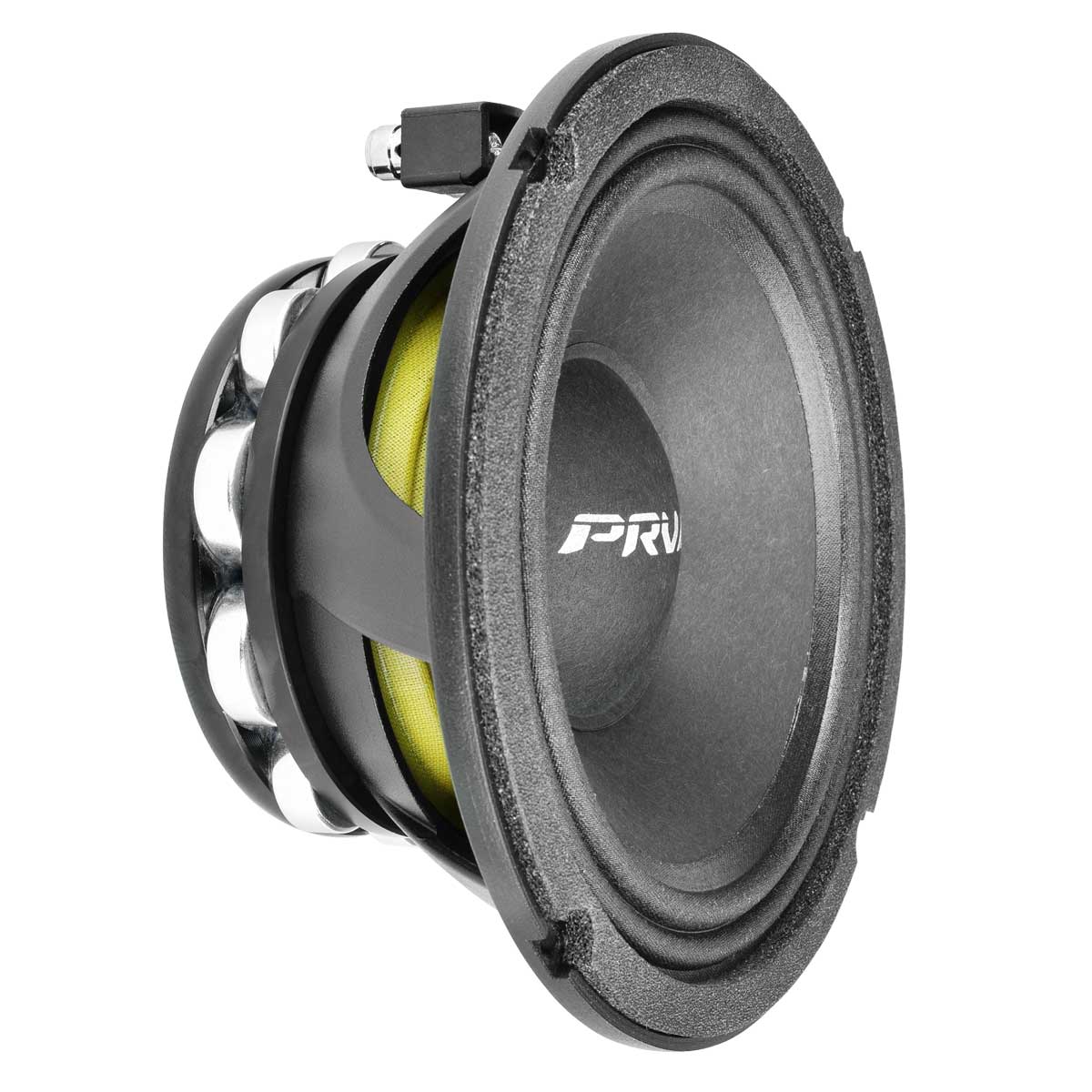

The PRV Audio Pro Audio Loudspeaker, 6MR500-NDY midrange woofer offers outstanding durability and a smooth fullrange response through 13,000kHz. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.

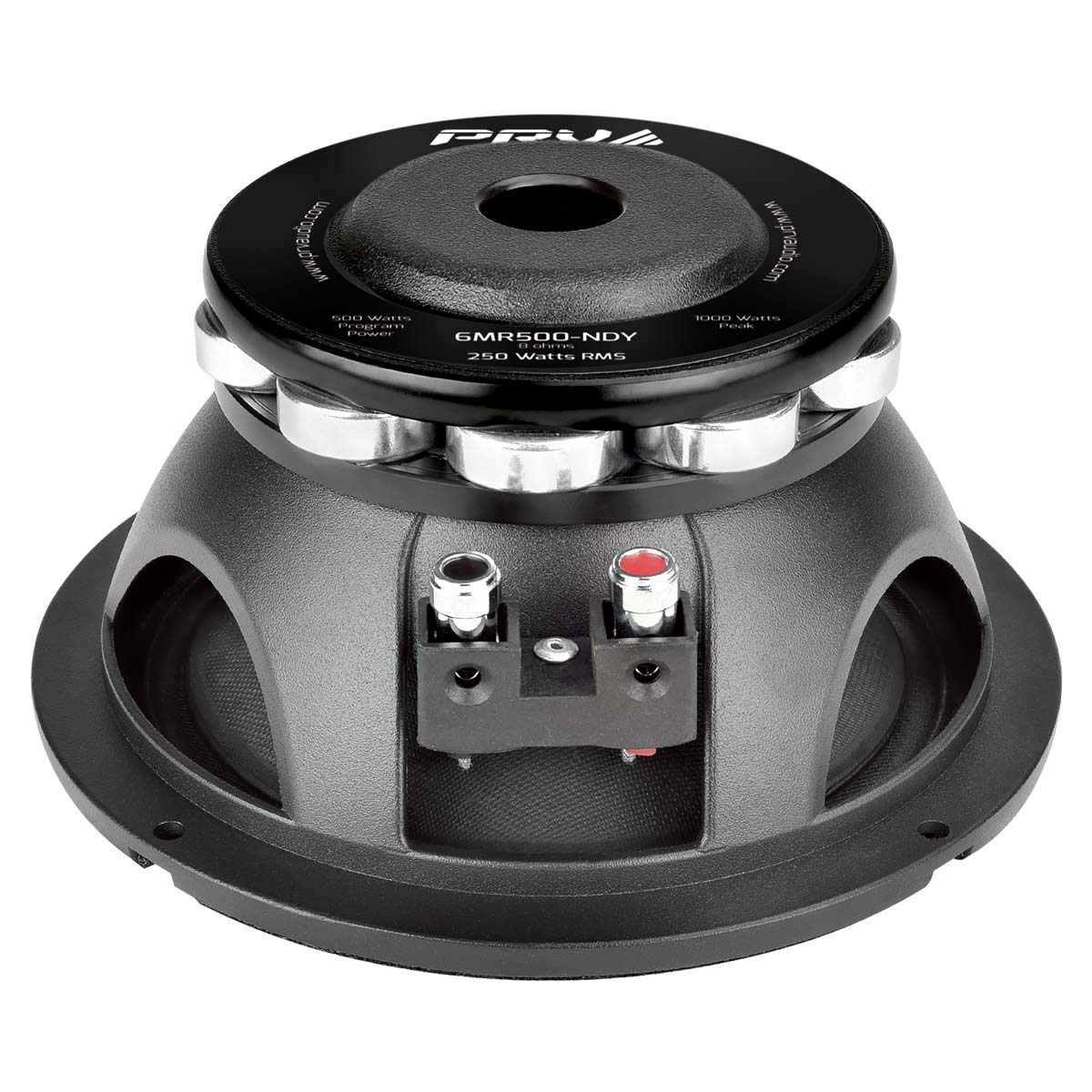

The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment. Its light weight of only 3.3 lbs helps keep your enclosures light and is a great use for car audio installers looking for high SPL midrange and upper midrange responses. For car audio enthusiast, this model is also available in 4 ohms.
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 250 Watts
- Program Power: 500 Watts
- Sensitivity (1W/1m): 96 dB
- Voice Coil Diameter: 2?
GENERAL SPECIFICATIONS
| Nominal Diameter | 6? (152 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 250 Watts |
| Program Power | 500 Watts |
| Sensitivity 2.83V at 1m | 96 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
220 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 90 13,000 Hz |
| Voice Coil Diameter | 2? (50 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.2 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.5 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 5.13 l |
| Excursion (mathematical)*** | Xmax | 4.22 mm |
| Free Air Resonance | Fs | 104.6 Hz |
| Mechanical Factor | Qms | 22.73 |
| Electrical Factor | Qes | 0.54 |
| Total Factor | Qts | 0.53 |
| Cone Area | Sd | 143 cm |
| Mechanical Mass | Mms | 12.88 g |
| Bl Factor | Bl | 9.84 Tm |
| Dc Resistance | Re | 6.2 Ohms |
| Inductance | Le | 0.12 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 11.91 g |
| Mechanical Compliance | Cms | 0.179 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
