Description
xFeatures

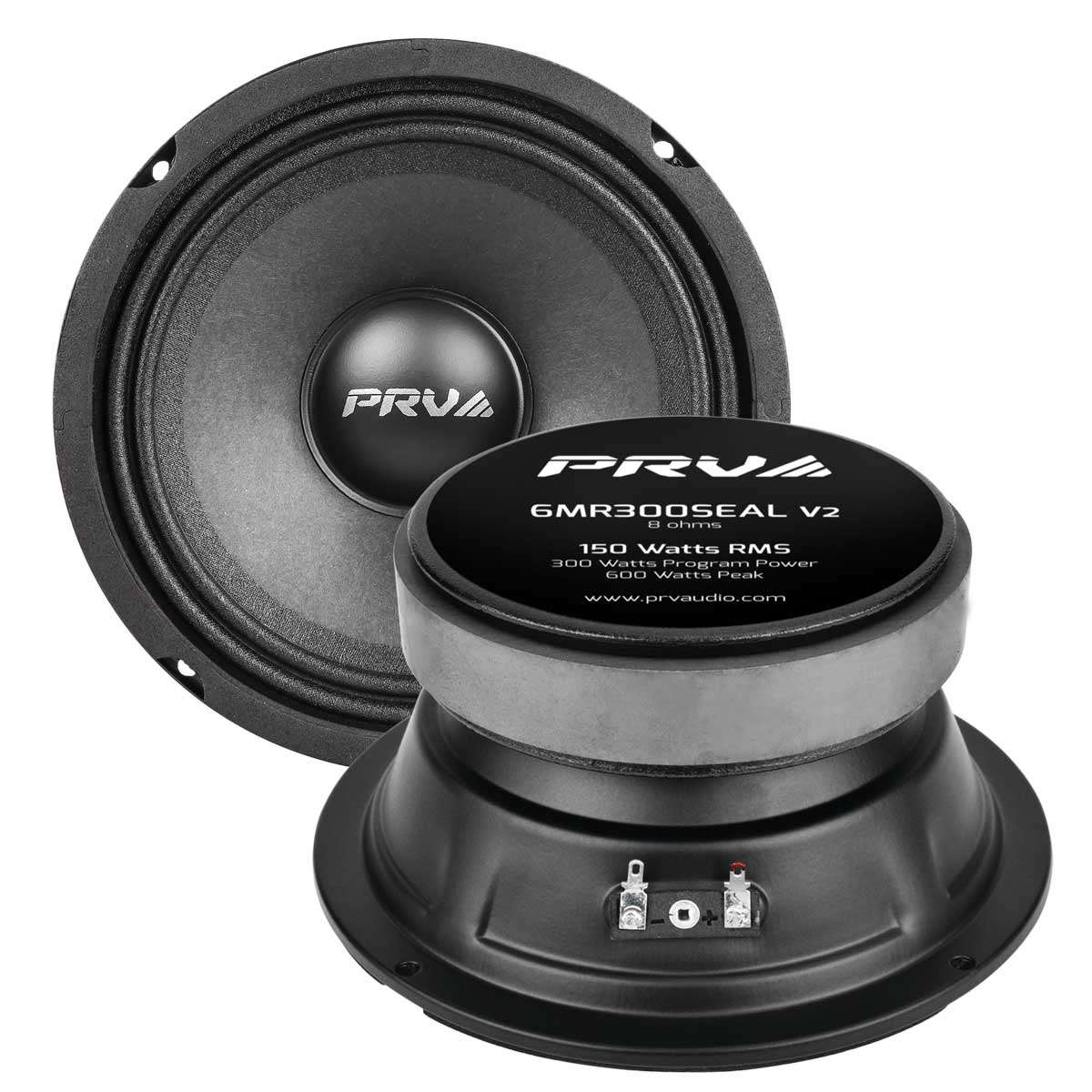

The new and improved version of the 6MR300SEAL offers very smooth Midrange response to an upper Midrange of 7 kHz and is a perfect option for driver replacements in three way cabinets. The design results in outstanding durability and a smooth punch of Midbass and Midrange for small Hi-Fi enclosures in home or pro audio.
The 6MR300SEAL v2 has a sealed basket design, permitting it to reside in the same space as larger woofers without causing distortion to the Midbass driver. The large magnet assembly is attached to the sturdy reinforced steel enclosed frame completes the 6MR300SEAL v2 to ensure a solid support structure, for long lasting play in most any environment.
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 150 Watts
- Program Power: 300 Watts
- Sensitivity (1W/1m): 96 dB
- Voice Coil Diameter: 1.5?
GENERAL SPECIFICATIONS
| Nominal Diameter | 6? (152.4 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 150 Watts |
| Program Power | 300 Watts |
| Sensitivity 2.83V at 1m | 96 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
400 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 400 7,500 Hz |
| Voice Coil Diameter | 1.5? (38.1 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 11.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 0.33 l |
| Excursion (mathematical)*** | Xmax | 4.50 mm |
| Free Air Resonance | Fs | 390.6 Hz |
| Mechanical Factor | Qms | 10.97 |
| Electrical Factor | Qes | 2.97 |
| Total Factor | Qts | 2.34 |
| Cone Area | Sd | 143 cm |
| Mechanical Mass | Mms | 13.97 g |
| Bl Factor | Bl | 8.65 Tm |
| Dc Resistance | Re | 6.5 Ohms |
| Inductance | Le | 0.34 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 13.06 g |
| Mechanical Compliance | Cms | 0.012 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 6.57? (167 mm) |
| Front Mount Baffle Cutout | 5.82? (148 mm) |
| Mounting Depth | 2.99? (76 mm) |
| ... |
