Description
xFeatures

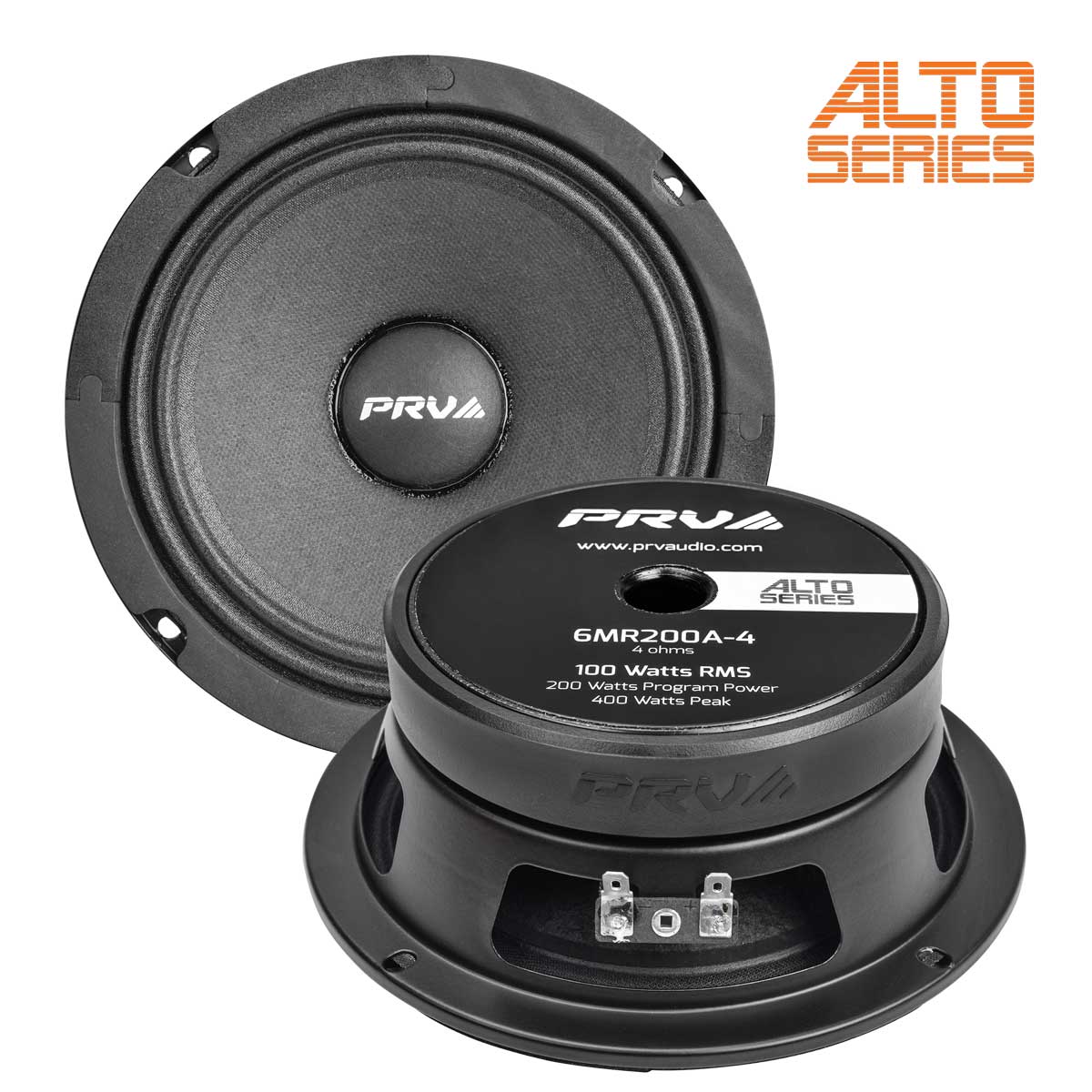

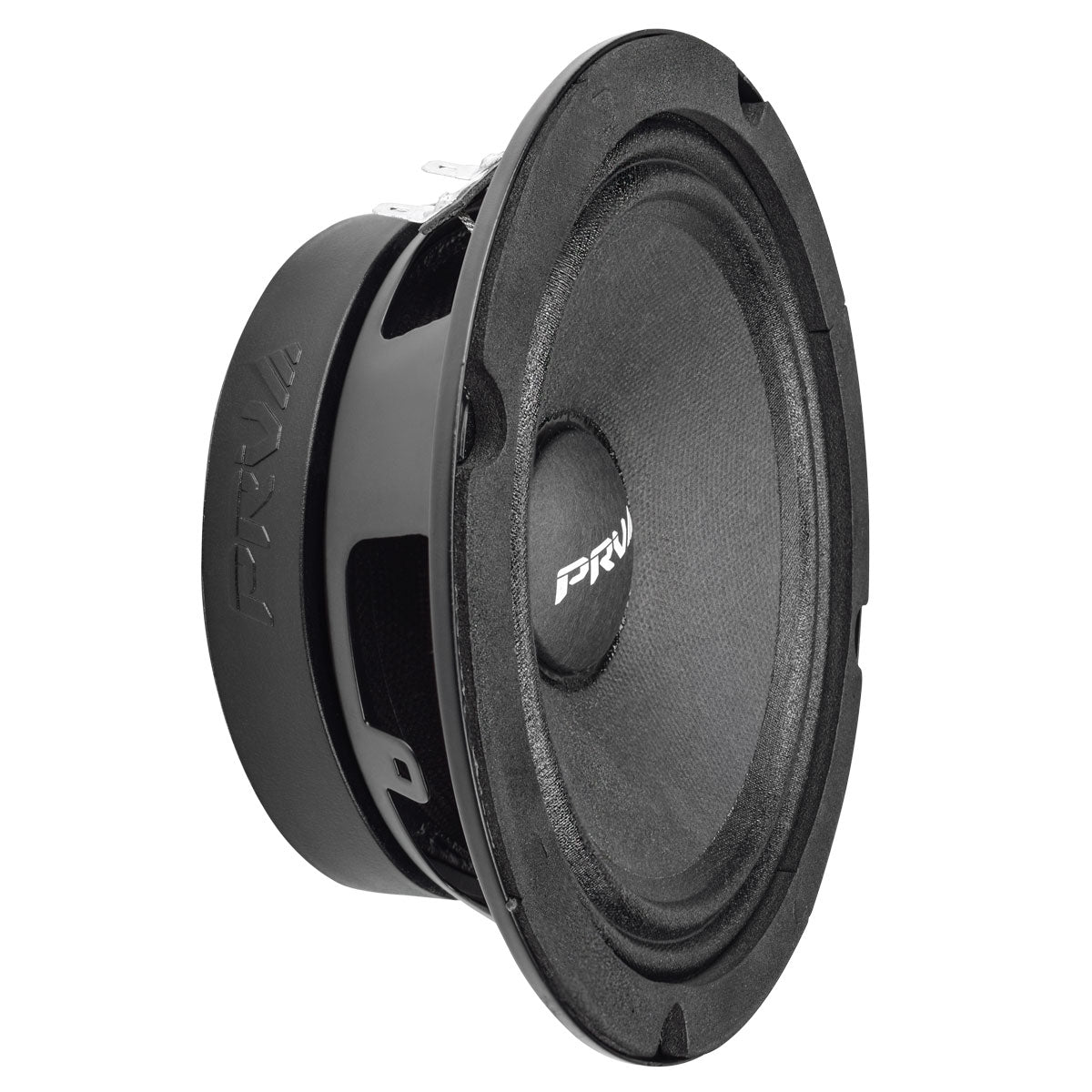

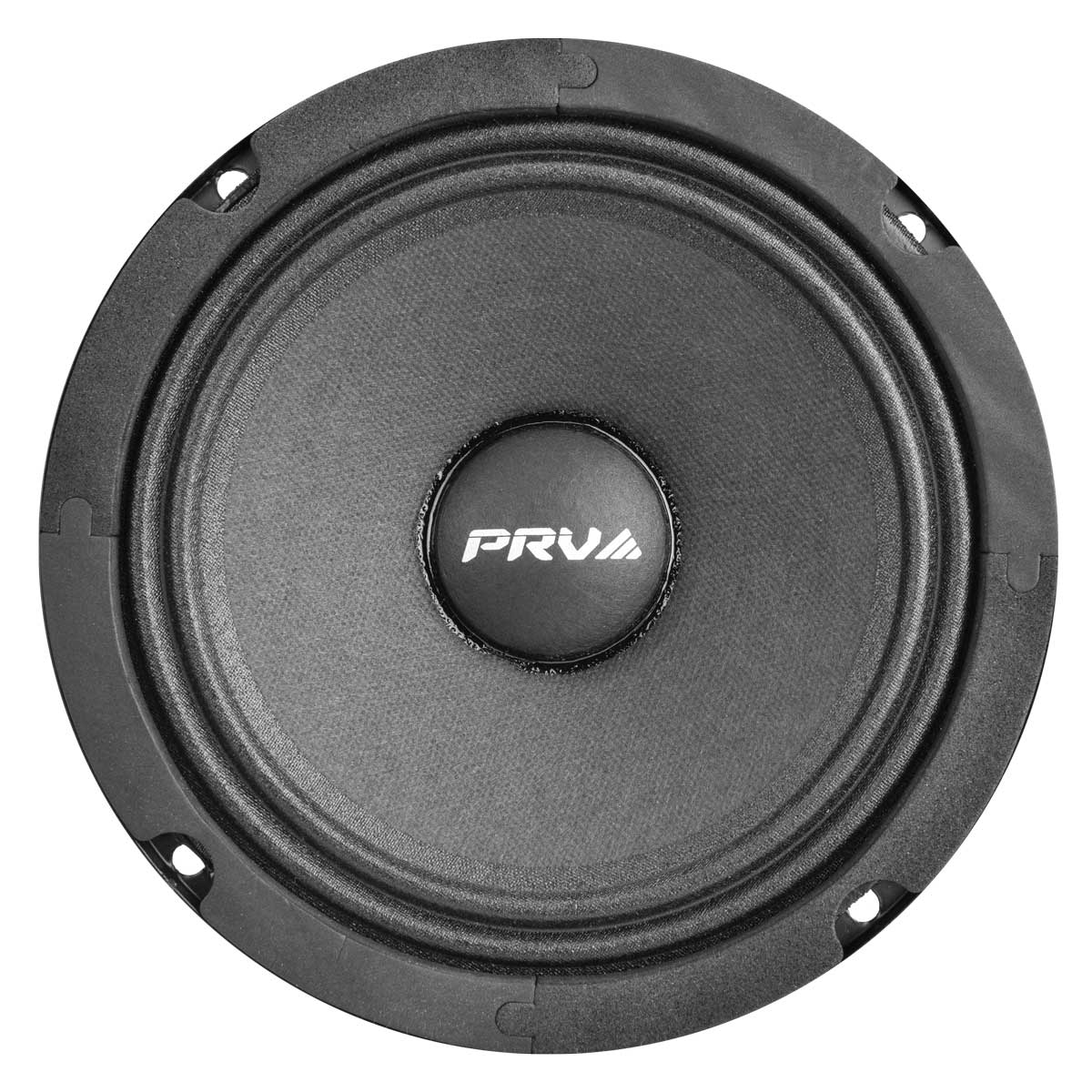

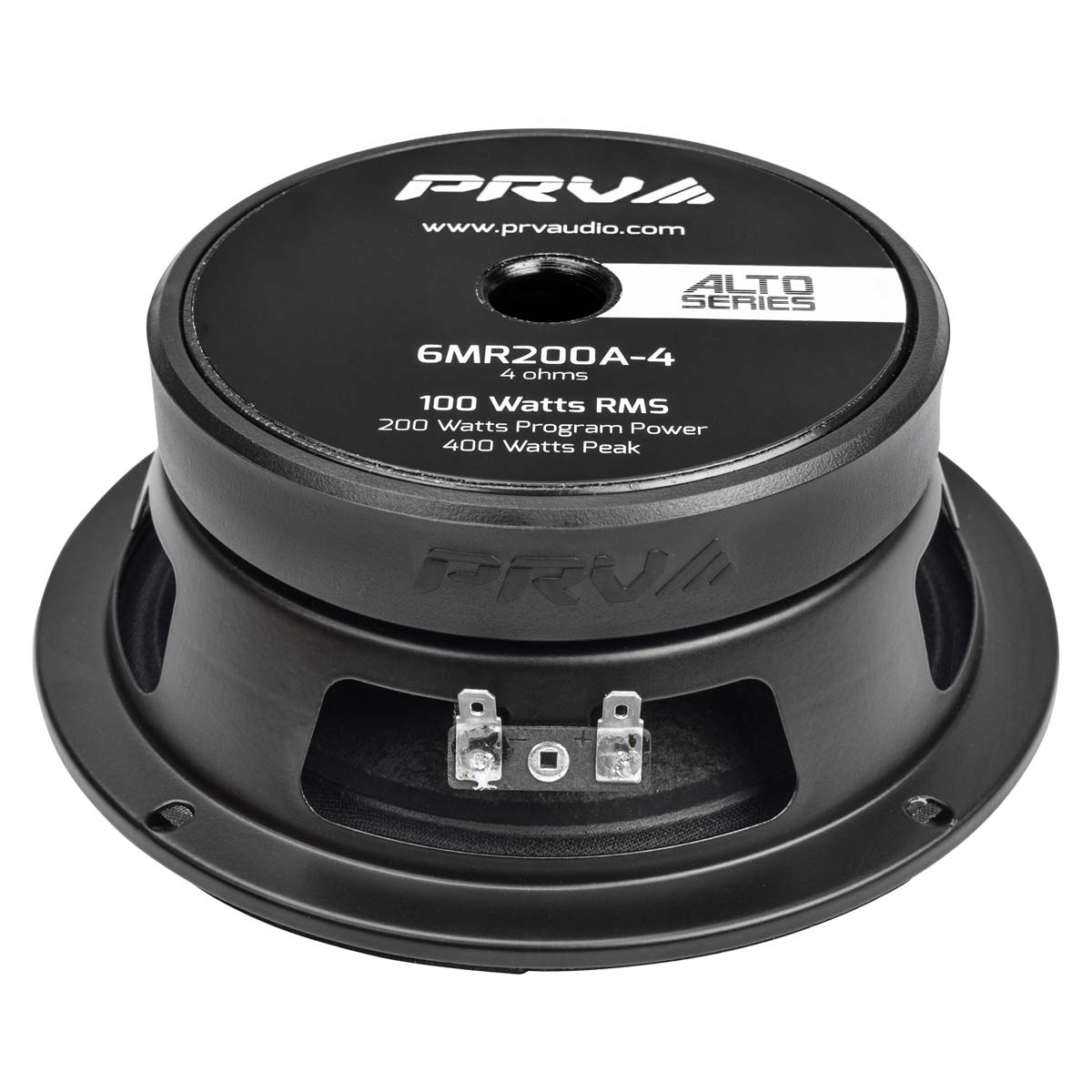

The 6MR200A-4 midrange speaker is our solution for PROAudioOnWheels for Car audio systems. This unit was designed with the goal of producing the highest possible output from a compact design without sacrificing performance, with only 2.24? mounting depth. To ensure absolute signal fidelity, a cloth sealed surround is combined with a carefully crafted Kevlar-loaded paper cone. Additionally, a vented pole piece allows heat to escape for reduced power compression.
- Impressive choice for high output home, car, and professional audio systems
- Smooth response through the mid-bass and vocal range
- Rigid yet lightweight stamped steel frame
Use this midrange in professional 3-way sound system, as a high output car audio door speaker, or as a midrange in a bass guitar speaker. With a naturally damped paper cone and cloth accordion surround resonances are kept under control making for an easy transition to a high frequency driver.
Highlights
- Nominal Impedance: 4 Ohms
- Rated AES Power Handling (RMS): 100 Watts
- Program Power: 200 Watts
- Sensitivity (1W/1m): 94 dB
- Voice Coil Diameter: 1.5?
GENERAL SPECIFICATIONS
| Nominal Diameter | 6? (152 mm) |
| Nominal impedance | 4 Ohms |
| Rated AES Power Handling (RMS) | 100 Watts |
| Program Power | 200 Watts |
| Sensitivity 2.00V at 1m | 94 dB |
|
Recommended Hi Pass Crossover* *For Full Power Handling |
150 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 155 11,000 Hz |
| Voice Coil Diameter | 1.5? (38 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 8.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.5 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 3.16 l |
| Excursion (mathematical)*** | Xmax | 2.62 mm |
| Free Air Resonance | Fs | 114.1 Hz |
| Mechanical Factor | Qms | 13.16 |
| Electrical Factor | Qes | 1.28 |
| Total Factor | Qts | 1.17 |
| Cone Area | Sd | 137 cm |
| Mechanical Mass | Mms | 10.1 g |
| Bl Factor | Bl | 6.27 Tm |
| Dc Resistance | Re | 3.4 Ohms |
| Inductance | Le | 0.26 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 9.02 g |
| Mechanical Compliance | Cms | 0.120 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
