Description
xFeatures

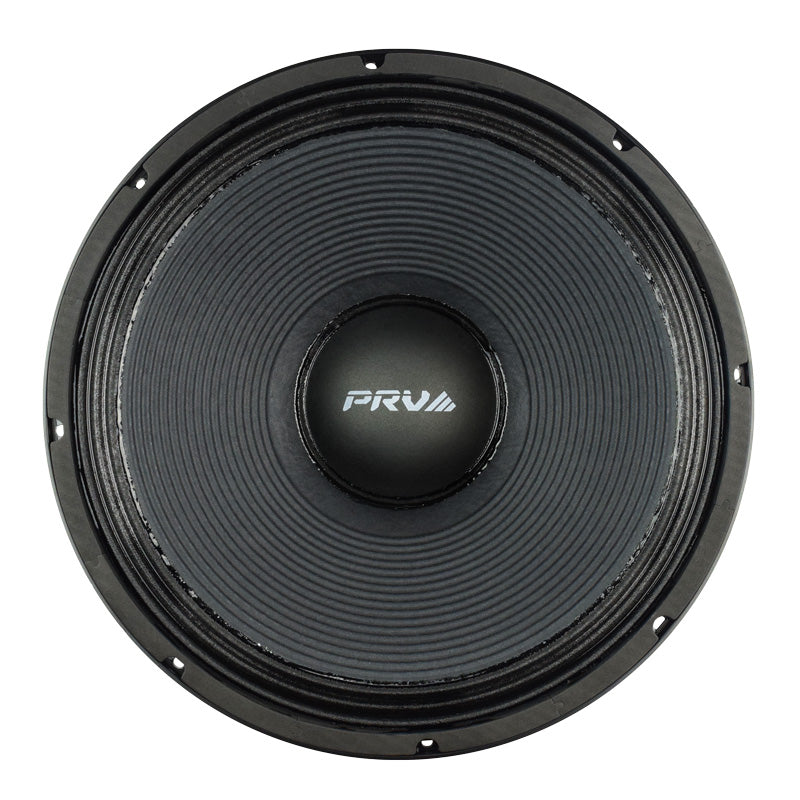

The 18SW2200 v2 is the upgraded version of the popular 18SW2200 pro audio loudspeaker in the PRV subwoofer series. This newest version features more durable moving parts increasing longevity and extreme linearity during intense use.
The advanced 4 inside out voice coil and cone material along with its ability to reproduce extremely low frequencies will forever make this your woofer of choice to replace your existing drivers.
The 18SW2200 v2 response and accuracy to low notes will surprise any listener and is great for either bandpass or bass reflex systems and has a specially designed Forced Air Cooling System to ensure proper cooling for long hard play in your pro audio environment.

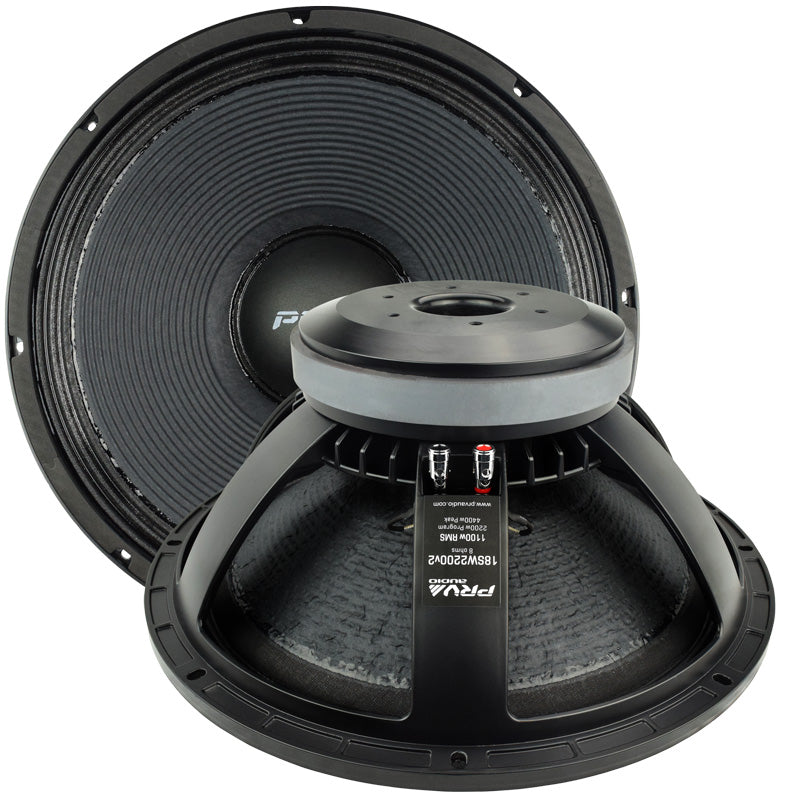

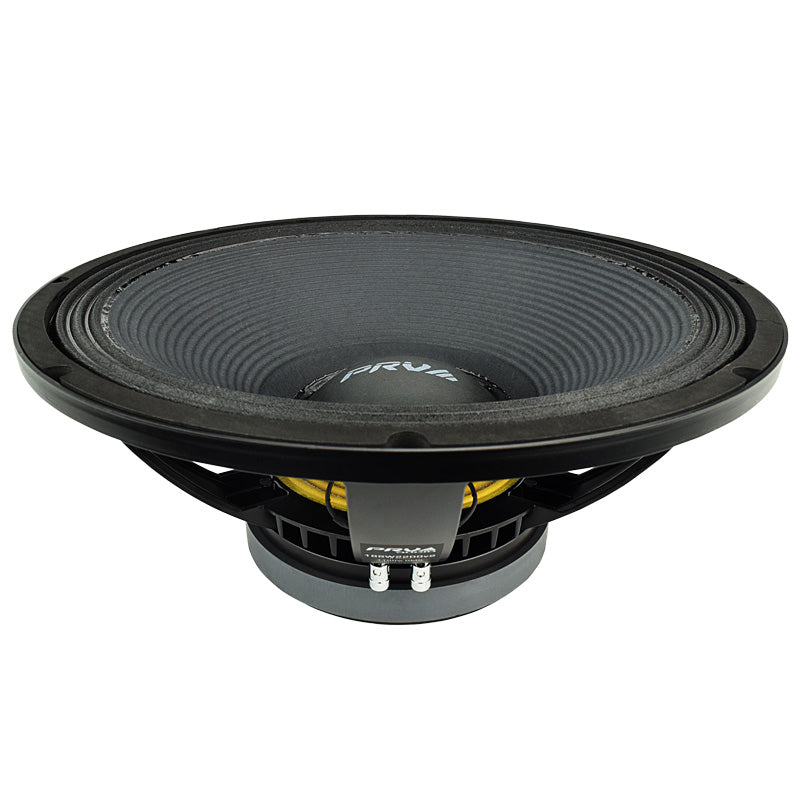

A reinforced cast aluminum frame increases rigidity and resists frame flex. Spring-loaded speaker terminals allow for easy speaker wire connection and the use of a dual spider suspension, mated to a cotton M-Roll surround and ribbed cone (all attached with a special resin) offer precise movement along its impressive 9mm Xmax.
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 1100 Watts
- Program Power: 2200 Watts
- Sensitivity (1W/1m): 97 dB
- Voice Coil Diameter: 4?
GENERAL SPECIFICATIONS
| Nominal Diameter | 18? (457 mm) |
| Nominal impedance | 8 Ohm |
| Rated AES Power Handling (RMS) | 1100 Watts |
| Program Power | 2200 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
50 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 45 2,500 Hz |
| Voice Coil Diameter | 4? (100 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 25.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 11.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 157.1 l |
| Excursion (mathematical)*** | Xmax | 9.75 mm |
| Free Air Resonance | Fs | 42.7 Hz |
| Mechanical Factor | Qms | 10.95 |
| Electrical Factor | Qes | 0.45 |
| Total Factor | Qts | 0.44 |
| Cone Area | Sd | 1288 cm |
| Mechanical Mass | Mms | 204.3 g |
| Bl Factor | Bl | 24.7 Tm |
| Dc Resistance | Re | 5.1 Ohms |
| Inductance | Le | 1.92 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 178.16 g |
| Mechanical Compliance | Cms | 0.067 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
