Description
xFeatures

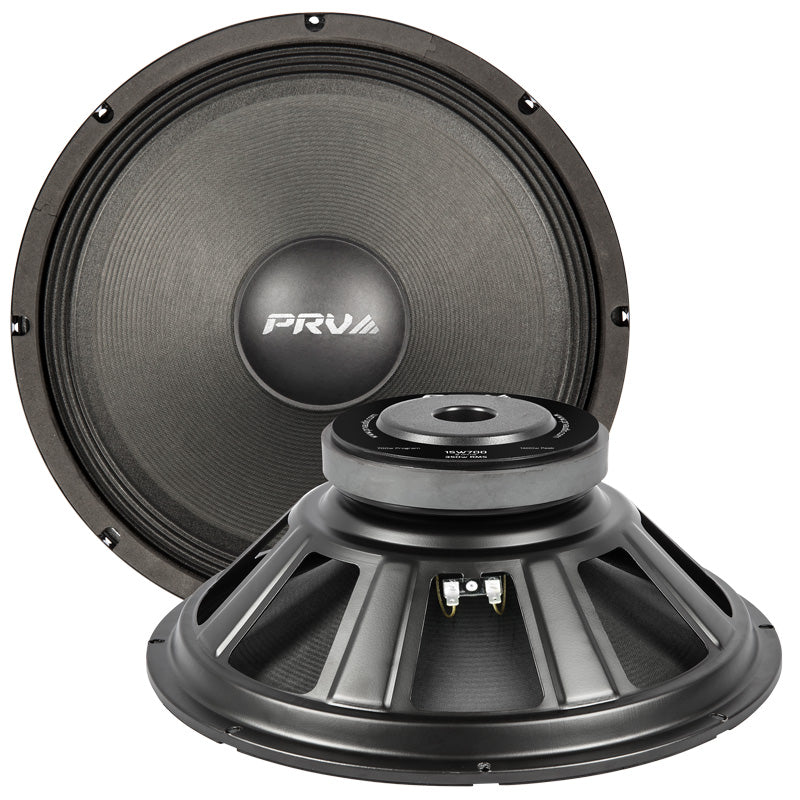

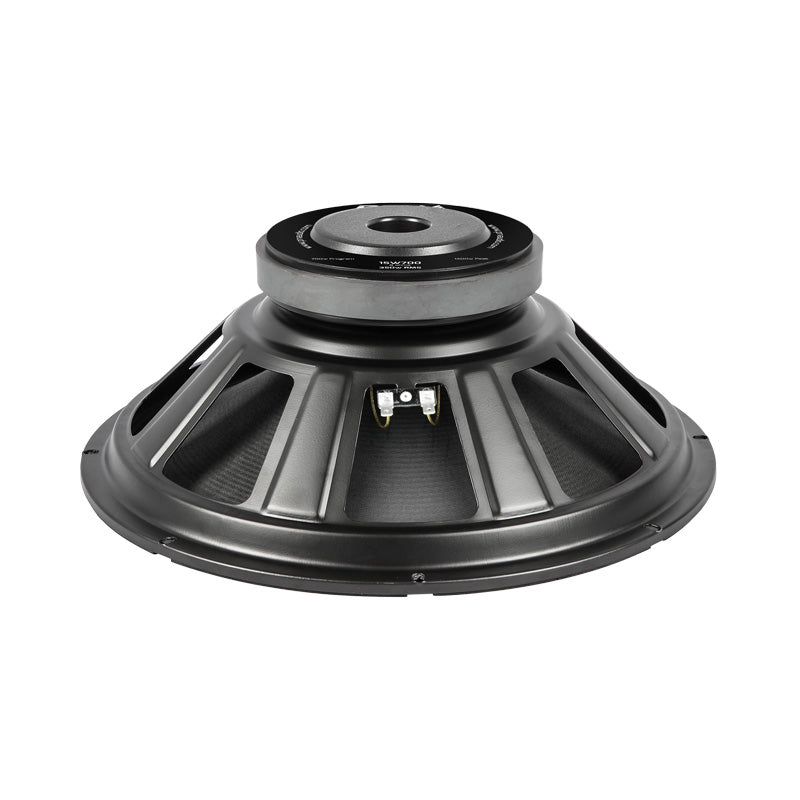

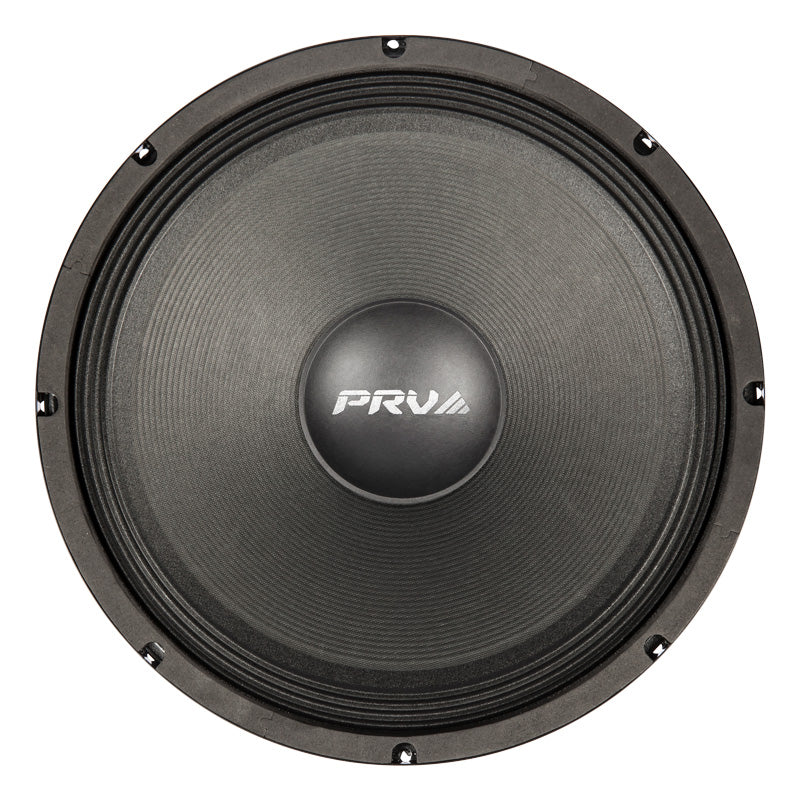

The 15W700 15? PRV Audio pro audio Woofer is a perfect drop in replacement for many full range loudspeaker applications and offers a smooth response from as low as 38hz and packs some punch in the mid bass range through 3,000 hz.
The 3 voice coil and suspension, ensures its ability to withstand long hours of operation without compromising efficiency of the speaker. A thick, yet light rigid cone ensures accurate response and power handling. If you are looking for an affordable drop-in replacement for your full range pro sound cabinets, try the 15W700. Its the best-selling woofer at PRV Audio for a reason!
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 350 Watts
- Program Power: 700 Watts
- Sensitivity (1W/1m): 95 dB
- Voice Coil Diameter: 3?
GENERAL SPECIFICATIONS
| Nominal Diameter | 15? (381 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 350 Watts |
| Program Power | 700 Watts |
| Sensitivity 2.83V at 1m | 95 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
80 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 35 3,500 Hz |
| Voice Coil Diameter | 3? (76 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 16.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.5 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 308.1 l |
| Excursion (mathematical)*** | Xmax | 6.87 mm |
| Free Air Resonance | Fs | 31.69 Hz |
| Mechanical Factor | Qms | 16.27 |
| Electrical Factor | Qes | 0.65 |
| Total Factor | Qts | 0.62 |
| Cone Area | Sd | 935 cm |
| Mechanical Mass | Mms | 99.87 g |
| Bl Factor | Bl | 13.97 Tm |
| Dc Resistance | Re | 6.4 Ohms |
| Inductance | Le | 1.33 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 83.70 g |
| Mechanical Compliance | Cms | 0.252 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 15.16 (385 mm) |
| Front Mount Baffle Cutout | 14.13 (359 mm) |
| Mounting Depth | 5.51 (140 mm) |
| Overall Depth | 5.79 (147 mm) |
| Net Weight | 11.17 Lbs (5.07 kg) |
