Description
xFeatures

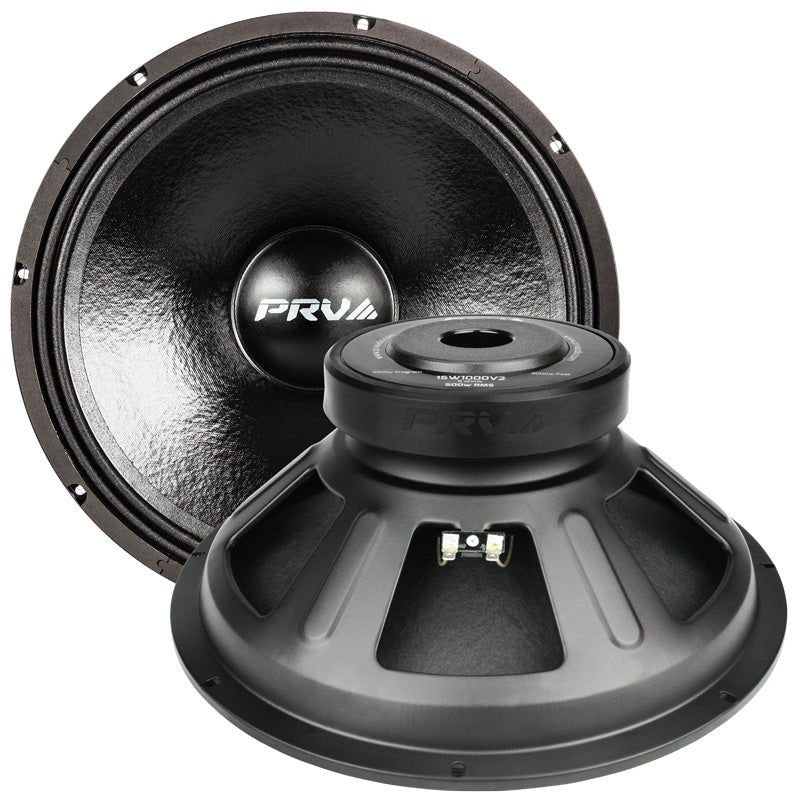

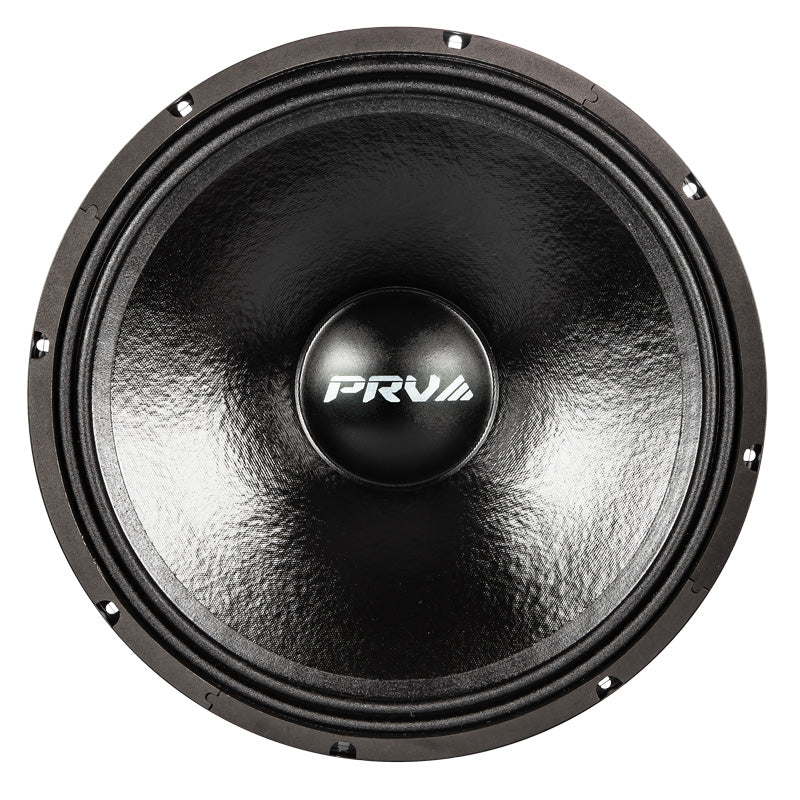

The PRV Audio 15W1000 v2 woofer is designed with a reinforced cone and M-roll surround. It offers outstanding durability and high power handling. The cone is treated to be water resistant making it a perfect replacement for your weather beaten speakers and for use in outdoor applications.
The 15W1000-v2 offers a large 3 voice coil providing better cooling and rigidity, leading to increased life expectancy and accurate response. The cone was developed and tested with the necessary stiffness to withstand intense use while still offering a smooth, accurate sound.

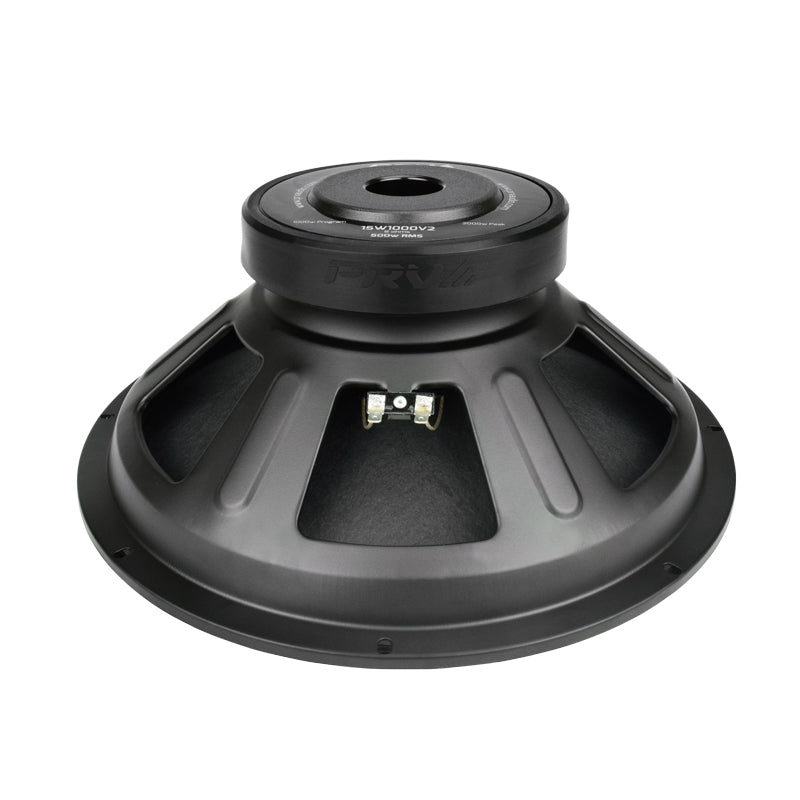

The magnet assembly attached to a newly reinforced steel frame completes the 15W1000v2 to ensure a solid support structure, for long lasting play in almost most any environment.
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 500 Watts
- Program Power: 1000 Watts
- Sensitivity (1W/1m): 97 dB
- Voice Coil Diameter: 3?
GENERAL SPECIFICATIONS
| Nominal Diameter | 15? (381 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 500 Watts |
| Program Power | 1000 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
80 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 40 4,000 Hz |
| Voice Coil Diameter | 3? (76 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 16.5 mm |
| Former Material | Aluminum |
| Magnetic Gap Depth | 7.5 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 206.1 l |
| Excursion (mathematical)*** | Xmax | 6.37 mm |
| Free Air Resonance | Fs | 39.56 Hz |
| Mechanical Factor | Qms | 25.9 |
| Electrical Factor | Qes | 0.69 |
| Total Factor | Qts | 0.68 |
| Cone Area | Sd | 990 cm |
| Mechanical Mass | Mms | 107.45 g |
| Bl Factor | Bl | 14.54 Tm |
| Dc Resistance | Re | 5.5 Ohms |
| Inductance | Le | 1.04 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 89.82 g |
| Mechanical Compliance | Cms | 0.150 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 15.20 (386 mm) |
| Front Mount Baffle Cutout | 13.90 (353 mm) |
