Description
xFeatures
High fidelity meets high output PRV Audio ALTO Series Woofers. Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. Thats why PRV Audios Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic.
Highlights
- Nominal Impedance: 8 Ohms
- 800 Watts Program RMS power makes high acoustical output
- 55 to 5,800 Hz frequency response makes this midbass/woofer suitable for two or three-way designs
- Capable of extreme output levels with 97 dB sensitivity
- 5.72 mm Xmax allows excellent displacement for high impact bass capability

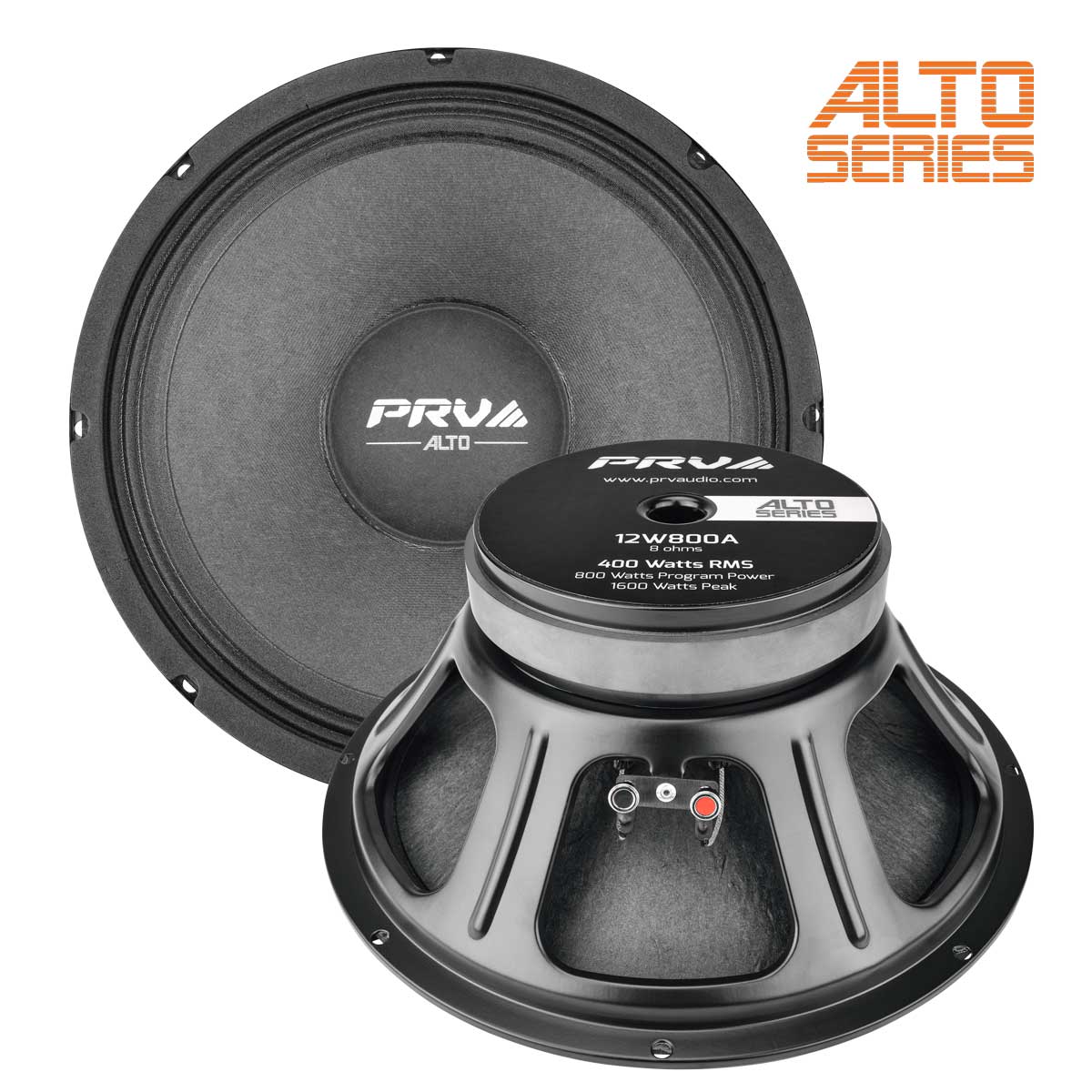

With improved excursion and higher power handling over PRVs popular 12W750A, the 12W800A Alto series 12? professional 8 ohm woofer offers improved output capability and more low frequency impact.
Designed for use in compact ported box, the 12W800A is a great choice for any system where high efficiency and high output is the goal. This low frequency midbass has been painstakingly voiced to create a natural tone with low distortion at high levels. Featuring a multi-roll surround, large raised spider, and 2.50? light-weight voice coil, the 12W800A is capable of high output while keeping distortion under control.
GENERAL SPECIFICATIONS
| Nominal Diameter | 12? (305 mm) |
| Nominal impedance | 8 Ohm |
| Rated AES Power Handling (RMS) | 400 Watts |
| Program Power | 800 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 115 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 55 5800 Hz |
| Voice Coil Diameter | 2.5? (65 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 16.2 mm |
| Former Material | Polyimide |
| Magnetic Gap Depth | 9.5 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 93.9 l |
| Excursion (mathematical)*** | Xmax | 5.72 mm |
| Free Air Resonance | Fs | 49.8 Hz |
| Mechanical Factor | Qms | 11.89 |
| Electrical Factor | Qes | 0.49 |
| Total Factor | Qts | 0.47 |
| Cone Area | Sd | 552 cm |
| Mechanical Mass | Mms | 46.24 g |
| Bl Factor | Bl | 12.71 Tm |
| Dc Resistance | Re | 5.5 Ohms |
| Inductance | Le | 0.45 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 38.90 g |
| Mechanical Compliance | Cms | 0.221 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap...
