Description
xFeatures

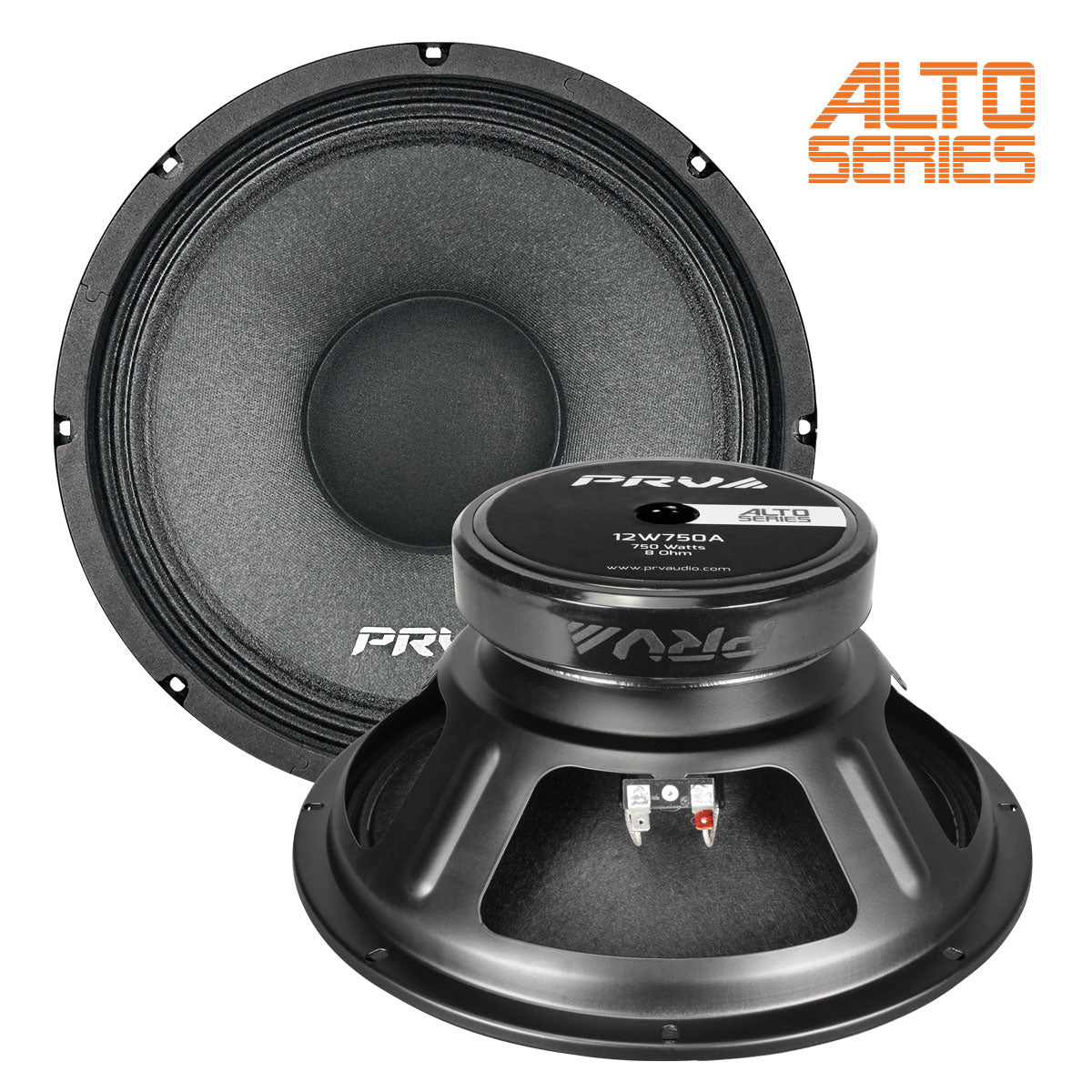

Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. Thats why PRV Audios Alto Series 12? 12W750A was painstakingly voiced to create a natural, smooth sound while remaining dynamic.
Youll find that the 12W750A works remarkably well in vented and sealed cabinet, as a woofer in two-way speakers or midrange in three-way systems, and even shines when used as a bass guitar speaker. Upgrade your speakers to the Alto Series today and find out why PRV Audio is one of the fastest growing speaker brands today!
Highlights

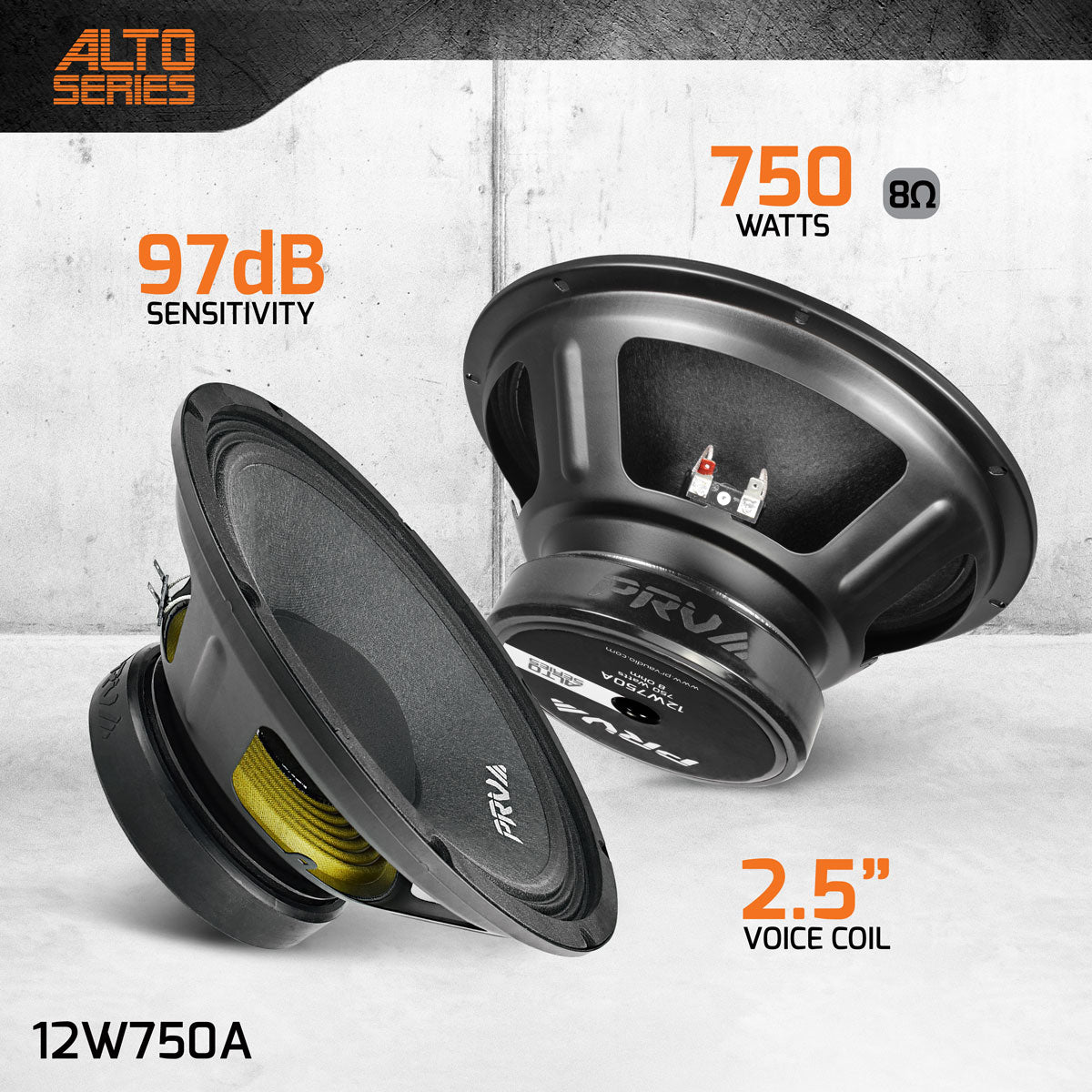

- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 375 Watts
- Program Power: 750 Watts
- Sensitivity (1W/1m): 97 dB
- Voice Coil Diameter: 2.5?
GENERAL SPECIFICATIONS
| Nominal Diameter | 12? (305 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 375 Watts |
| Program Power | 750 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
200 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 60 5,500 Hz |
| Voice Coil Diameter | 2.5? (65.5 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.5 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 81.00 l |
| Excursion (mathematical)*** | Xmax | 3.62 mm |
| Free Air Resonance | Fs | 59.87 Hz |
| Mechanical Factor | Qms | 17.45 |
| Electrical Factor | Qes | 0.44 |
| Total Factor | Qts | 0.43 |
| Cone Area | Sd | 585 cm |
| Mechanical Mass | Mms | 41.72 g |
| Bl Factor | Bl | 14.29 Tm |
| Dc Resistance | Re | 5.8 Ohms |
| Inductance | Le | 0.71 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 33.71 g |
| Mechanical Compliance | Cms | 0.169 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

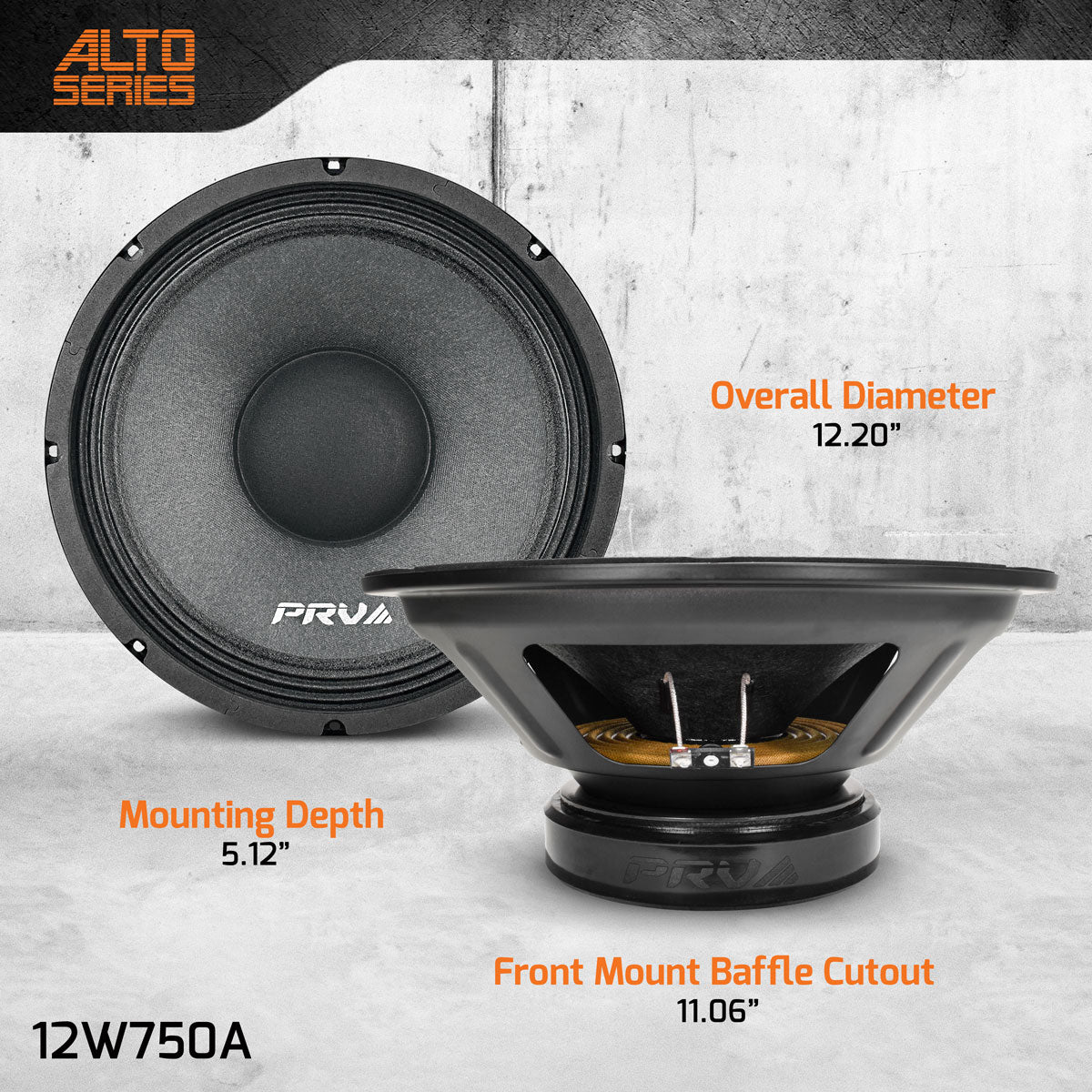

| Overall Diameter | 12.20 (310 mm) |
| Front Mount Baffle Cutout | 11.06 ( 281 mm) |
| Mounting Depth | 5.12 (130 mm) |
| Overall Depth | 5.47 (139 mm) |
| Net Weight | 10.... |
