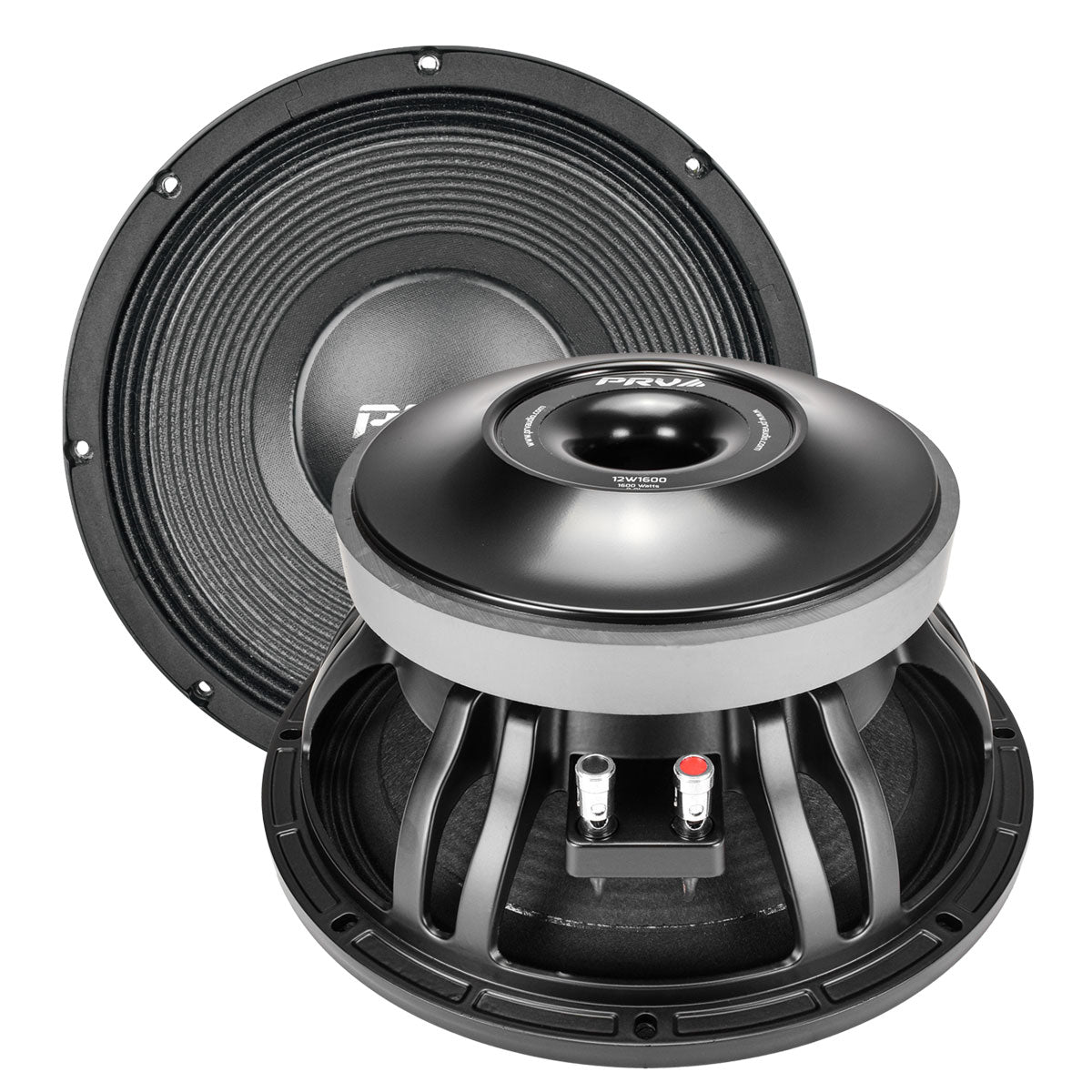

PRV Audio 12W1600 12" Woofer Loudspeaker

• 4? split copper voice coil wound on fiberglass former for hi-temp performance, 8 ohms
• Ventilated voice coil gap reduces power compression
• 10.5 mm Xmax, 36 mm peak-to-peak excursion before damage
• 1600 watts continuous program power rating makes high acoustical output
• High BL factor and Xmax for outstanding Low output
• Weather-resistant paper cone and dust cap

Designed to make tremendous amounts of bass, the 12W1600 12? woofer can be used in small vented or sealed cabinet. The shallow 5.51? mounting depth and high EBP makes it ideal for compact folded horn enclosures.

Our specially designed rigid cast aluminum frame features side forced cooling system openings which allows airflow to cool the voice coil to handle up to 1600 watts RMS without issue. Spring-loaded push terminals make installation a snap while offering a secure connection to your speaker wires.

To stand up to the use and abuse of the professional sound environment we designed a 4? spit copper voice coil that is wound inside-outside on a fiberglass former and features a generous 27.5 mm winding length for extended Xmax and less distortion.

The cone, constructed of thick paper for a natural response, includes glass fiber reinforcement and uses a ribbed design offering additional structural support.

Supporting the cone is a double heavy spider and triple roll treated cloth surround, both designed for high excursion applications to handle short bursts of excessive power without damage.
